Description
- Capacity: 96-well plate, 12 x 8-tube strips or 96 x 0.1mL tubes
- Excitation source: high-intensity Blue LED
- Detection method: photodiode array with 4 emission filters
- Calibrated dyes: FAM, SYBR Green I, VIC, JOE, NED, TAMRA and ROX

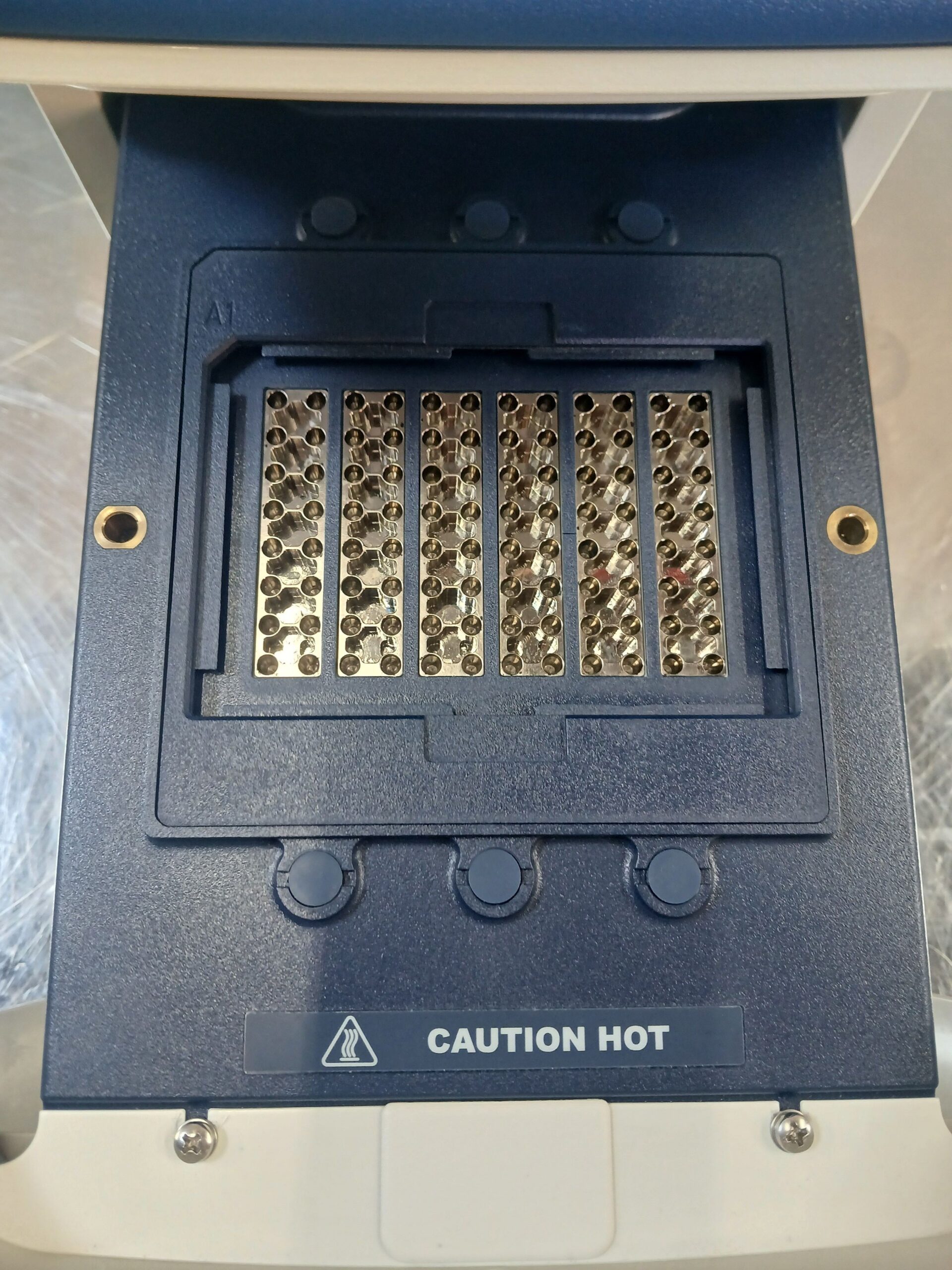

- Thermal system: peltier-based system featuring a VeriFlex Block
- Temp range: 4C to 100C
- Thermal accuracy: +/-0.25C (measured from 35C to 95C)
- Sample ramp rate: Fast mode +/-2.2C/s / Standard mode +/-1.6C/s
- Reaction volume: 10 to 30uL
- Dynamic range: linear dynamic range greater than 9 log units
- Sensitivity: down to 1 copy of a single copy template
- Run time: fast mode <40 mins / Standard mode < 2 hours
- Dimensions: 9.7″W x 19″D x 20.2″H
- 100-240V 50/60Hz
