Description

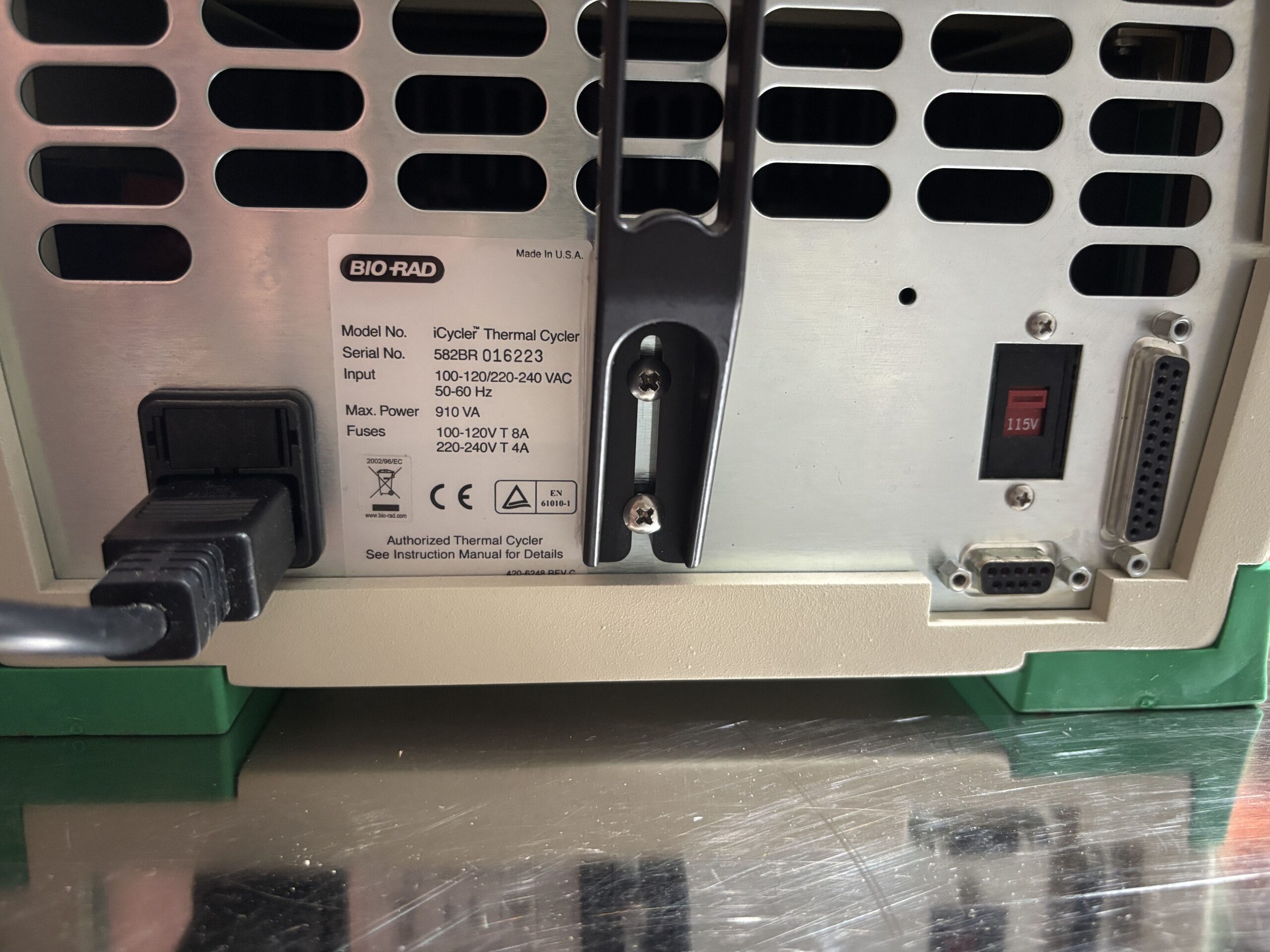

- Chassis model: 582BR
- Heating and cooling method: peltier and joule technologies
- Max heating rate: 3.3C per second
- Max cooling rate: 2.0C per second
- Temp operational range: 4C to 100C
- Temp accuracy: +/-0.3C
- Temp uniformity: +/-0.4C
- Heated lid temp: up to 105C
- Gradient operational range: 40C to 100C
- Programmable gradient span: 1C to 25C
- Gradient accuracy and uniformity: +/-0.4C

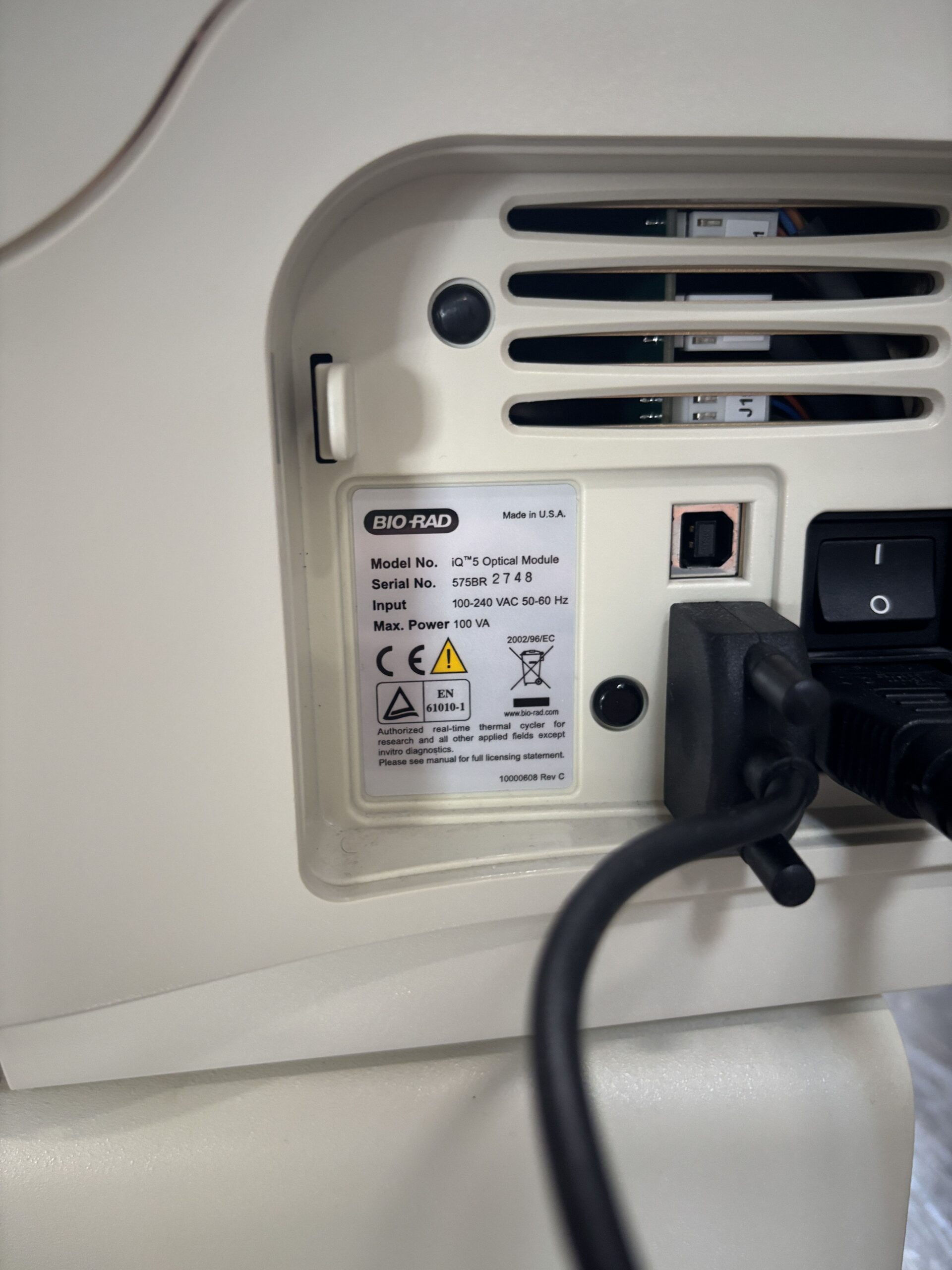

- Module model: 575BR
- Excitation source: fan-cooled 50W tungsten halogen lamp
- Detector type: sensitive charge coupled device (CCD) camera system
- Wavelength ranges: excitation from 475-645 nm; detection from 515-700nm
- Multiplex capability: up to 5 targets per well simultaneously
- Dynamic range: 9 orders of magnitude
- Sensitivity: capable of detecting a single copy of IL-1B in human genomic DNA
- 5 standard sets of optimized for FAM/SYBR Green I, HEX, TAMRA, Texas Red & Cy5
- iQ5 Optical System Software (compatible with legacy windows platforms like XP Professional and Vista
- Absolute quantification via a standard curve, automated allelic discrimination, melt-curve analysis and advanced relative gene expression quantification
- Dimensions: 26.4″D x 19.2″W x 12″H
- 100-240V 50/60Hz
