Description
- Plate types: 96, 384 and 1536-well, both standard and low profile heights
- Manifold: dual-action manifold for 96 and 384-well plates with unique aspirate and dispense manifolds for 1536-well plates
- Manifold cleaning: ultrasonic advantage for manifold cleaning to prevent clogging
- Dispensing volume: 25-5000uL/well, selectable in 1uL increments (configuration dependant)
- Wash cycles: 1 to 250
- Fluid delivery: uses peristaltic and/or syringe pumps depending on the configuration

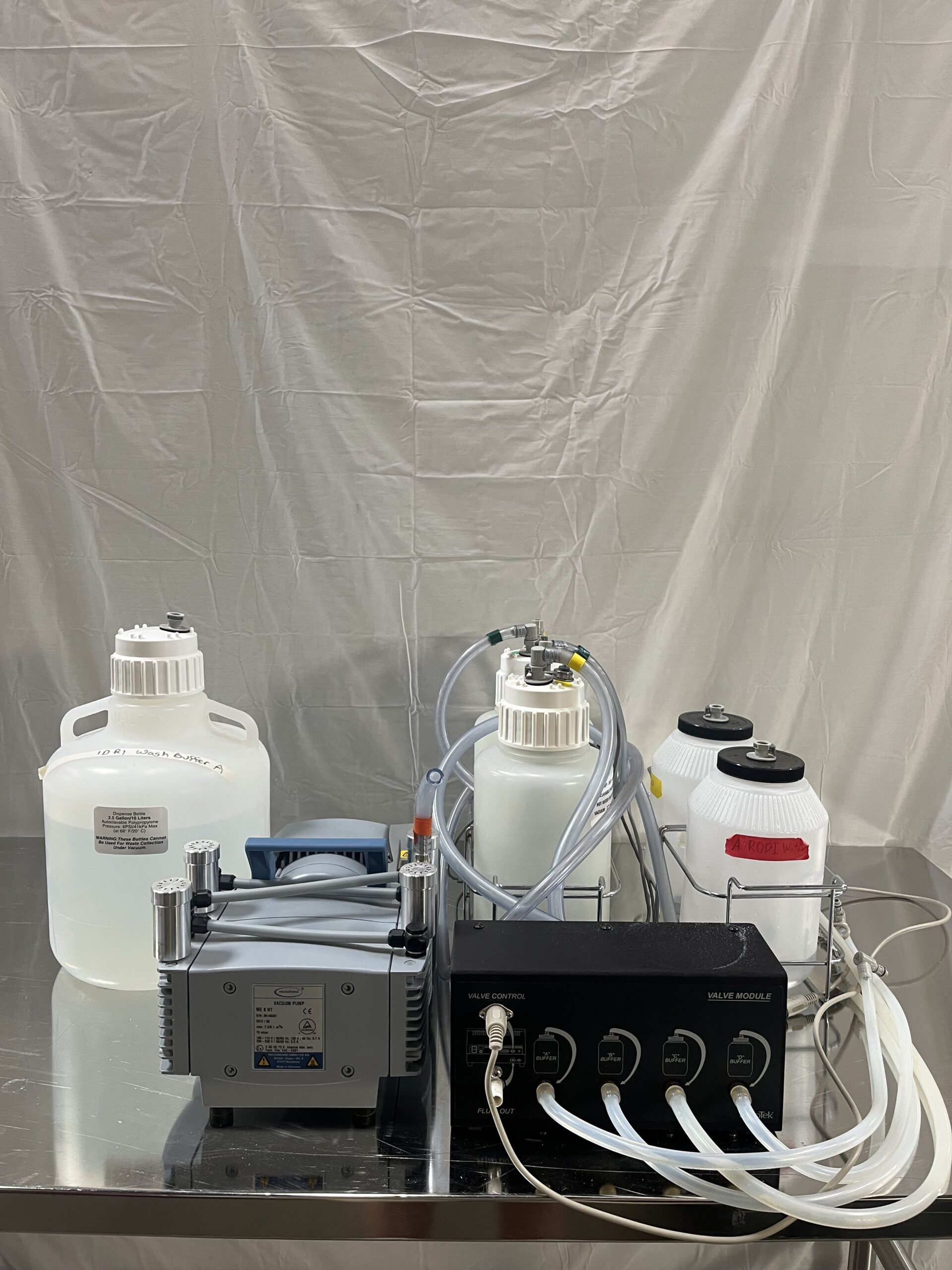

- Buffer/reagent selection: auto-switching for up to 4 buffers with an optional valve module
- Washing speed: 96-well 13 seconds (300uL/well, 96-tube manifold)
- 384-well 17 seconds (100uL/well, 192-tube manifold)
- 1536-well 36 seconds (10uL/well)
- Dispense accuracy: +/-3%
- Dispense precision: <3%CV
- Can perform full-plate washing, shaking, soaking and dispensing
- Local touch-pad or computer software control
- Compatible with BioStack automation systems

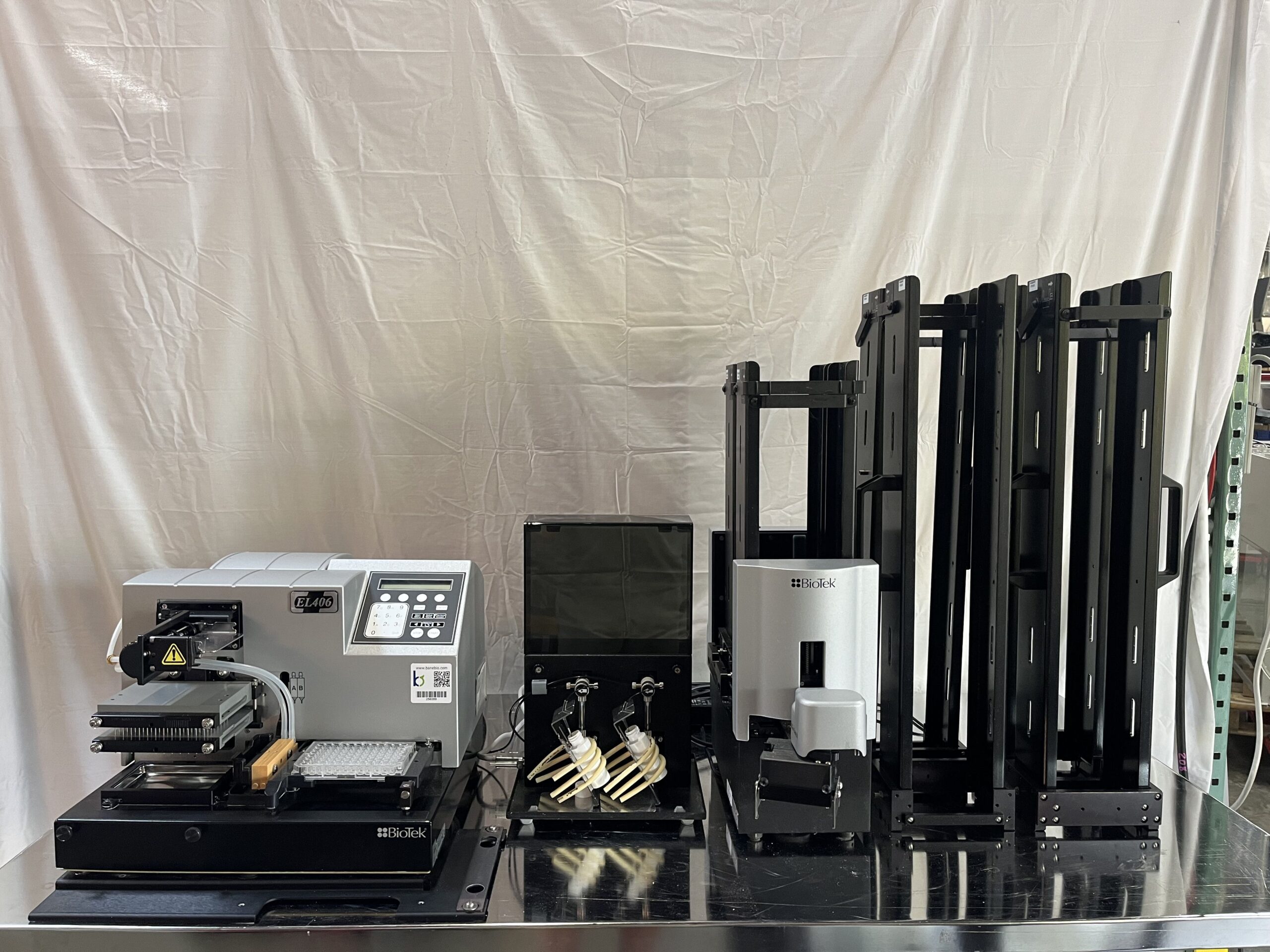

- Includes everything pictured
