Description

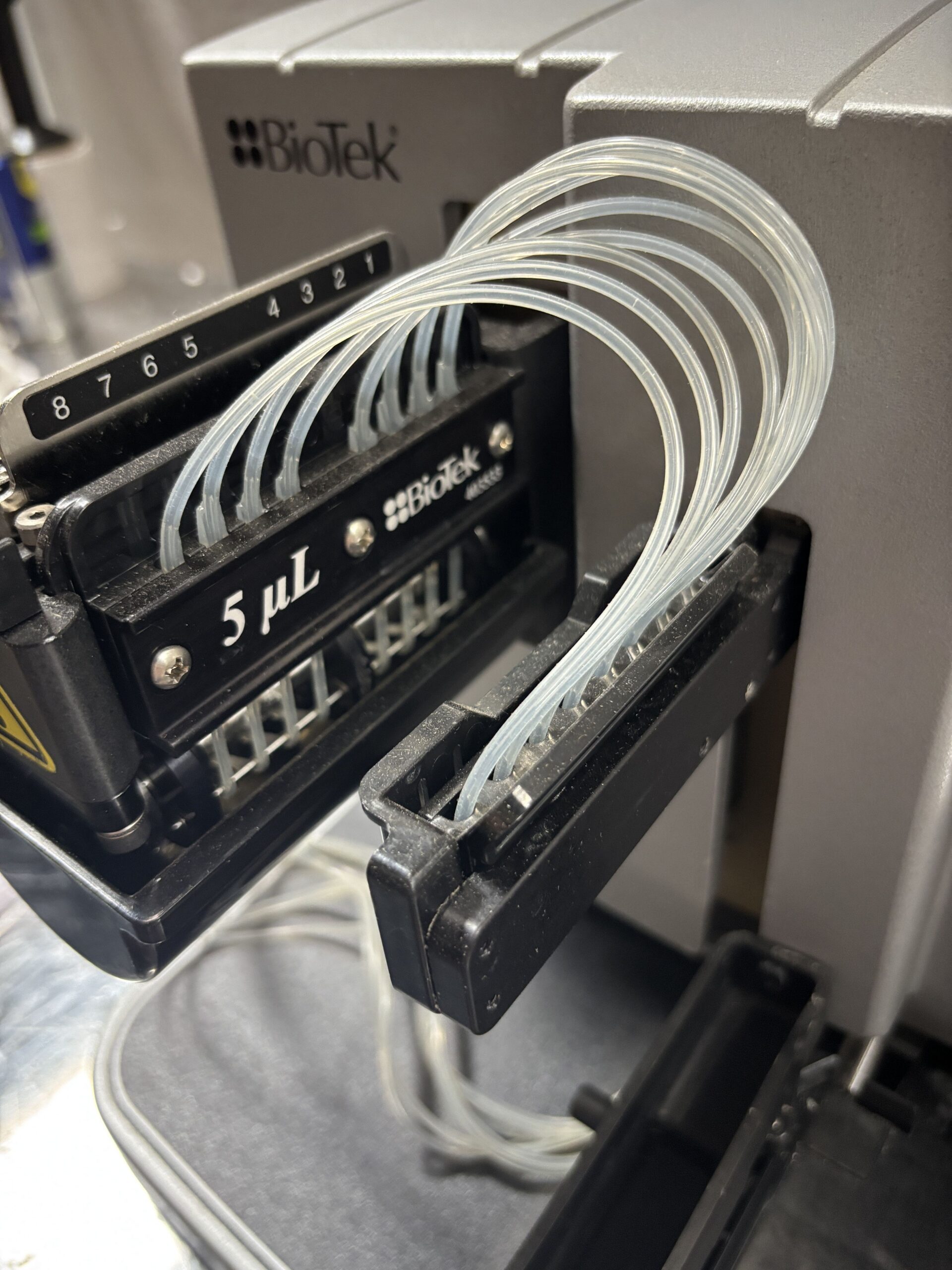

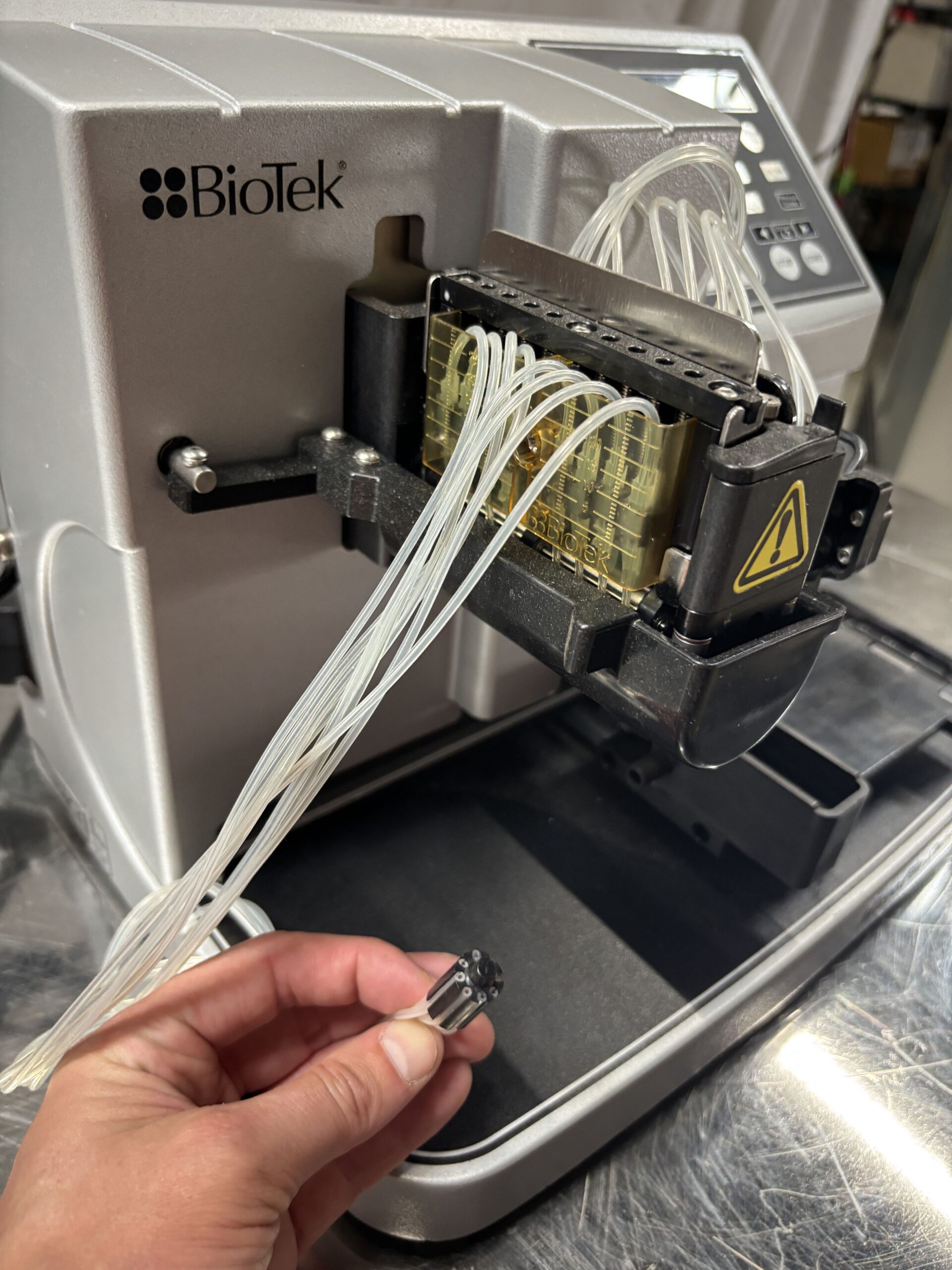

- Dispensing mechanism: positive displacement peristaltic pump utilizing 4 rollers over an 8-channel (1×8) manifold cassette
- Dispensing volume range: 1uL to 10,000uL (10mL) per well, depending on the cassette size in use

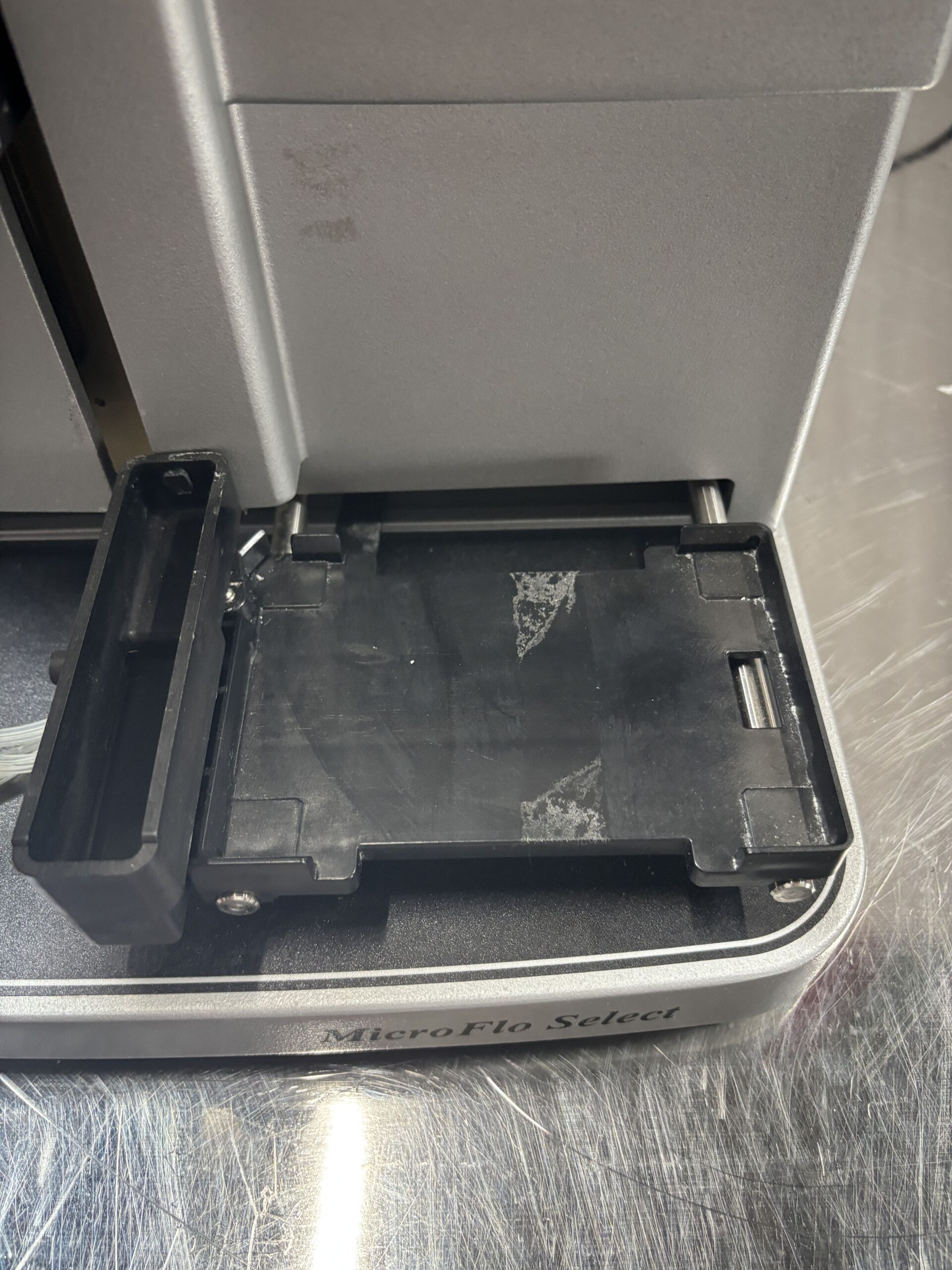

- Supported labware formats: 6, 12, 24, 48, 96, 384 & 1536-well microplates
- Accommodates standard, low-profile or deep-well plate heights
- Compatible with flat, found, V bottom, PCR or half-area wells
- Supports microtubes and standard test tube configurations up to 4″ tall via a special carrier
- Processing throughput: extremely fast execution, capable of filling of a 1536-well plate in 18 seconds
- Flow rate selection: user-selectable low, medium or high settings to optimize for different liquid viscosities
- Sterilization capability: reagent path tubing and cassettes are fully autoclavable at 121C

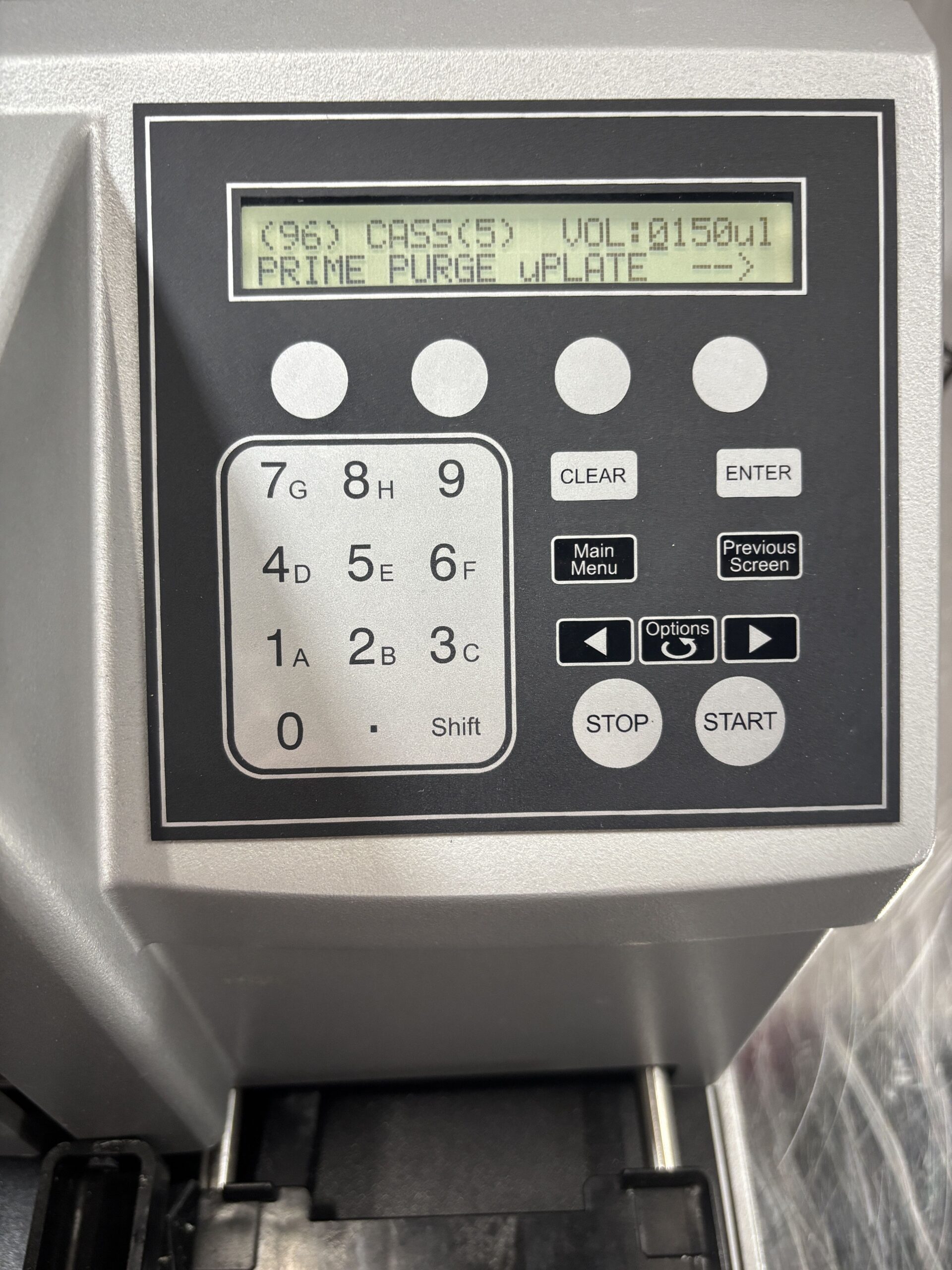

- Saves the 10 most common protocols in quick access memory, with storage for up to 99 user defined programs
- Dimensions: 14″W x 12″D x 12″H

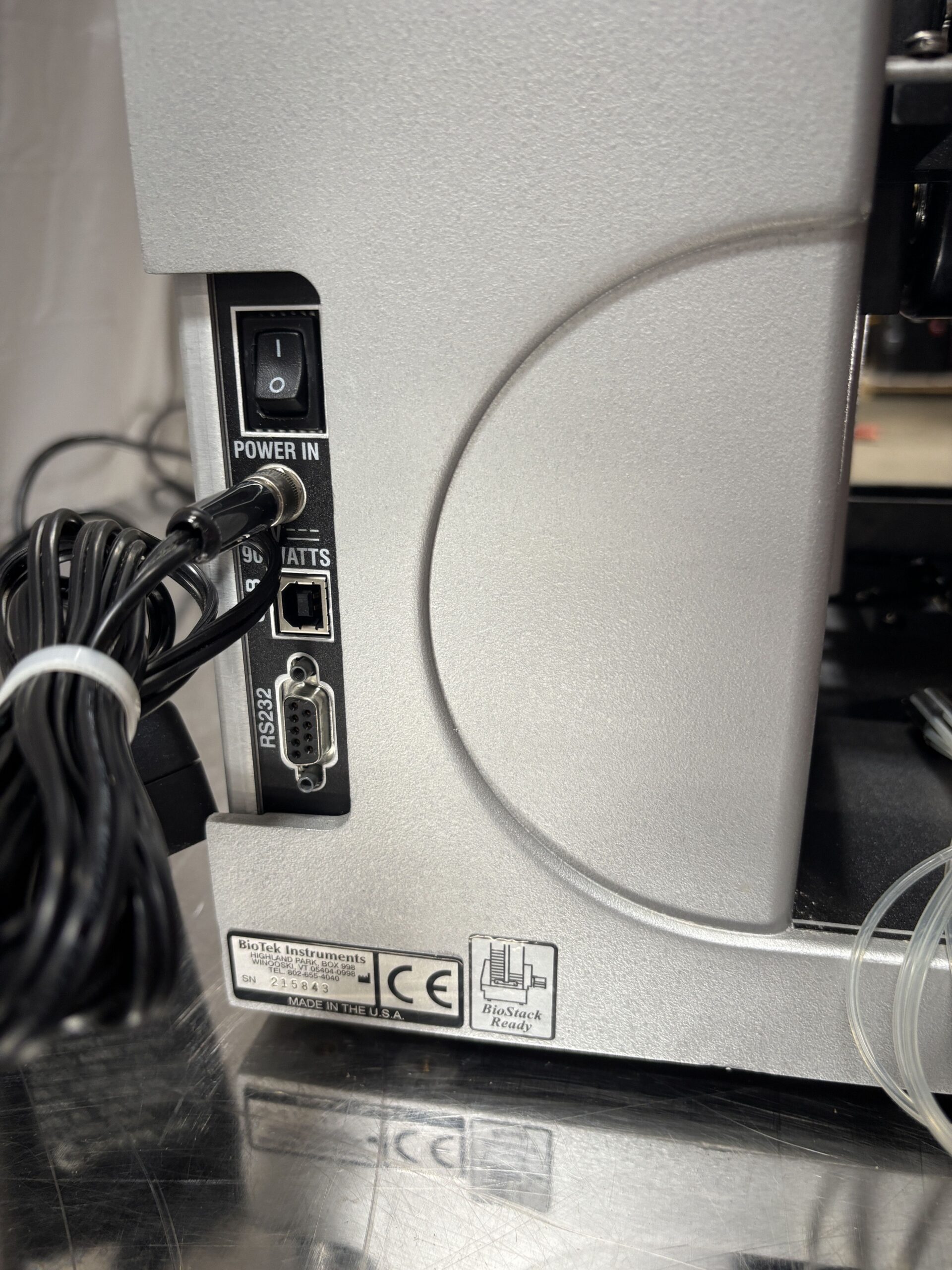

- 100-240VAC 50/60Hz
