Description

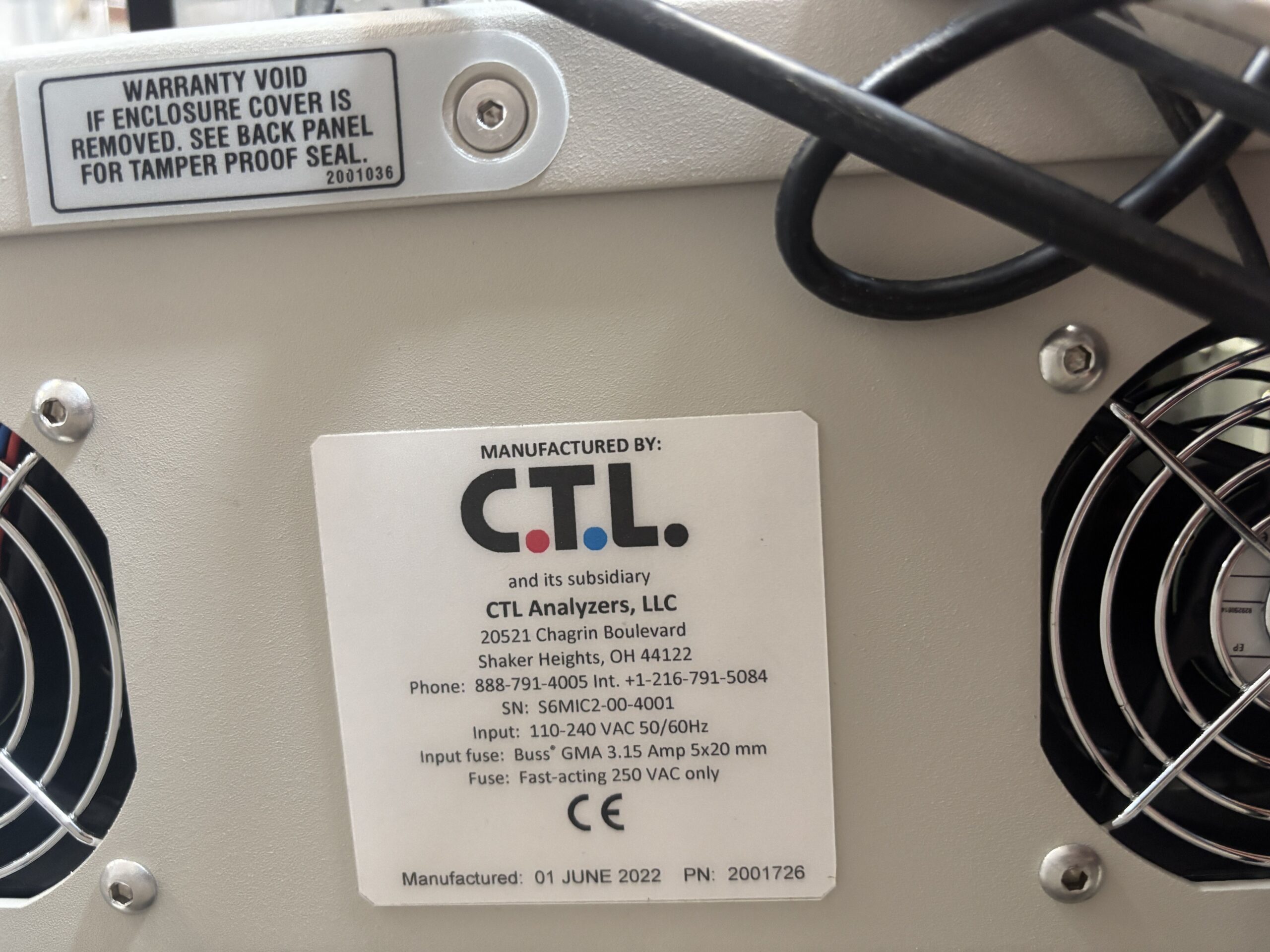

- DOM: June 2022

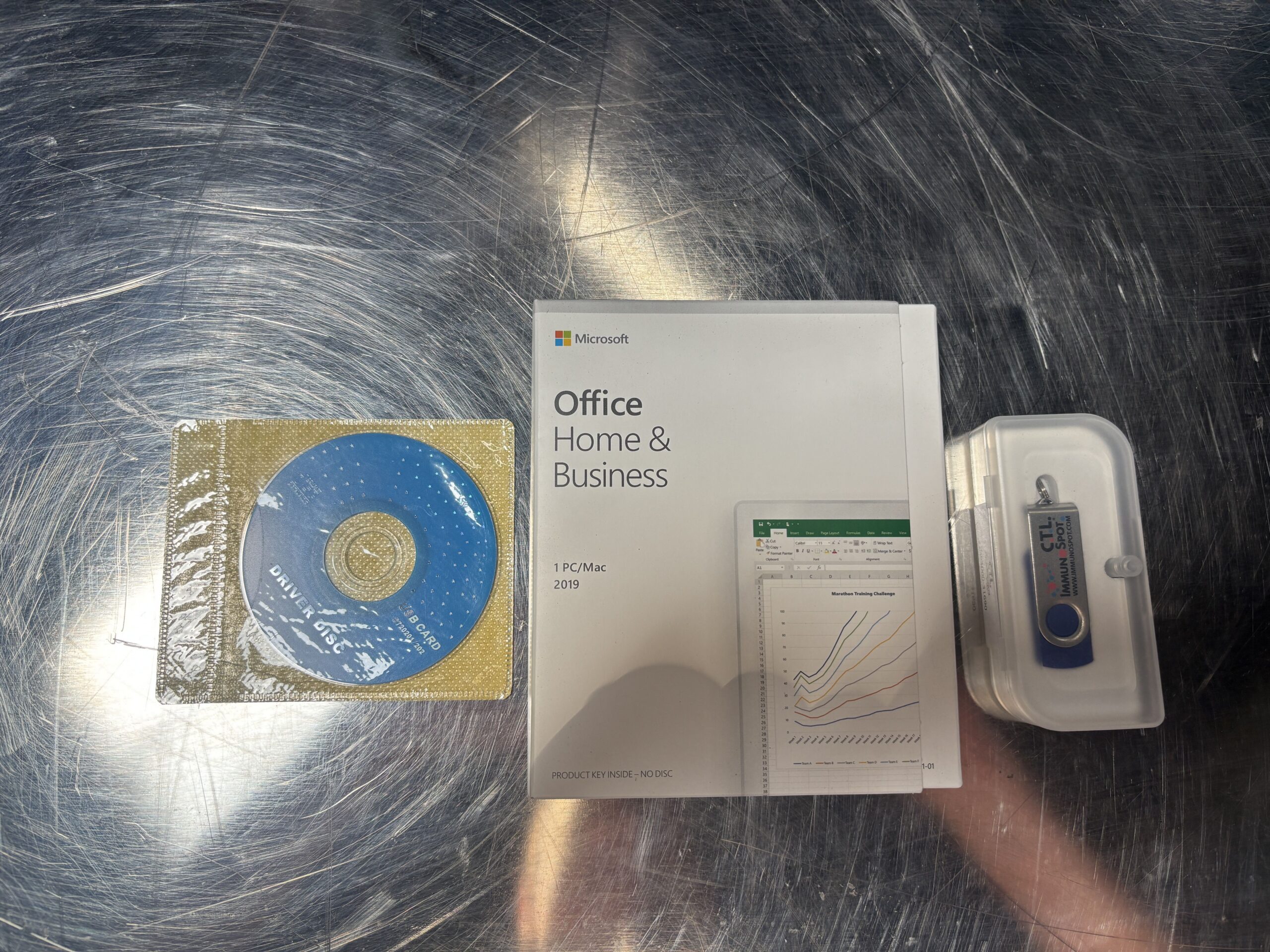

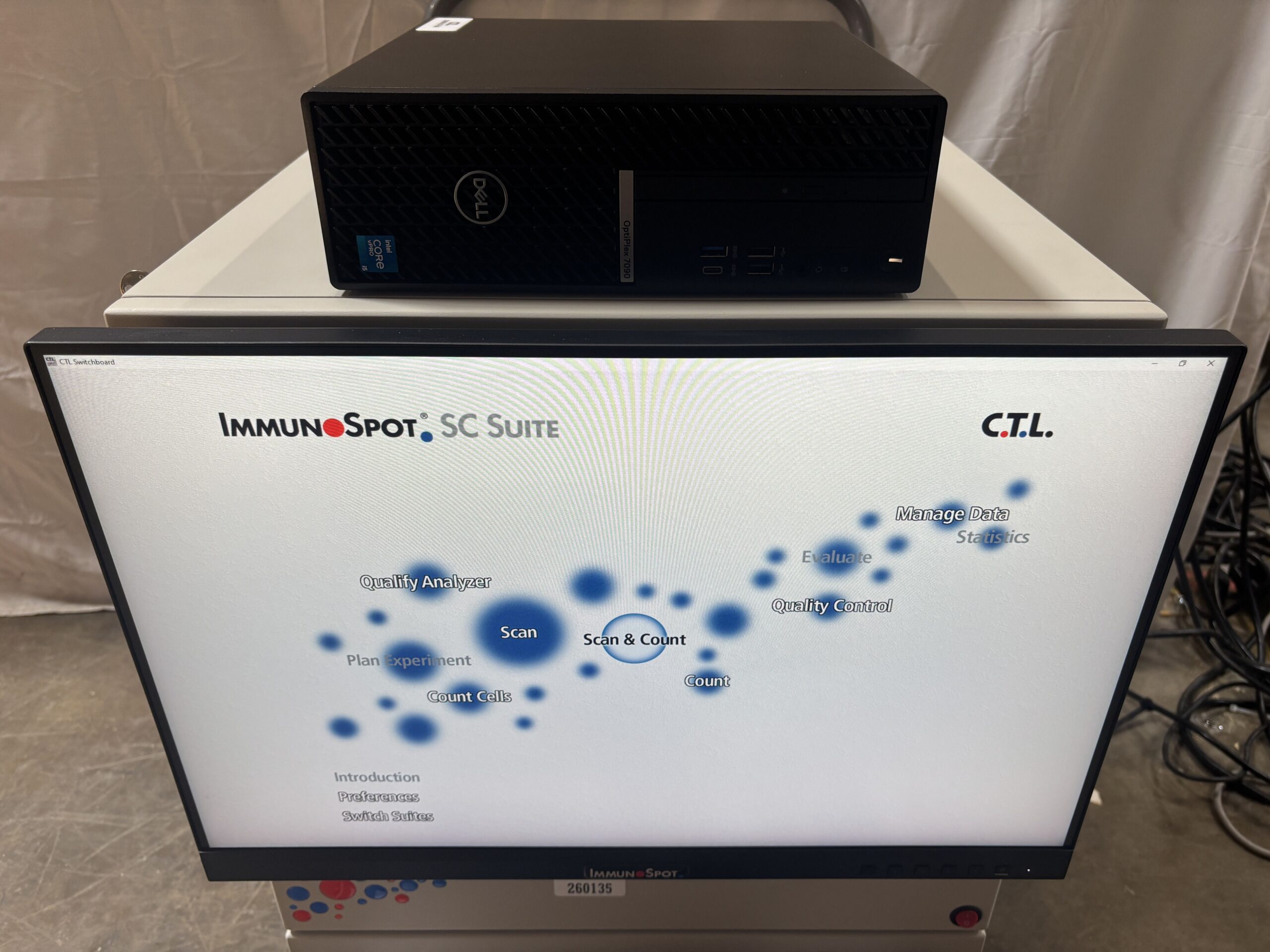

- Includes software and PC
- Center around a multi-color fluorescence and brightfield optical configuration optimized for high throughput ELISPOT and FluoroSpot Assays
- Camera: Scientific grade monochrome digital camera optimized for high resolution brightfield and muti-channel fluorescence imaging

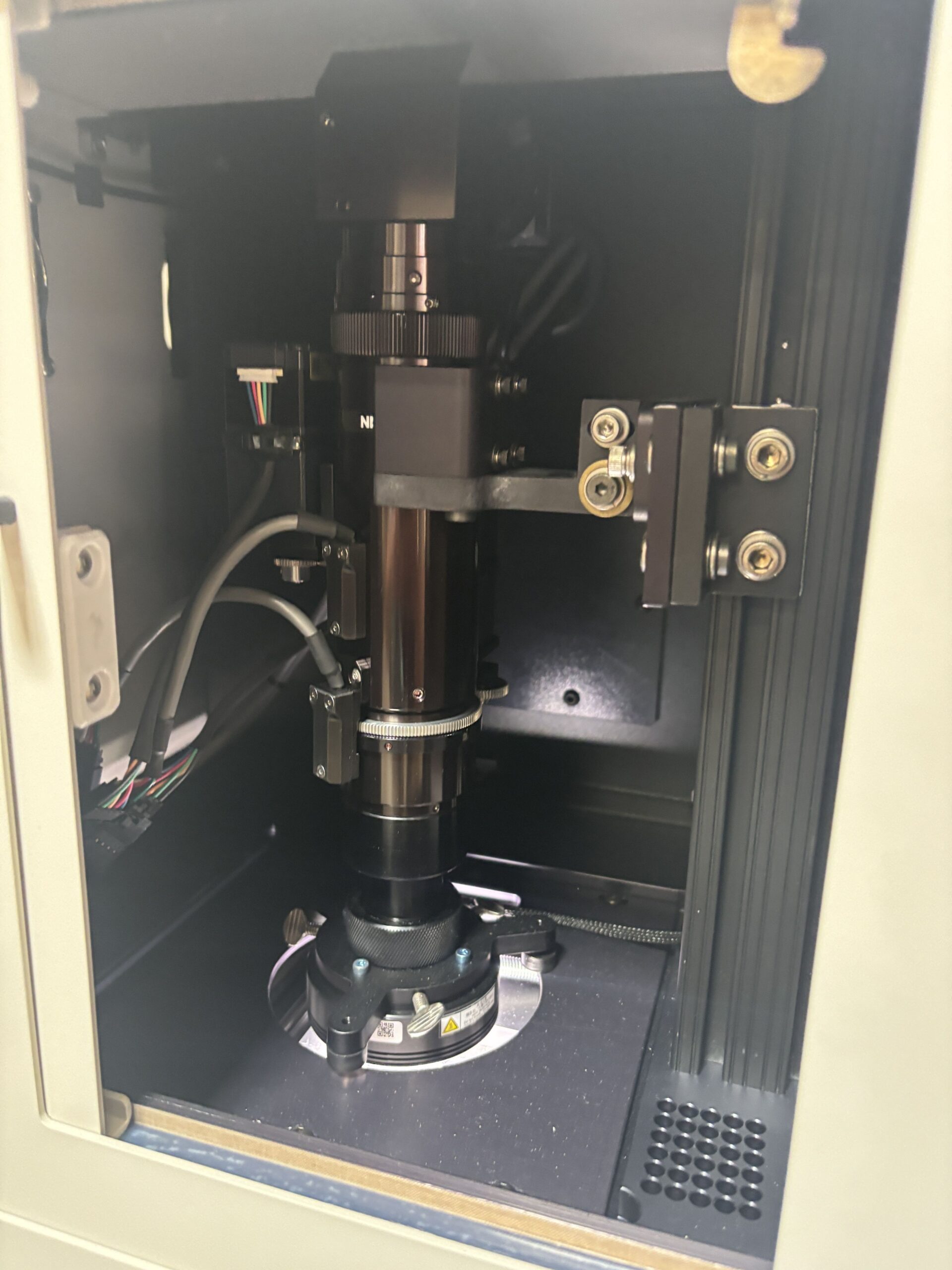

- Optics interface: motorized precision zoom and automated focus controls
- Excitation bands: dedicated narrow band fluorescent light sources with core excitation peaks at 405nm, 480nm, 470nm & 630nm
- Filter changer: motorized 9 position emission filter wheel
- Standard emission filters; 440nm: DPI, Alexa Fluor 405, Pacific Blue; 520nm: FITC, AO, Alexas Fluor 488, GFP; 600nm: PE, Cy3, TRITC, Pl, dsRed; 670nm & 690nm: PerCP, PE-Cy5, Alexa Fluor 647, APC; 800nm: PE-Cy7, Qdot-800, APC-Cy7
- Plate formats: supported layouts include standard 6, 12, 24, 48, 96 & 384-well microplates, alongside 96-well strip plates
- X/Y stage: high accuracy motorized X/Y positioning stage ensuring repeatable well alignment across automated whole-plate scans

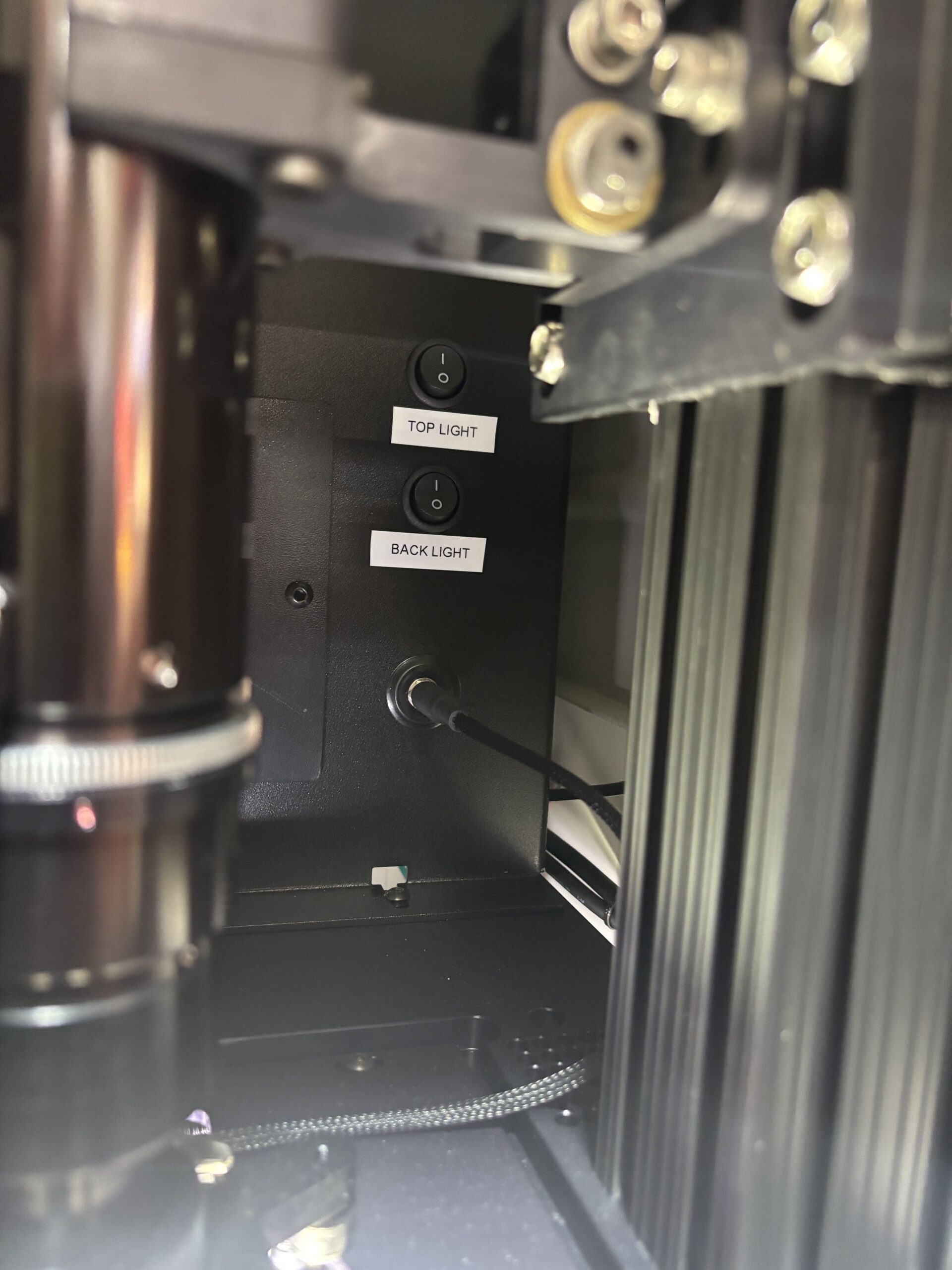

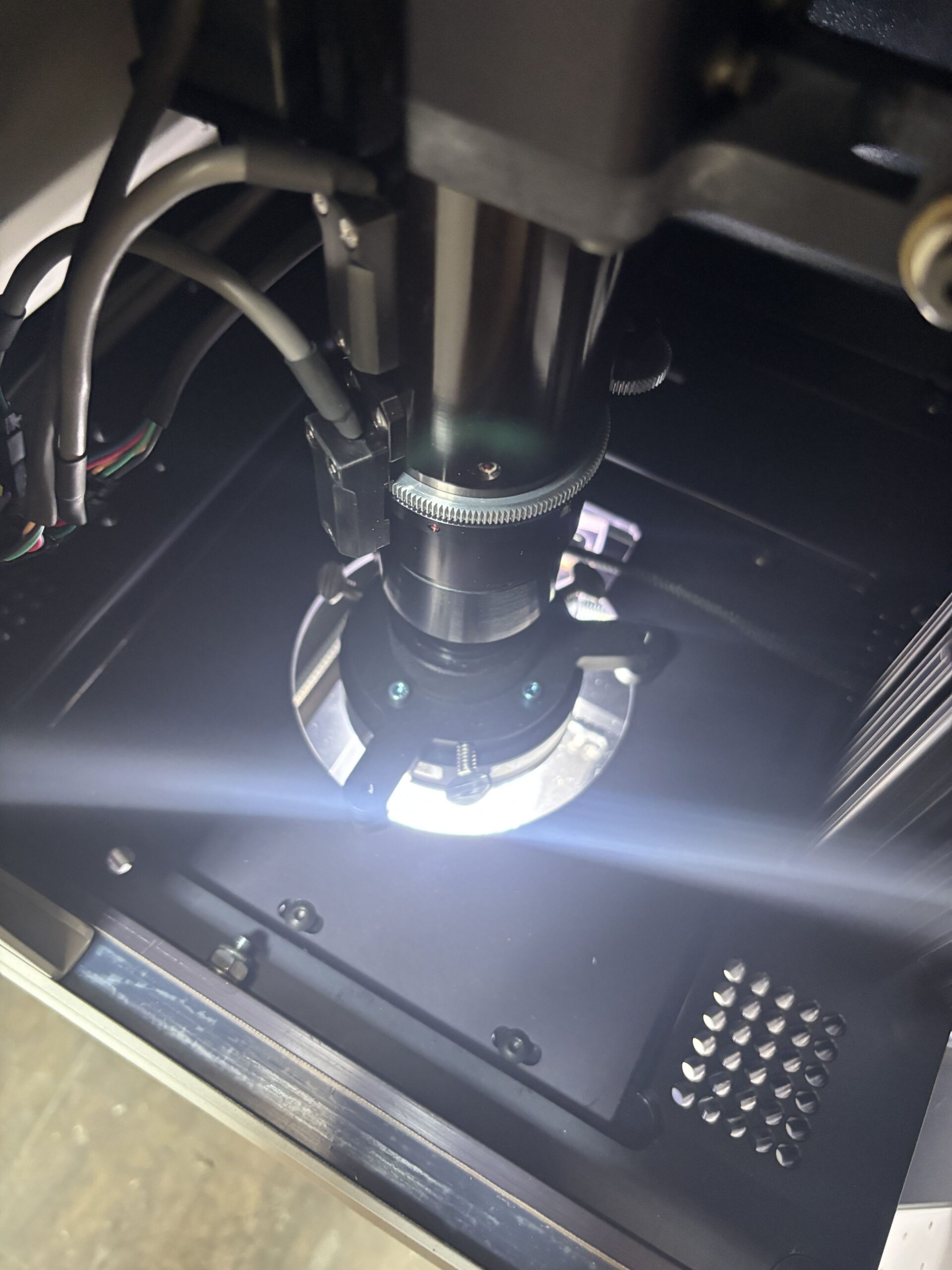

- Top lighting: 114 LED ring array providing uniform, shadow free overhead brightfield illumination
- Bottom lighting: uniform luminescent flat light panel for clear bottom membrane or transparent plate applications
- Assay capabilities: configured for single/double color enzymatic ELISPOT, up to 12-color FluoroSpot, cell-mediated cytotoxicity assays, and micro-fluorescent single cell analysis
- Cell counting: validated for live/dead/apoptotic PBMC counting, subcellular analysis and plate based cell quantification
- Windows 10 or later operating system
- 110-240VAC 50/60Hz
