Description

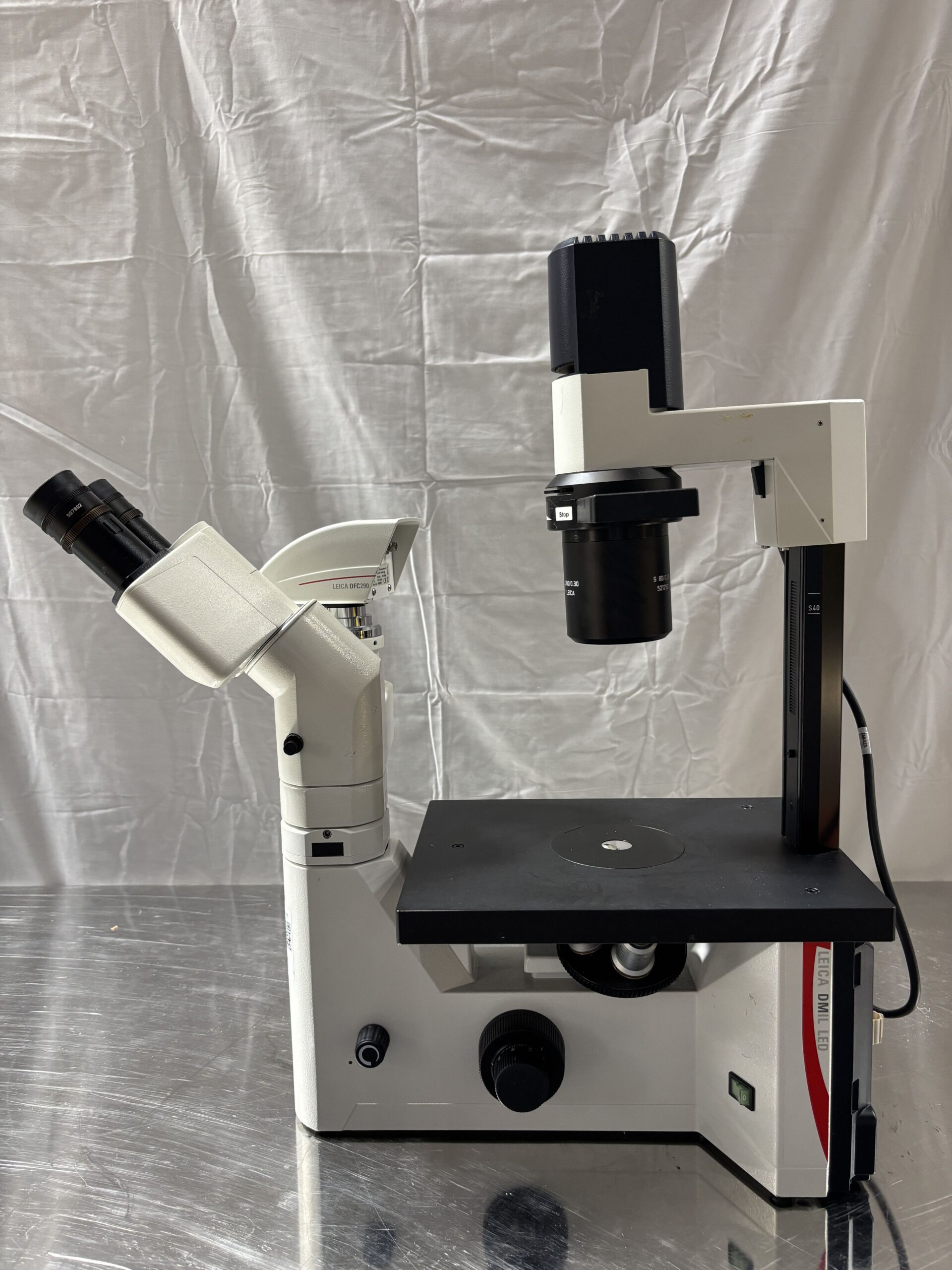

- High performance system optimized for live cell imaging, tissue culture and routine lab documentation
- Illumination: high efficiency 5W transmitted LED with a service life up to 50,000 hours, maintains constant color temperature and generates no heat to specimens
- Contrasting methods: brightfield, phase contrast and integrated modulation contrast
- Side facing quadruple or quintuple revolving nosepiece
- Objectives: 5x, 10x, 20x & 40x

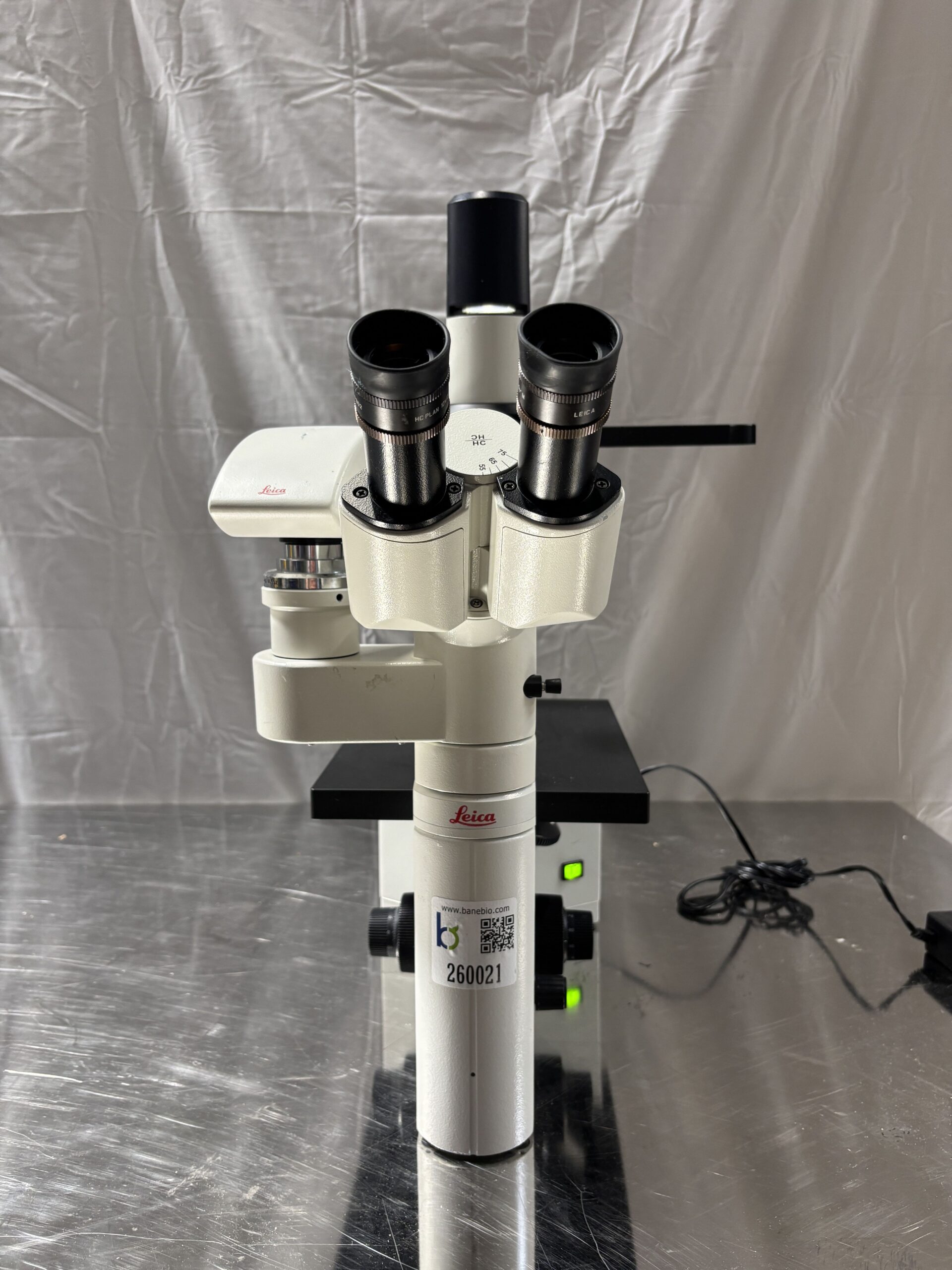

- Trinocular head tilted at 45 degrees with a phototube split for simultaneous camera operation

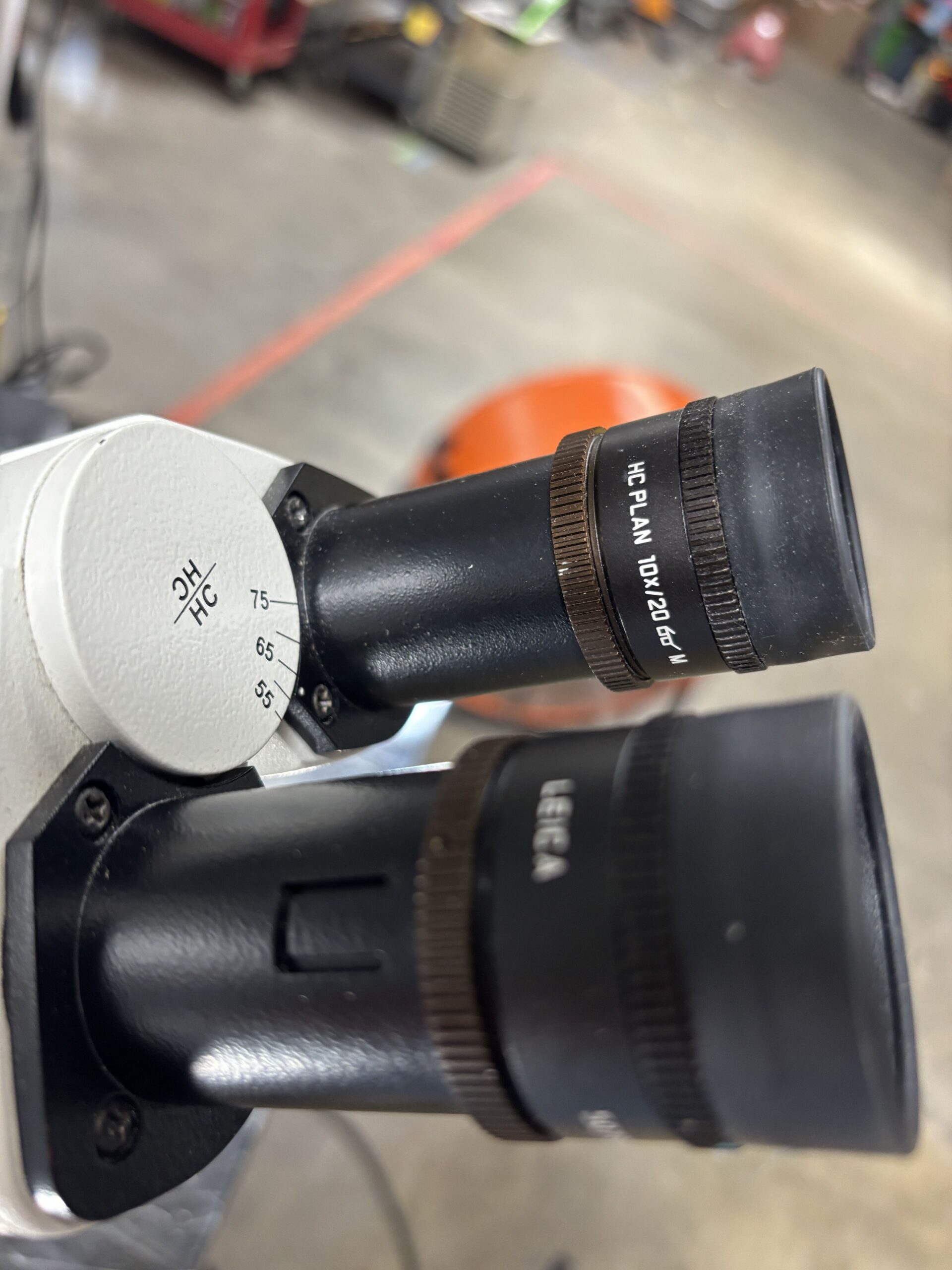

- HC Plan 10x magnification with a 20mm field of view
- Long working distance condensers to accommodate large T-flasks and multi-well plates
- Coaxial coarse and fine adjustment knobs on both sides

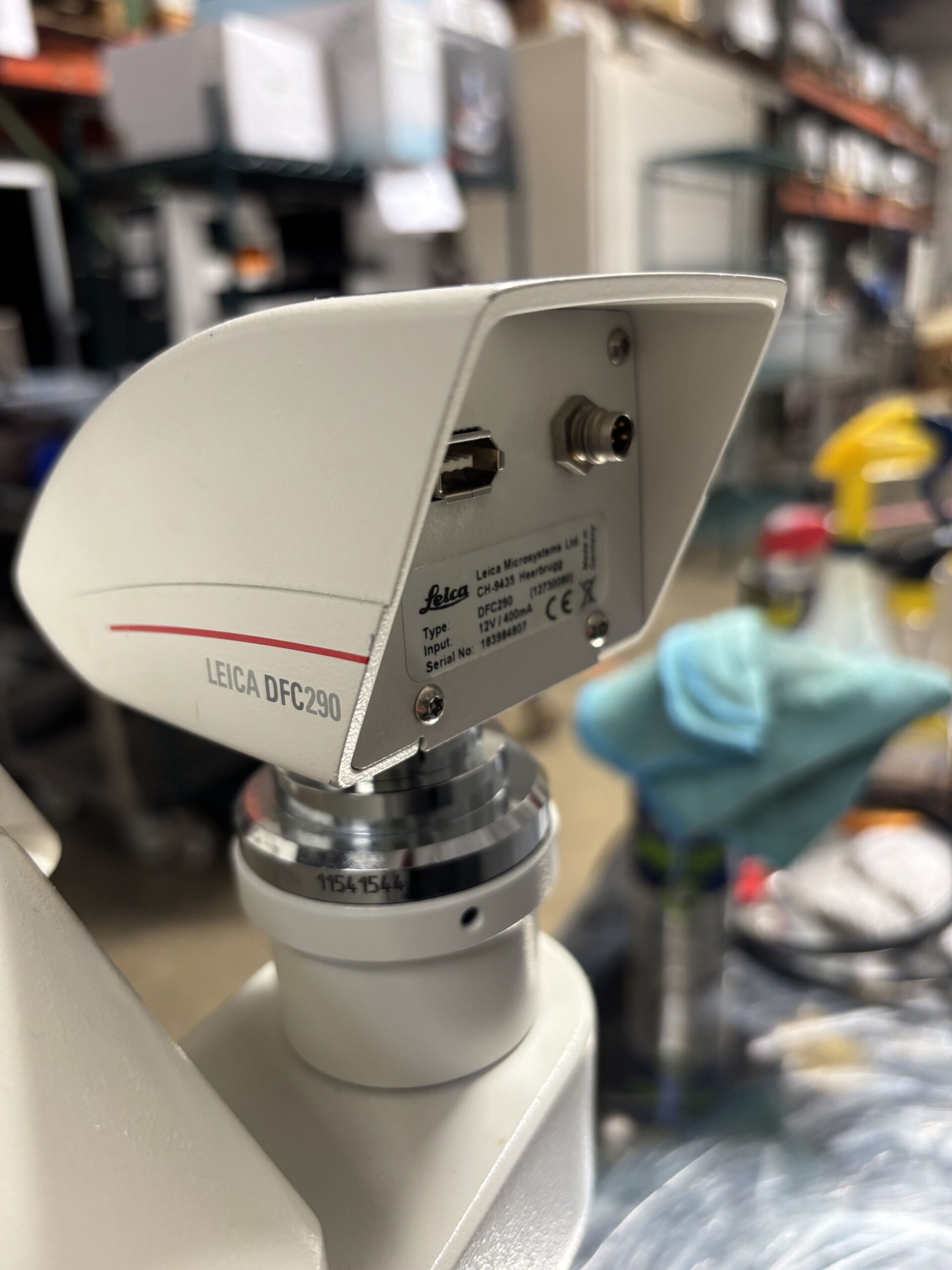

- Sensor type: 1/2″ progressive scan CMOS
- Sensor dimensions: 6.55mm x 4.92mm
- Standard resolution: 3 megapixels 2048 x 1536 active pixels
- Max scalable resolution: up to 7 megapixels 3072 x 2304 via PC software interpolation
- Direct HDMI: full HD 1080p 1920 x 1080 at high refresh rates
- PC live stream: 1024 x 768 preview at up to 25 frames per second
- A/D converter / color depth: 10 bit digitization for highly accurate color reproduction
- Interfaces: FireWire-B providing 4W power via data connection
- Direct display: HDMI Type A output for standalone live image projection onto screens or TV
