Description

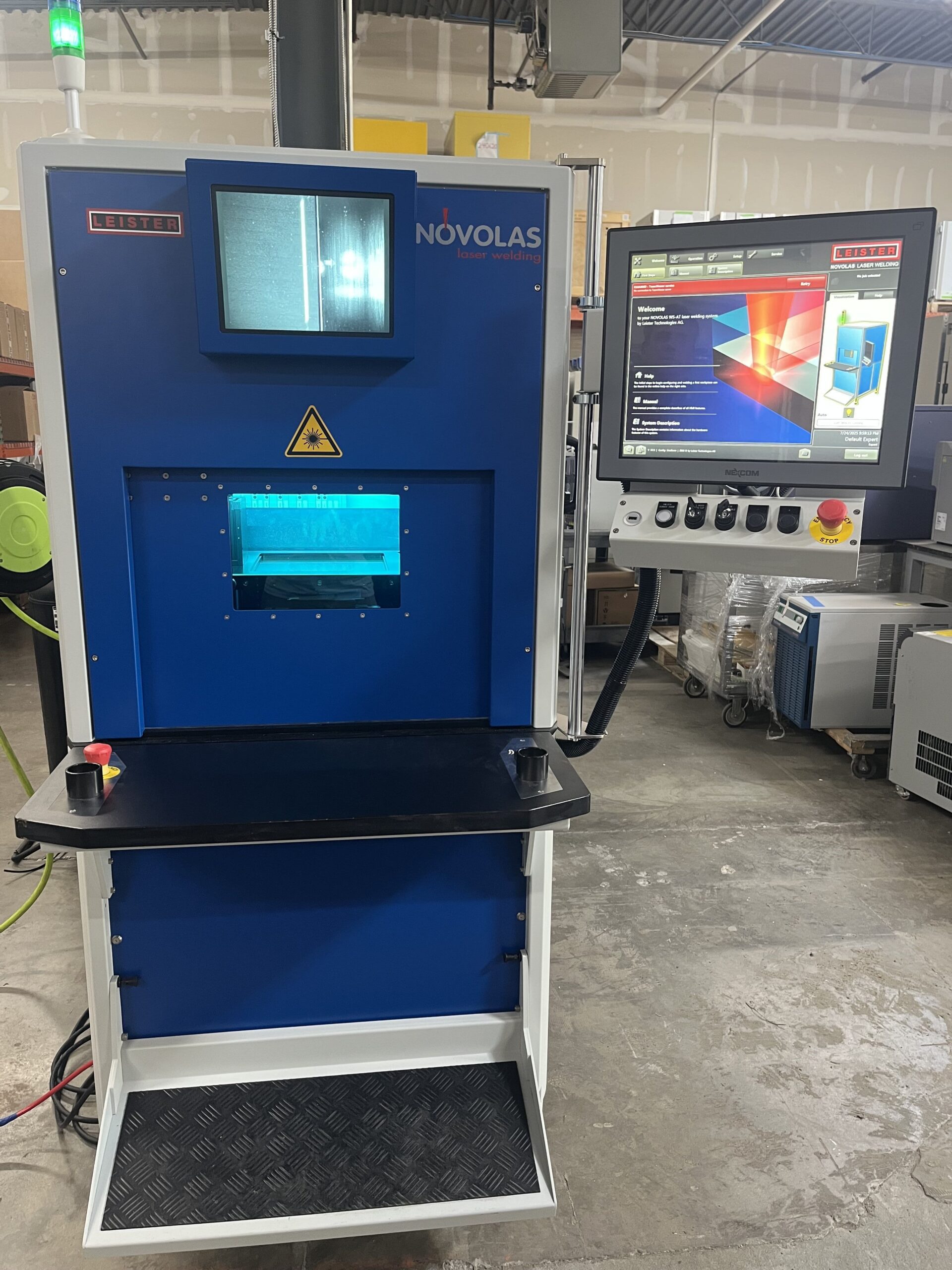

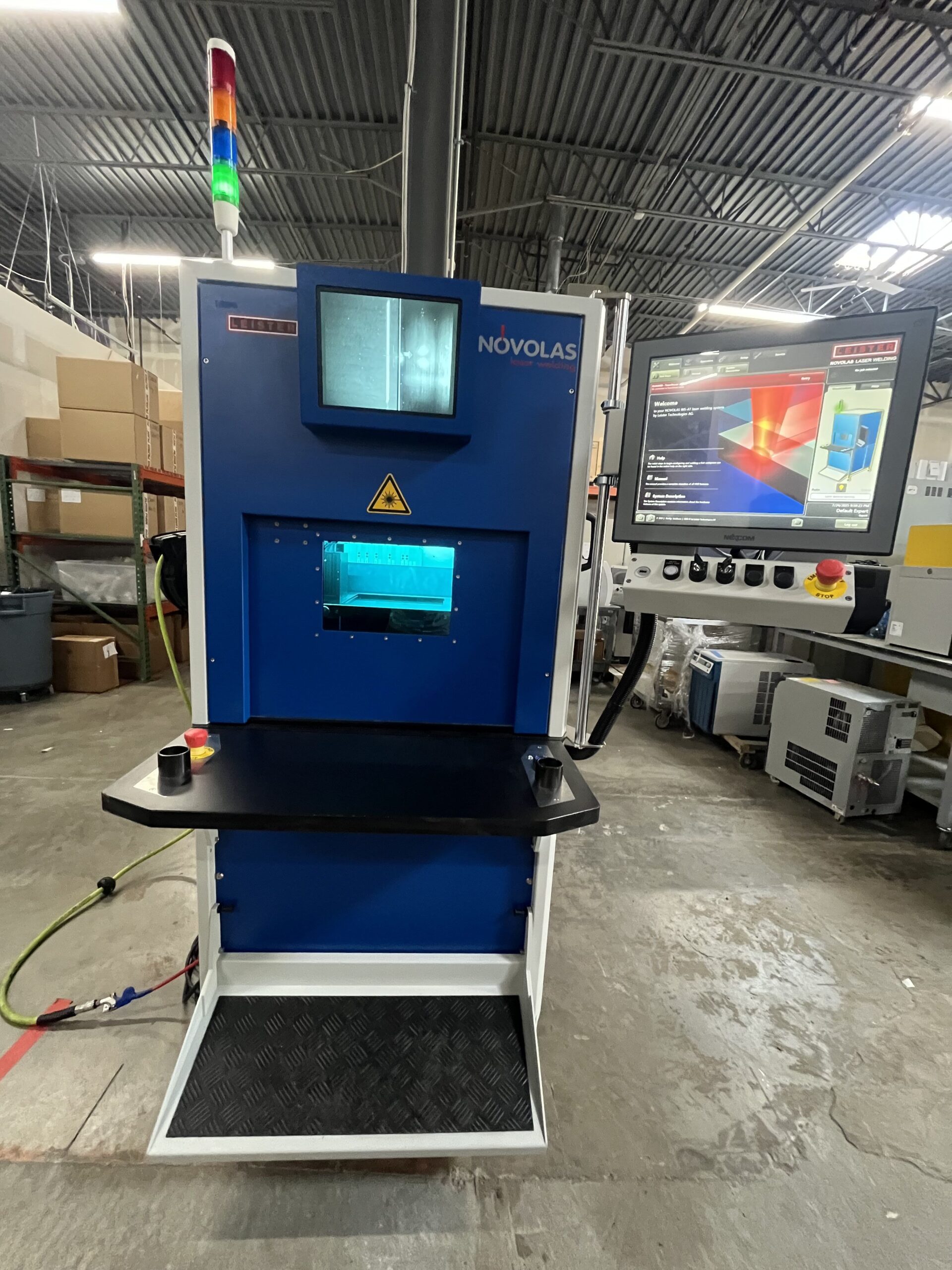

- Modular, universally applicable laser welding system for plastics
- Can be configured as a manual workstation and adapter to specific customer applications and processes
- Laser power range of 40-600W
- Wavelength range of 800-2000nm
- Air and deionized water cooling options
- Diode laser of Fiber laser
- Multilaser: Yes
- Beam guidance: Fiber coupled or direct

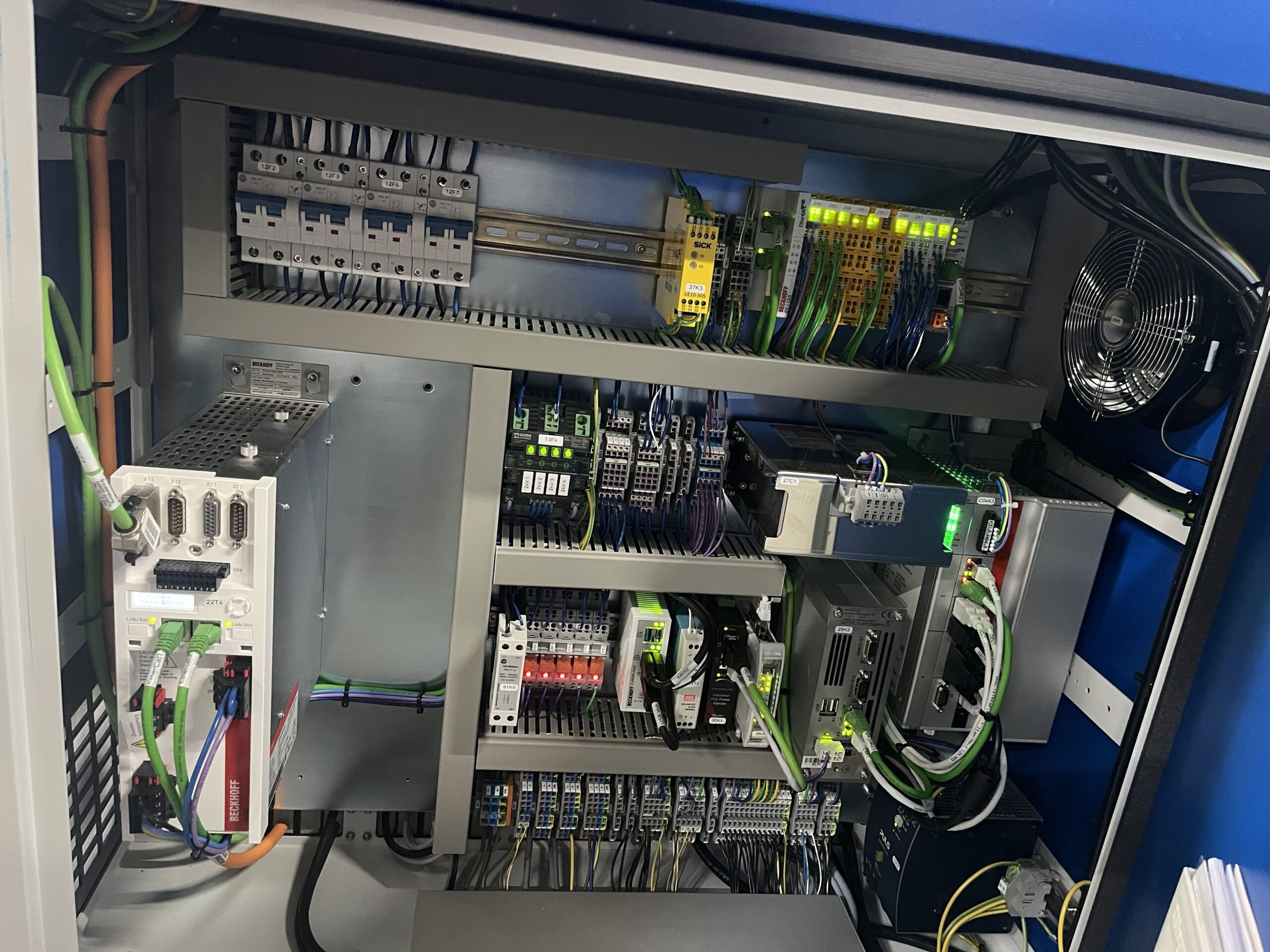

- Control interface: Customer specific, Ethercat, Profibus, Profinet, CAN, digital/analog I/O and OPC UA

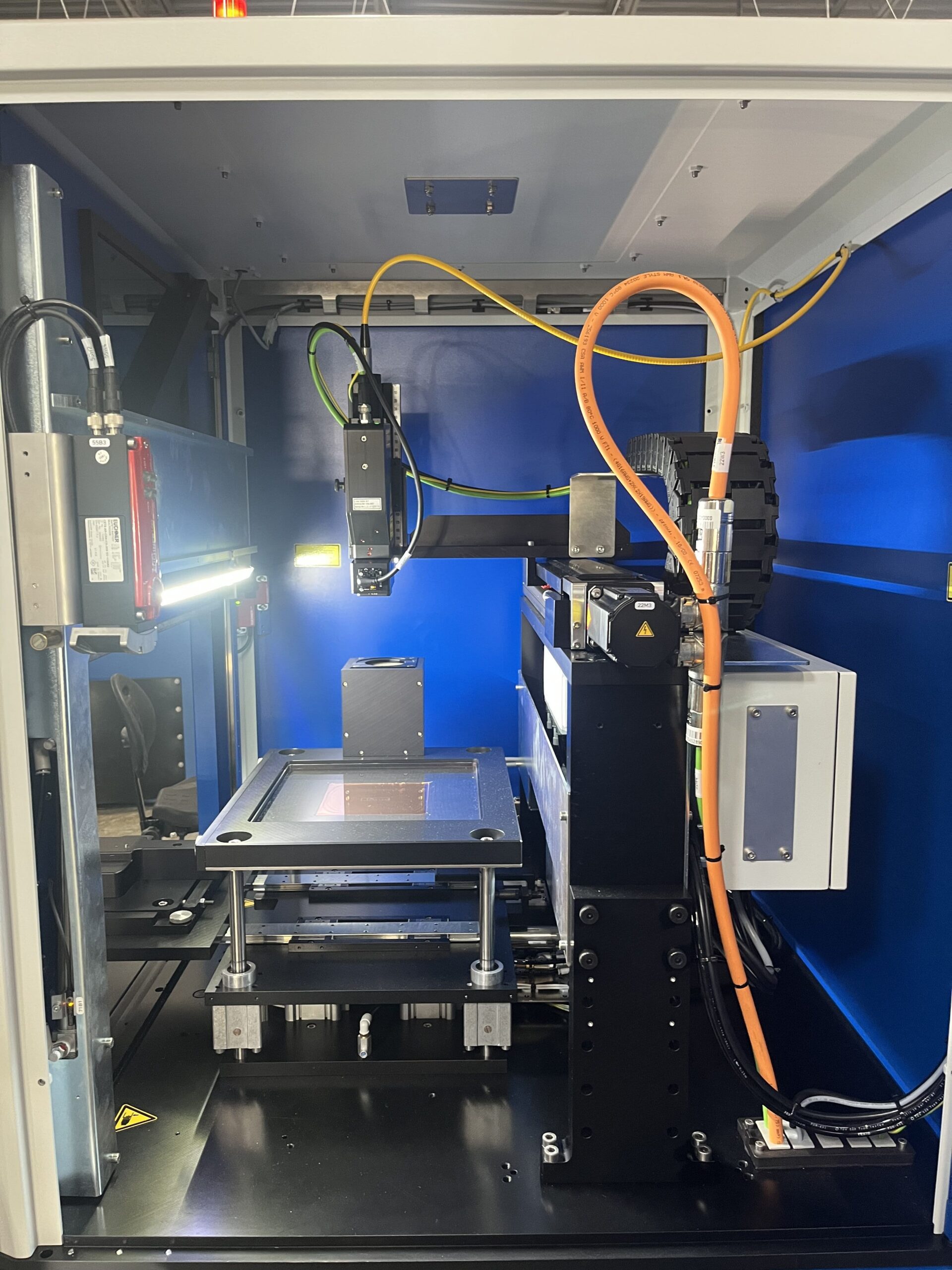

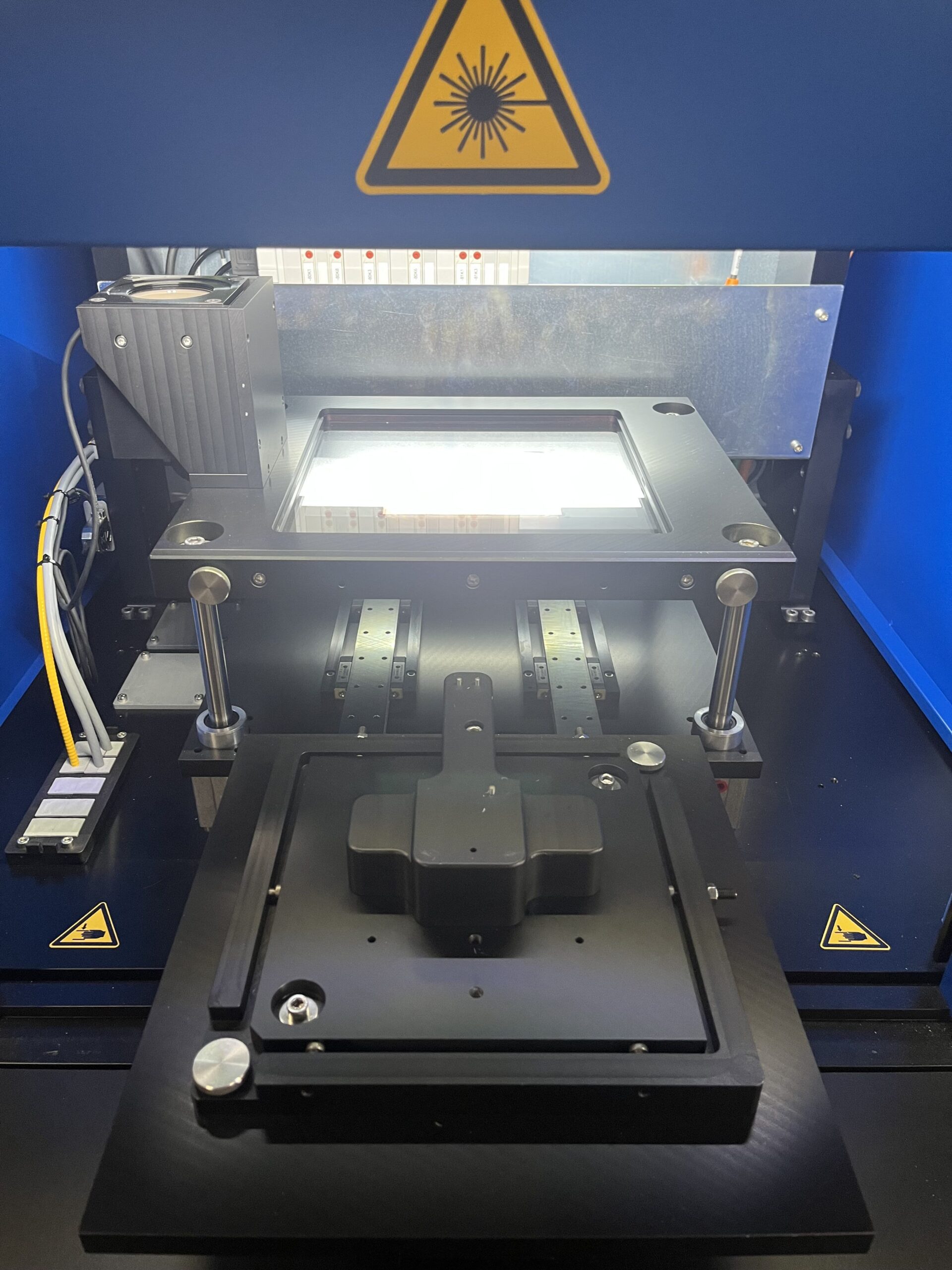

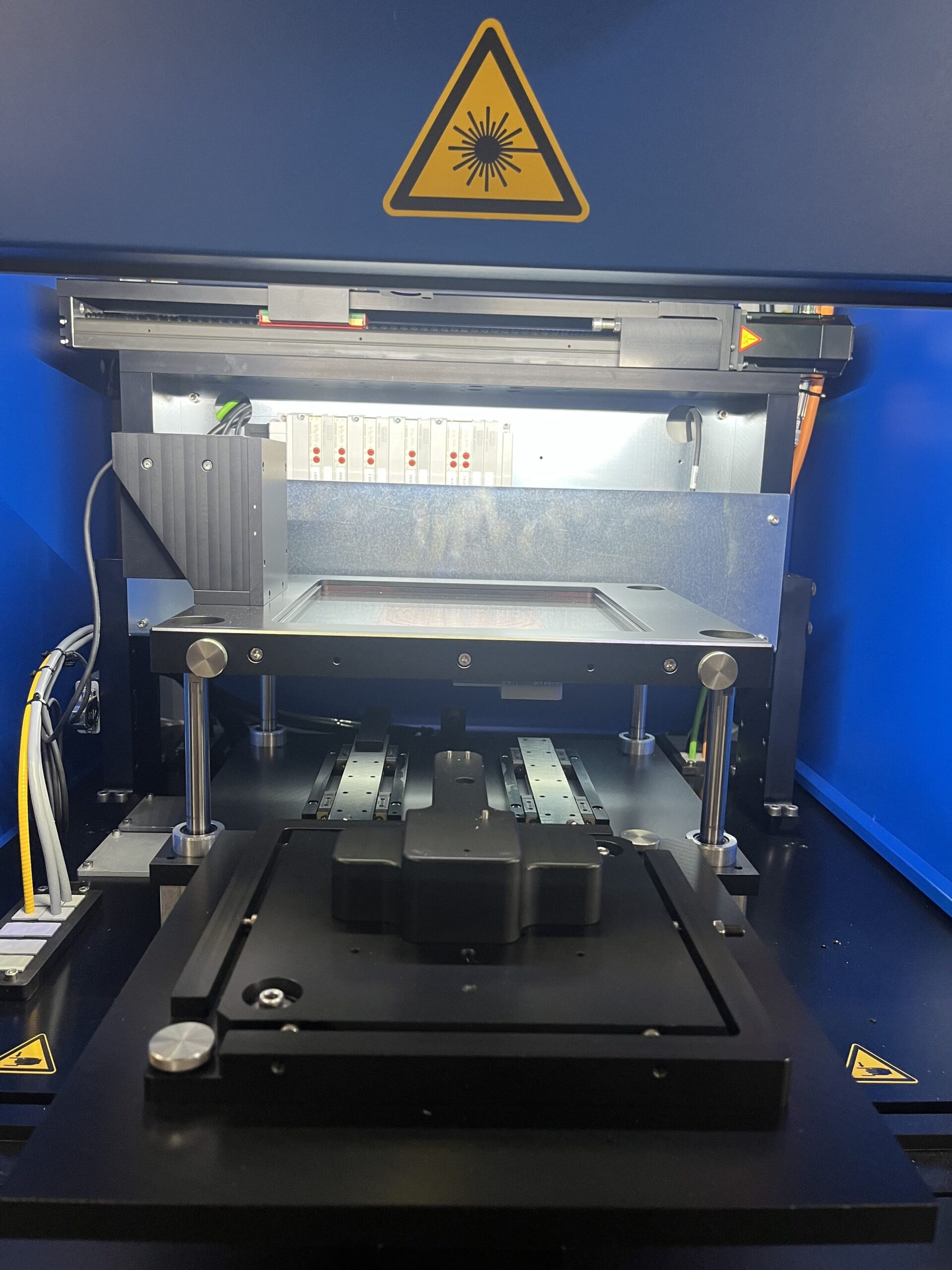

- Welding range: X direction 400mm (15.74″) / Y Direction 300mm (11.81″)
- Ambient temperature: 10-35C
- Humidity: 69% at 35C or 80% at 32C
- 200-230VAC 50/60Hz 16A 3600W

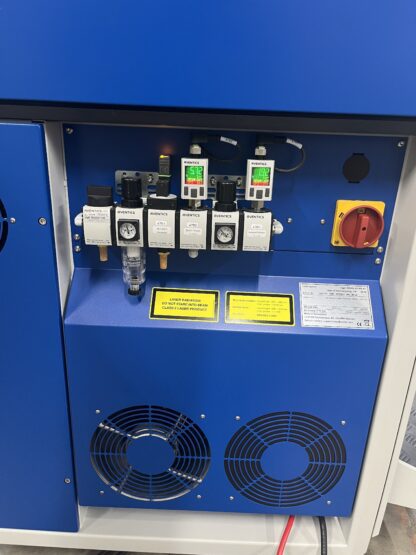

- Air supply: 6-10 bar

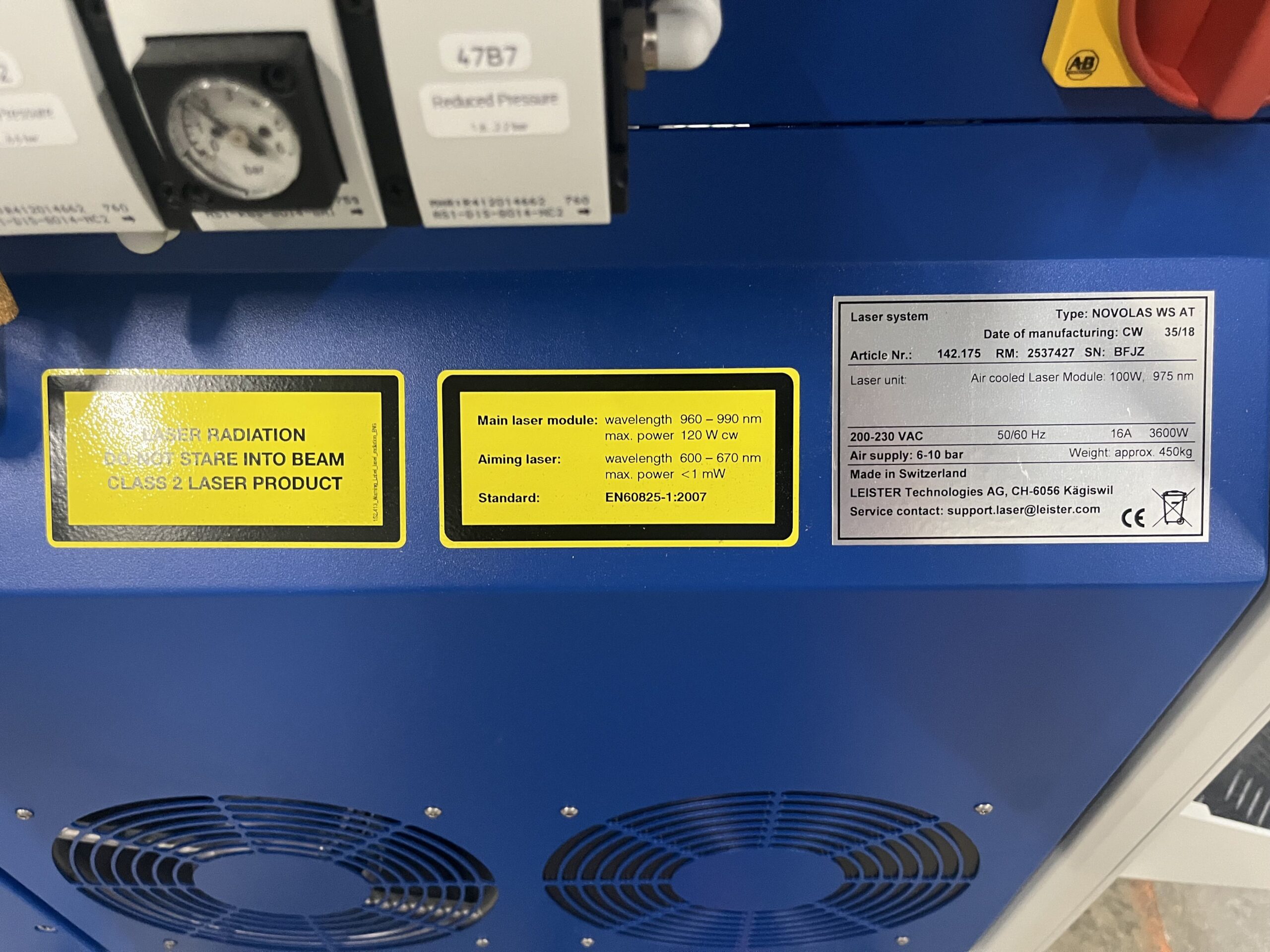

- Main laser module: Wavelength 960-990nm
- Aiming laser: Wavelength 600-670nm
- Instrument has been tested and works great!
- Instrument has been lightly used and in great condition!
