Description
- This unit has an active key for the software. Unit is ready to use once purchased!
- The SpectraMax iD3 Multi-Mode Microplate Readers measure absorbance, fluorescence, and luminescence.

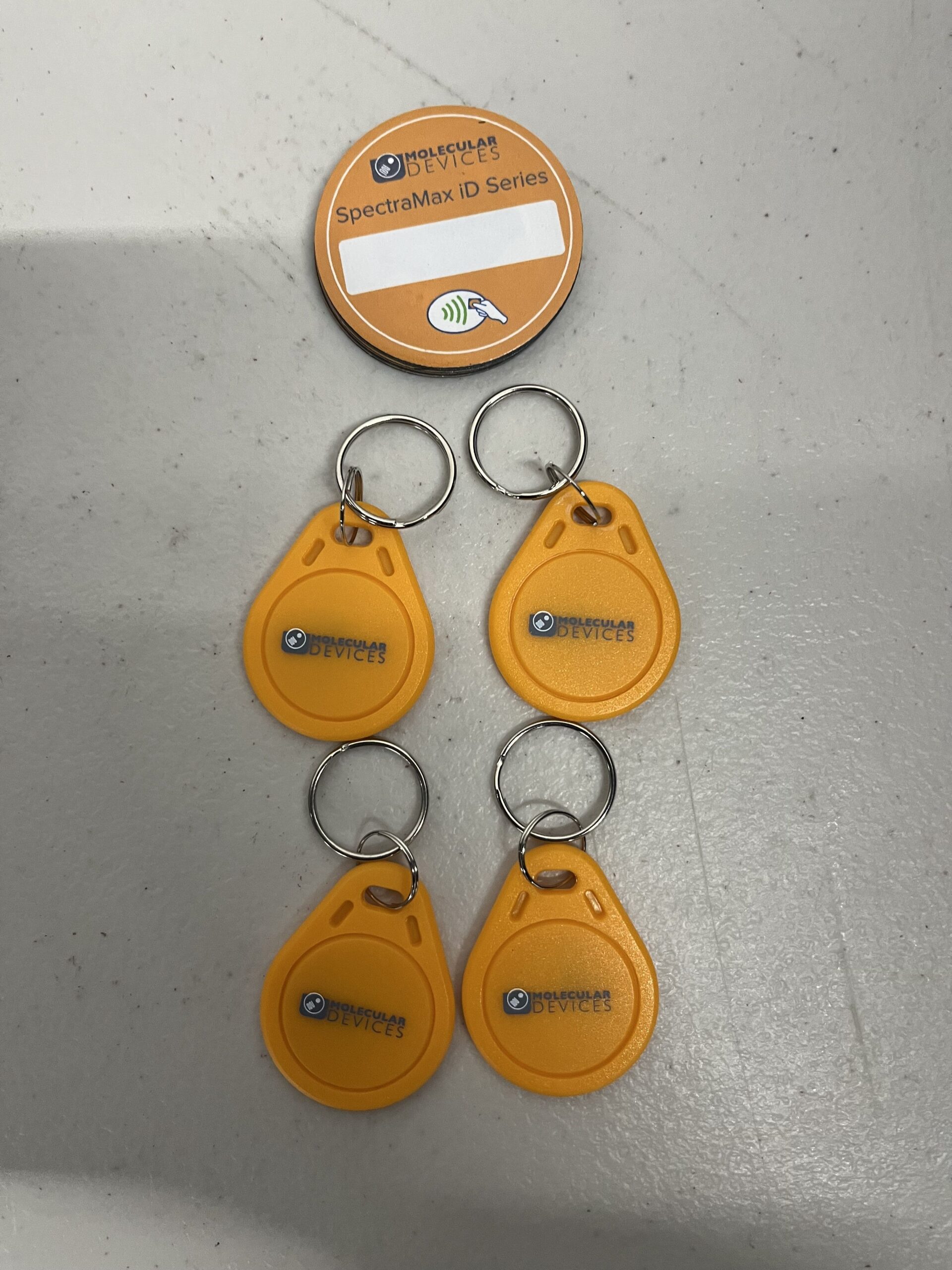

- Built-in near-field communication (NFC) functionality can access custom protocols and results with a single tap, saving time better spent on research.
- The intuitive touchscreen software simplifies tasks with Quick Read icons that save time when starting new experiments and a personalized library that stores frequently used protocols.
- The optical system includes a xenon flash lamp and features an ultra-cooled photomultiplier tube (PMT) detector that reduces background noise for greater sensitivity and a wide dynamic range.
- The QuickSync feature pushes data to any computer within the same network and delivers data in an Excel-compatible format.
- Simple-to-use temperature control adjusts the experiment’s conditions from ambient up to 66°C.
- The SoftMax® Touch Software secures user accounts with PIN- or NFC-protection with a lock screen option. Data is stored on the reader’s hard drive ensuring security even after transfer to a computer.
- The SpectraMax Injector System with SmartInject® Technology features low dead volume (10 µL), overflow protection, and ensures equal mixing across the plate for high-precision experiments.
- Plate Types: 6-384 Well Plates / Spectradrop
- Read Modes: Absorbance, Fluorescence (top/bottom read), Luminescence (top read)
- Temperature Control & Shaking
- Wavelength Ranges: Abs: 230-1000nm ; FL Ex: 250-830nm ; FL Em: 270-850nm ; Lumi: 300-850nm
- Wavelength Selection: Monochromator tunable in 1nm increments
- Absorbance photometric accuracy/linearity: <+/-0.010 OD +/-1.0, 0-3 OD VIS 0 – 3 OD UV
- Absorbance photometric precision/repeatability: <+/-0.003 OD +/-1.0%, 0-3OD VIS 0 – 3 OD UV
- Sensitivity top read optimized: FL 1pM fluorescein 96 well, 1 pM fluorescein 384 well, Lumi 2 pM ATP 96 well, 4pM
- High power xenon flash lamp
- Detectors: Silicon photodiode / ultra-cooled photomultiplier tube
- Read types: endpoint/kinetic/spectrum scan/well scan
- Read times: Abs: 28 sec ; FL: 21 sec ; Lumi: 21 sec
- Plate shaking: Linear/Orbital/Double orbital
- Temp Control: ambient +5C to 66C
- Dimensions: 21″x25″x17″
- DOM: 09/2021
- 100-240V 50/60Hz 2A
