Description

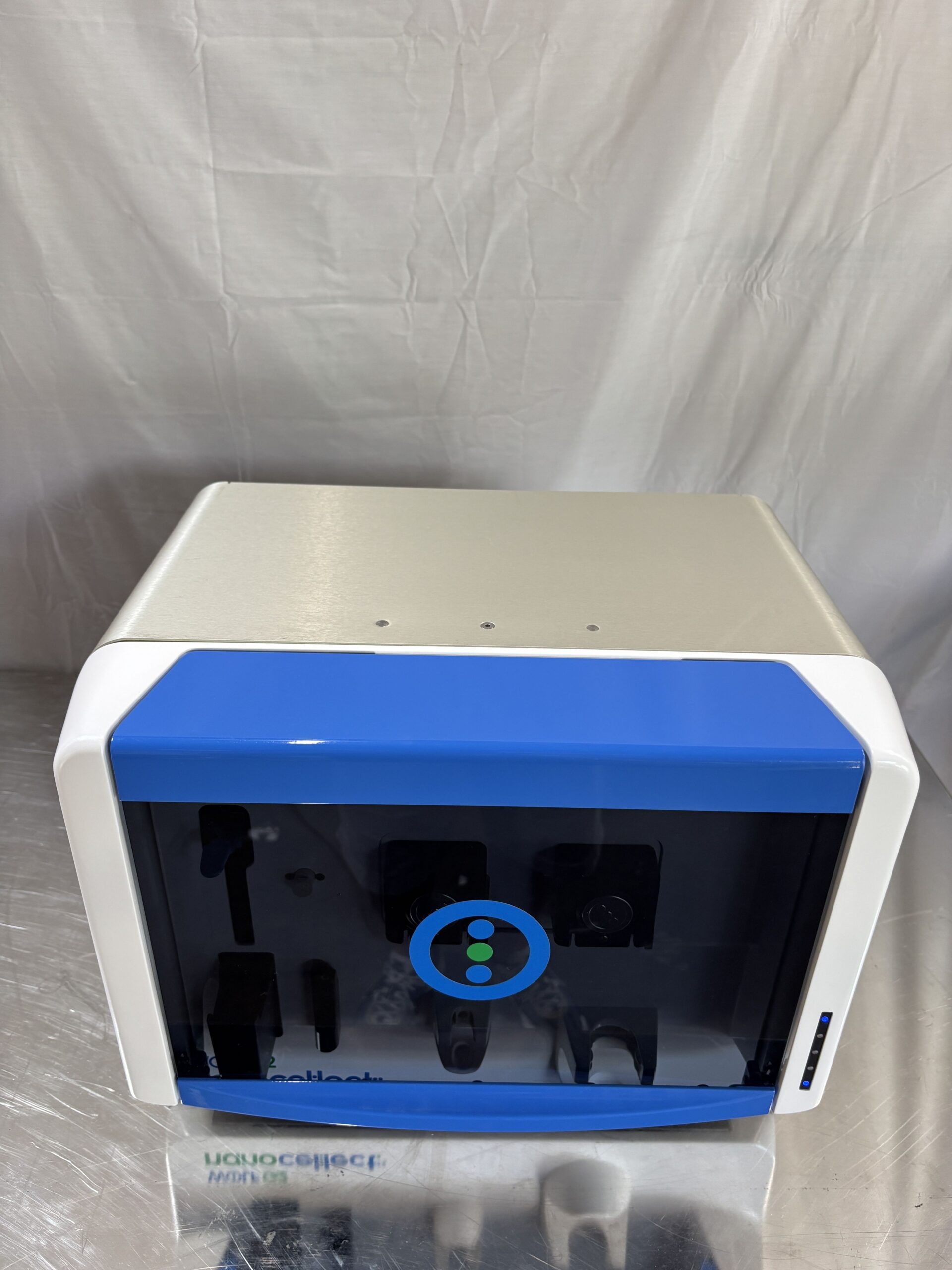

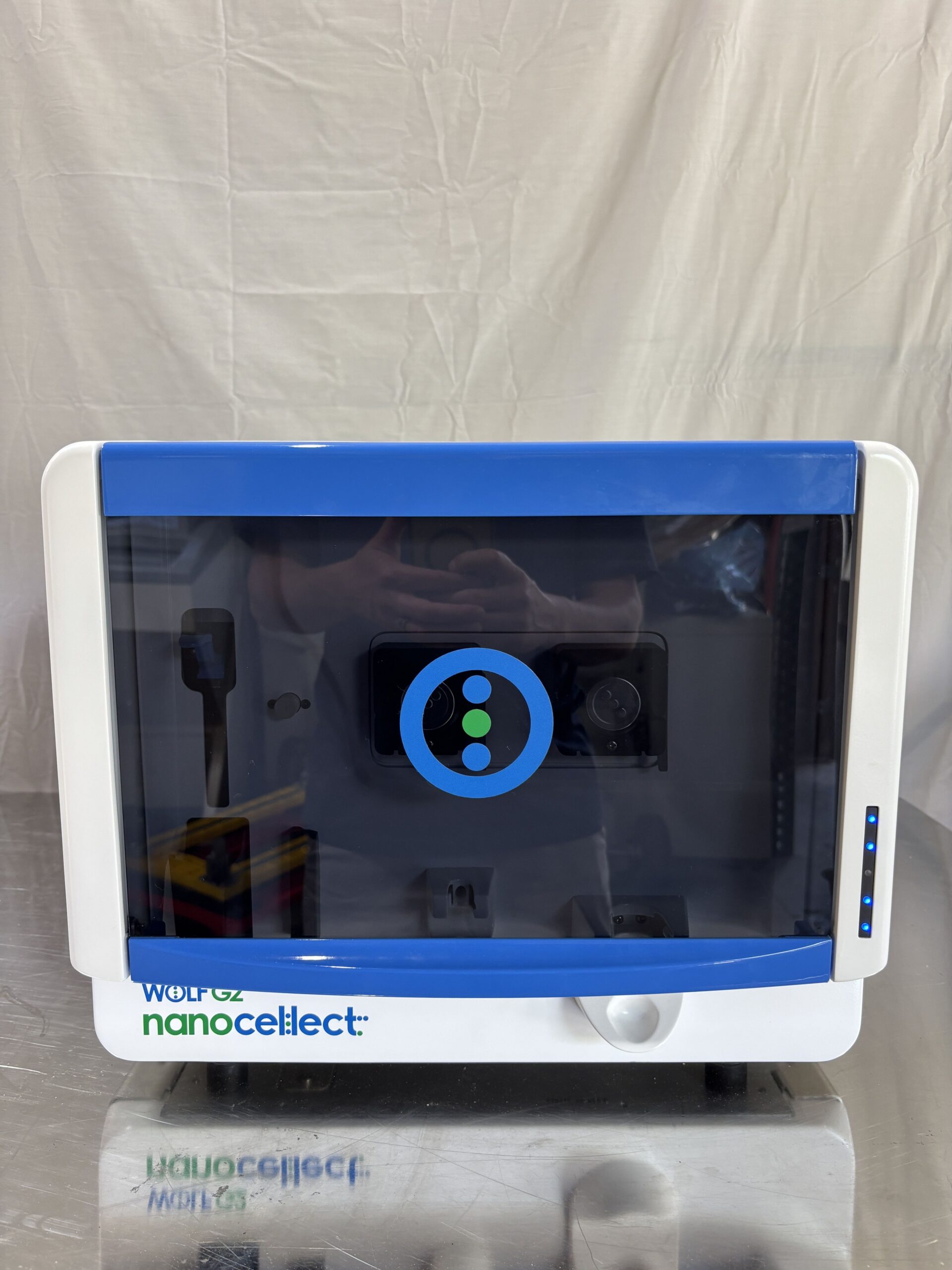

- Compact, gentle benchtop microfluidic system
- Features dual lasers, supports up to 9 fluorescence channels, operates at a low sorting pressure under 2 psi, and achieves sorting speeds up to 200 events per second
- Dimensions: 15.5″ x 15″ x 14.4″
- Sorting pressure: < 2 psi (gentle laminar flow)
- Sample size range: 1um to 60um
- Analysis speed: up to 2,000 events/second
- Sorting speed: up to 200 events/second (1 way or 2 way sort options)
- Minimum sample volume: 100uL

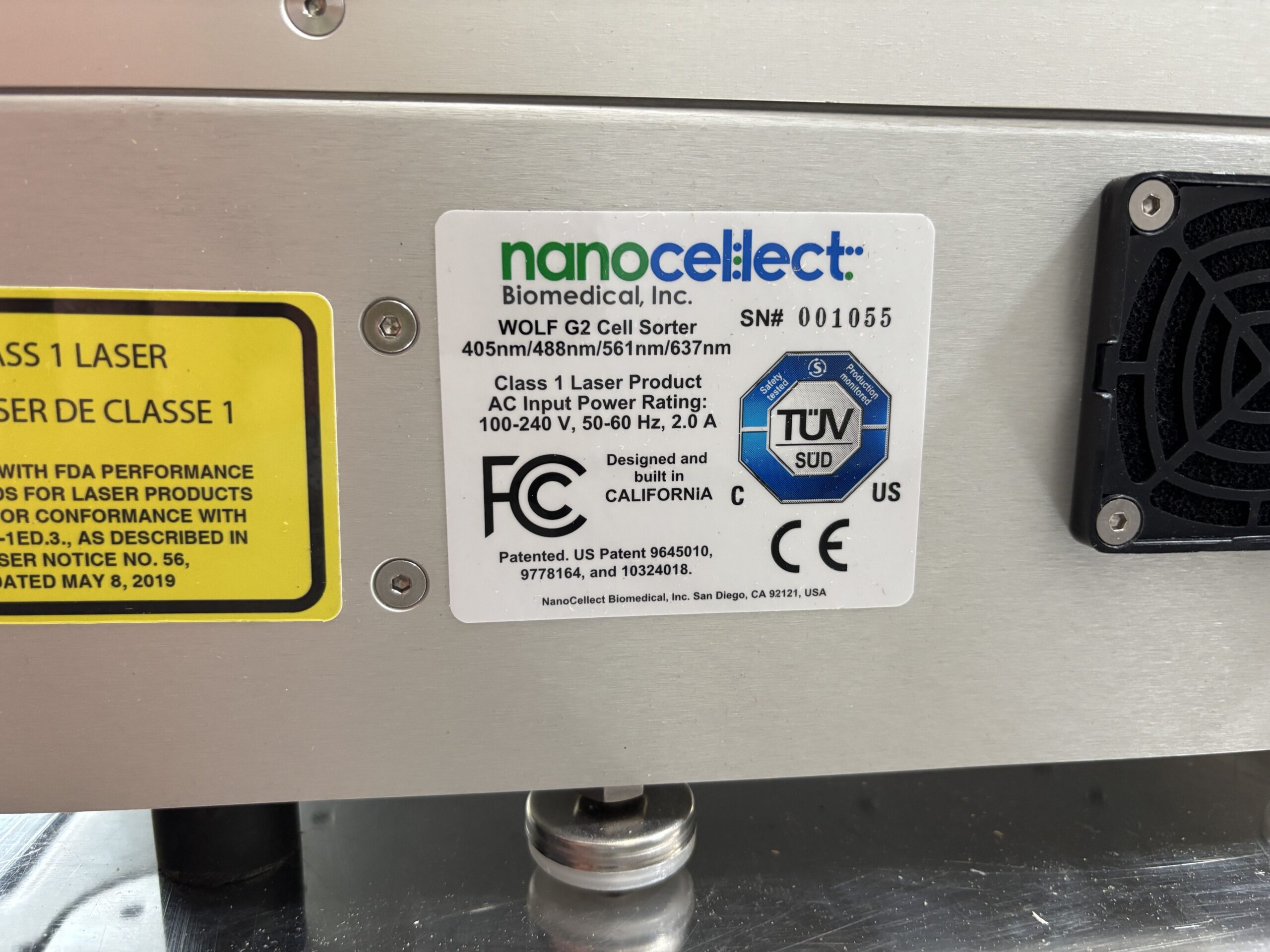

- Lasers: configurable with 2 lasers (options include combinations of 405nm, 488nm, 561nm or 637nm; 55mW each
- Fluorescence channels: up to 9 channels
- Sensitivity: < 250 MESF
- Resolution: down to 1um

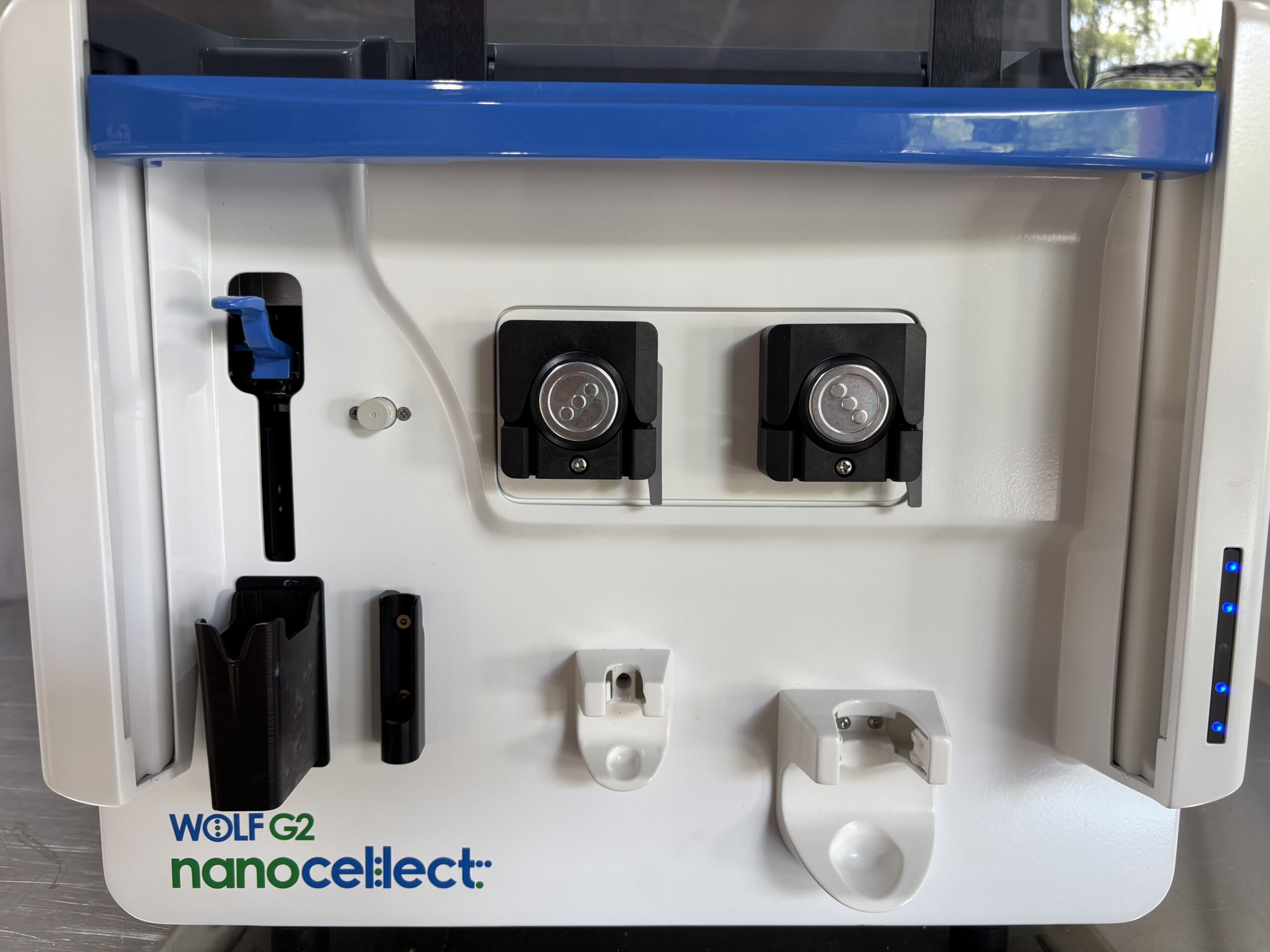

- Cartridge based: uses sterile, disposable, aerosol free microfluidic cartridges to eliminate cross contamination
- Single cell dispensing: compatible with the N1 single cell dispenser for isolation into 96 or 384-well plates

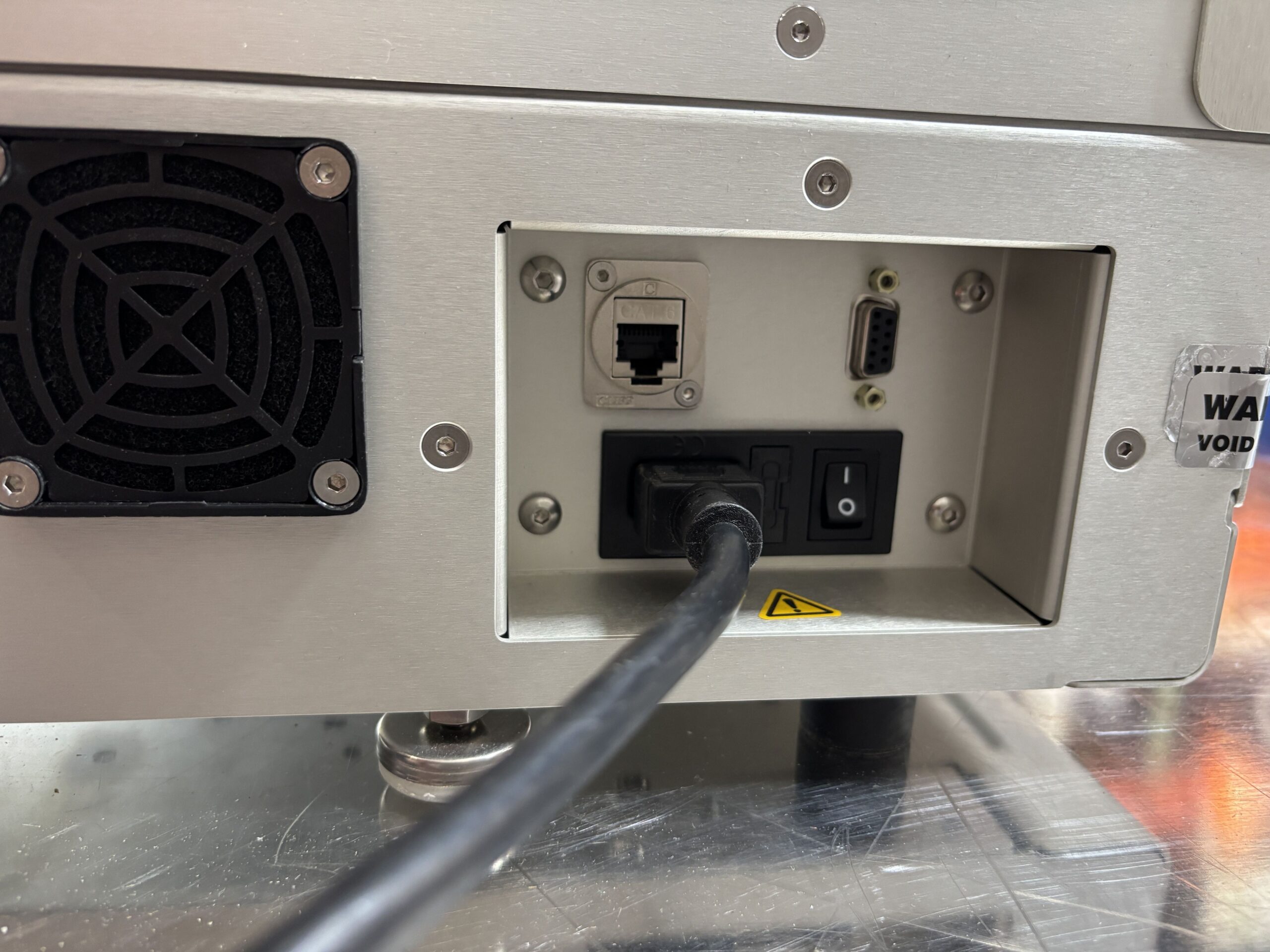

- 100-240V 50-60Hz
