Description
- Target multiplex capacity: simultaneously analyzes up to 800+ distinct genetic targets in a single reaction well
- Dynamic range: up to 6 x 10^5 total counts per lane
- Sample throughput: processes 12 samples (lanes) per cartridge in approx a 6 hour turnaround window, max capacity at 24 samples per day
- Hands on workflow time: minimal setup requiring roughly 10 to 15 mins of manual interaction
- High degraded sample tolerance: validated to reliably read low integrity sample sources, including formalin fixed paraffin-embedded tissues, crude cell or tissue lysates, PAXgene whole blood and low RNA/DNA inputs

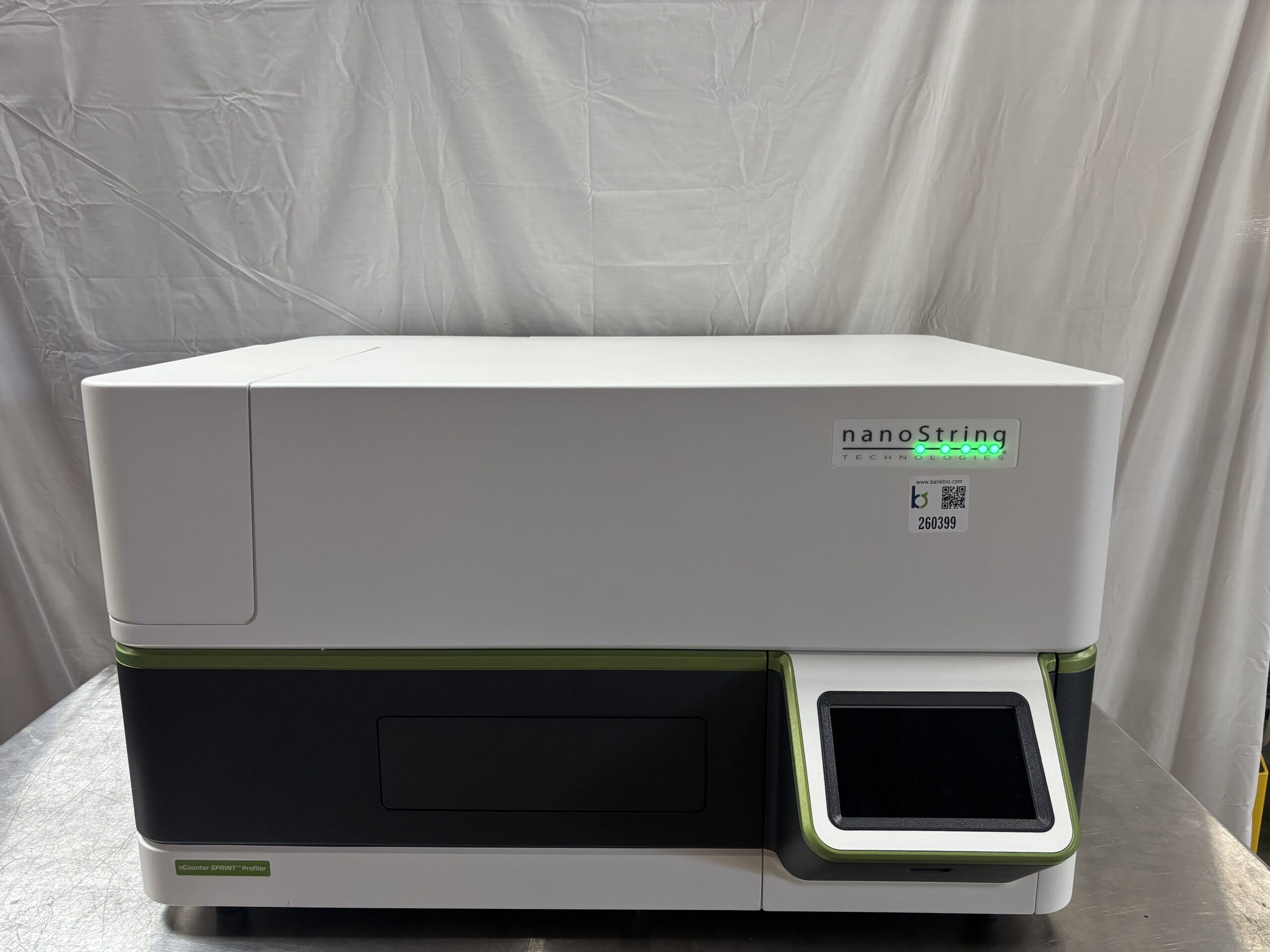

- Combines the mechanical automated responsibilities of legacy standalone components into a single desktop unit

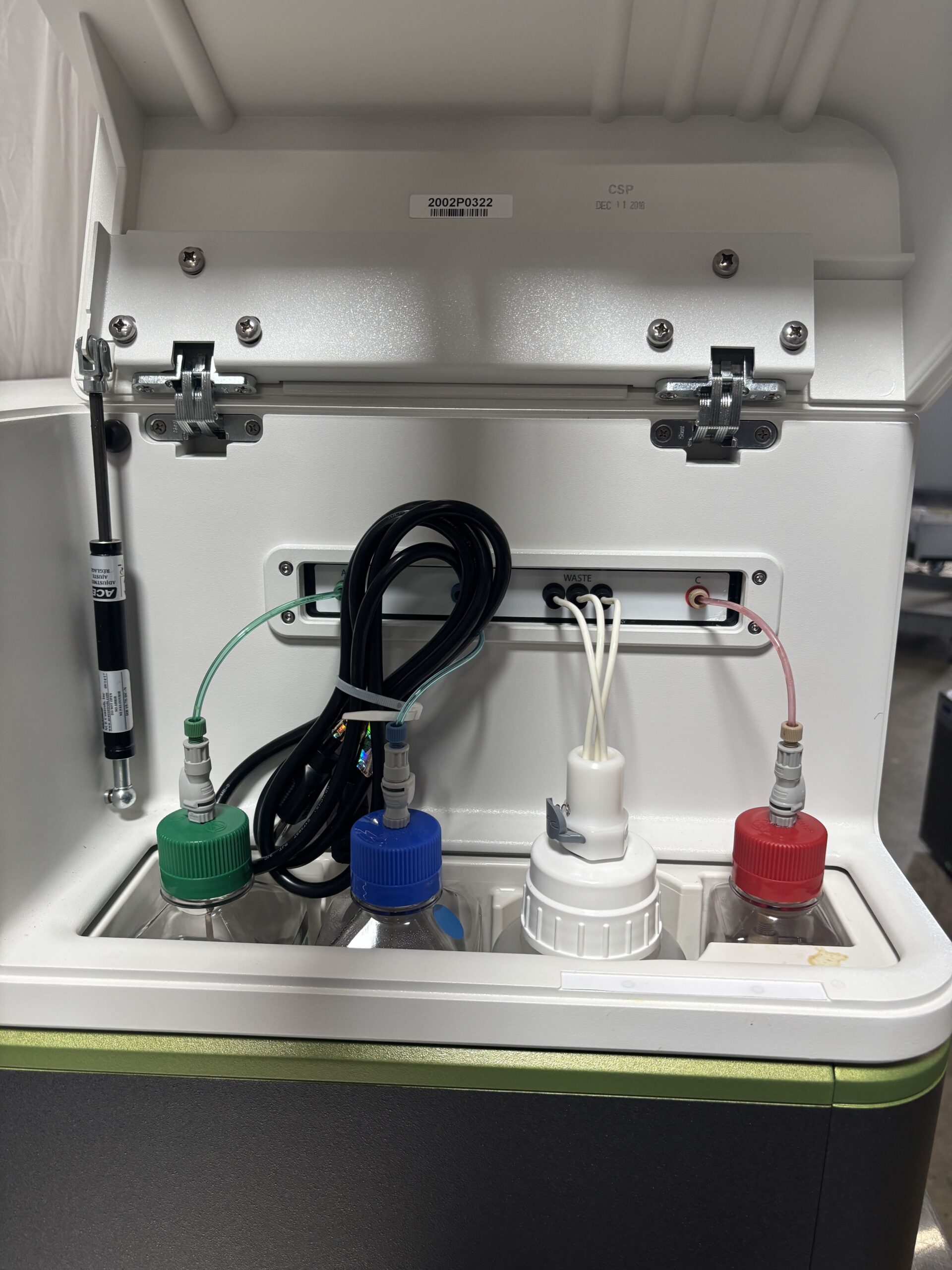

- Fluidic purification: hybridized sample sets are loaded directly onto specialized disposable SPRINT carts. An array of internal automated microfluidic lanes purifies, aligns, and immobilizes fluorescent reporter probes onto the substrate surface
- Detection system: employs an internal high resolution digital imaging scanner to count and inventory individual color coded molecular barcodes
- Dimensions: 35.8″W x 29.9″D x 20.8″H

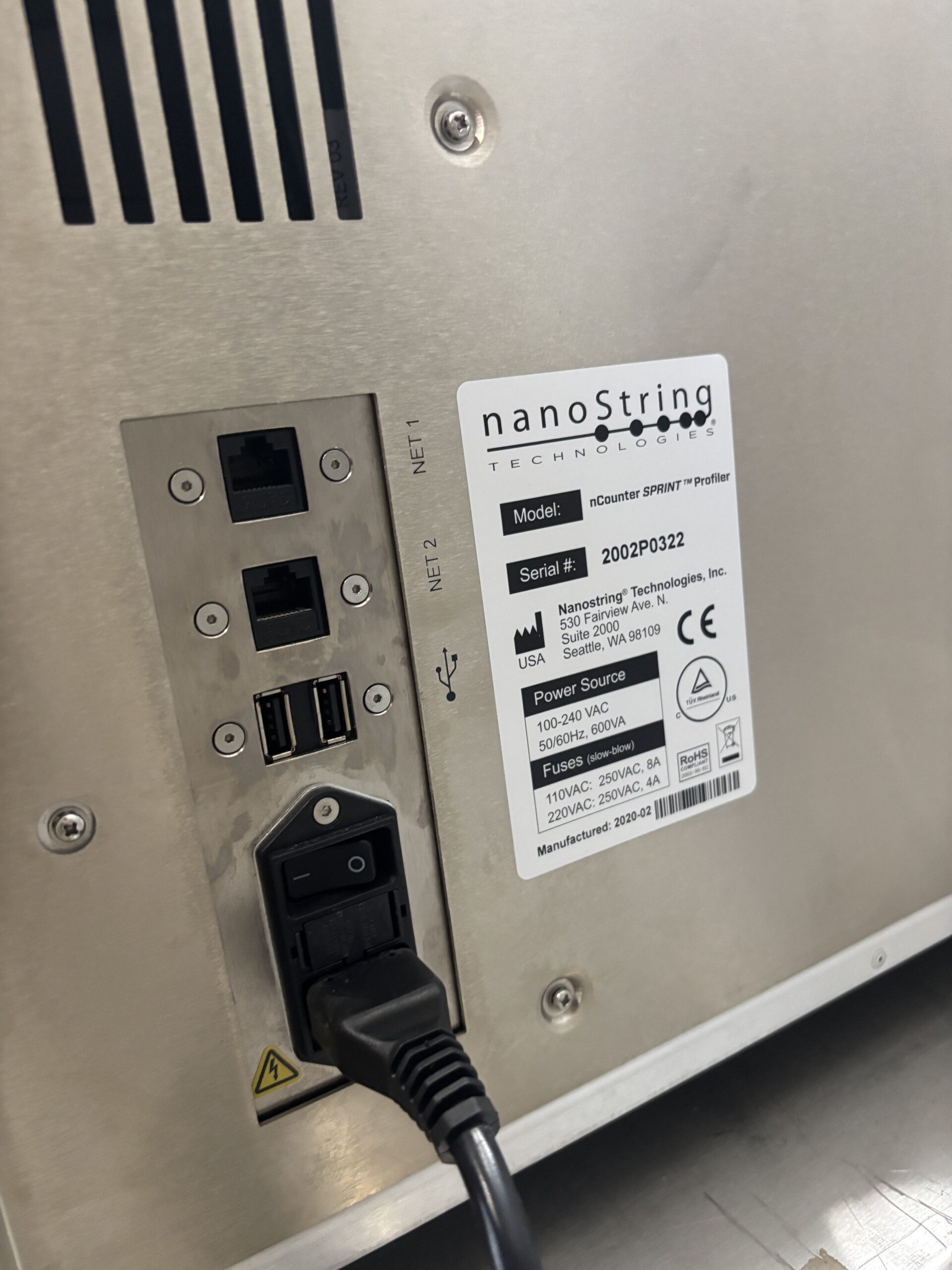

- 100-240V 50/60Hz
- DOM: 2020
