Description

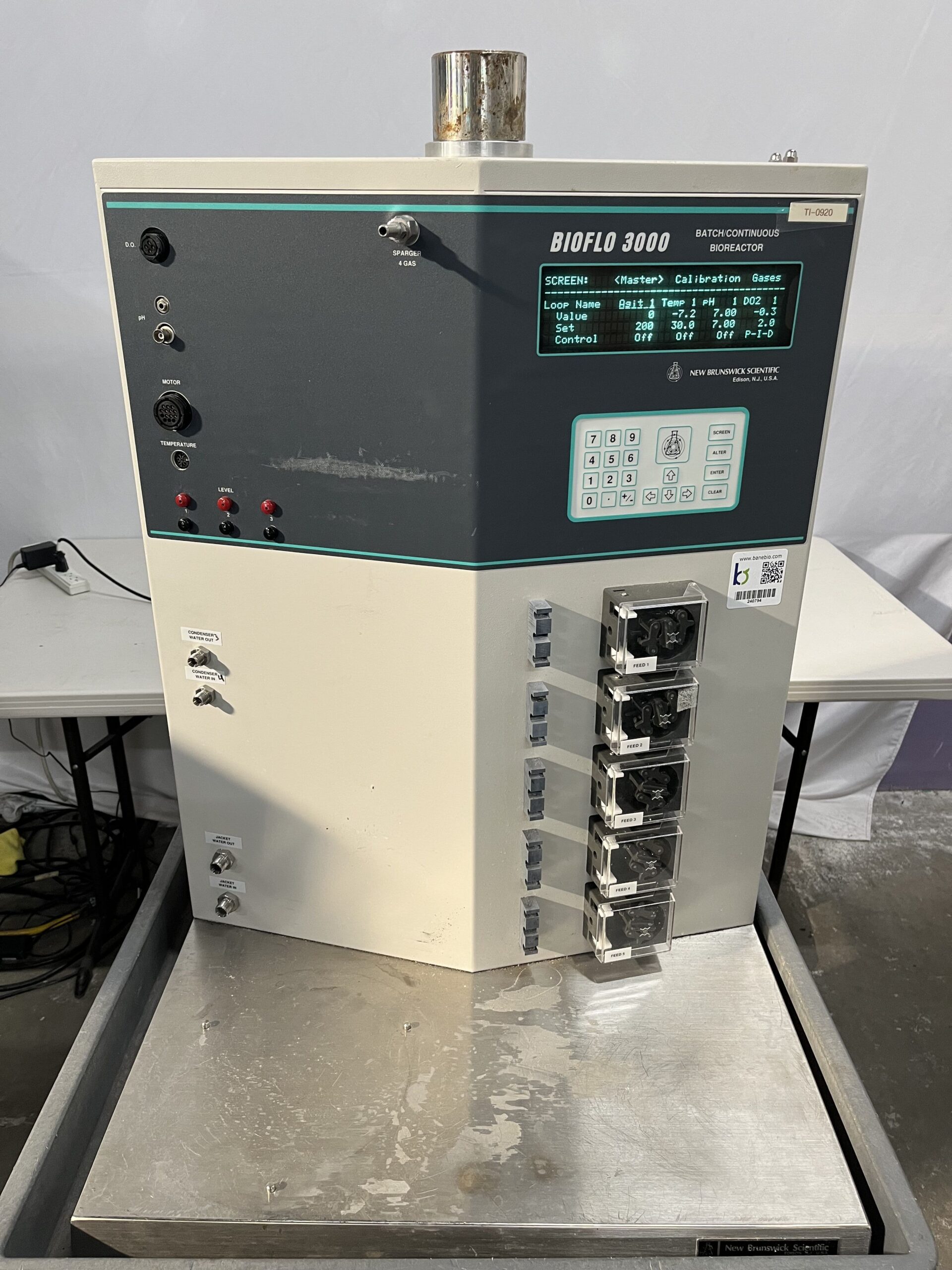

- The New Brunswick BioFlo 3000 is a high performing laboratory fermentor, designed to aid in maximizing fermentation and cell culture outputs. This advanced bio processing system has the capacity to produce augmented yields of biomass or products expelled by any cell line including that of microbes, animals, insects and plants. Its range of features and available enhancement options highlight this model’s versatility in meeting the dynamic needs of research laboratories.
- BioFlo 3000 laboratory fermentors ensure the reliability of results in every use. Built-in gas-mixers in every unit optimize dissolved oxygen levels for high-density culture. Opting for two-gas mixing allows for the automatic or manual blending of supplemental oxygen and air. The creation of air-oxygen and agitation control cascades is made possible with this configuration.
- Foam and shear are regulated as the control system responds to difficult microbes. Users can perform four-gas mixing in cell culture to carry out different procedures. Air-oxygen-carbon dioxide and nitrogen are blended during the process and allows users to control the pH as well as the dissolved oxygen with utmost care and precision.
- Built-in gas mixer
- Powerful fermentation agitation
- Choice of 12 Interchangeable Vessels
- Equipped with Stainless Steel Heat Exchanger
- Range: 50 to 1000RPM
- Sensor: Photo-optical encoder disk with a resolution of 1000 pulses/revolution
- Control: Microprocessor-based with PID
- Indications: Digital display in 1 rpm increments
- Temp Range: From 5°C above coolant temperature to 80°C ± 0.1°C, or
- From + 4°C to 80°C with optional refrigeration system, ± 0.1°C.
- Rapid temperature shift 6 of 1°C/minute (25°C-45°C)
- Control: PID with pulse-width modulation of heater and cooling water
- Temp Sensor: Platinum RTD

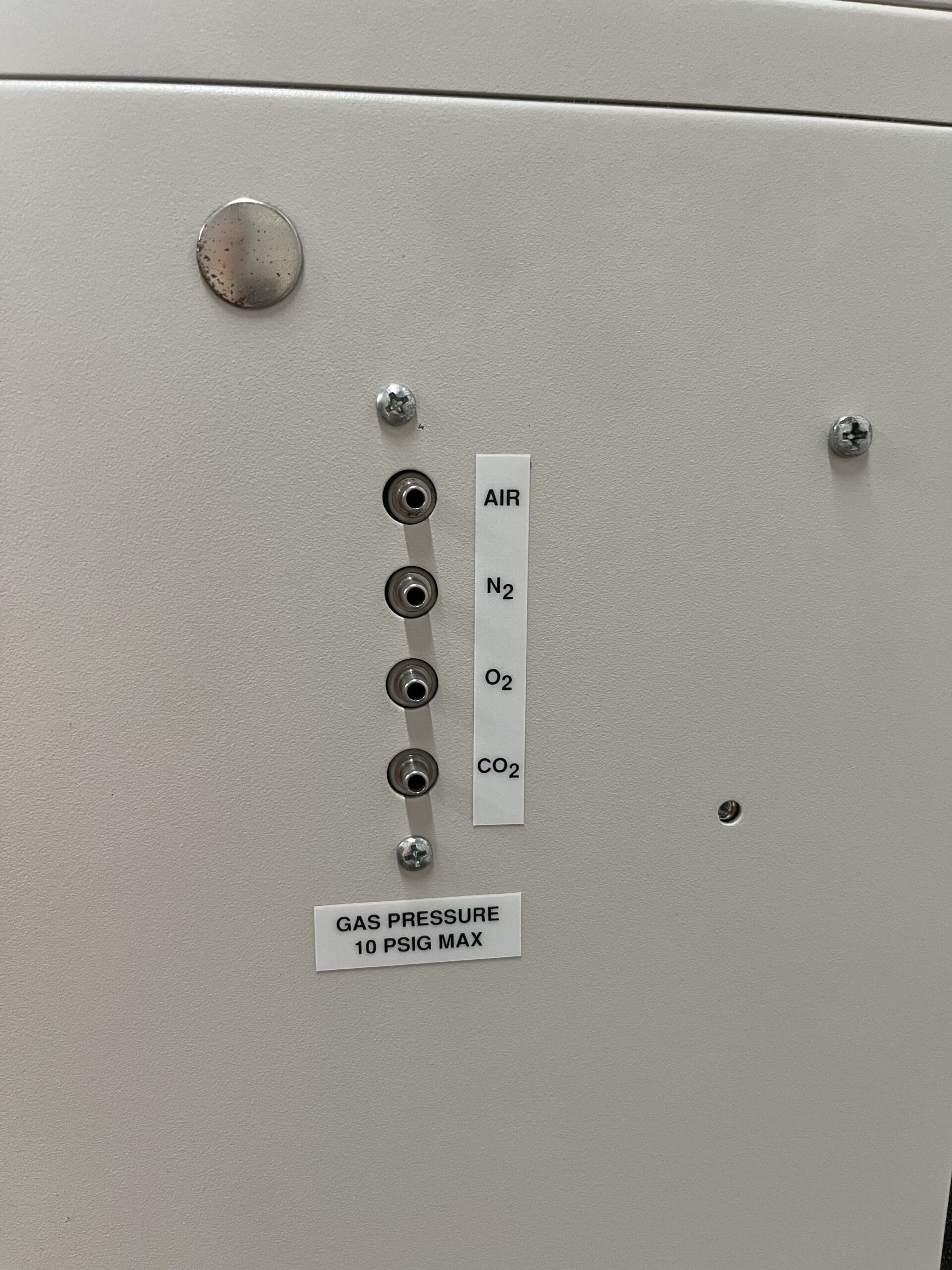

- 2-gas mode: Air and O2 metered to ring sparger in fermentation mode
- 4-gas mode: Air, O2, CO2 and N2 for interactive pH/DO control in cell culture mode or
- manual dosing of gasses for plant cell culture
- Air flow: Thermal Mass Flow Meter (TMM) or Thermal Mass Flow Controller (TMC)
- Inlet filter: 0.2 µm absolute filter cartridge interchangeable and repeatedly autoclavable
- pH setpoint: 2.00 to 12.00
- Control modes: Fermentation: PID control of liquid additions.
- Cell Culture: 4-gas interactive pH/DO control; and base addition with optional BioCommand software
- 120V 50/60Hz 1440VA
