Description
- CFI60 Infinity Optical System (60mm tube length, 25mm thread size)
- Ports & light paths: features a multi-port stratum structure. Light path splitting options typically include 100% eyepiece, 100% left port, 100% right port or shared ratios
- Vertical objective nosepiece movement. Coaxial coarse and fine adjustment knobs with built-in escape and manual refocusing mechanisms

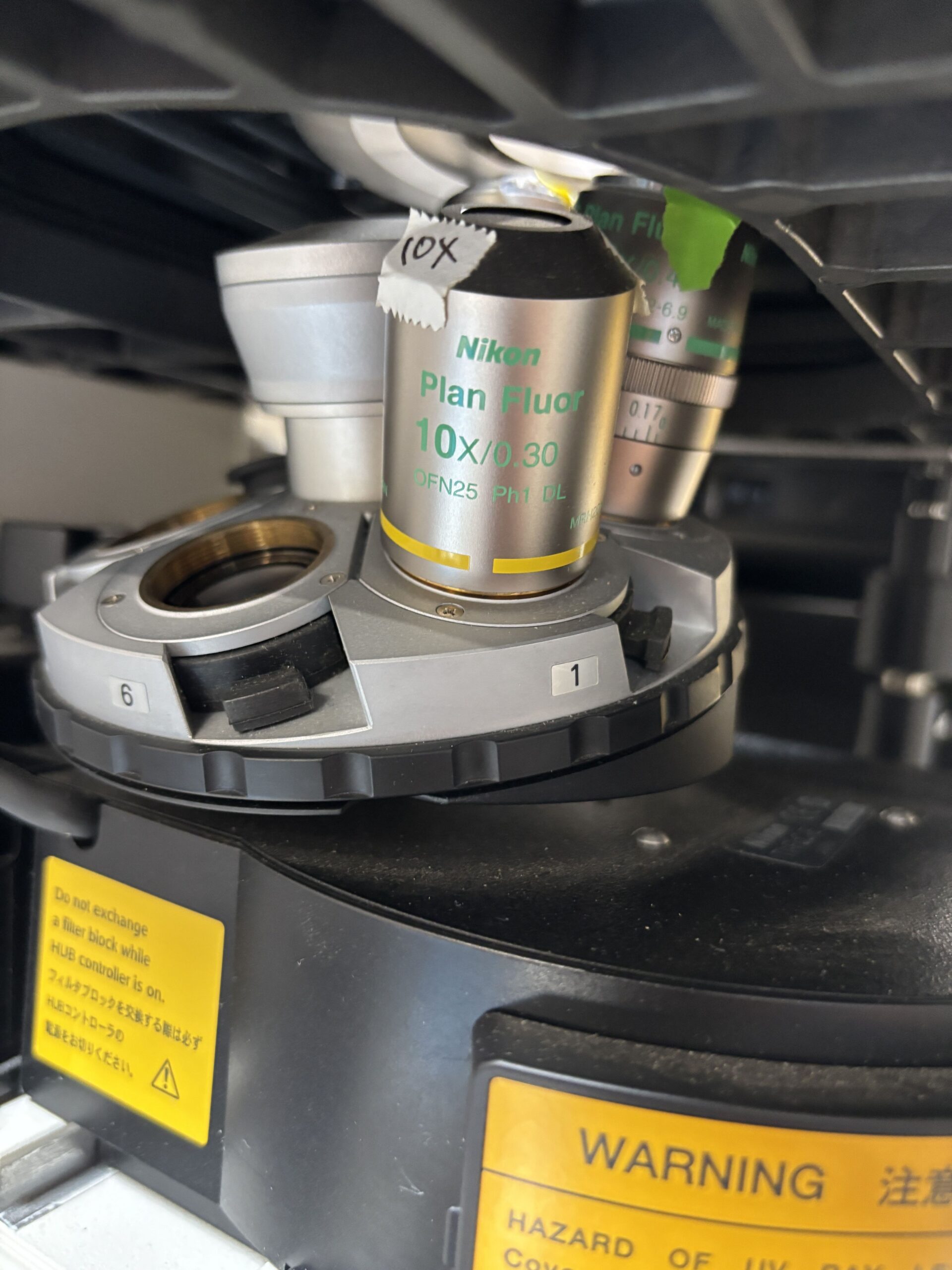

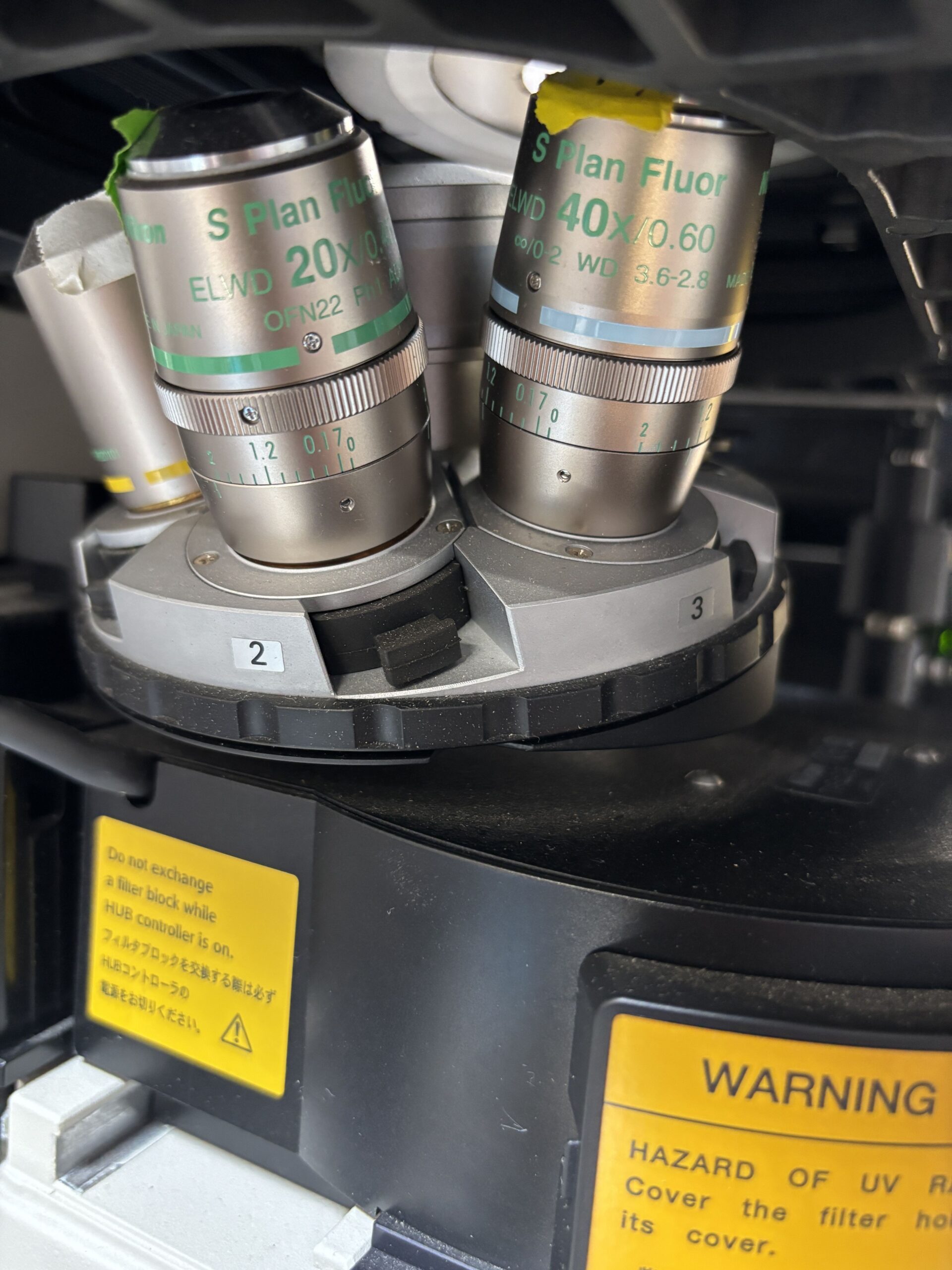

- Sextuple (6-position) nosepiece featuring integrated slots for DIC sliders
- PFS: real-time, continuous infrared LED feedback loops embedded near the nosepiece to actively counter axial focus drift caused by thermal fluctuations during long-time lapse observations
- Accommodates high output 100W halogen lamps or modern high intensity LED equivalents powered via an external power supply box
- Features a manual tilt back mechanism providing clear, unobstructed access to the stage space when swapping out large cell culture flasks or multi-well plates
- Rack and pinion vertical focus movement with centering adjustment screws

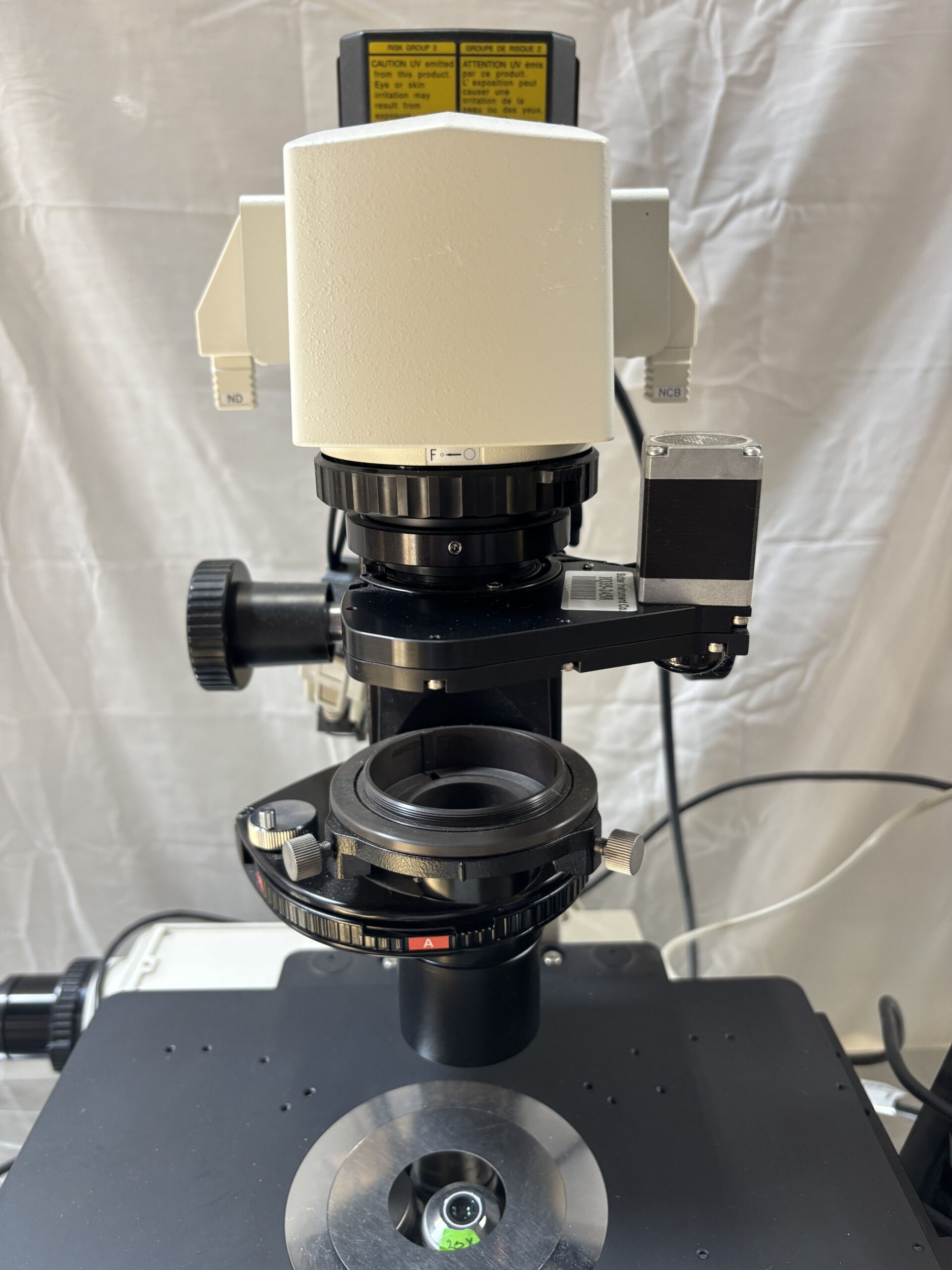

- LWD and ULWD condensers featuring removable phase contrast ring sliders or DIC polarizers

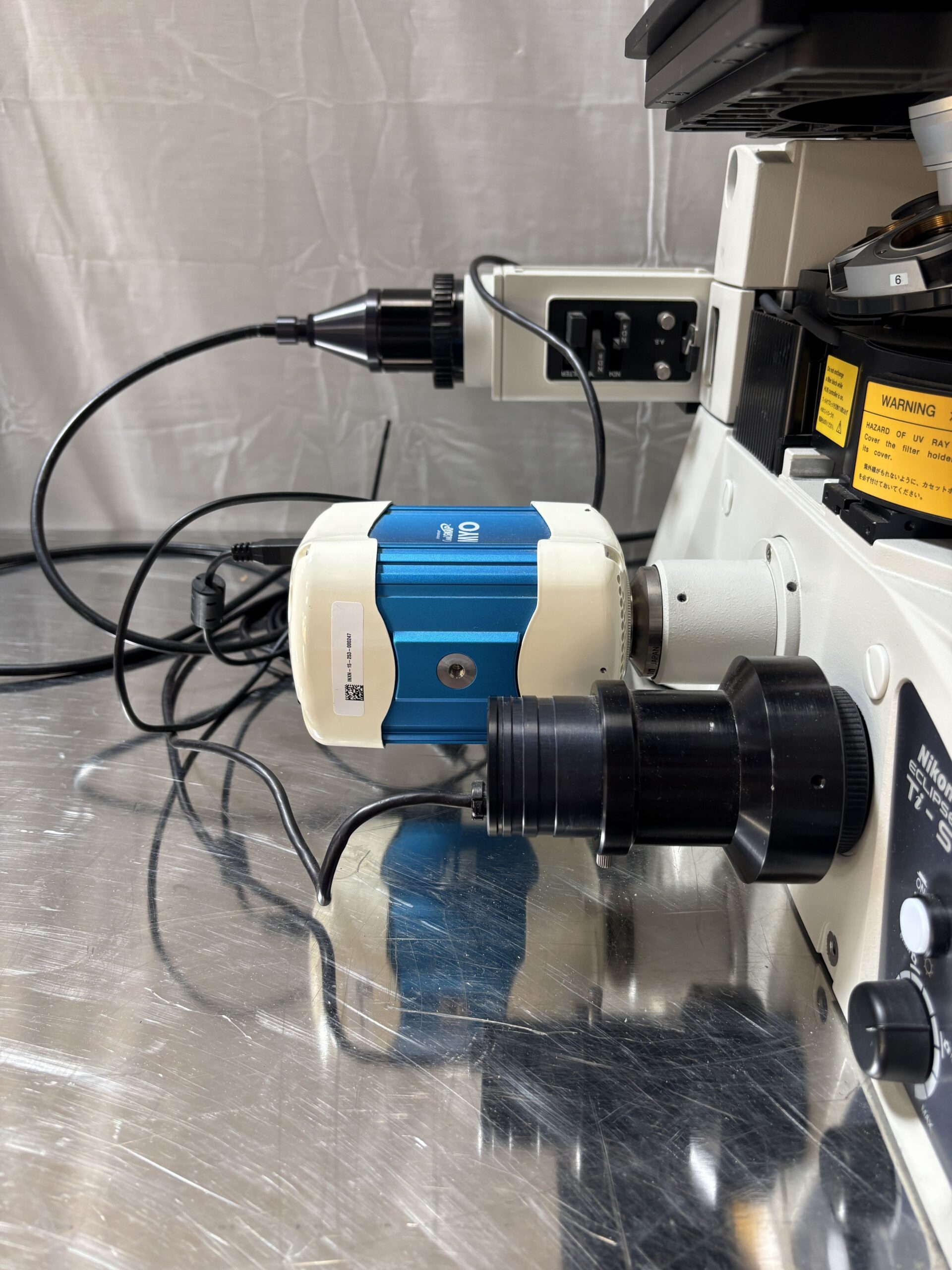

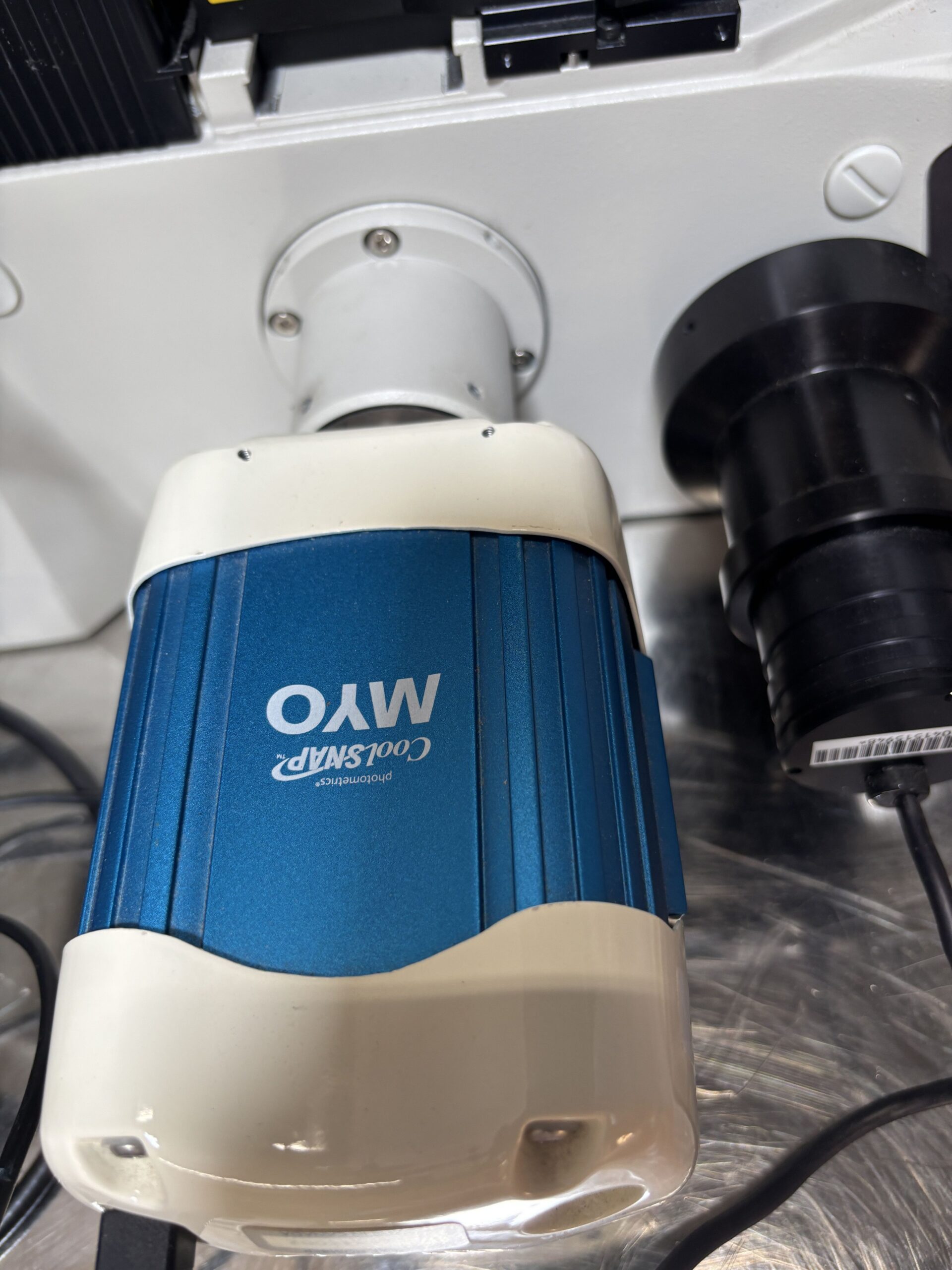

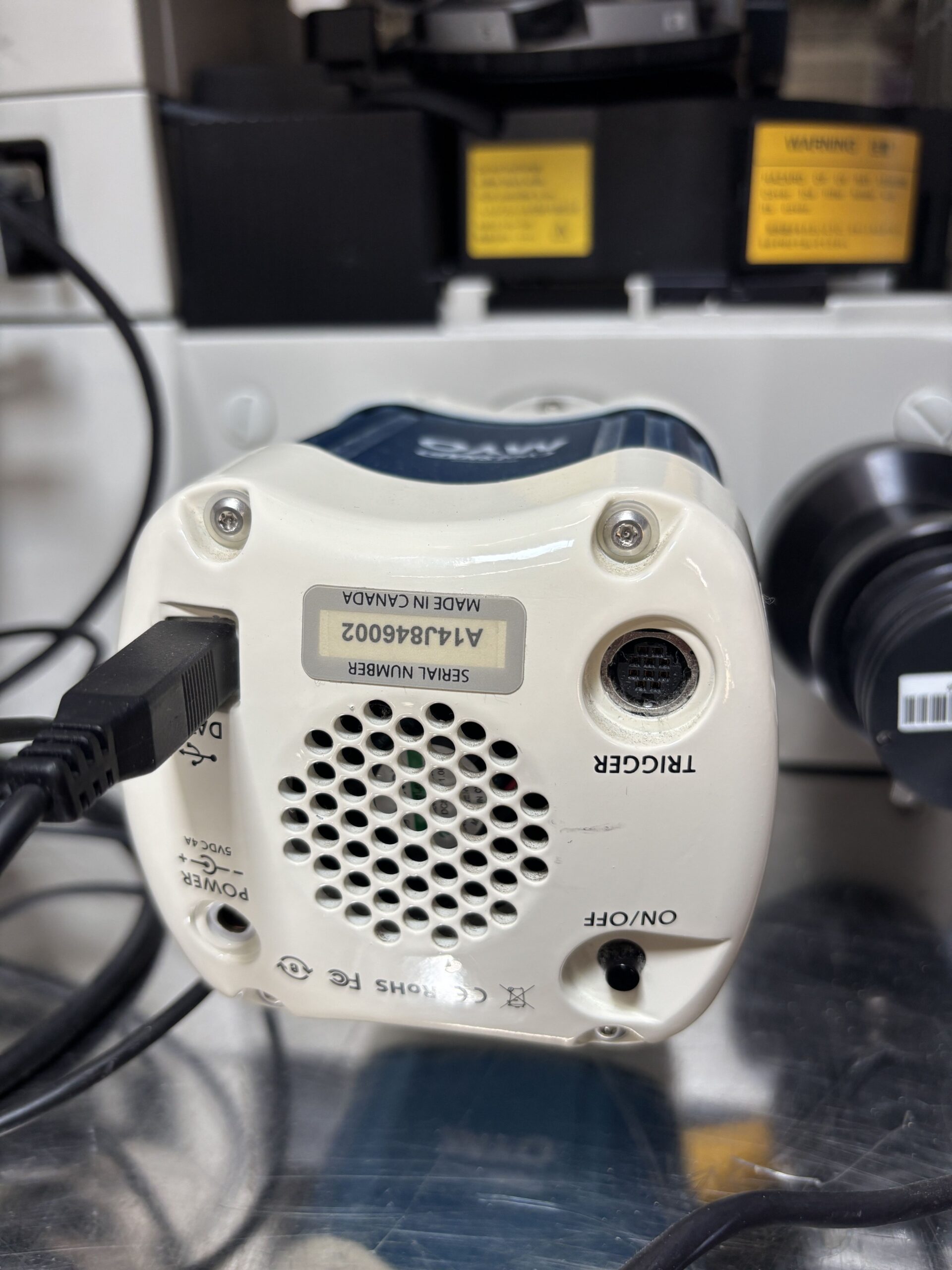

- CoolSNAP: Sony ICX674 progressive scan interline CCD
- 2.8 megapixels stretching across an active imaging array of 1940 x 1460 pixels
- 4.54um x 4.54um optimized to match the optical Nyquist sampling limits of high numerical aperture microscope objectives
- 8.8mm x 6.6mm active area sensor dims
- QE: high sensitivity with a 75% peak QE operating in the visible spectrum

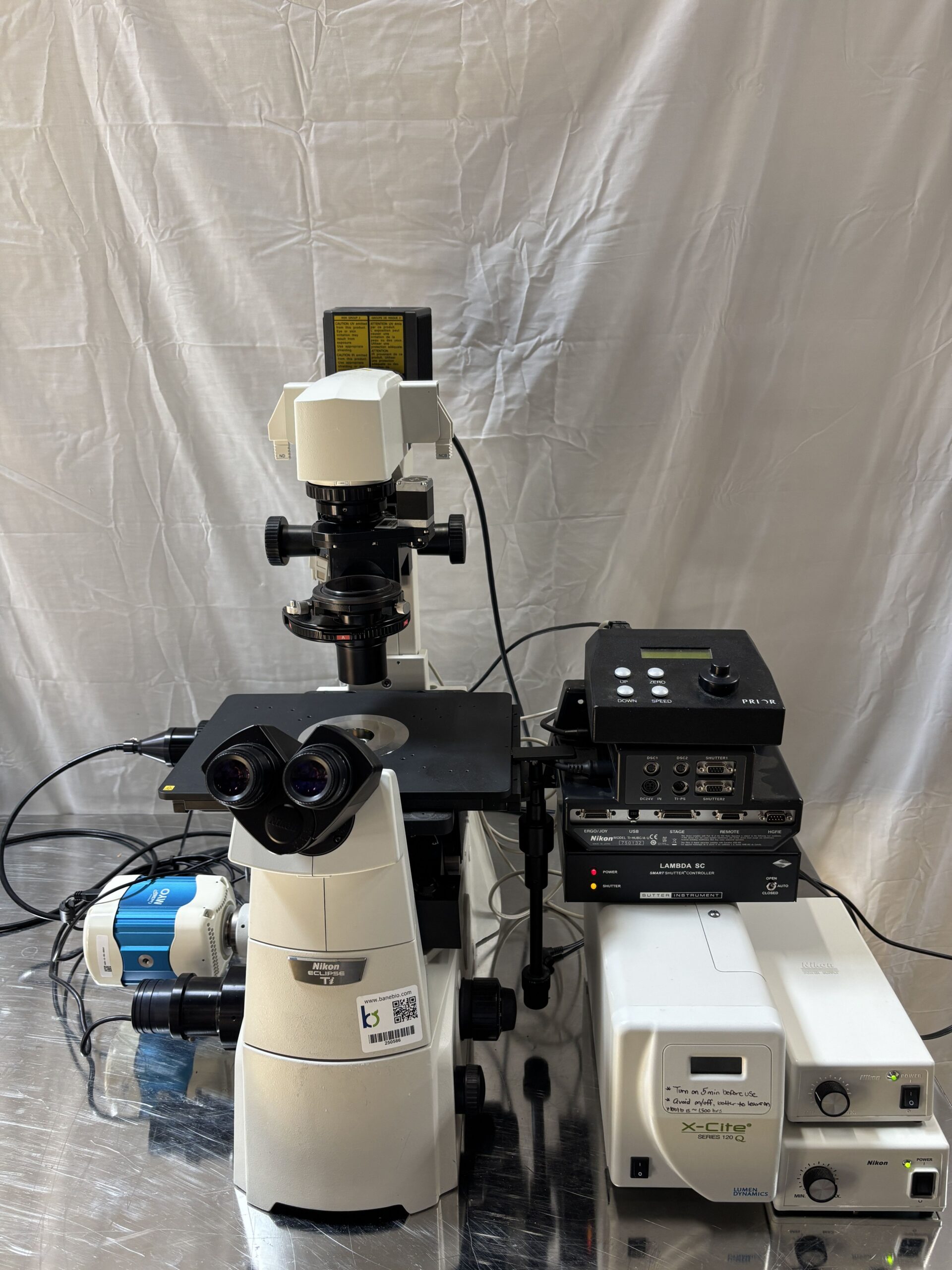

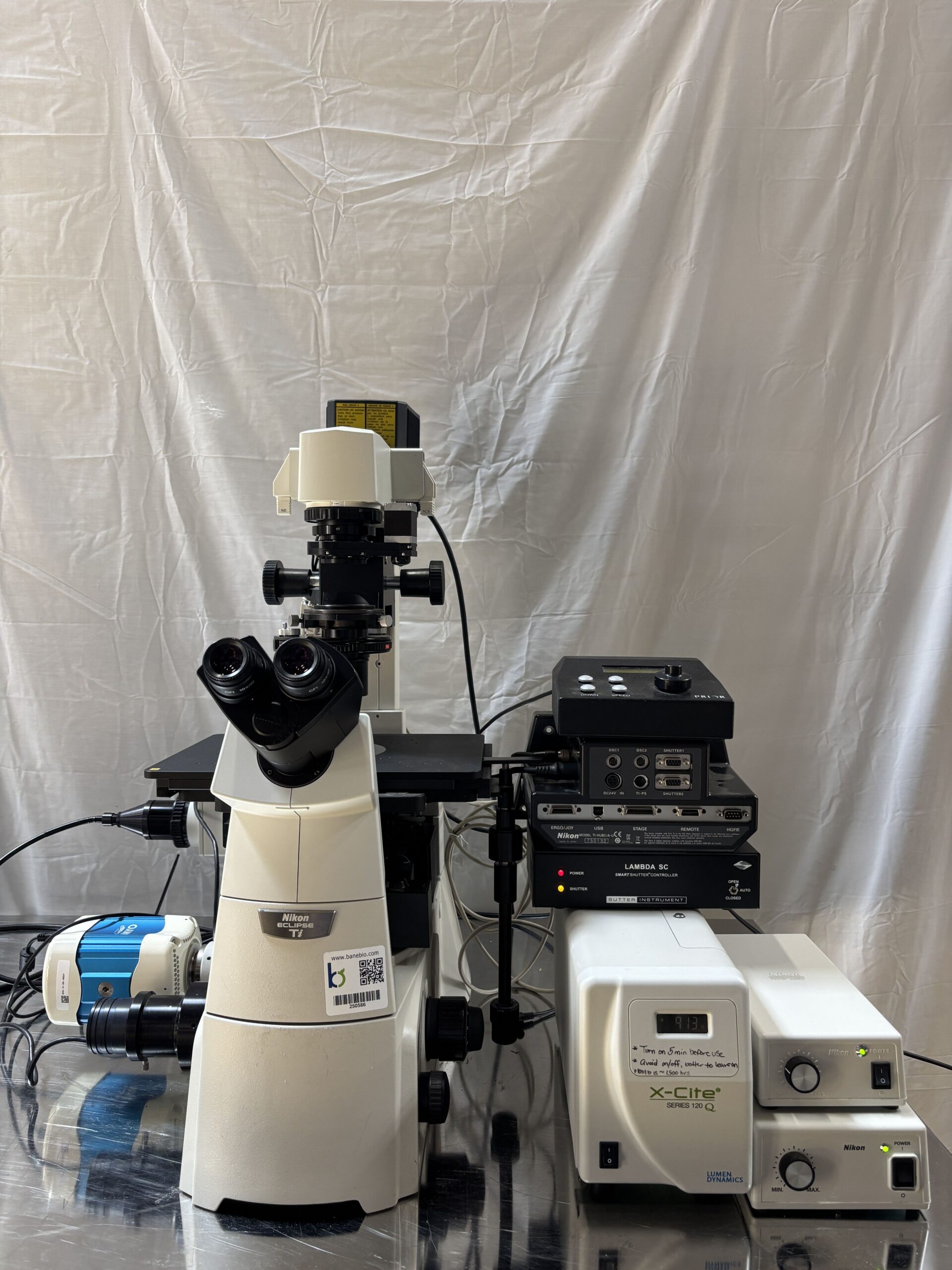

- Includes everything pictured! All cables included!
