Description

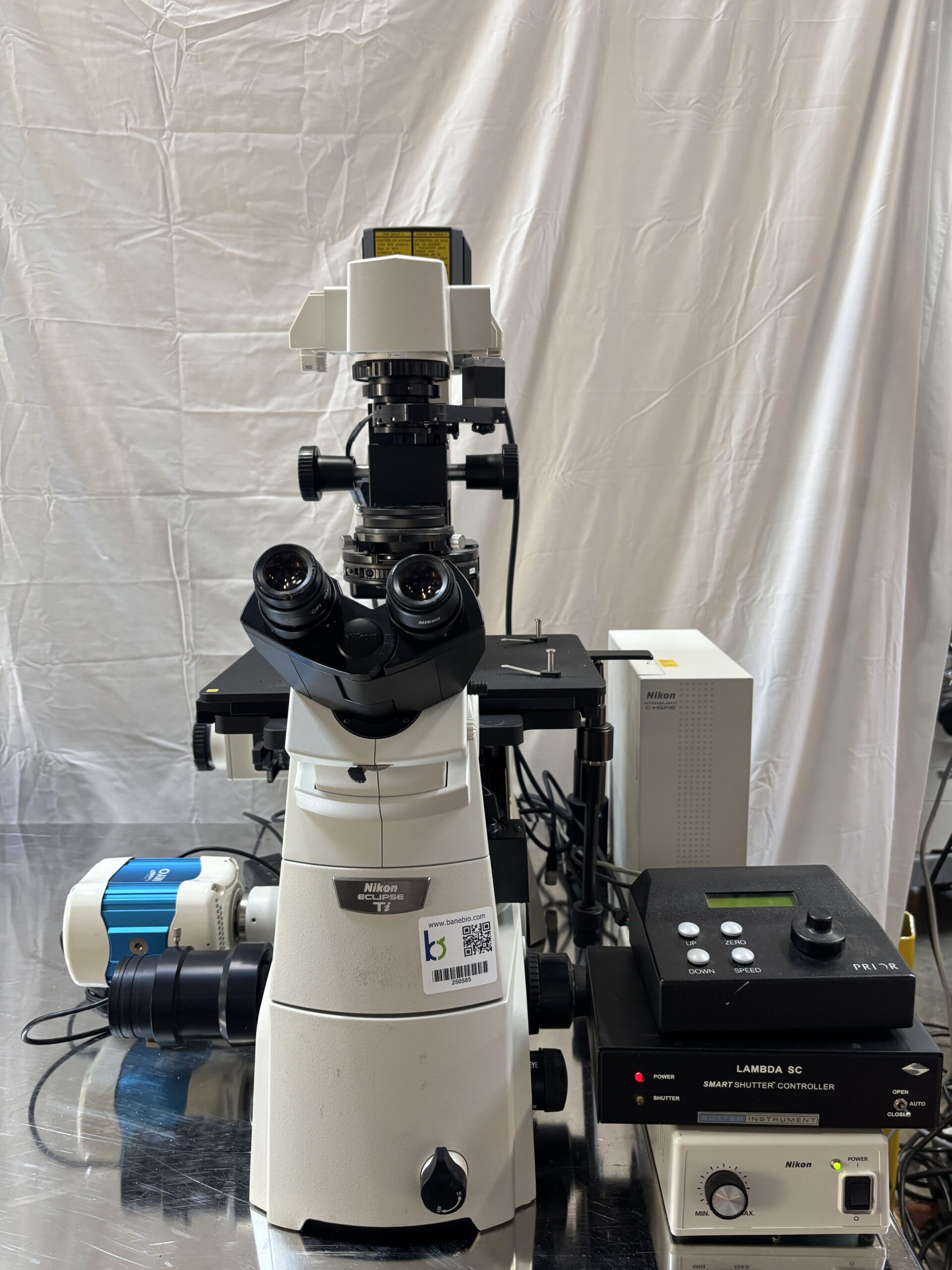

- Professional grade, multi-port inverted fluorescence imaging workstation
- For fixed cell immunofluorescence, quantitative live cell imaging and high resolution spatial mapping
- CFI60 system with a 60mm parfocal distance and a 25mm objective thread size

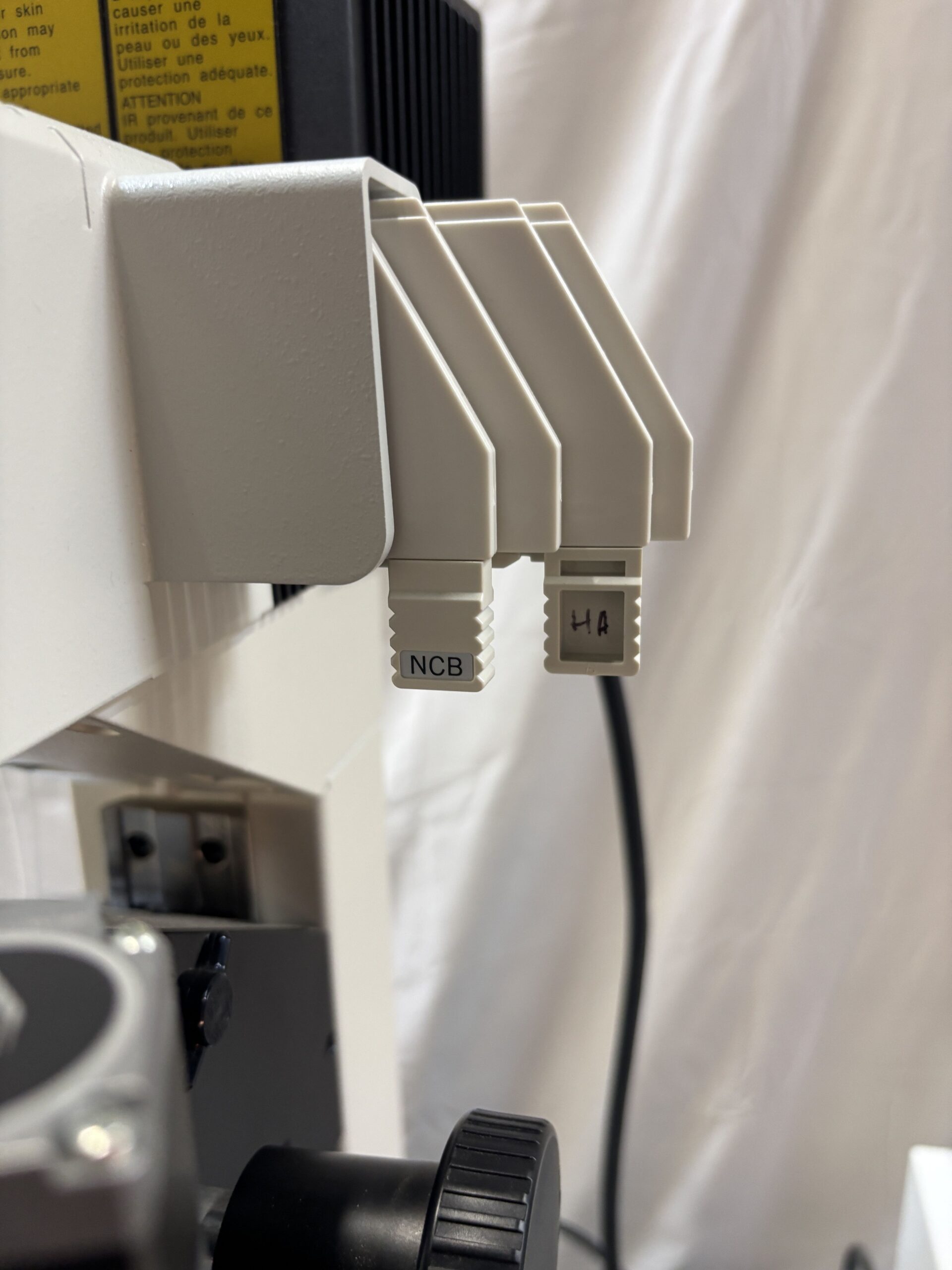

- Built in manual switching slider allowing quick 1.0x or 1.5x magnification changes without swapping objectives
- 4 position manual optical splitter prism: Eyepiece 100% / Left port 100% / Right port 100% ; Split path 20% to eyepieces / 80% to the active camera port

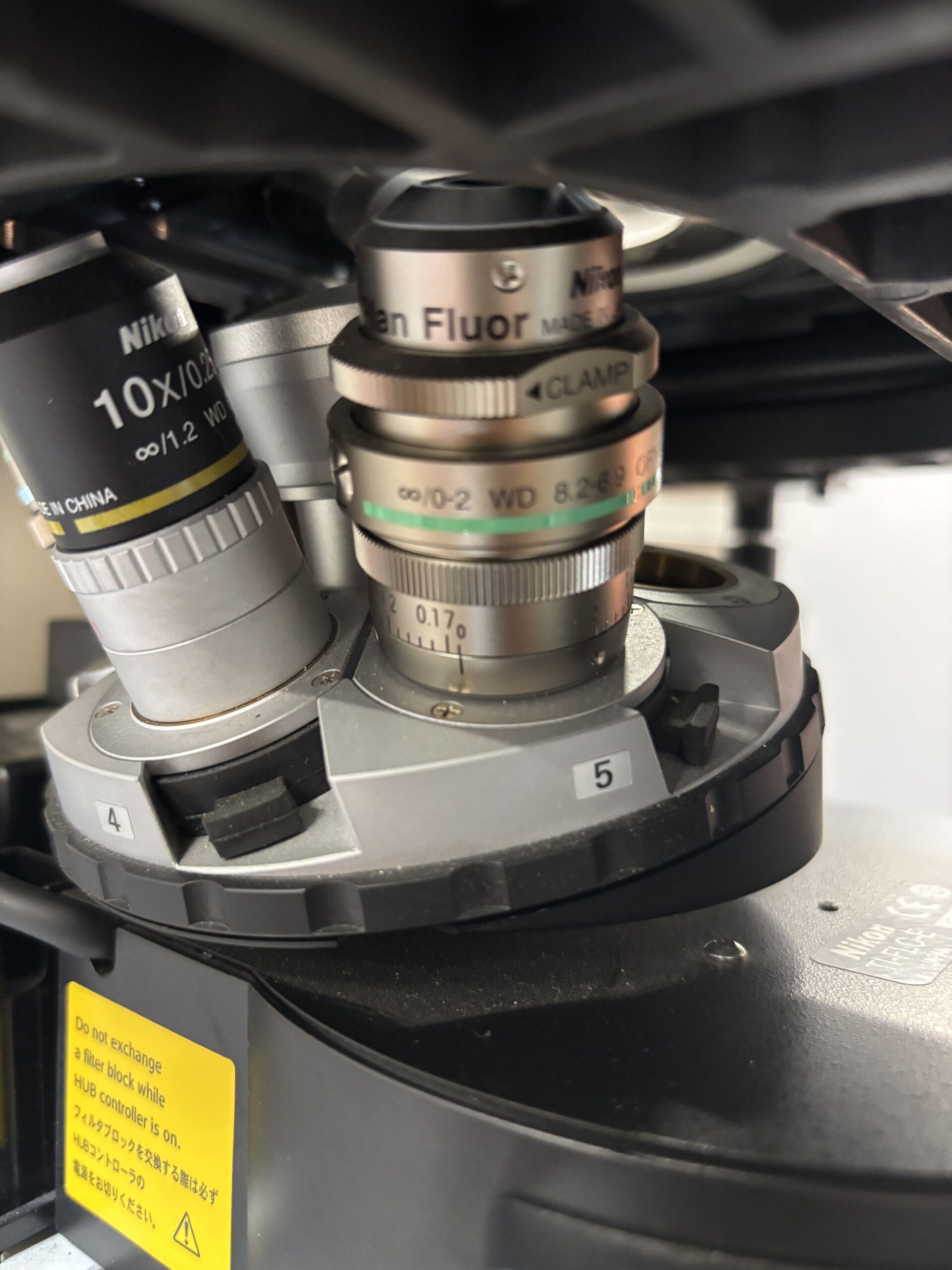

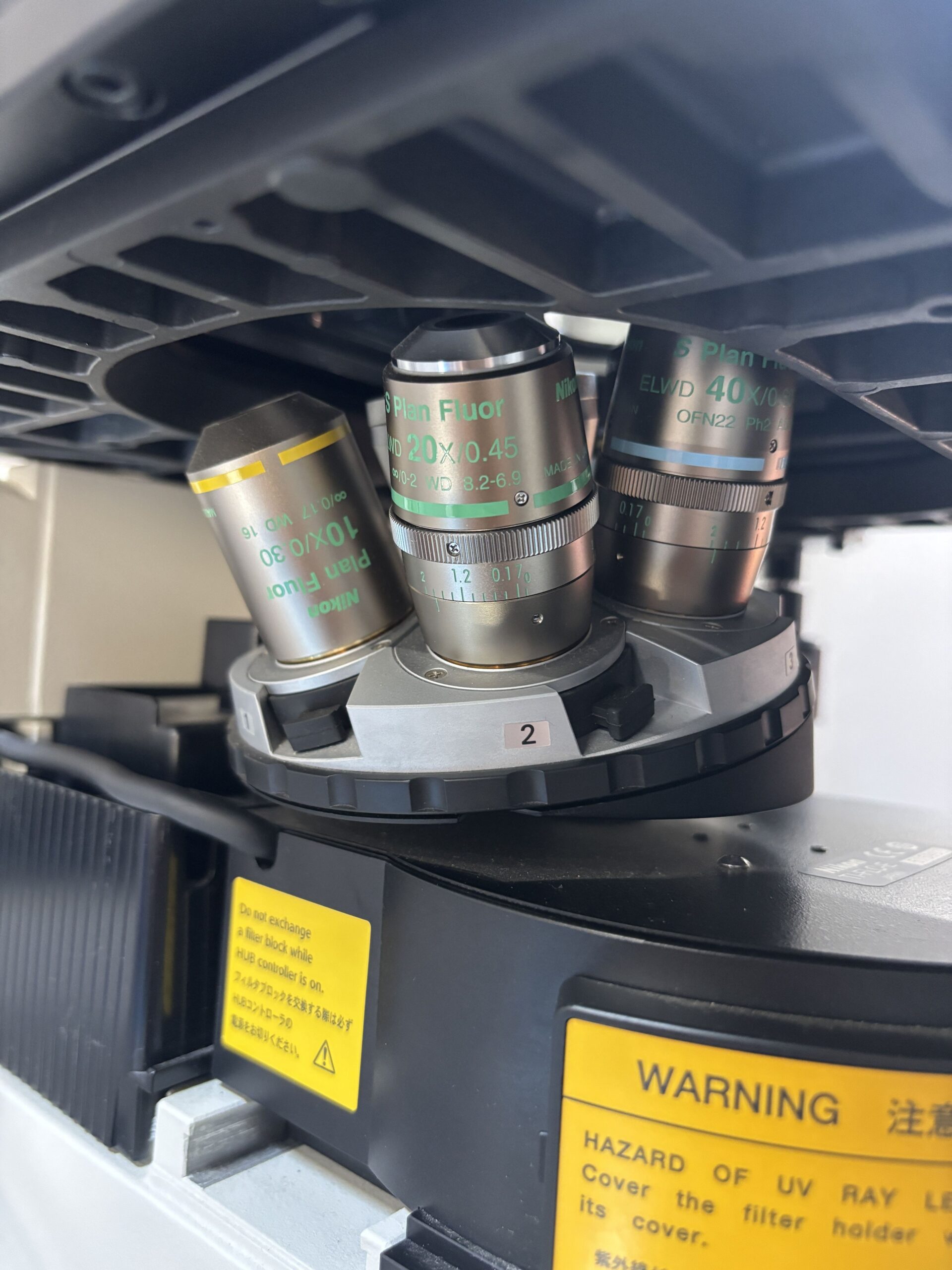

- Heavy duty, manual sextuple nosepiece featuring integrated slots for DIC sliders

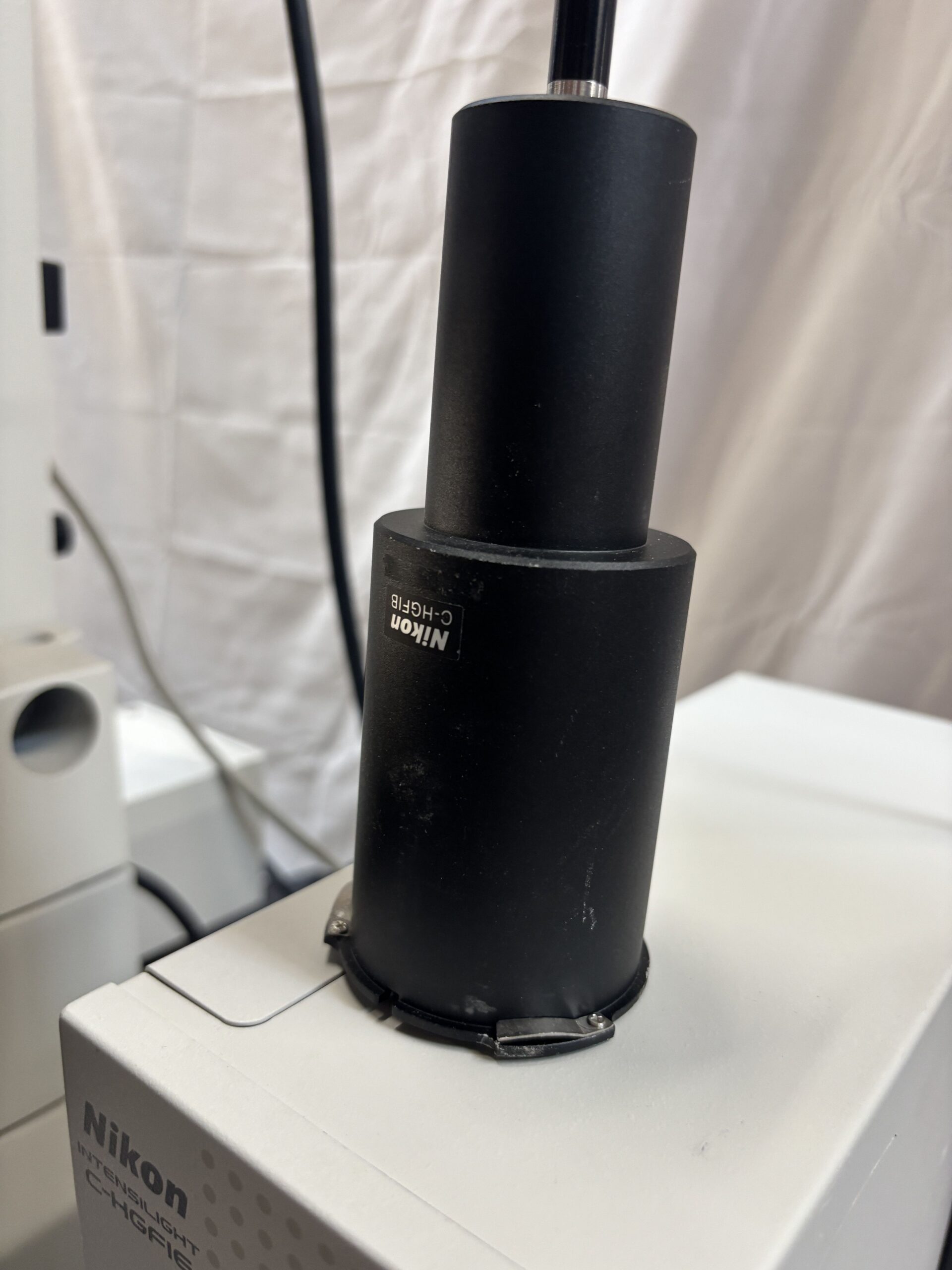

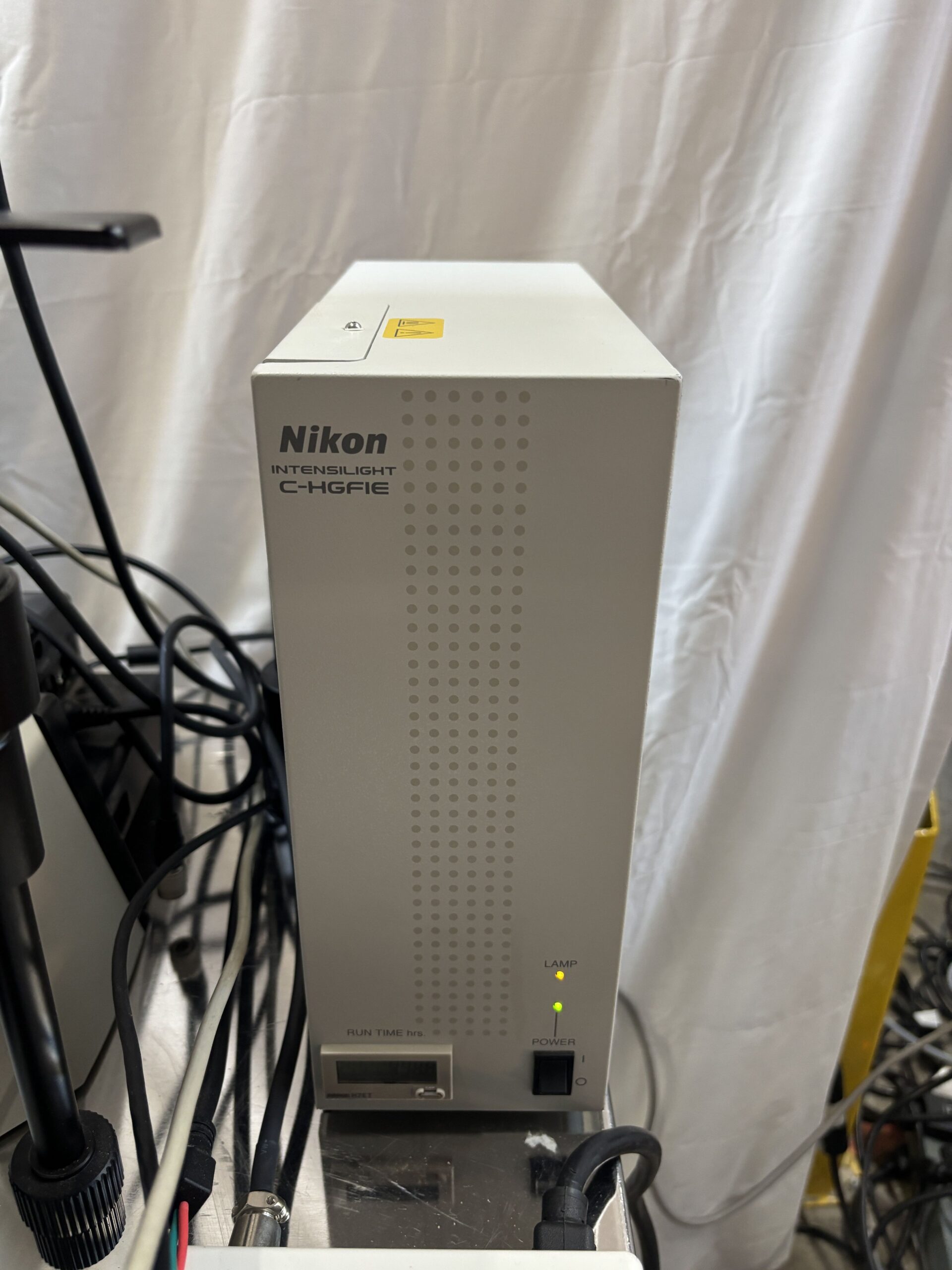

- Features an integrated epi-fluorescence illuminator attached to a mechanical 6 position filter cube turret
- High output 100W halogen or modern LED pillar with a manual tilt back mechanism for clear stage clearance when handling large flasks or multi well paltes

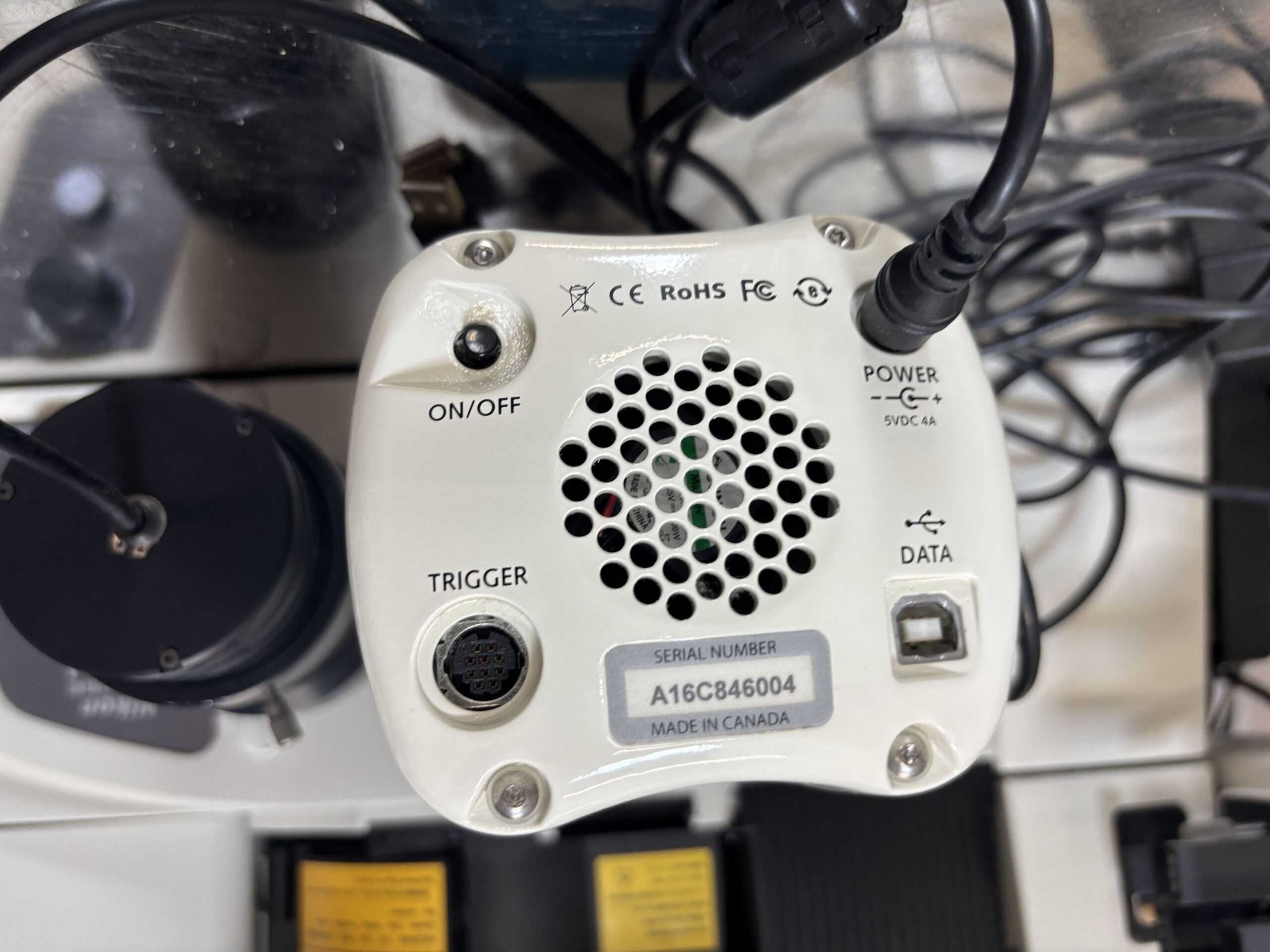

- Sony ICX674 progressive scan interline CCD sensor
- 2.8 megapixels across an active imaging array of 1940 H x 1460V pixels
- Optimized at 4.54um x 4.54um matching the optical Nyquist sampling limits of high numerical aperture microscope objectives
- 2/3″ optical format with an 8.8mm x 6.6mm imaging area
- Quantum efficiency: high sensitivity, featuring a 75% peak QE operating in the visible spectrum
- 14-bit dynamic range operating at a 20MHz readout speed
- Dimensions: 13.4″W x 24″D x 17.7″H
