Description

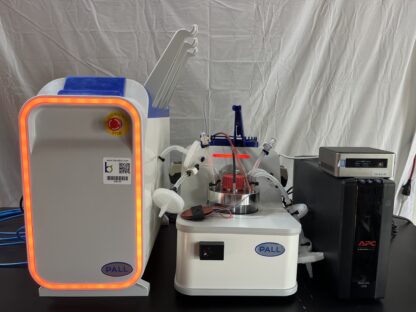

- The Pall Nano Bioreactor, iCELLis, and mPath system are single-use bioreactor systems offering scalable cell culture, typically used in cell expansion and viral vector production. The iCELLis Nano bioreactor utilizes a fixed-bed system with proprietary macrocarriers for cell growth, providing a high surface area equivalent to multiple roller bottles. The mPath Control Tower provides process control and integration with SCADA software for data monitoring and control.
- Working Volume: 0.9 liters

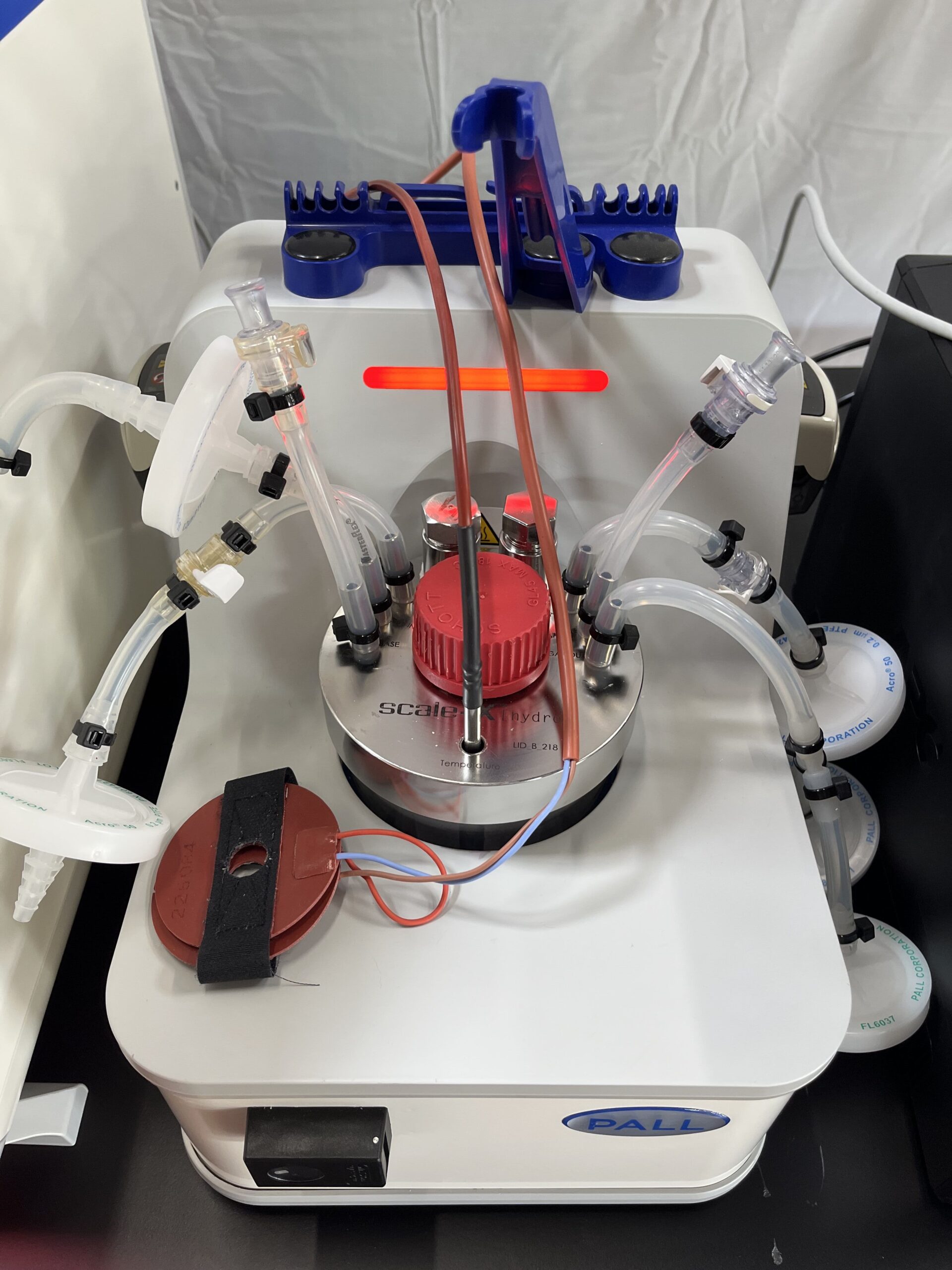

- Fixed Bed: Compact, high-cell-density, fixed-bed bioreactor with proprietary macrocarriers
- Surface Area: Up to 500 m2
- Single-Use: Disposable bioreactor vessels, probes, and sensors
- Features: Waterfall system for oxygenation, integrated mixing, and low shear stress
- Scaleability: Predictable scaling from R&D to manufacturing

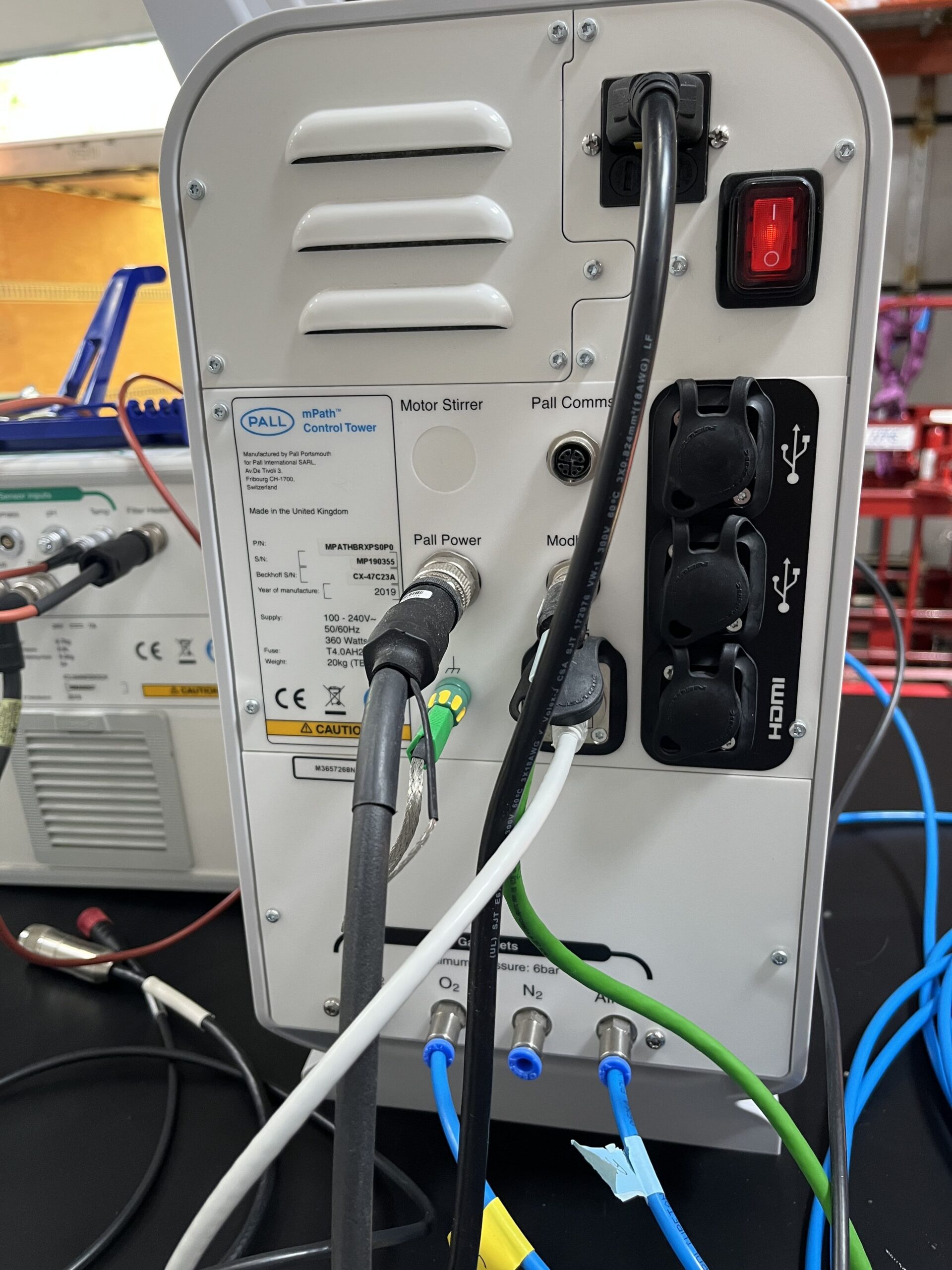

- Gas Inlets: Four 6 mm quick-fit connectors for air, nitrogen, CO2, and oxygen

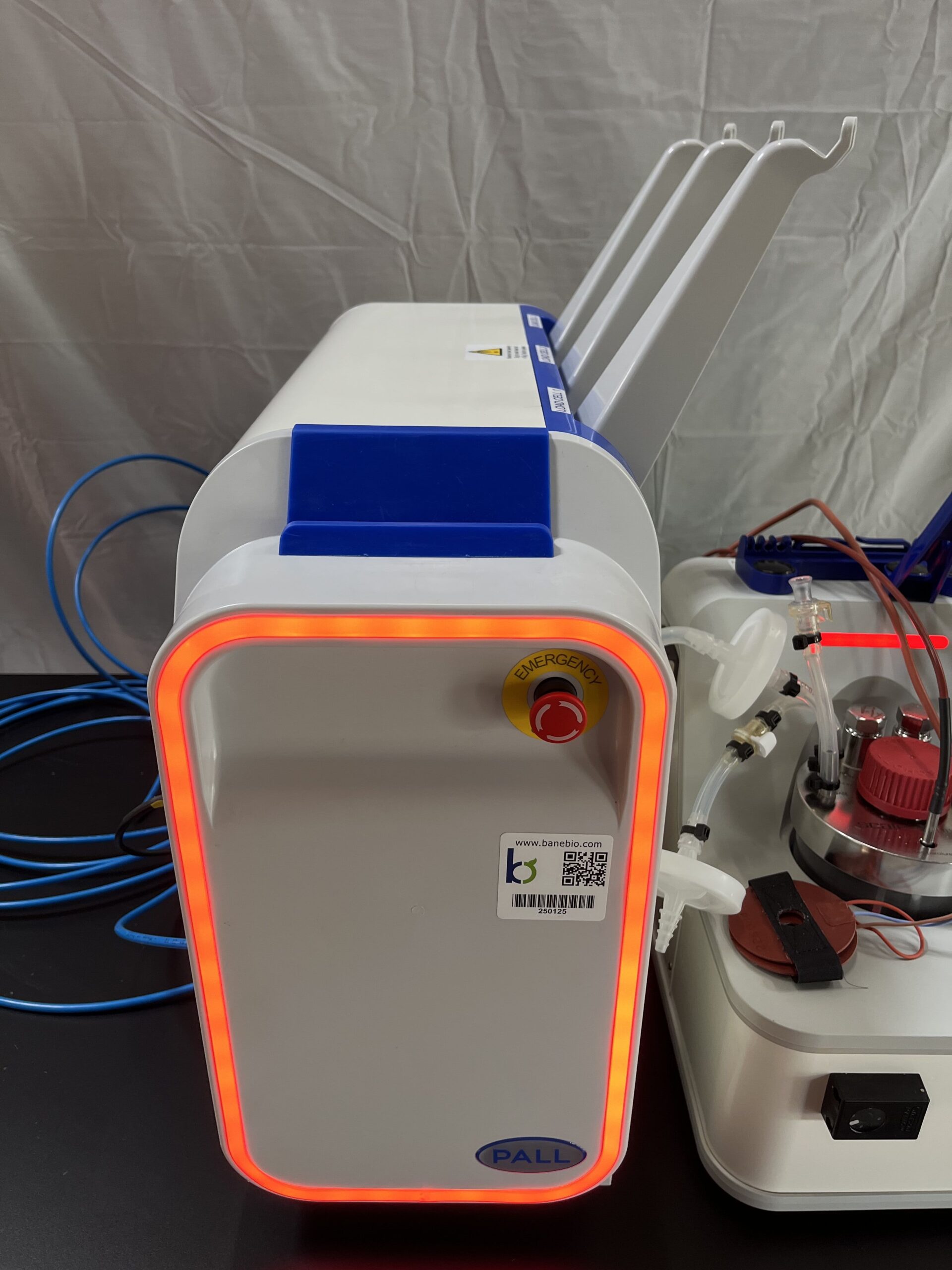

- Control: Programmable Logic Controller (PLC) with SCADA software for process monitoring and control
- Integration: Compatible with single-use technologies and can be integrated into DCS via OPC-UA

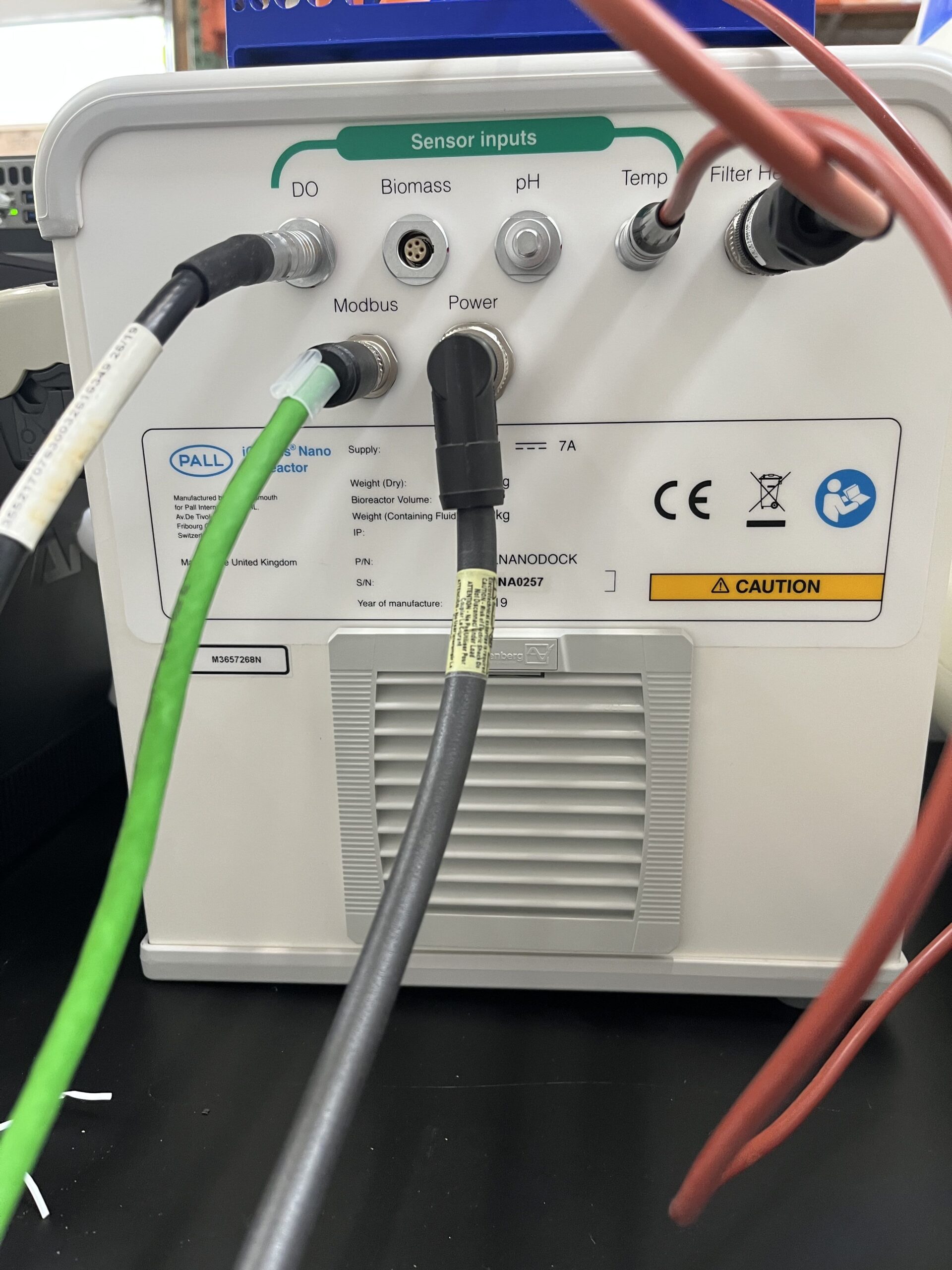

- Features: Temperature, pH, DO control, pump control, and agitation control

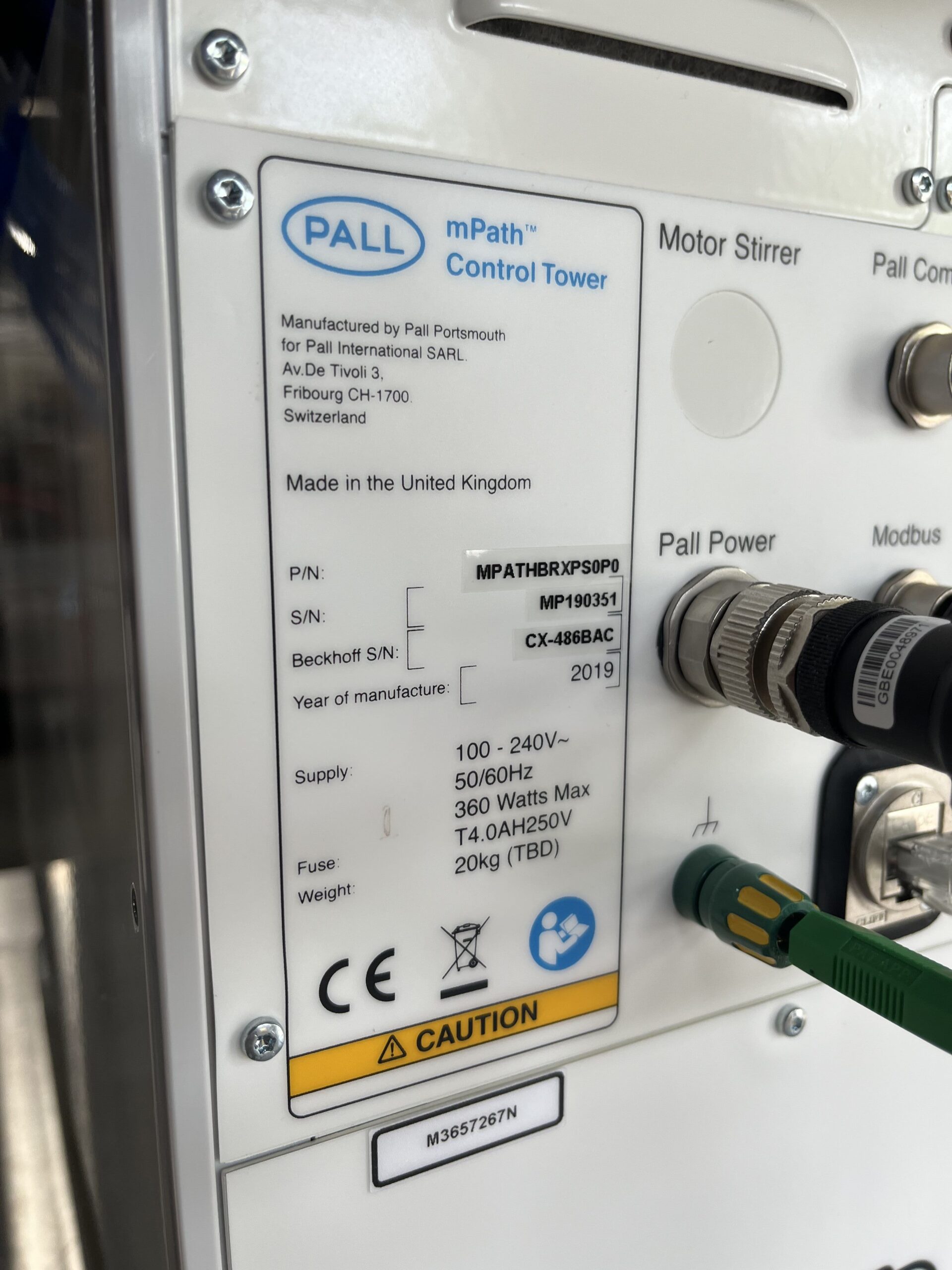

- Electrical: 100-240V, 50/60Hz, 360W, 4 Amps

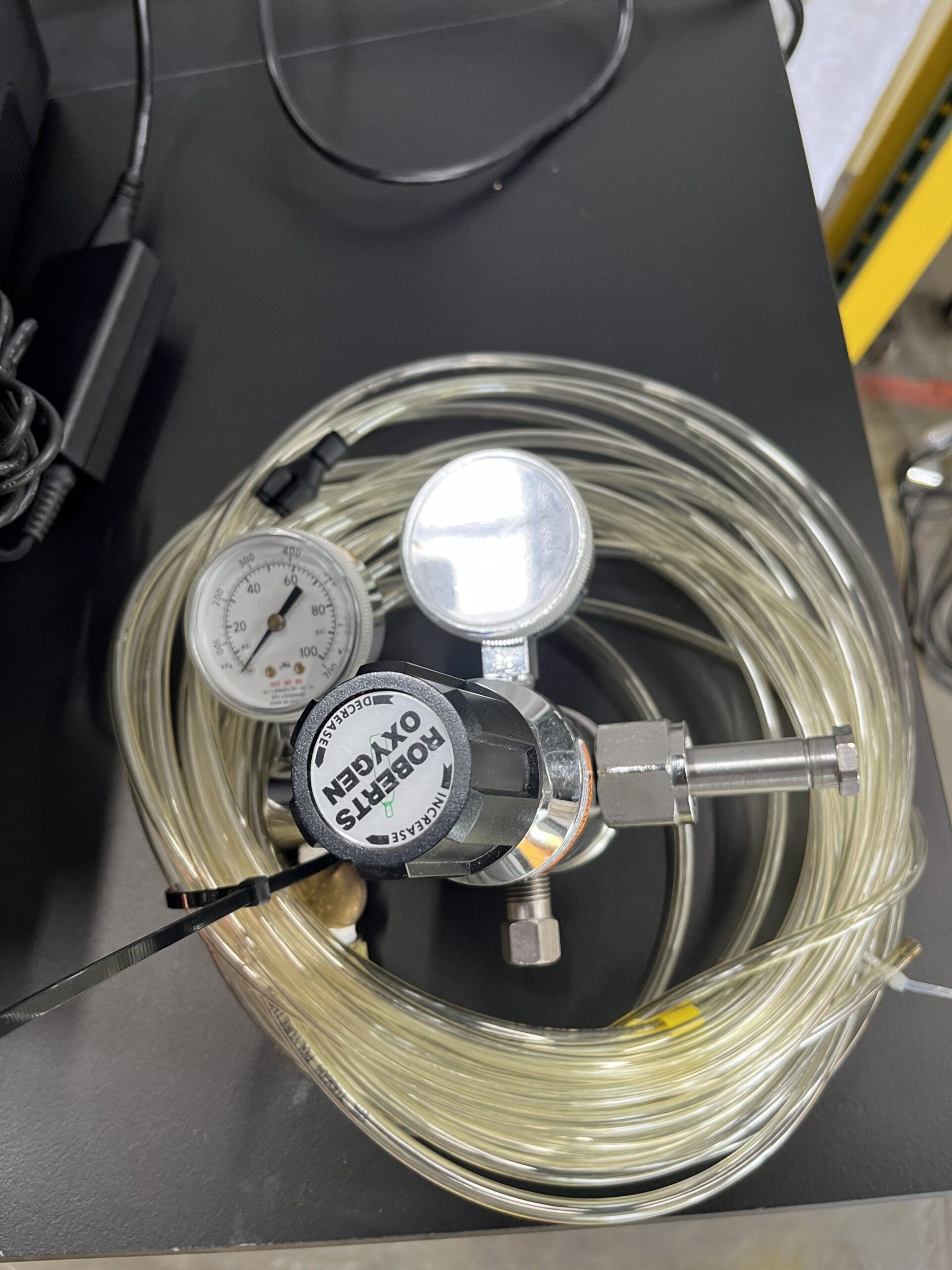

- Gas Requirements: Air, nitrogen, oxygen, and carbon dioxide with a supply pressure of 2.5 to 6.0 bar (36.3 to 87.0 psi)
- Bioreactor Volume: 0.9L
