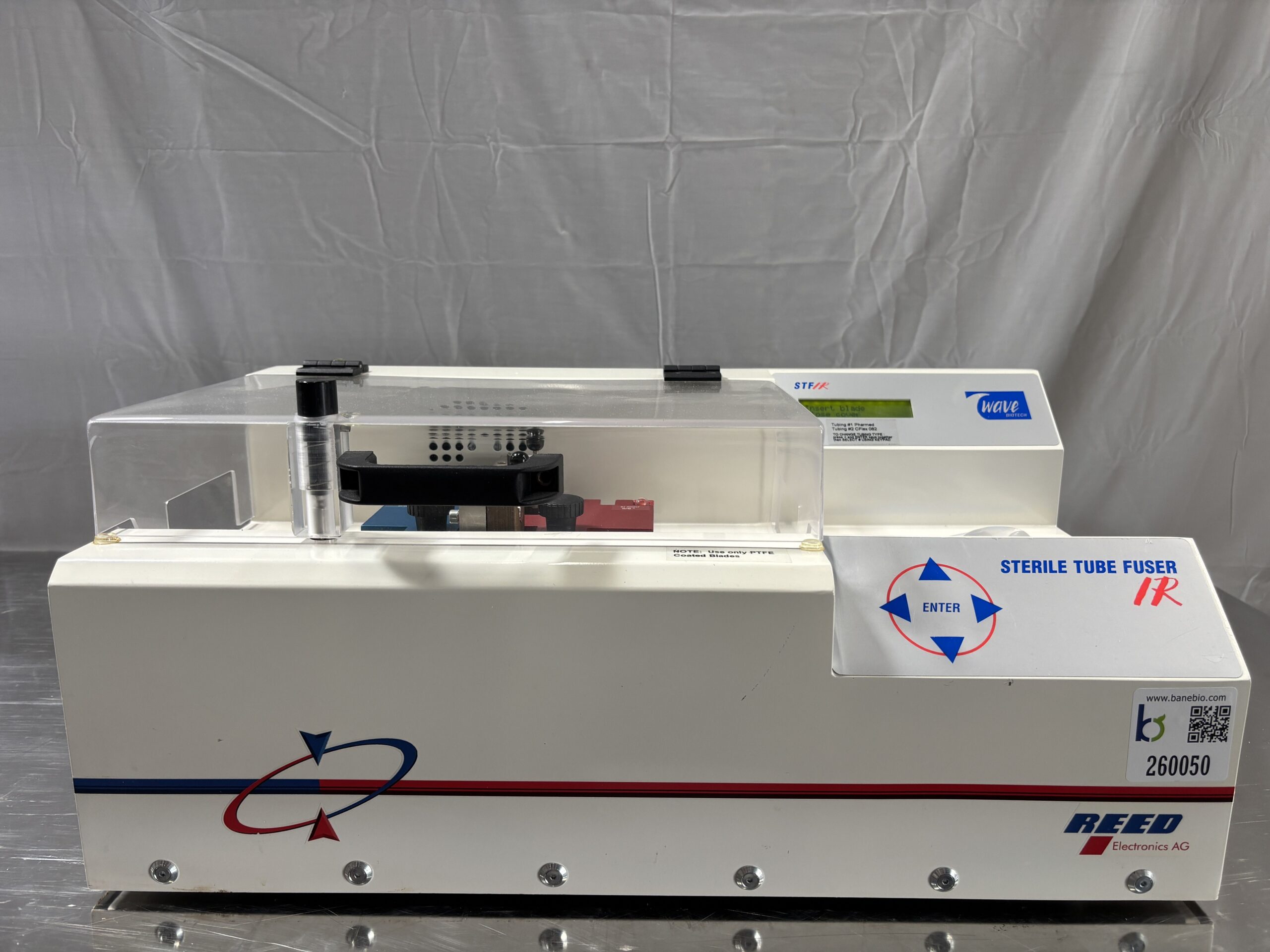

Description
- Typical fusing cycle: approx 2 minutes (includes rapid heat up, cutting and cool down phases
- Tubing condition: operates strictly on dry thermoplastic tubing
- Cutting blades: uses non-sterile, single-use stainless steel blades with an FDA compliant, chemically-inert PTFE coating to prevent sticking or leaching
- Temp control: employs a non-contact infrared sensor to monitor and precisely maintain blade sterilization temps
- OD Range: accommodates tubing from 1/4″ minimum up to 7/8″ maximum
- Pre-programmed parameters supports industry-standard bioprocess tubing including C-Flex, PharMed, Sanipure, Tygon and medical grade PVC

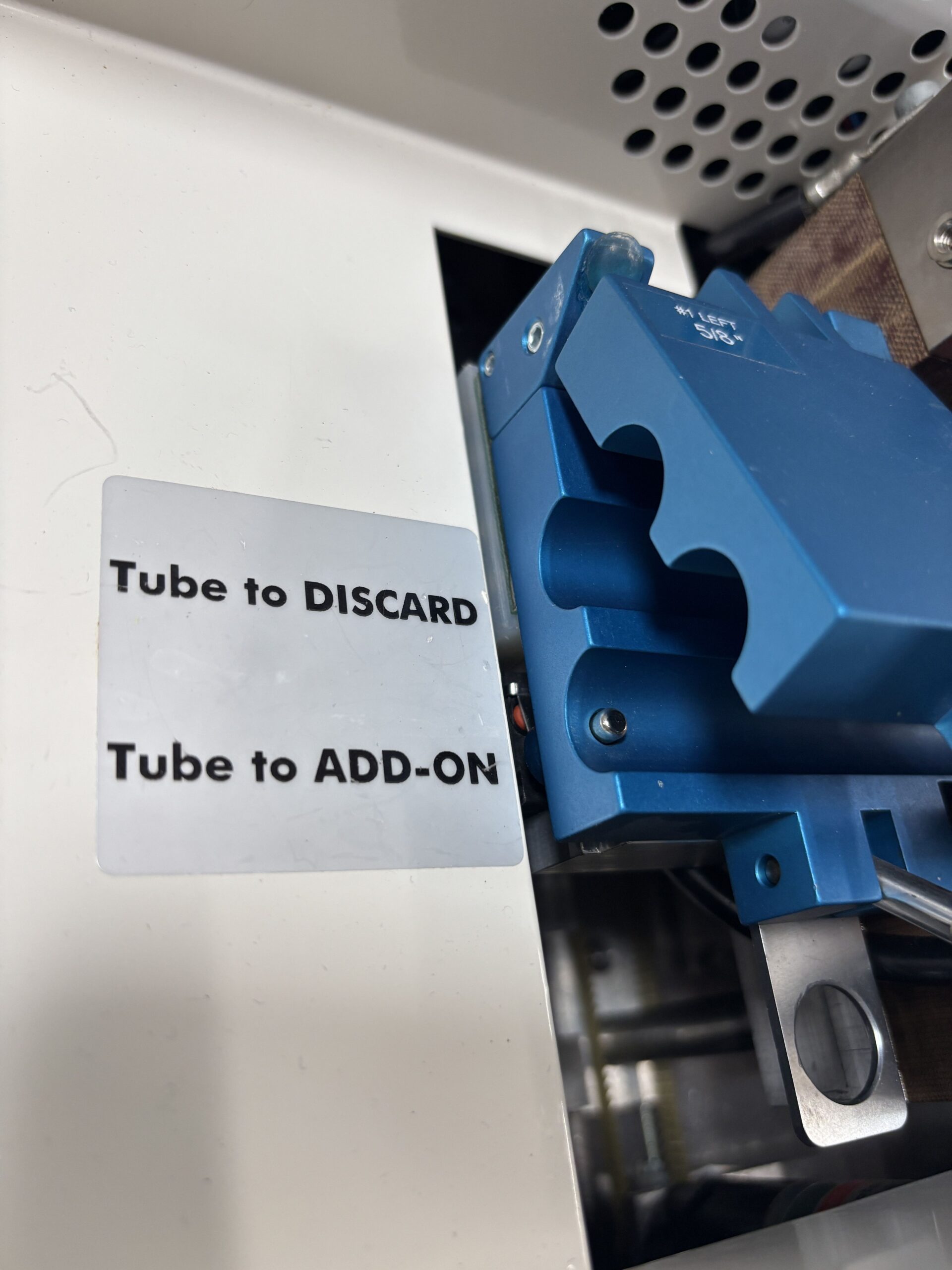

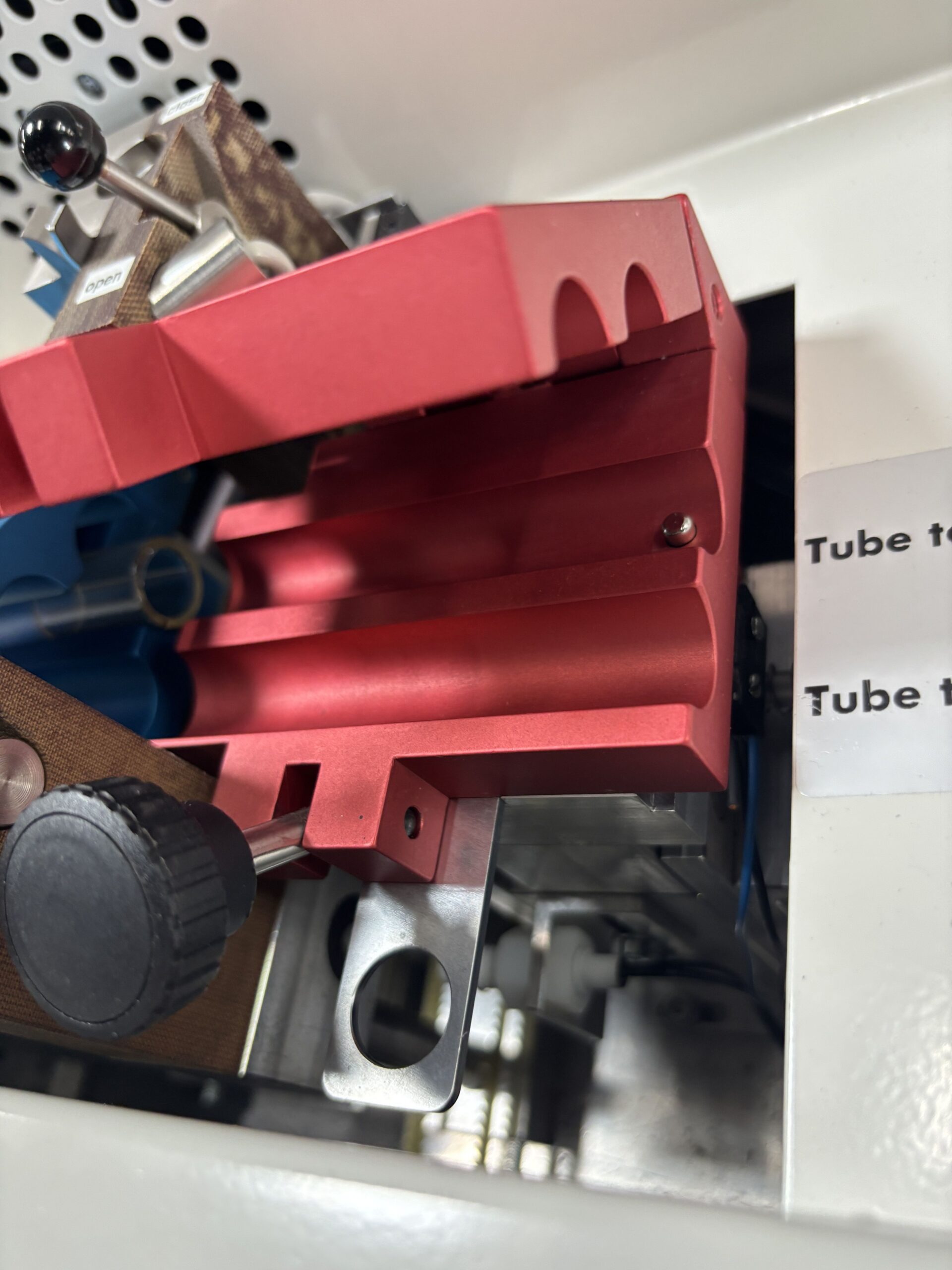

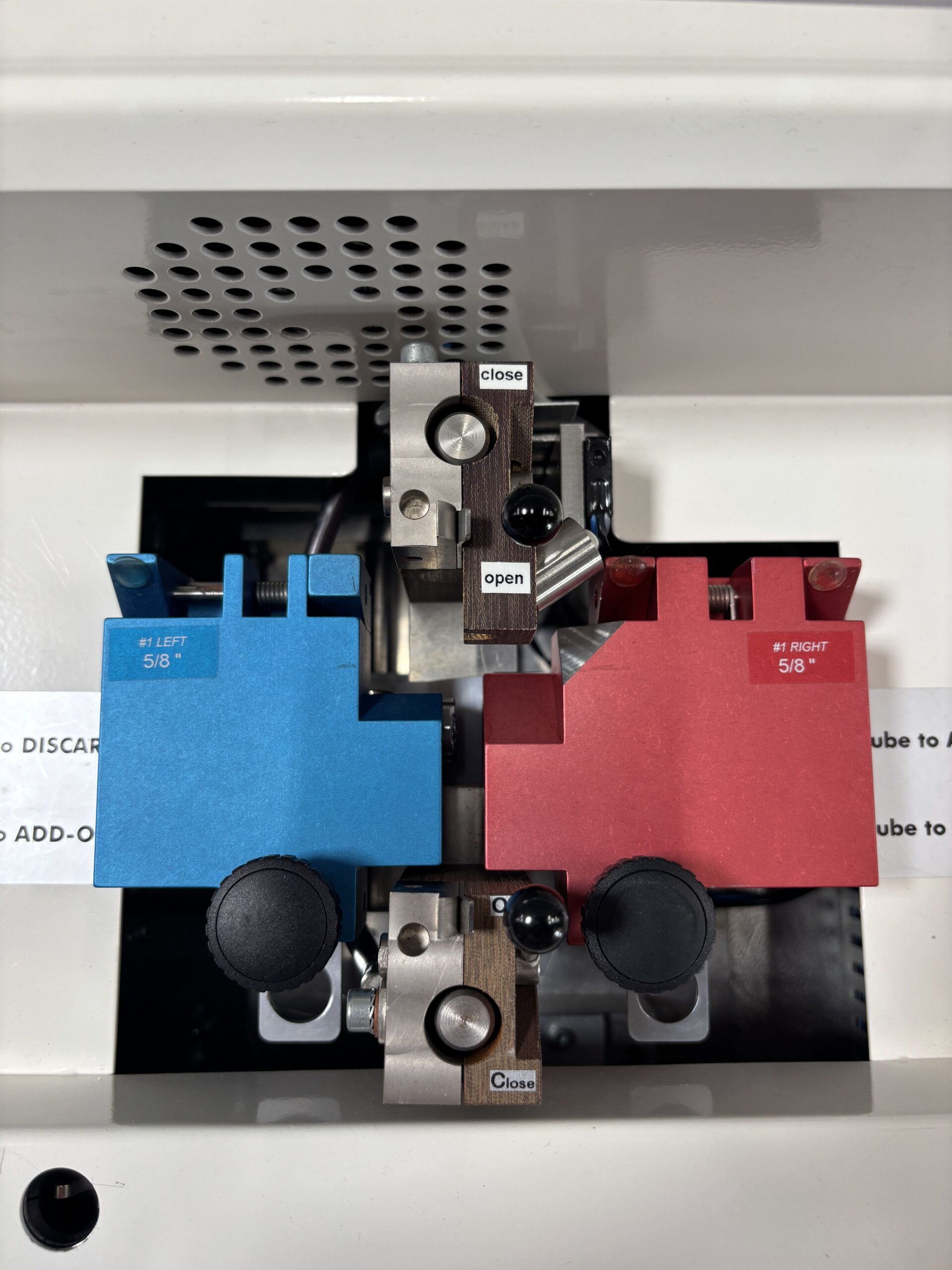

- Interchangeable holder blocks: requires specific, sizes tube holder sets to hold and align tubes during the cutting and fusion sequence
- Dimensions: 15″L x 13″W x 10″H

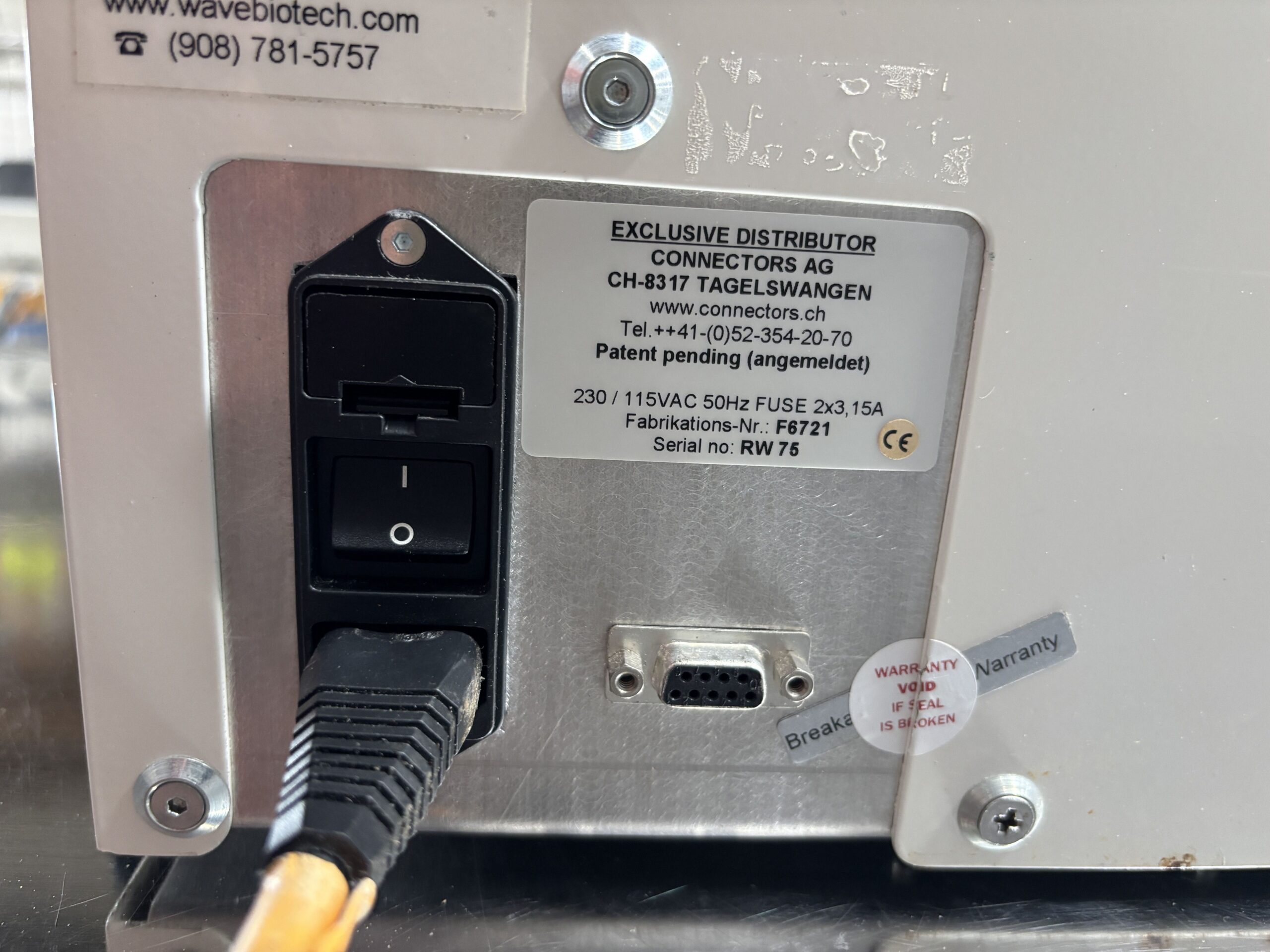

- 110/220VAC 50Hz
