Description
- Provides real-time digital pressure sensing and fluid control
- Pressure range: -10 to 60 PSI (0.69 to 4.14 bar)
- Accuracy: +/-3% (0-55 PSI); +/-5% (55-60 PSI)

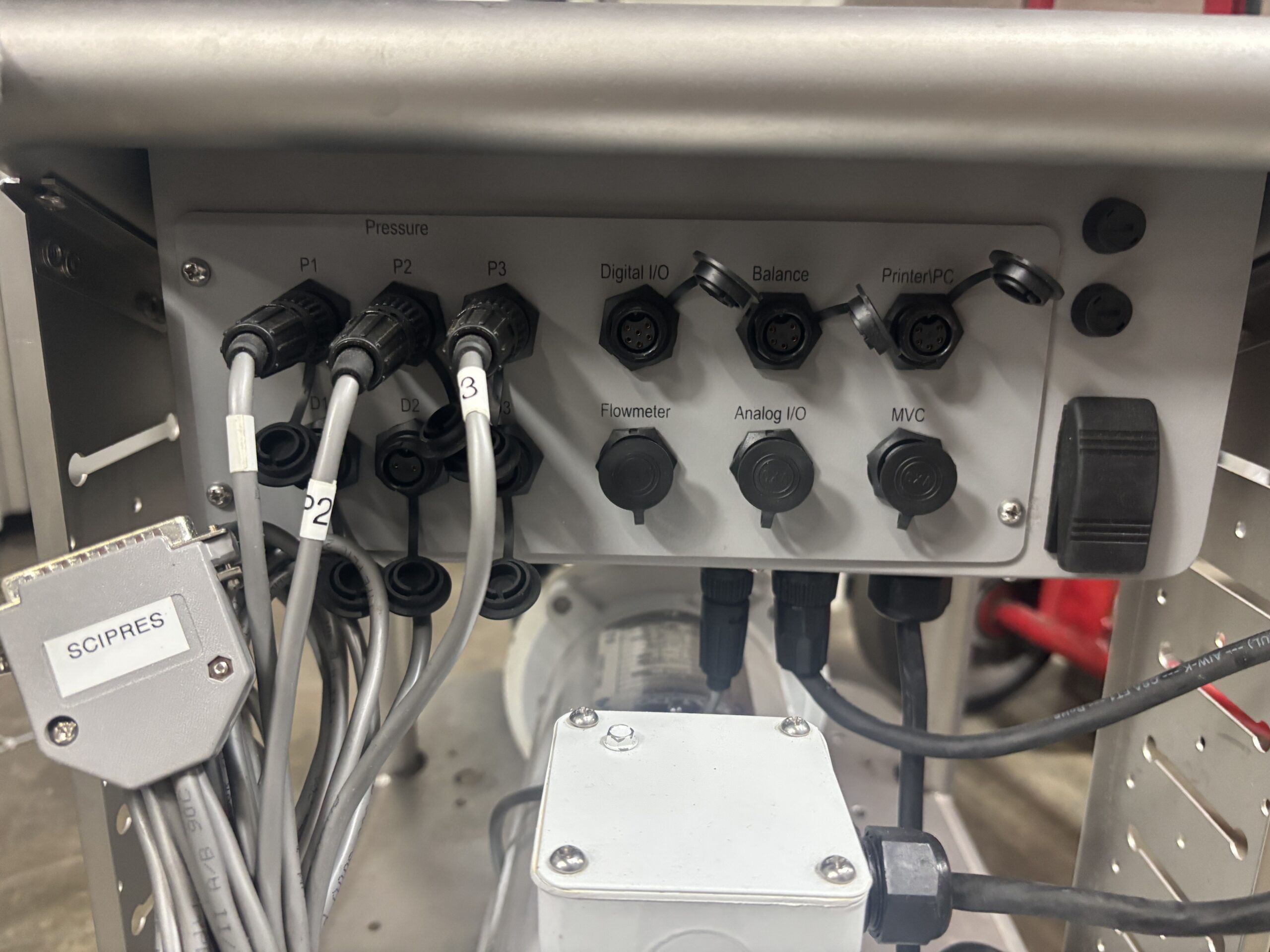

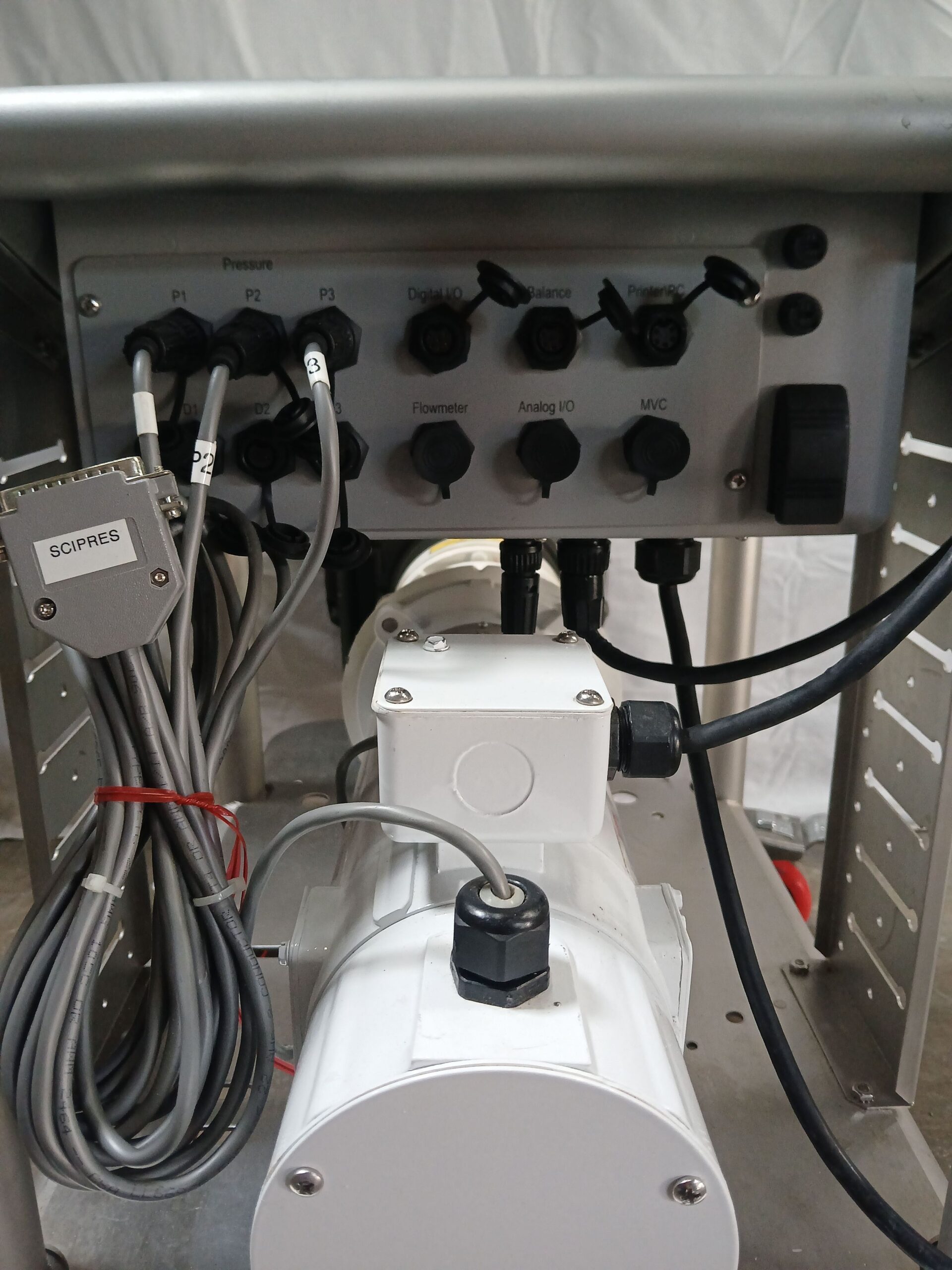

- Sensor channels: up to 3 simultaneous inputs (P1, P2, P3) with live Transmembrane Pressure (TMP) and differential pressure (dP) readouts
- Filter settings: user-adjustable smoothing (live data up to a 4 second averaging window) to neutralize peristaltic pump pulsation spikes

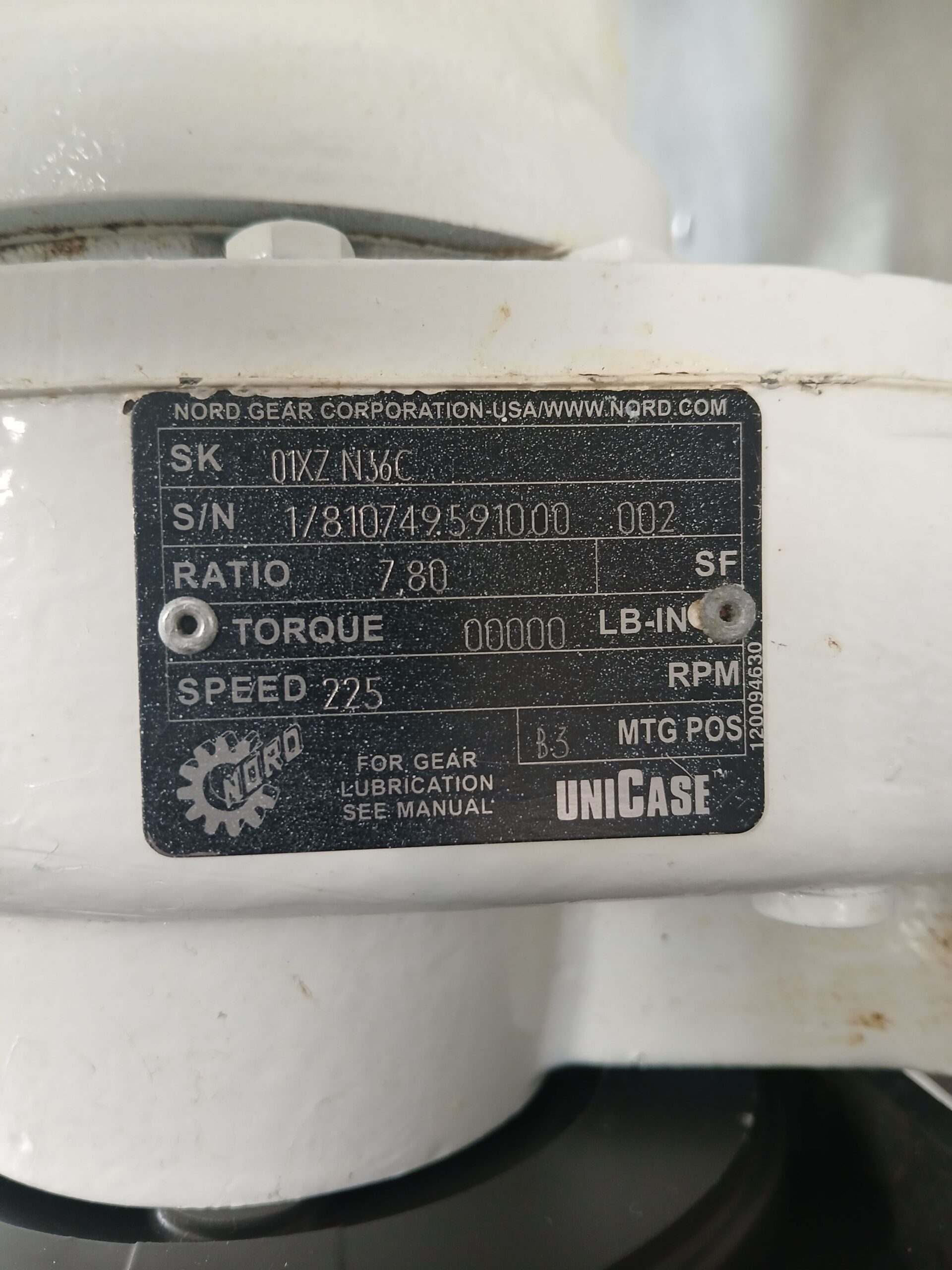

- Motor power: 1/2 HP
- Max torque: 350 in/lb
- Speed / RPM: up to 225 RPM
- 90V DC / 100-240VAC

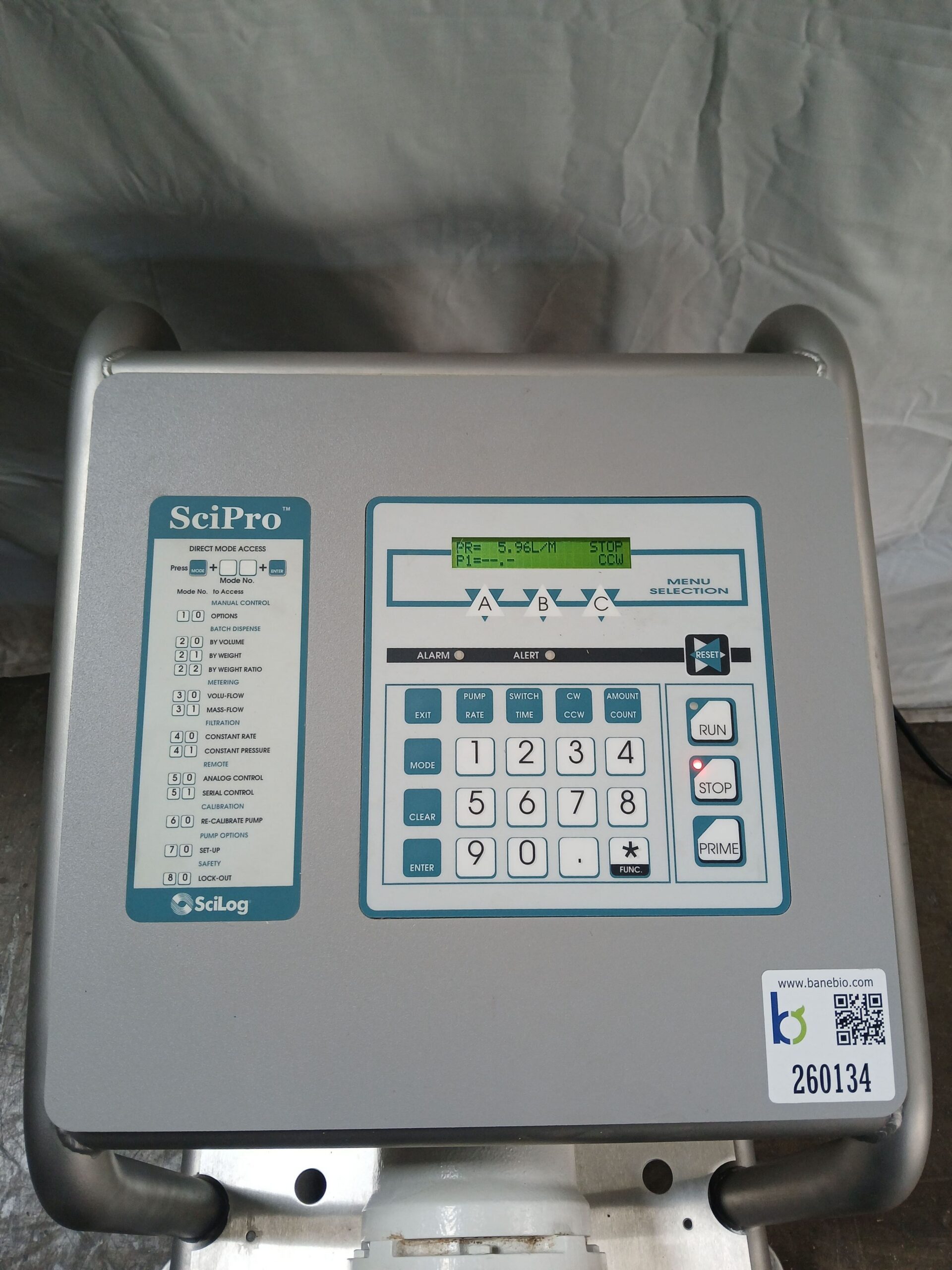

- Operational modes: Manual, constant pressure, constant flow rate, or automated R/P programming
- Communications: RS-232 ports for printer, PC or scale integration (SciDoc software compatible)
- Safety features: programmable max pressure watchdog and supervisor password protection
