Description

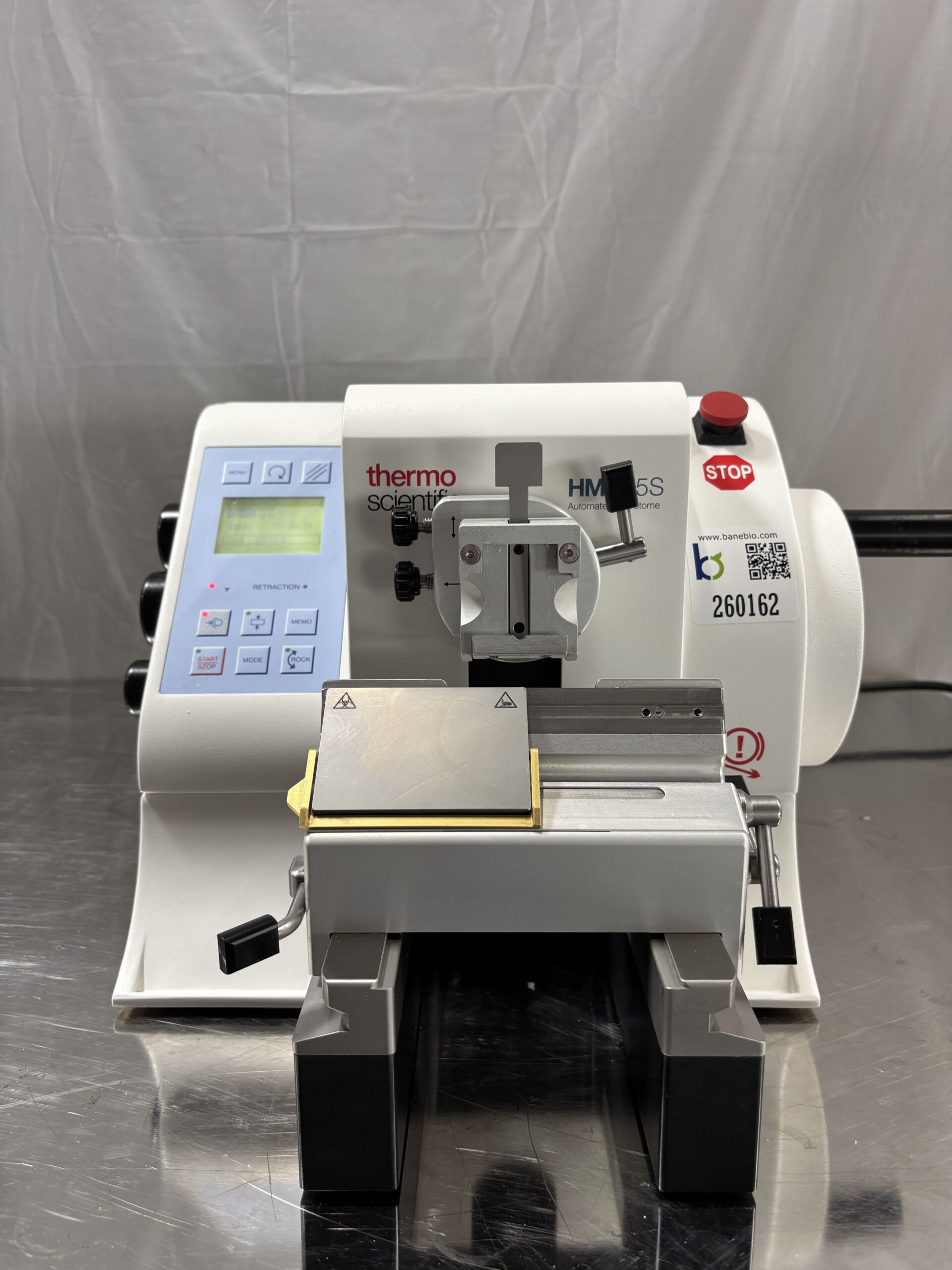

- Fully motorized, heavy-duty automatic rotary microtome
- Designed for high precision biological, medical and industrial sectioning
- Highly optimized for routine paraffin sections, semi-thin sectioning and hard specimens
- Fine section thickness range: 0.5um to 100um
- 0.5um to 5um in 0.5um steps
- 5um to 20um in 1um steps
- 20um to 30um in 2um steps
- 30um to 60um in 5um steps
- 60um to 100um in 10um steps
- Trimming thickness range: 5um to 500um
- 5um to 30um in 5um steps
- 30um to 100um in 10um steps
- 100um to 200um in 20um steps
- 200um to 500um in 50um steps
- Vertical specimen stroke (cutting stroke): 72mm
- Total horizontal specimen advance (feed range): 28mm
- Specimen retraction: 40um during return travel
- Max specimen size: Standard clamp 55 x 50mm; macro clamp 68 x 50mm
- External dimensions: 16.1″W x 20.4″D x 11″H

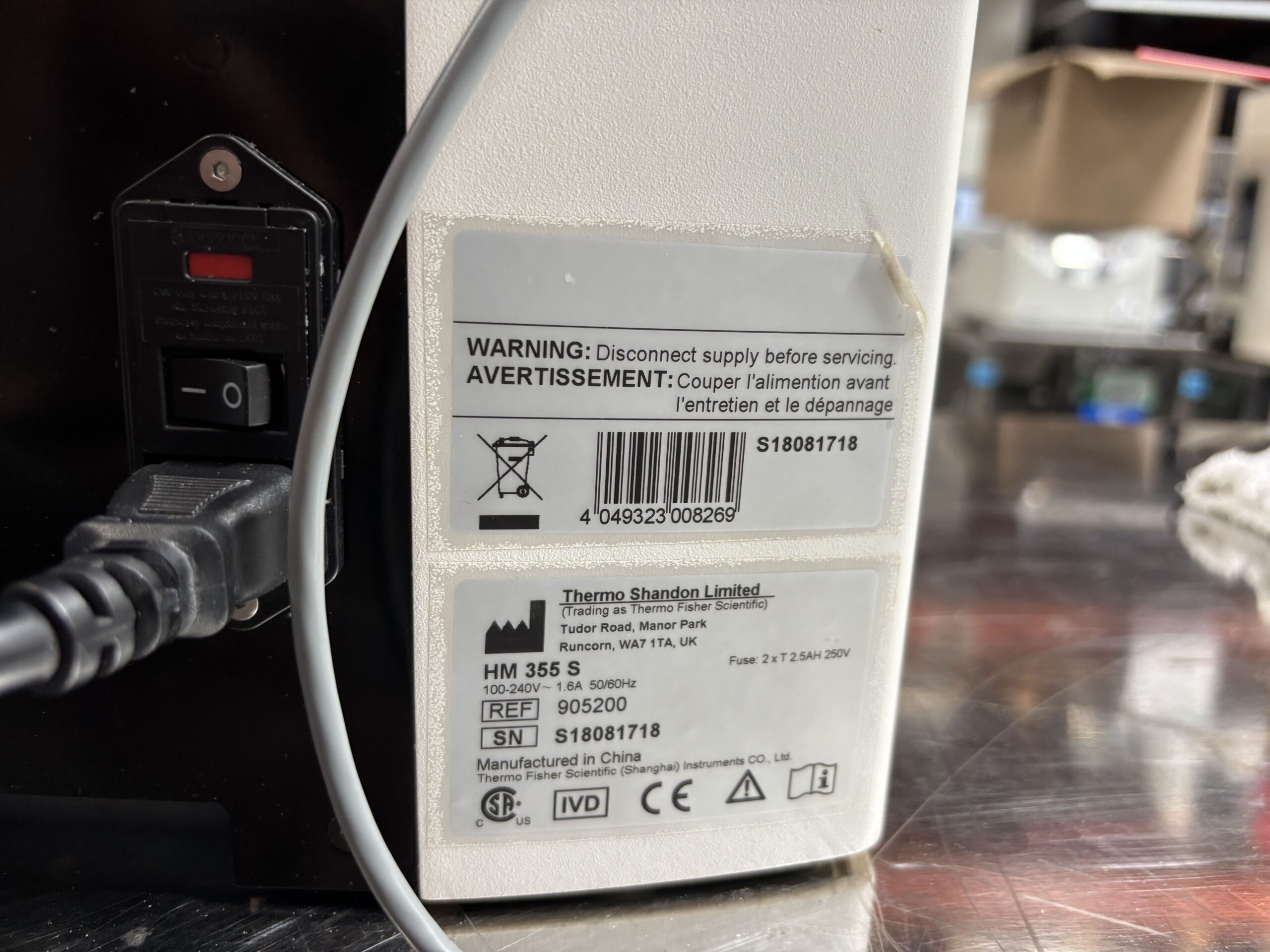

- 100-240V 50/60Hz
