Description
- Brand new! Expires 12-2027

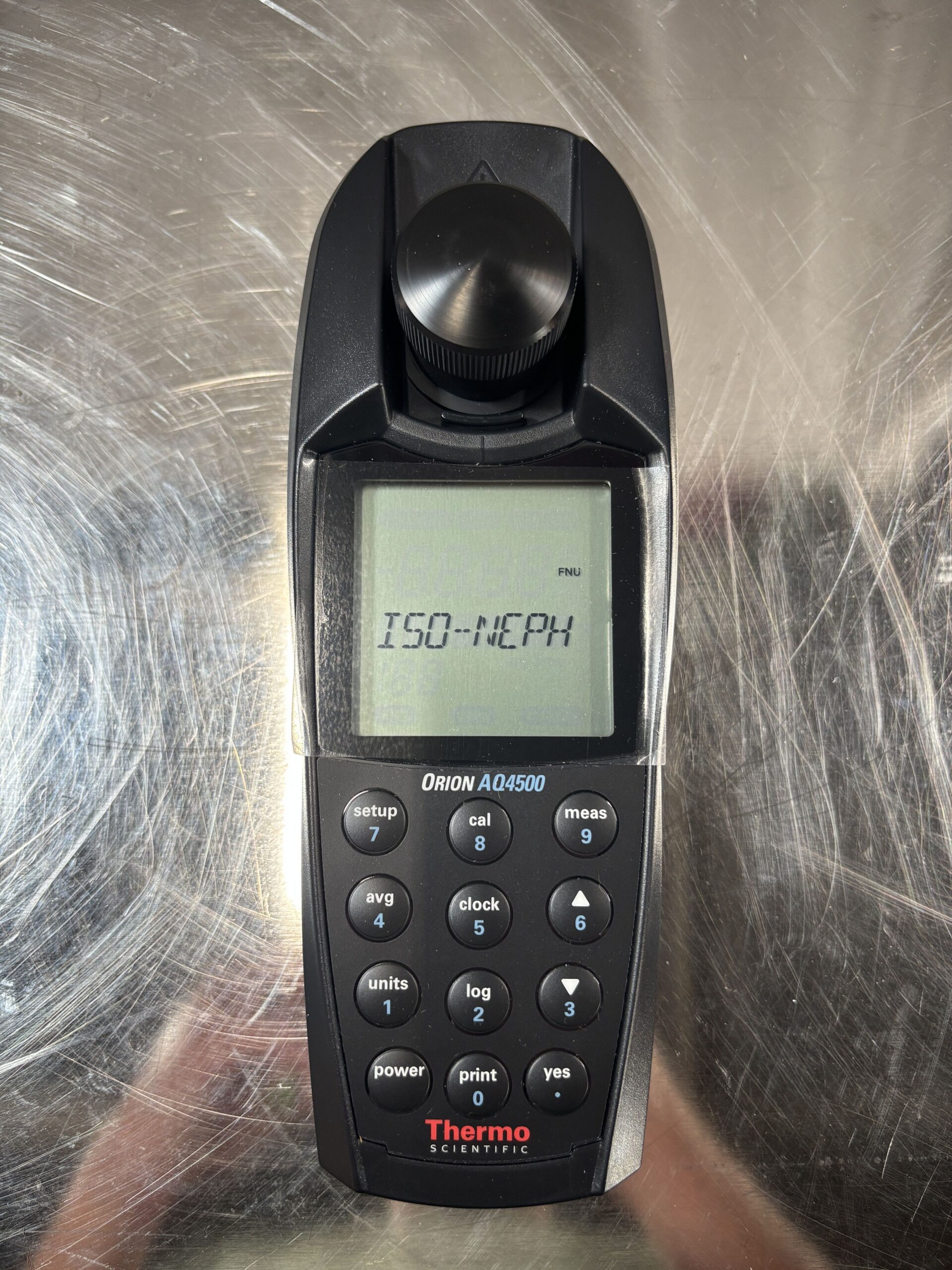

- Portable, rugged handheld meter designed for high-accuracy water analysis in both drinking water and wastewater applications
- Dual LED light source system; allows operators to alternate between a white LED to comply with U.S. EPA 180.1 reporting or an Infrared (IR) LED to satisfy ISO 7027 protocols using a single device
- Measurement modes: EPA 180.1, ISO Nephelometric, ISO Absorbance, IR Ratio, % Transmittance, EBC (European Brewing Convention) & ASBC (American Society of Brewing Chemists)
- Measurement ranges: Overall range 0 to 4,000 NTU / EPA Mode 0 to 2,000 NTU
- Resolution: 0.01 NTU (for measurements between 0 to 9.99 NTU)
- 0.1 NTU (for measurements between 10 to 99.9 NTU)
- 1 NTU (for measurements above 100 NTU)
- Accuracy: +/-2% of reading plus 0.01 NTU from 0 to 500 NTU; +/-3% of reading from 500 to 1,000 NTU; +/-5% of reading from 1,000 to 4,000 NTU
- Minimum sample volume: 10mL in a 24mm cuvette/vial
- Light source: dual source containing a white LED and an Infrared LED
- Temp compensation: automatically temperature compensated LED array to ensure measurement stability
- Measurement type: selectable nephelometric (90 degree scatter) or Ratiometric data collection
- Display & UI: custom LED/LCD display with integrated parameter icons and an autoranging feature that changes resolution based on sample density
- Internal memory: logs up to 100 data points with automated timestamping
- Communication port: bidirectional RS-232 serial connection used to push stored logs directly to a PC or printer
- Field-ready handheld enclosure
- Waterproof rating: IP67-rated housing (fully dust tight and submersible up to 1 meter)
- Operating temp: -40C to 60C
- 4 x AA alkaline batteries
- Battery longevity: up to 2,500 hours of intermittent use (or over 1,000 hours continuous)
- Accommodates 24mm glass vials
