Description
- Drive speed range: variable from 0.1 to 220 RPM (adjustable in 0.1 RPM increments)
- Speed control ratio: 2,200:1 for extremely fine adjustments

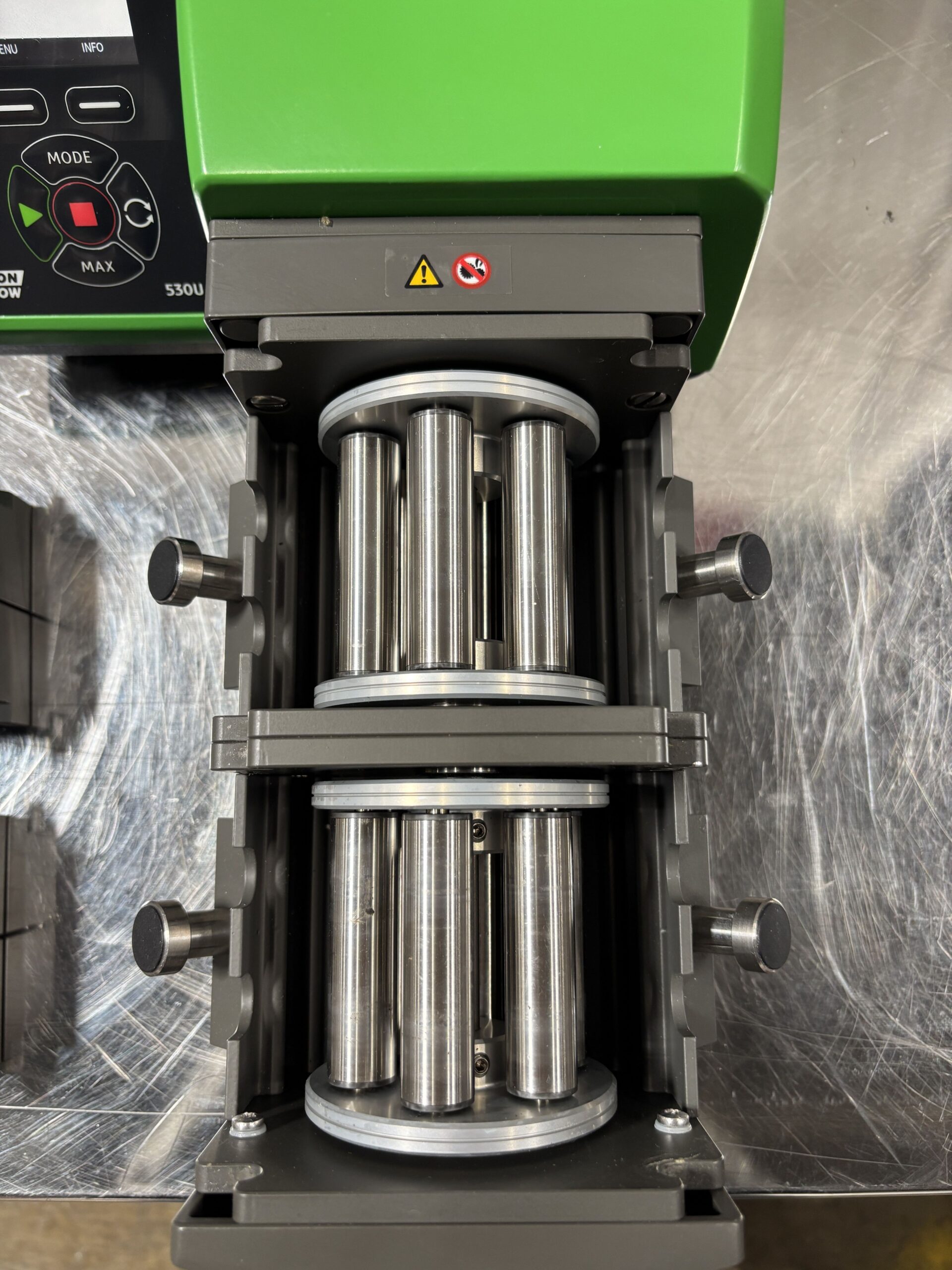

- System accuracy: high displacement precision with spring loaded rollers to safeguard shear sensitive fluids
- Operation modes: manual keypad, flow calibration (in mL/rev), MemoDose, and Remote control
- Flow rate per channel: configurable from 0.004mL/min up to approx 2,000mL/min per channel
- Analog inputs/outputs: fully scaling 4-20mA or 0-10V inputs for automated PLC pacing, alongside 4-20mA feedback output loops
- Digital logic I/O: dedicated inputs for remote start/stop, direction reversal, auto/manual toggling, and emergency leak detectors or pressure safety switches

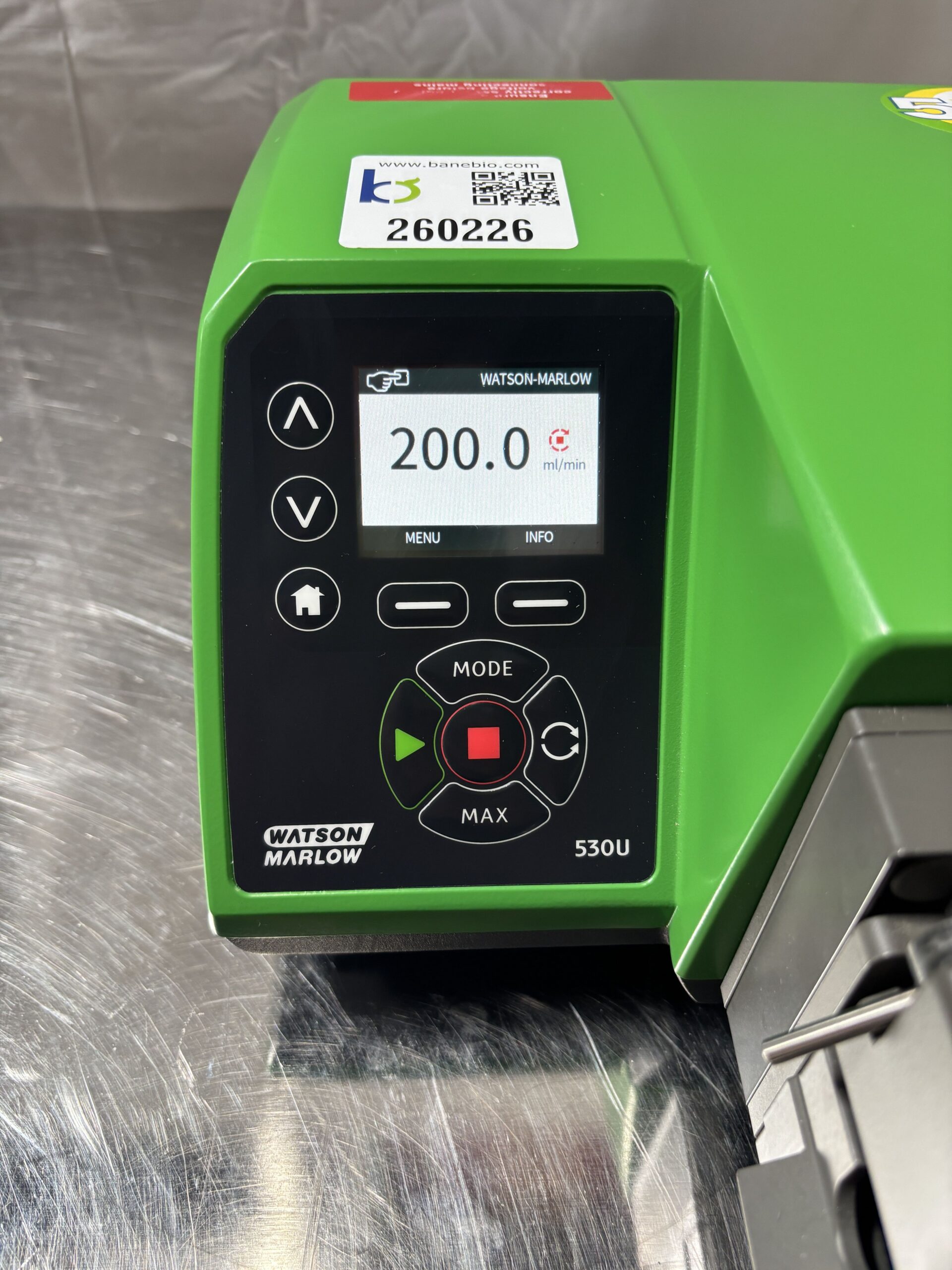

- Access safety: 3 level security PIN lock on the backlit color display prevents accidental process adjustments on the line
- 100-120V/200-240V 50/60Hz
