Description

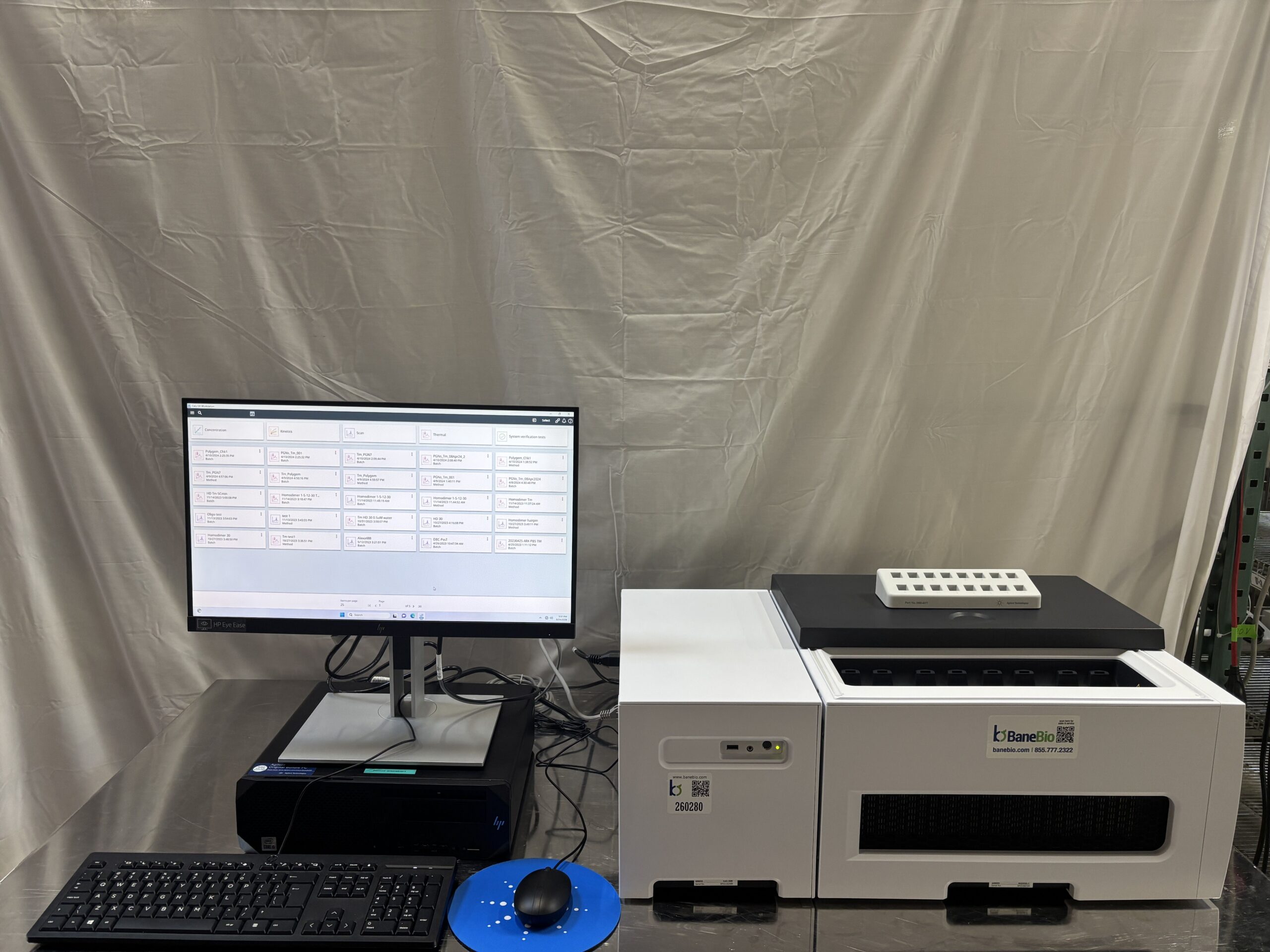

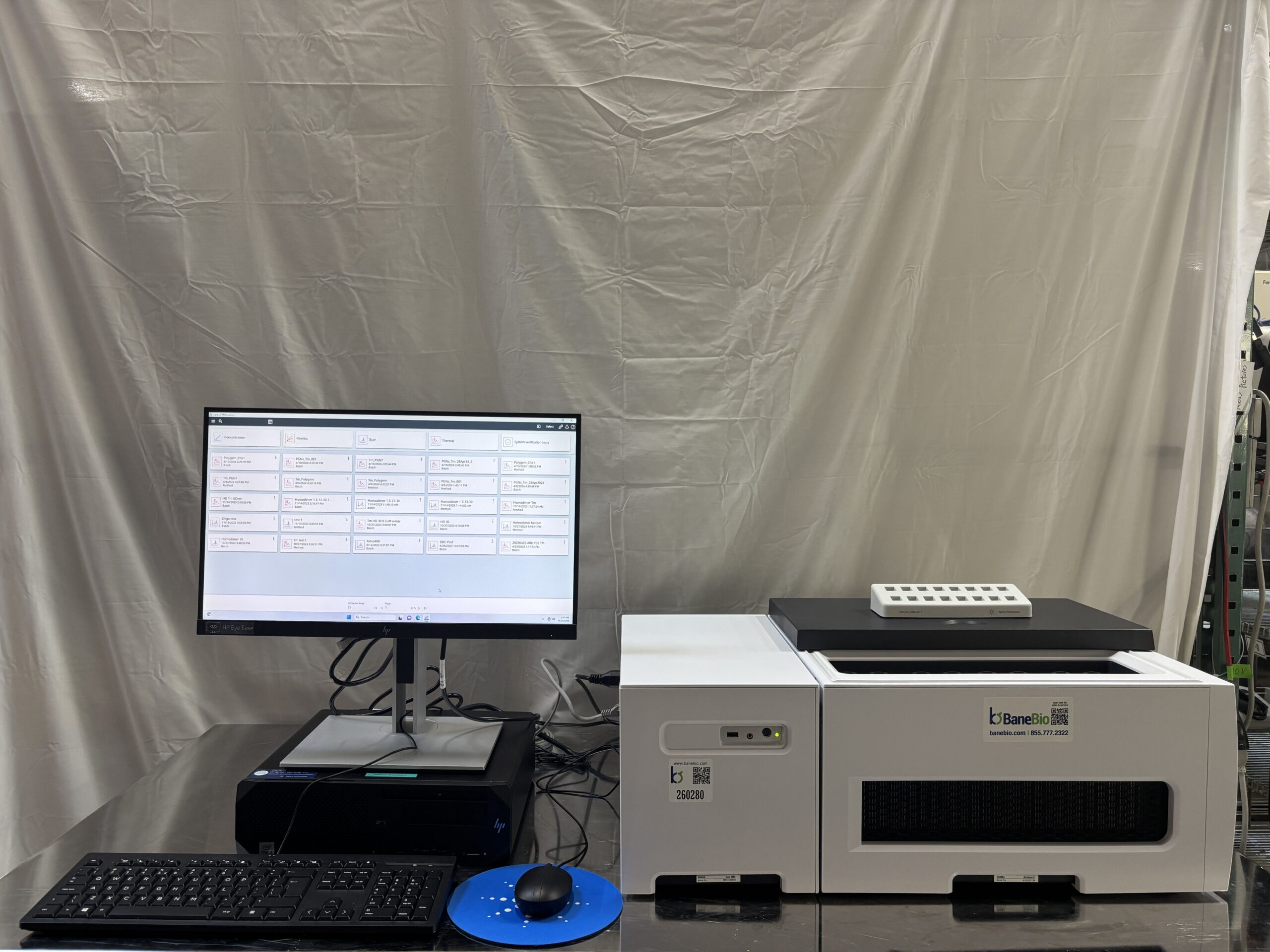

- Includes computer and software pictured!
- Optical design: double beam spectrophotometer with rear beam access
- Wavelength range: 190 to 1100nm
- Monochromator: double out of plane Littrow monochromator
- Light source: full spectrum Xenon flash lamp with a 250Hz flash rate
- Detectors: advanced silicon photodiode arrays designed for simultaneous multi channel sampling
- Spectral bandwidth: variable from 0.1 to 5.0nm
- Photometric range: 4.0 Abs
- Wavelength accuracy: ±0.2nm
- Wavelength reproducibility: <0.025nm
- Stray light: <0.003% T at 220nm (using 10 g/L Nal, ASTM method)
- Max scan rate: 150,000 nm/min
- Data acquisition velocity: collects up to 250 data points per second
- Beam dimensions: highly collimated and inform beam measuring <1.5mm in width, permanently aligned for micro volume cuvette accuracy
- Cuvette configuration: features a stationary multi cell layout accommodating 8 cuvette positions simultaneously
- Temp range: thermoelectric 0C to 110C
- Cooling engine type: fully integrated air cooled Peltier system
- Independent heat zones: features 4 separate software controlled temp zones, allowing up to 4 entirely unique thermal experiments to execute simultaneously
- Thermal ramping capabilities: supports fast thermal ramping speeds at up to 30C to 40C per minute
- Supports solid state digital Cary temp probes inserted directly into the cuvettes for team time sample fluid reporting

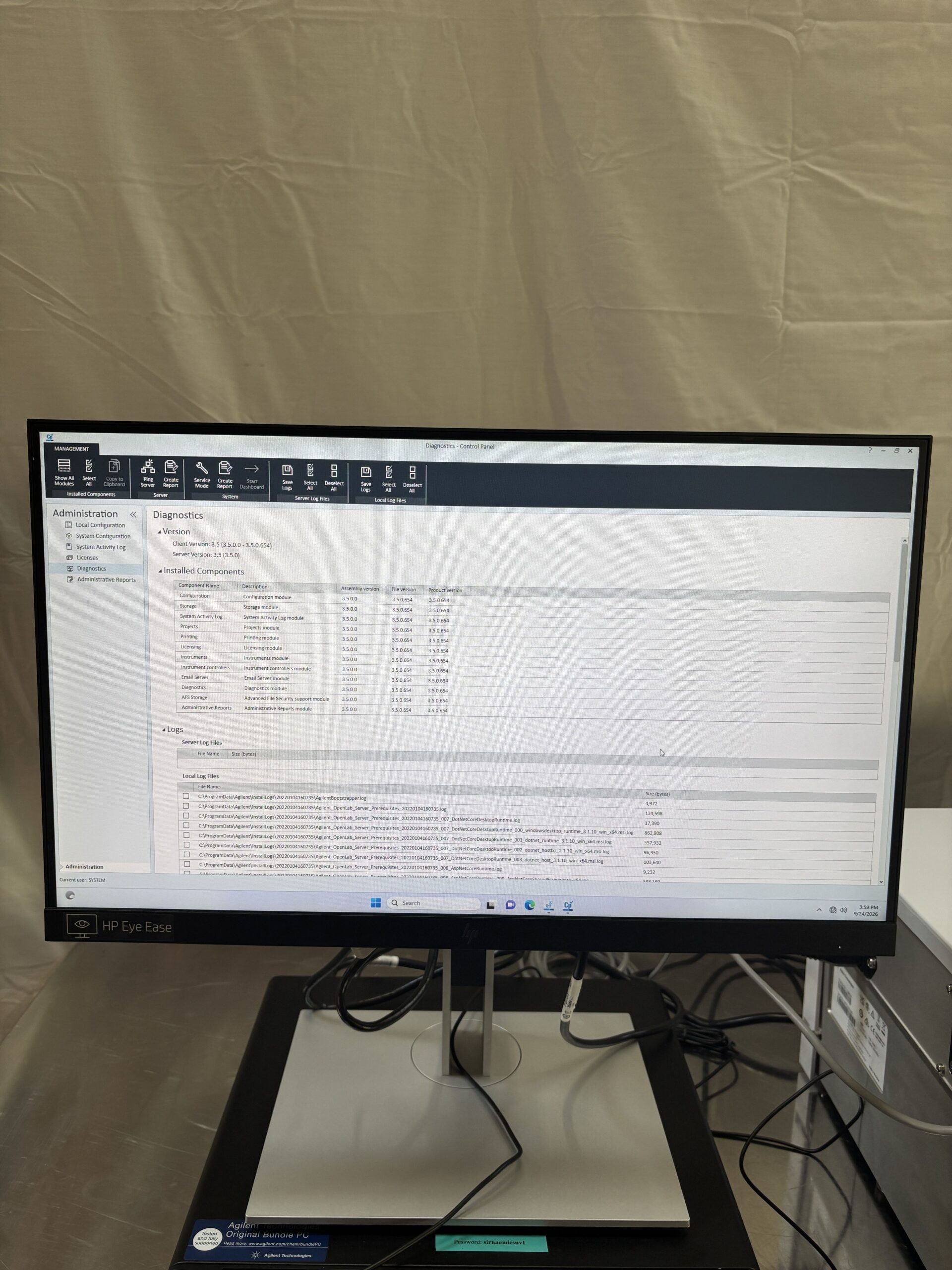

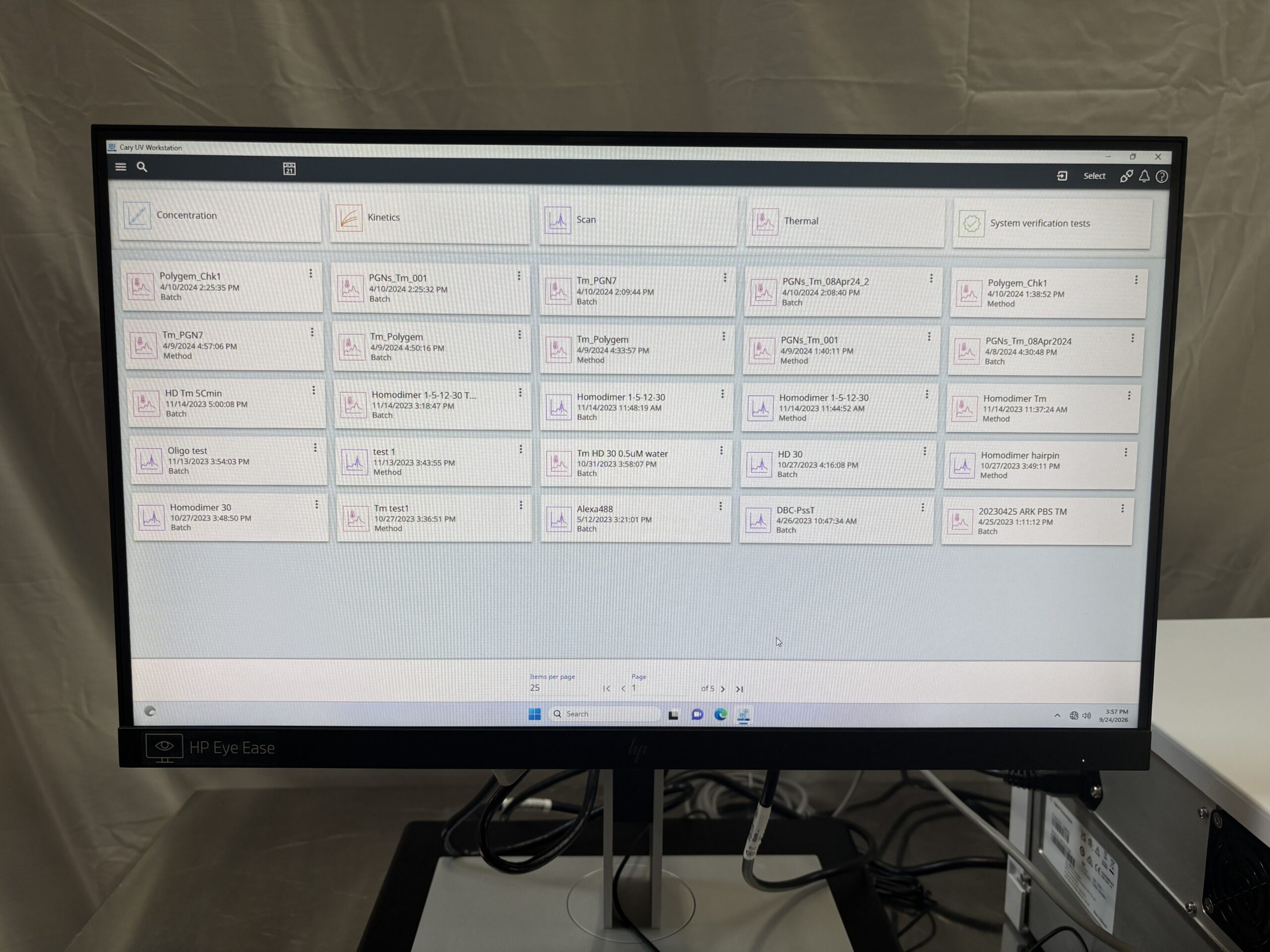

- Operating on Agilent Cary UV workstation (customer is responsible for obtaining product key and licensing from Agilent)
- Dimensions: 17.51″W x 27.55″ D x 11.02″H
- 100-240V 50/60Hz
