Description
- Primary lamp type: 150W, 21V EKE quartz halogen bulb
- Total luminous output: approx 1,750 to 1,800 Lumens at the fiber optics intersection plane
- Color temp: 3,200 degree Kelvin when operating at max intensity
- Expected lamp life: Max intensity: 200 hours
- Lower intensity levels: up to 10,000 hours
- Output stability: DC-regulated output stabilized to +/-0.5% or better, minimizing the impact of input line voltage fluctuations
- Output ripple voltage: 0.4% or better, ensuring seamless, flicker-free performance with high speed digital cameras

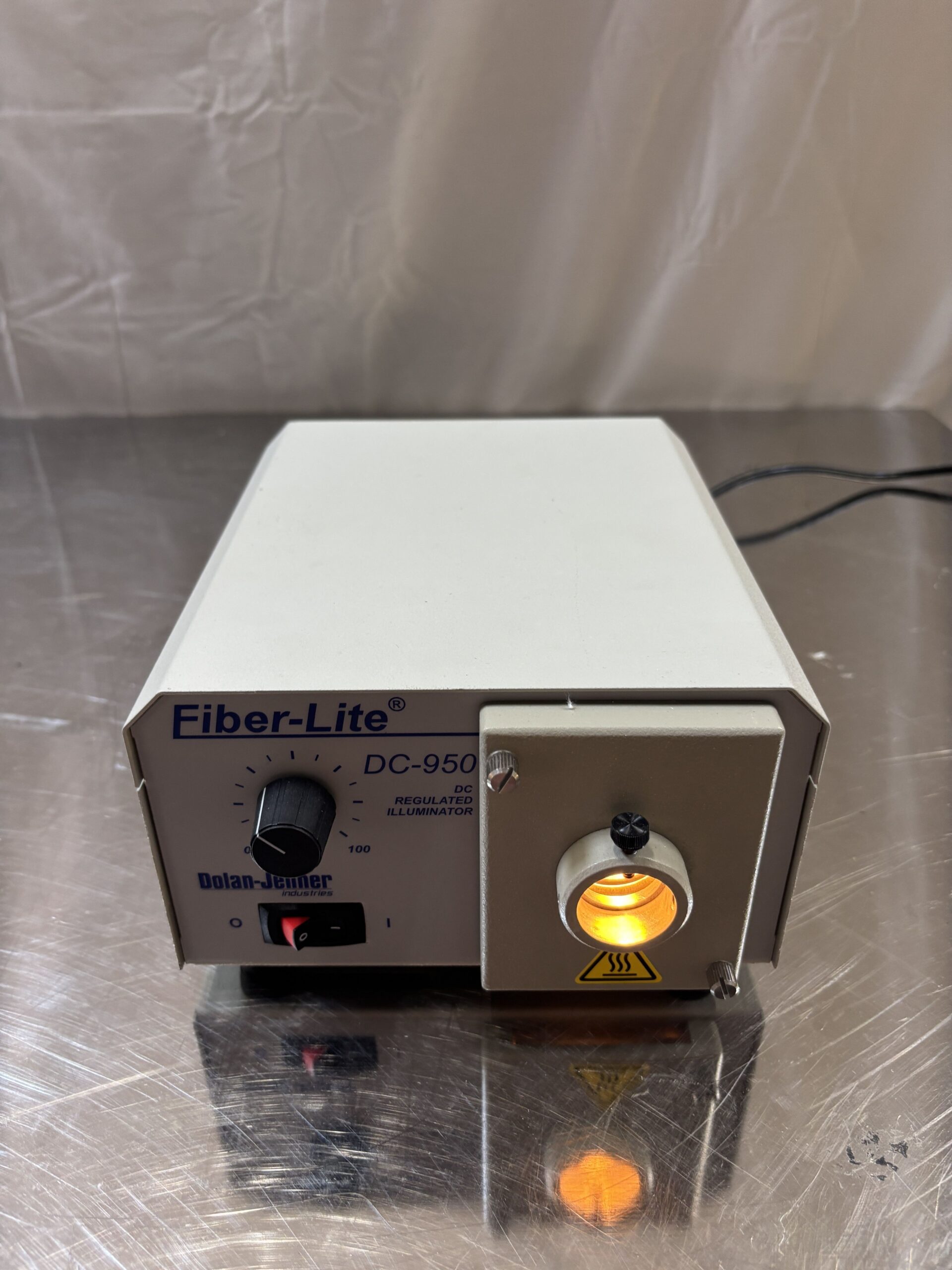

- Manual intensity control: front panel, solid state rotary dial adjusting continuously from 0% to 100%

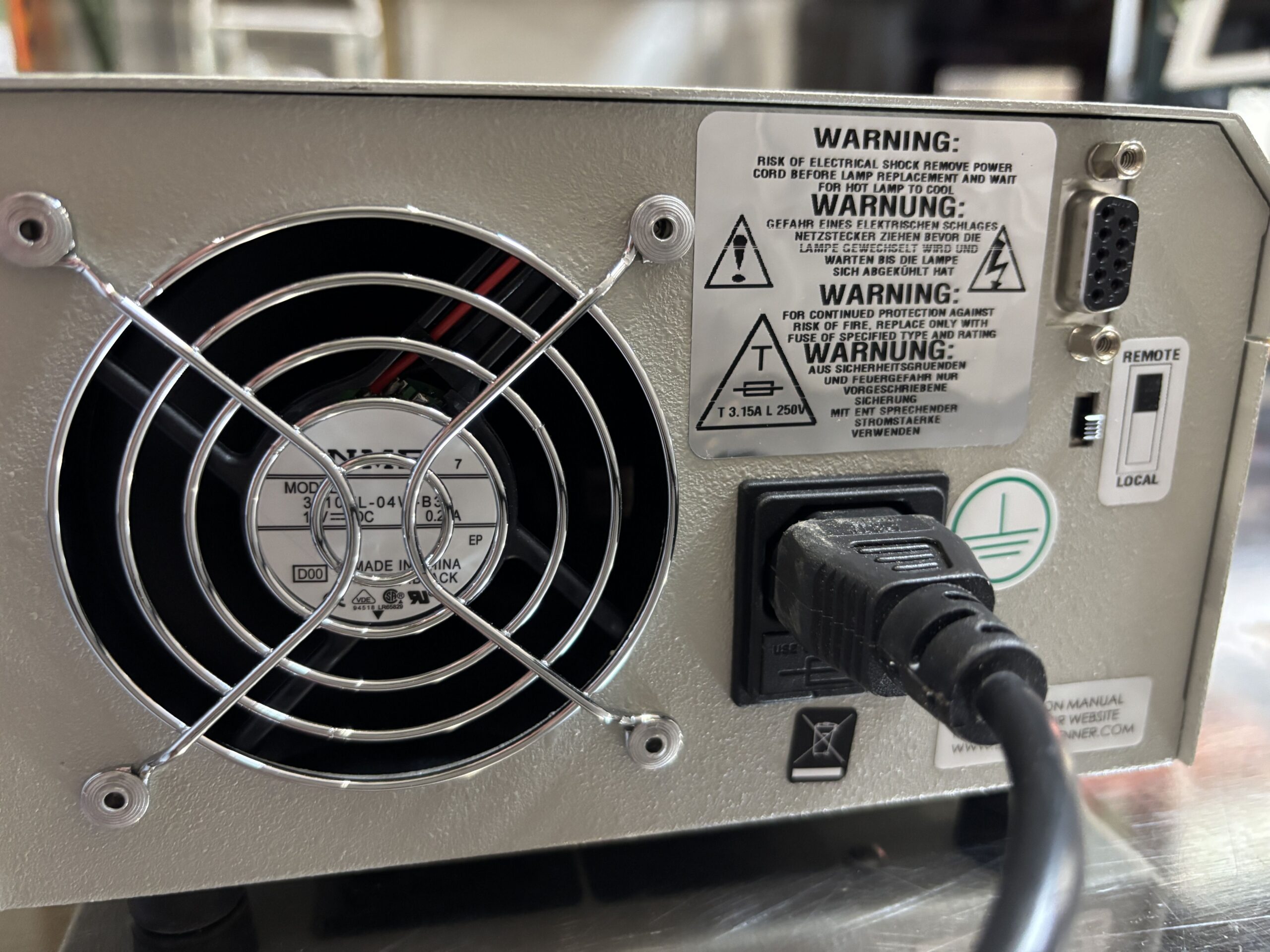

- Remote intensity control: a rear panel 9-pin D-sub connector supports external automation via a 0-5VDC linear analog signal, an optional 8-bit digital interface or RS232 commands
