Description
- Brand new! DOM 2024 & 2026!
- Throughput capacity: native support for low-throughput (11 to 22-well) cassettes, plus high throughput E-Gel 48 and E-Gel 96 formats via a removable well adapter
- Separation range: 10bp to 15kb
- Transillumination light source: high-intensity blue LED array
- Excitation peak: 465nm (UV-Free blue light for safer cloning and handling)
- Integrate optical filter: long-pass amber filter for real time tracking of SYBR safe and SYBR Gold II stains

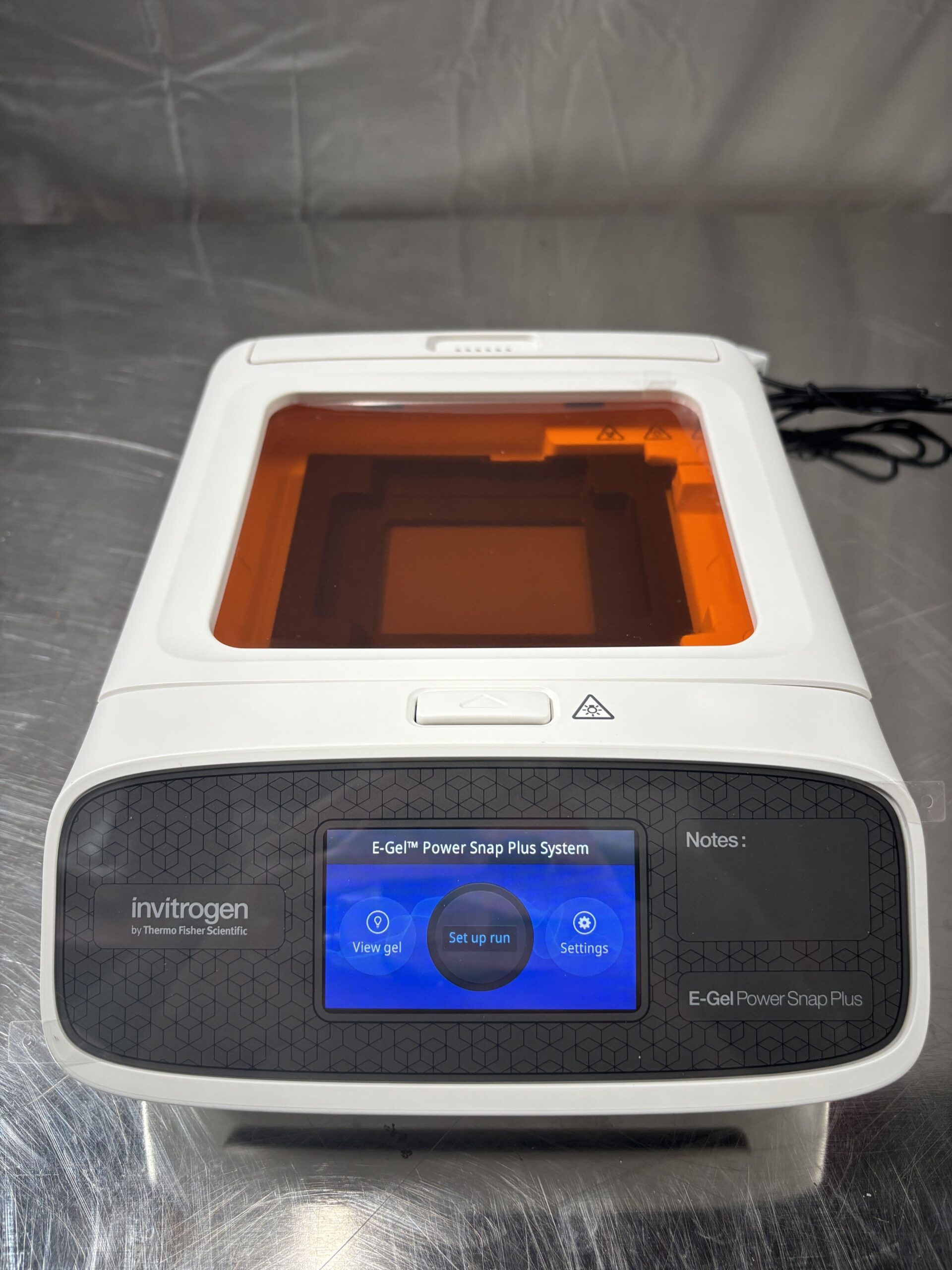

- Base user UI: 7.7 x 4.4cm color LCD touchscreen interface
- Preprogrammed protocols: automated parameters optimized for E-Gel, E-Gel EX, CloneWell II, SizeSelect II & E-PAGE formats
- Sensor resolution: 13 megapixels (MP) – massive upgrade over the 3MP sensory on the standard power snap
- Onboard storage: 64GB internal memory (doubled from 32GB on the legacy model)
- File output formats: Grayscale .TIF (for quantification) and Color .JPG (for documentation)

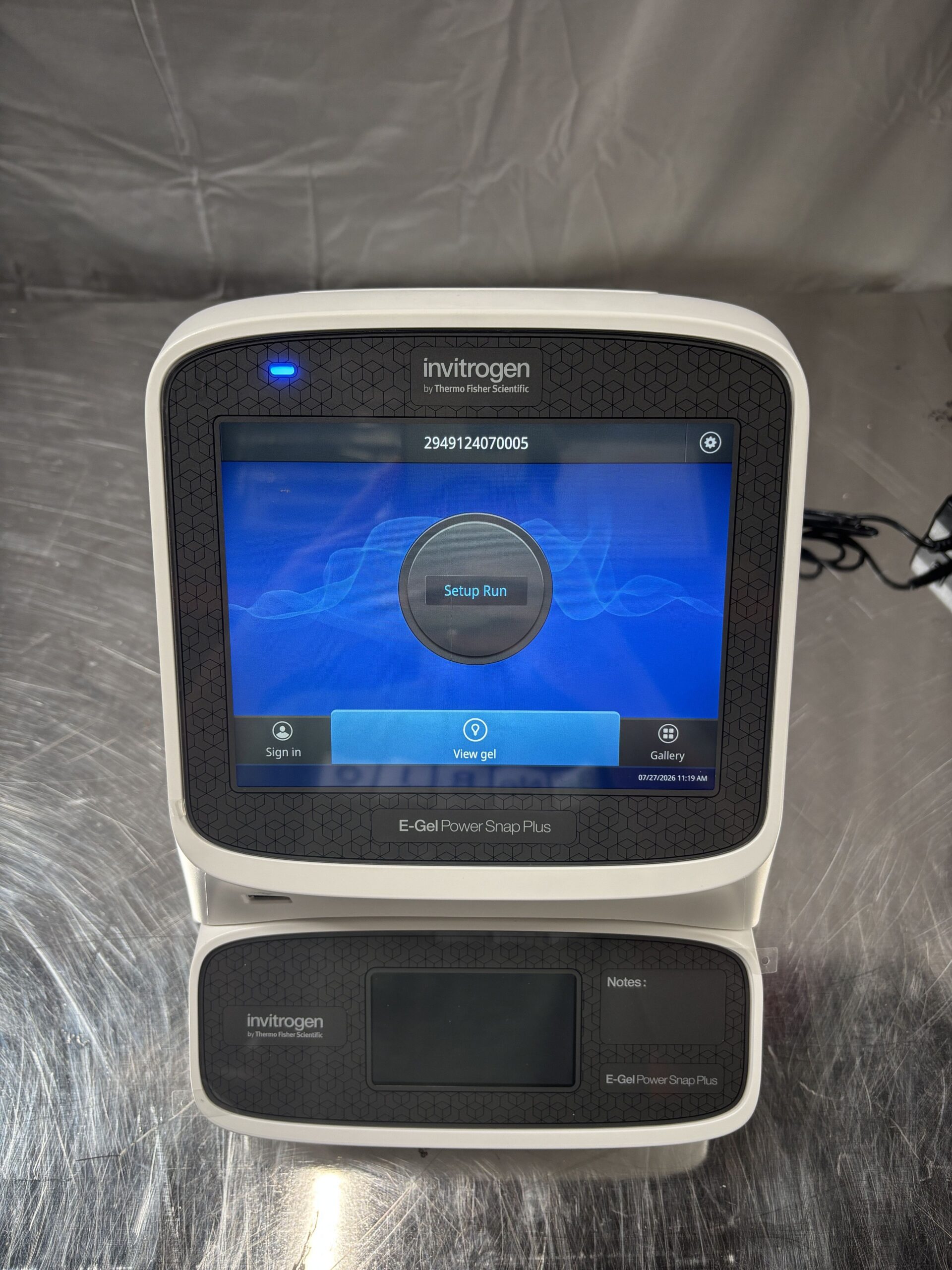

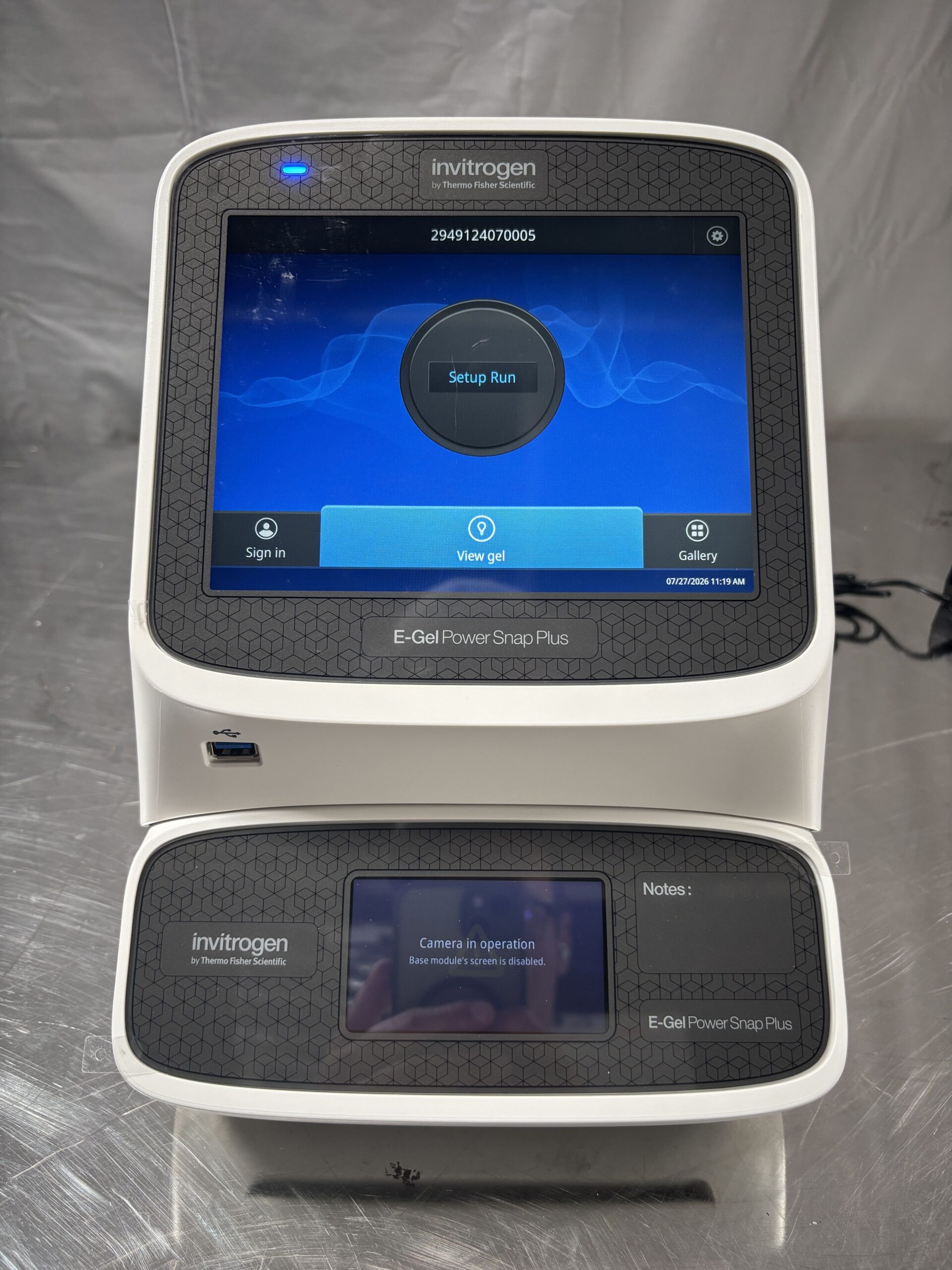

- Camera interface screen: large, standalone high resolution color touchscreen panel for direct image cropping, contrast adjustments and cloud syncing
- Primary compatibility: optimized entirely for a dry, precast, bufferless E-Gel cassettes (0.8% to 4% agarose percentages)
- Dimensions: 8.7″W x 11.5″D x 13″H
