Description
- Brand new! DOM 2026
- Compact, bufferless benchtop platform designed for fast DNA sample separation and automated gel documentation
- System uses specialized hot docking architecture, allowing the camera to snap directly onto the electrophoresis base for power and communication without extra cords or a dedicated PC
- Max output voltage: 48 VDC
- Max power consumption: 90W

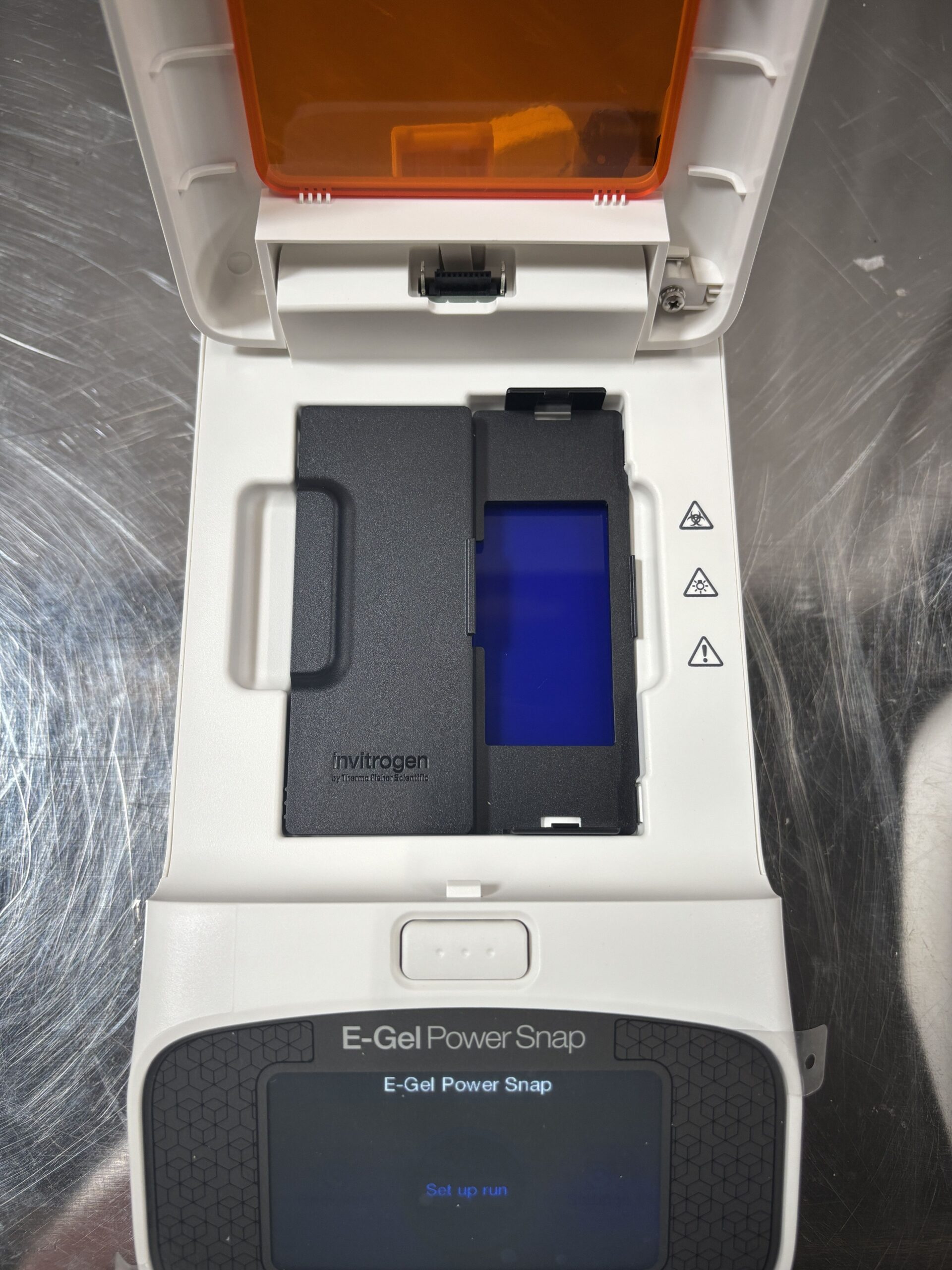

- Transillumination light source: built-in blue LED array (12 high-power LEDs)
- Excitation wavelength: 465nm (+/-10nm peak center; full width half max 20nm)
- Integrated filter: amber filter (8.6 x 10.5cm) for real-time tracking of green/yellow fluorophores
- Viewing surface area: 9 x 11cm
- LED operational lifespan: 50,000 hours
- Onboard UI: 7.7 x 4.4cm localized LCD touchscreen
- Preprogrammed protocols: dedicated run times calibrated for specific precast gel types
- Sensor type: color complementary metal-oxide semiconductor (CMOS)
- Image resolution: 3 megapixels (1,600 x 1,944 pixels) 8-bit
- Dynamic range: 68dB
- File output formats: grayscale 8-bit .TIF and color 24-bit .JPG

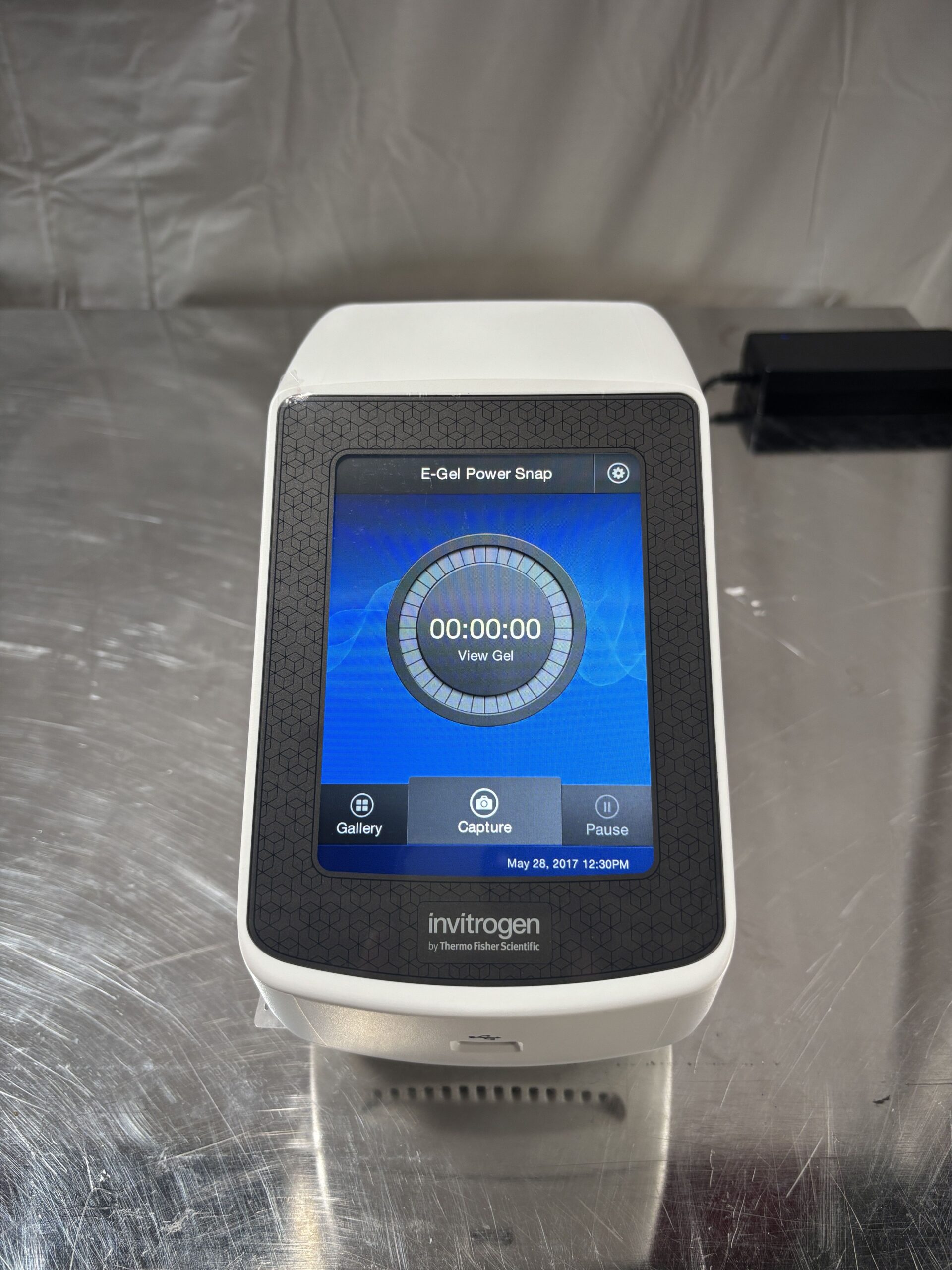

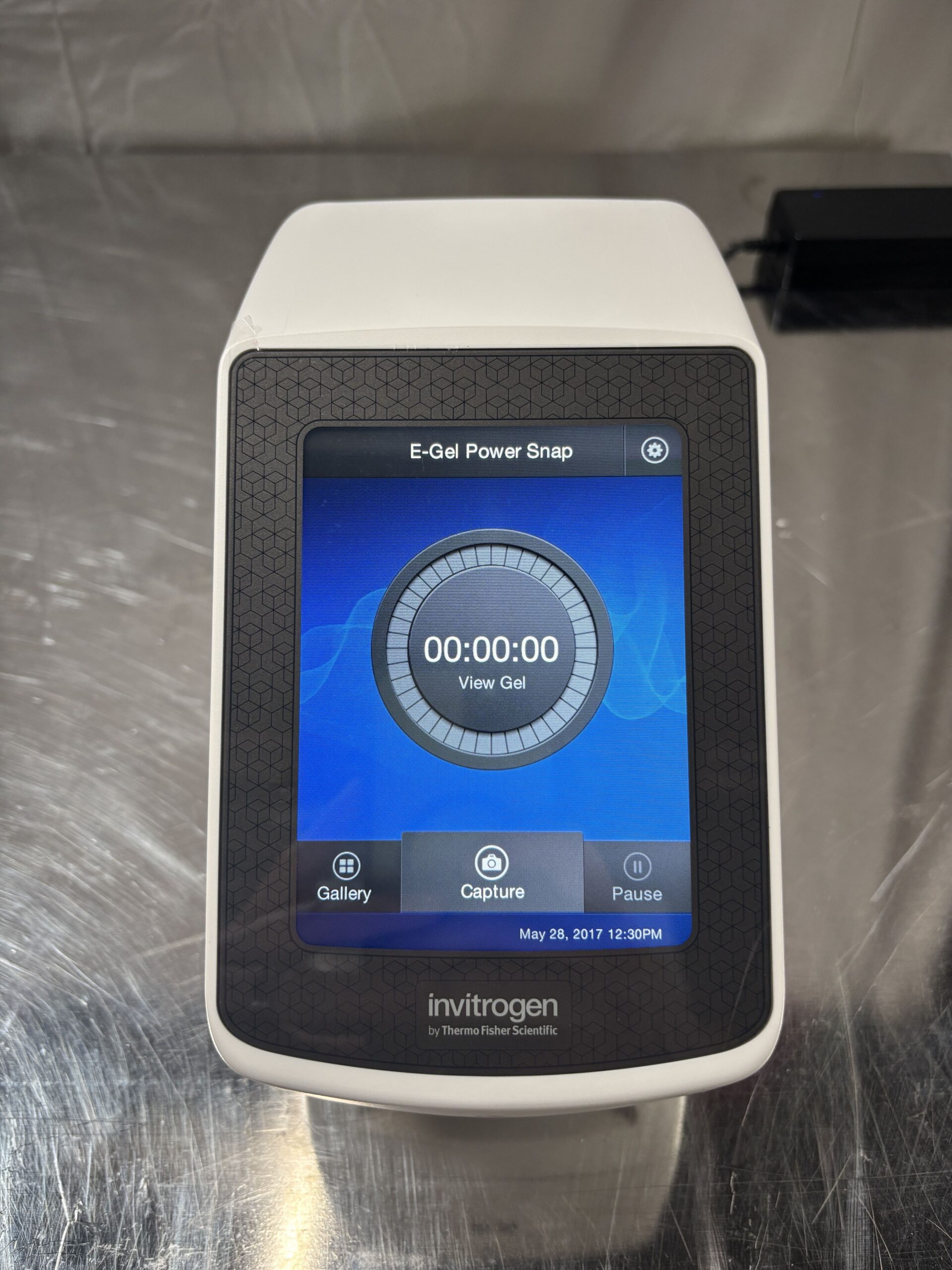

- Camera interface screen: large 11.5 x 8.6cm full-color touchscreen panel for exposure control, cropping and contrast adjustments
- Compatible fluorescent gels: E-Gel EX, E-Gel SYBR Safe, E-Gel Go!, E-Gel CloneWell II & E-Gel SizeSelect II
- Dimensions: 5.1″W x 9.5″D x 10.2″H
- 100-240VAC 50/60Hz
