Description
- Optical system: CRI60 Infinity Optical System (60mm parfocal distance)

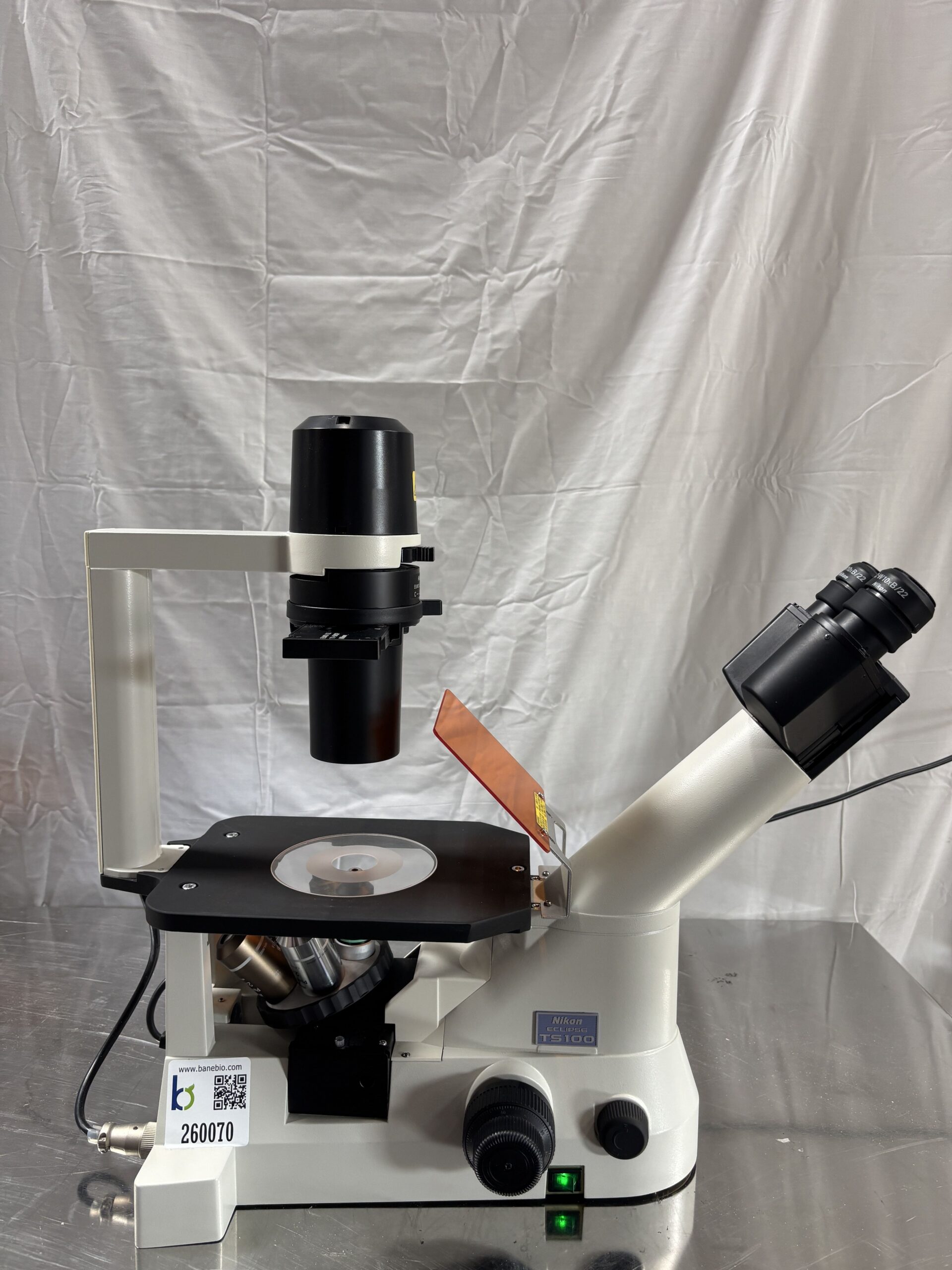

- TS100 Binocular

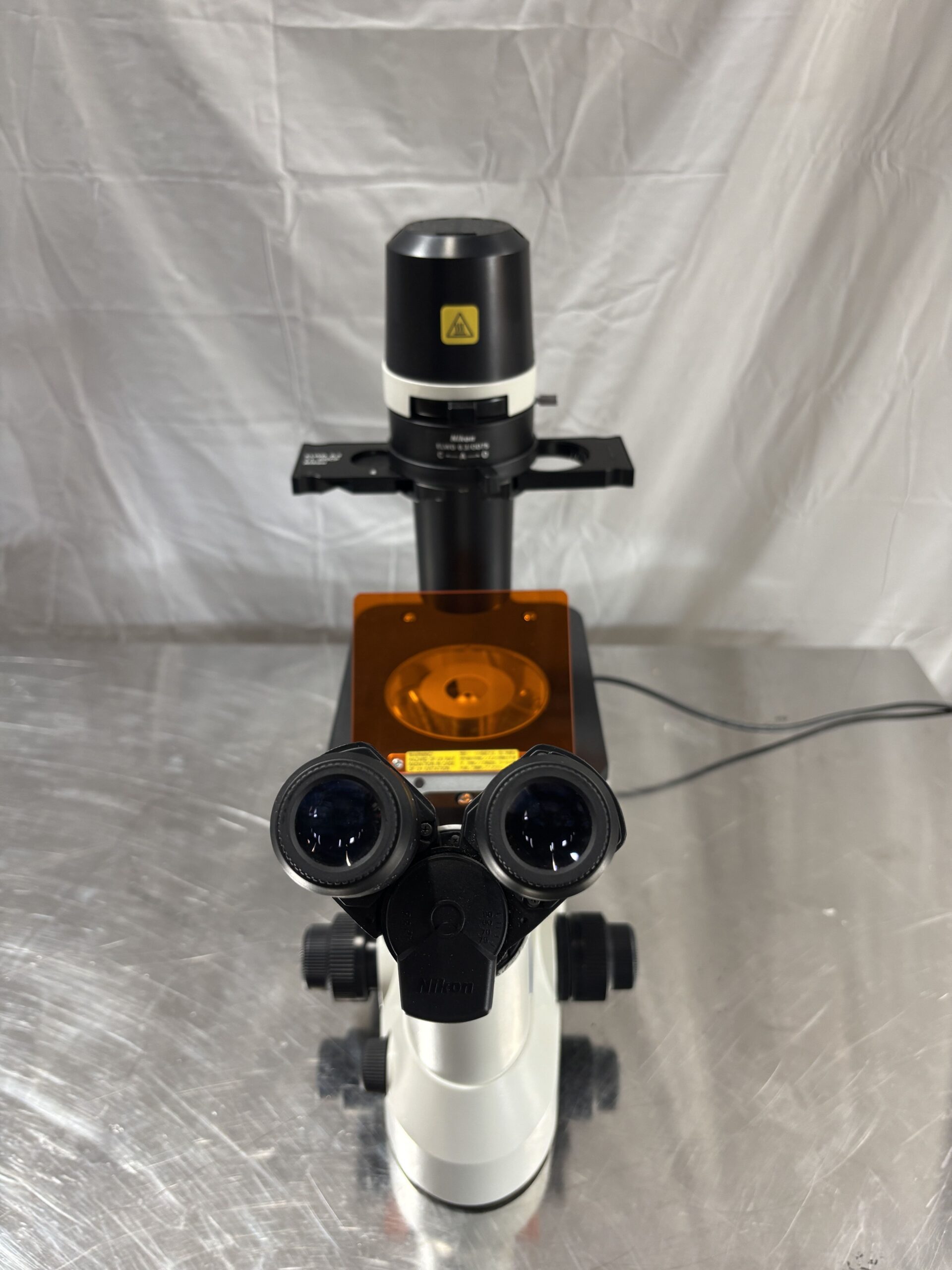

- Eyepiece tube: siedentopf-type, inclined 45 degree, eyepoint height 400mm
- Interpupillary distance: 50mm to 75mm

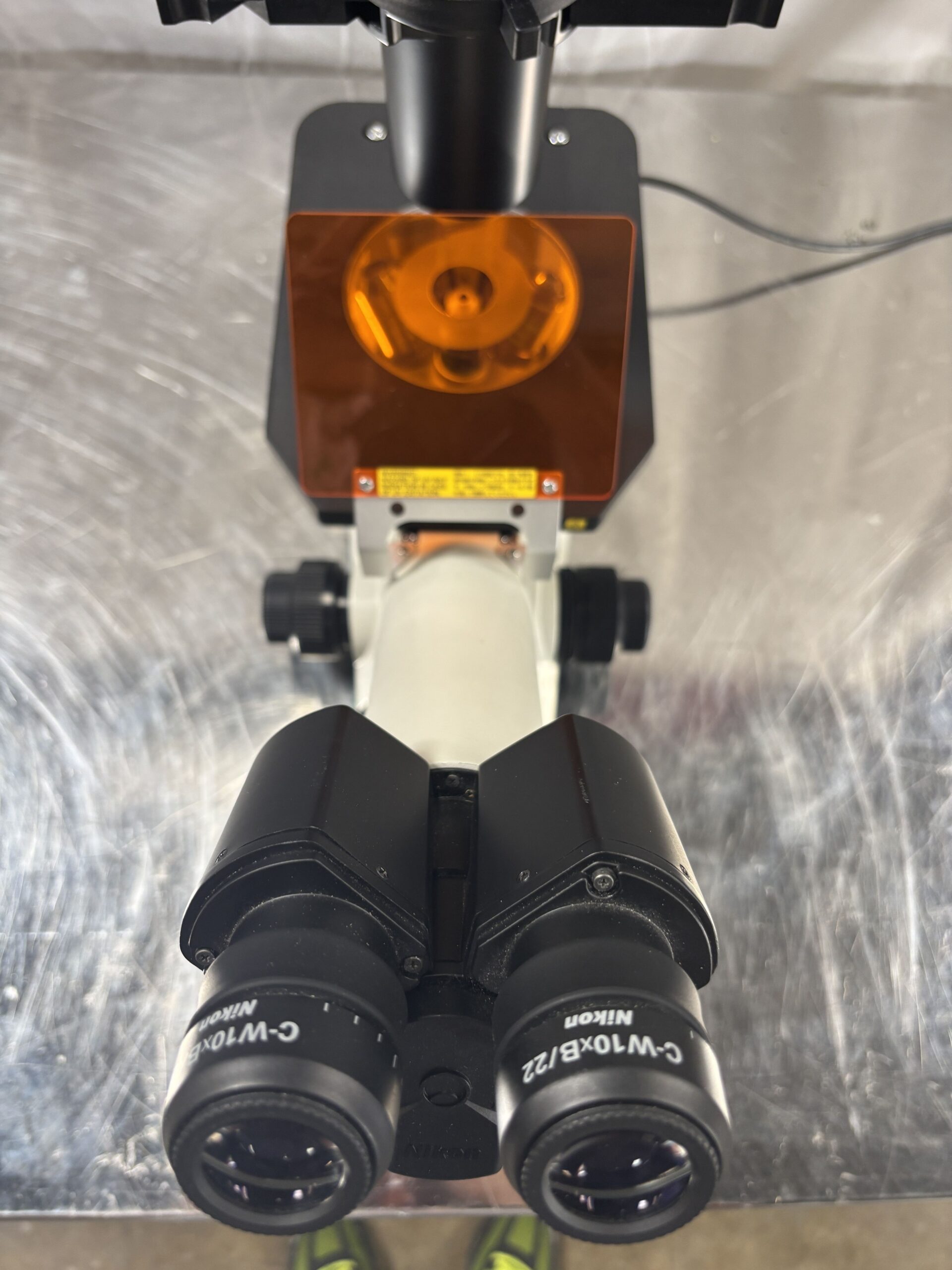

- Eyepieces: C-W 10x (22mm field of view)

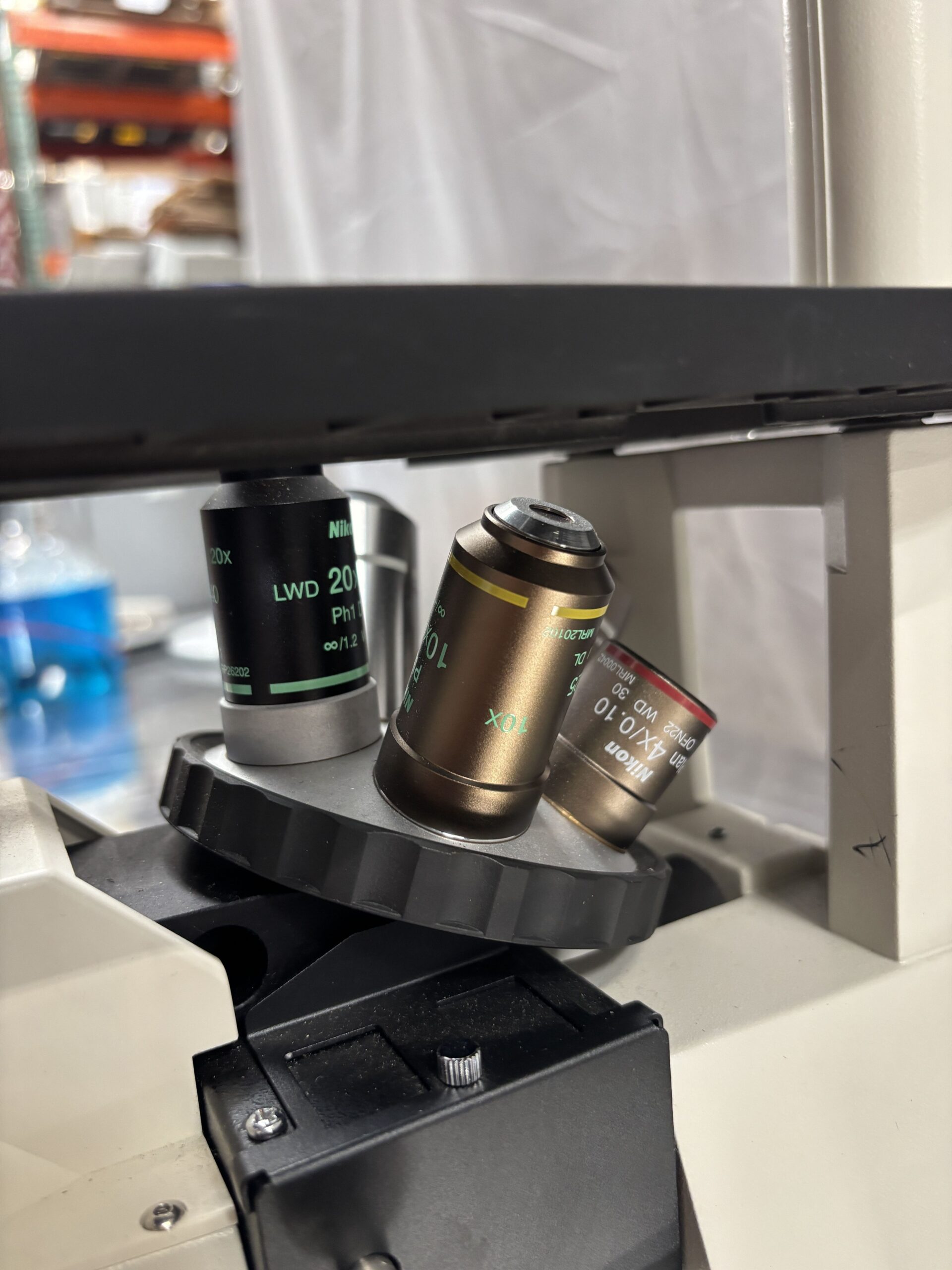

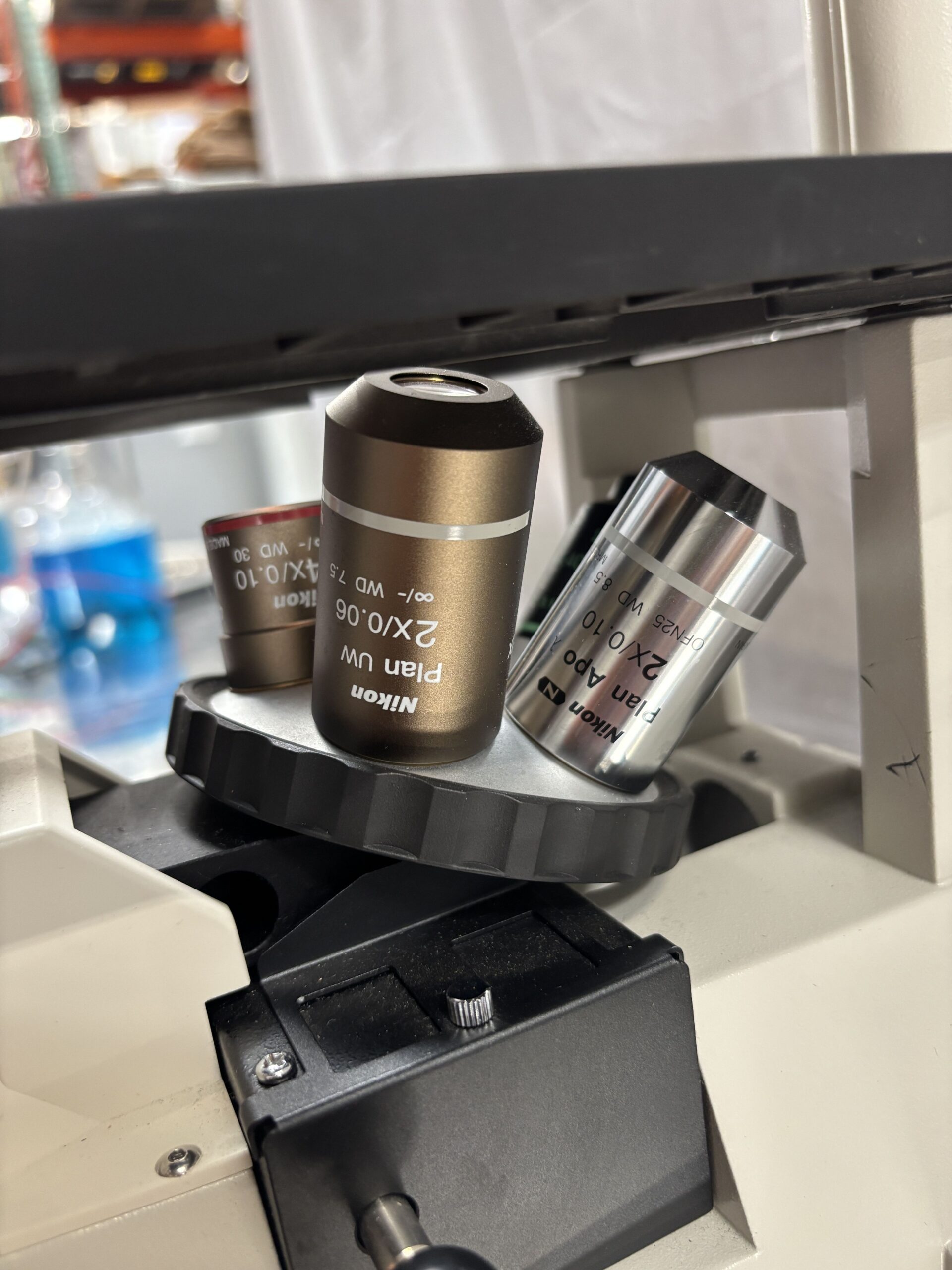

- Nosepiece: quintuple (5 position), backward facing type
- Coaxial coarse/fine focusing; stroke 22mm
- Coarse: 37.7mm/rotation; Fine 0.2mm/rotation
- Plain stage size: 170mm x 225mm (stage height 195mm from table)

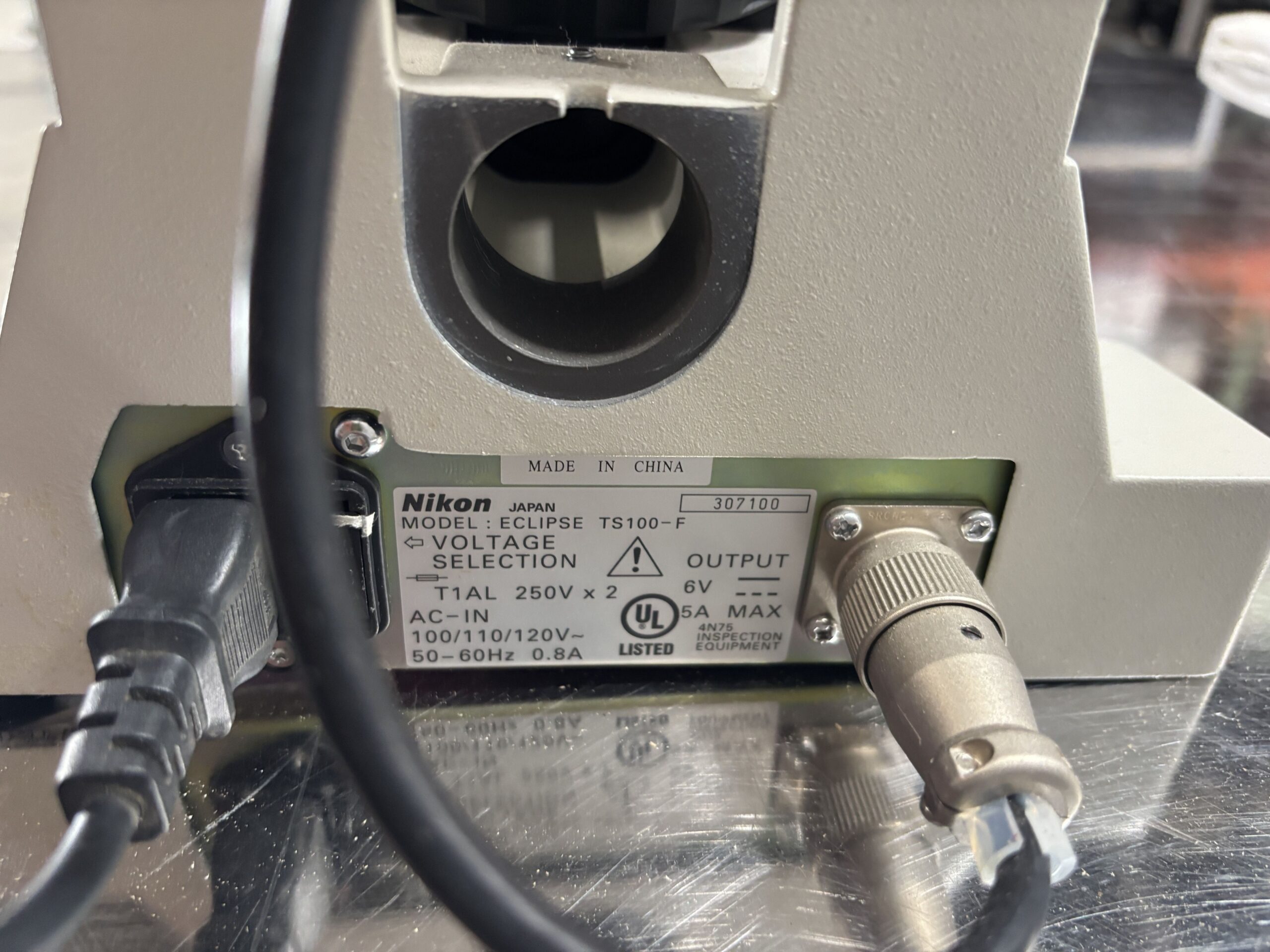

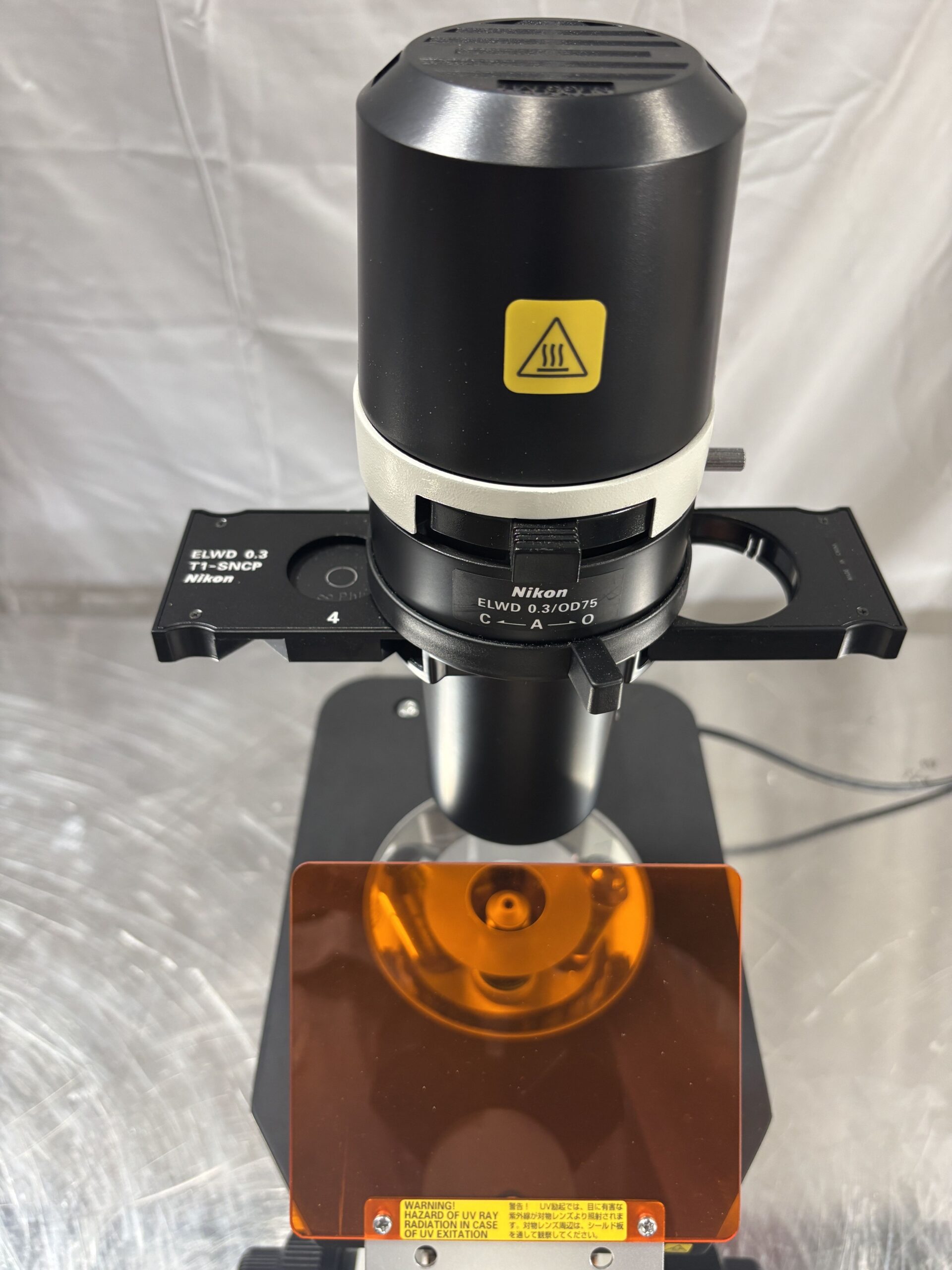

- Standard illumination: pre-centered 6V-30W halogen lamp; Multi-voltage (100-240V)
- 100-120V 50/60Hz
