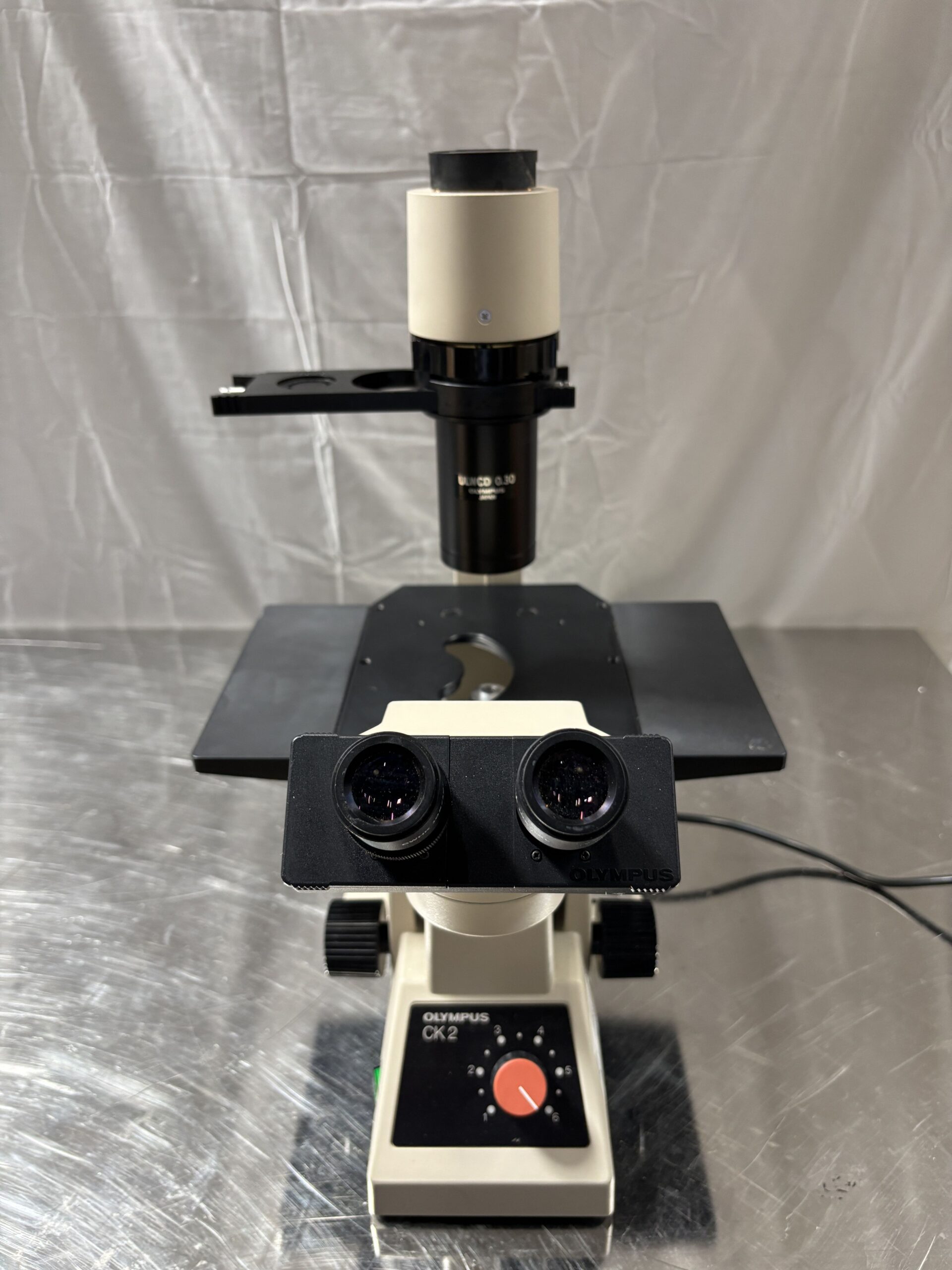

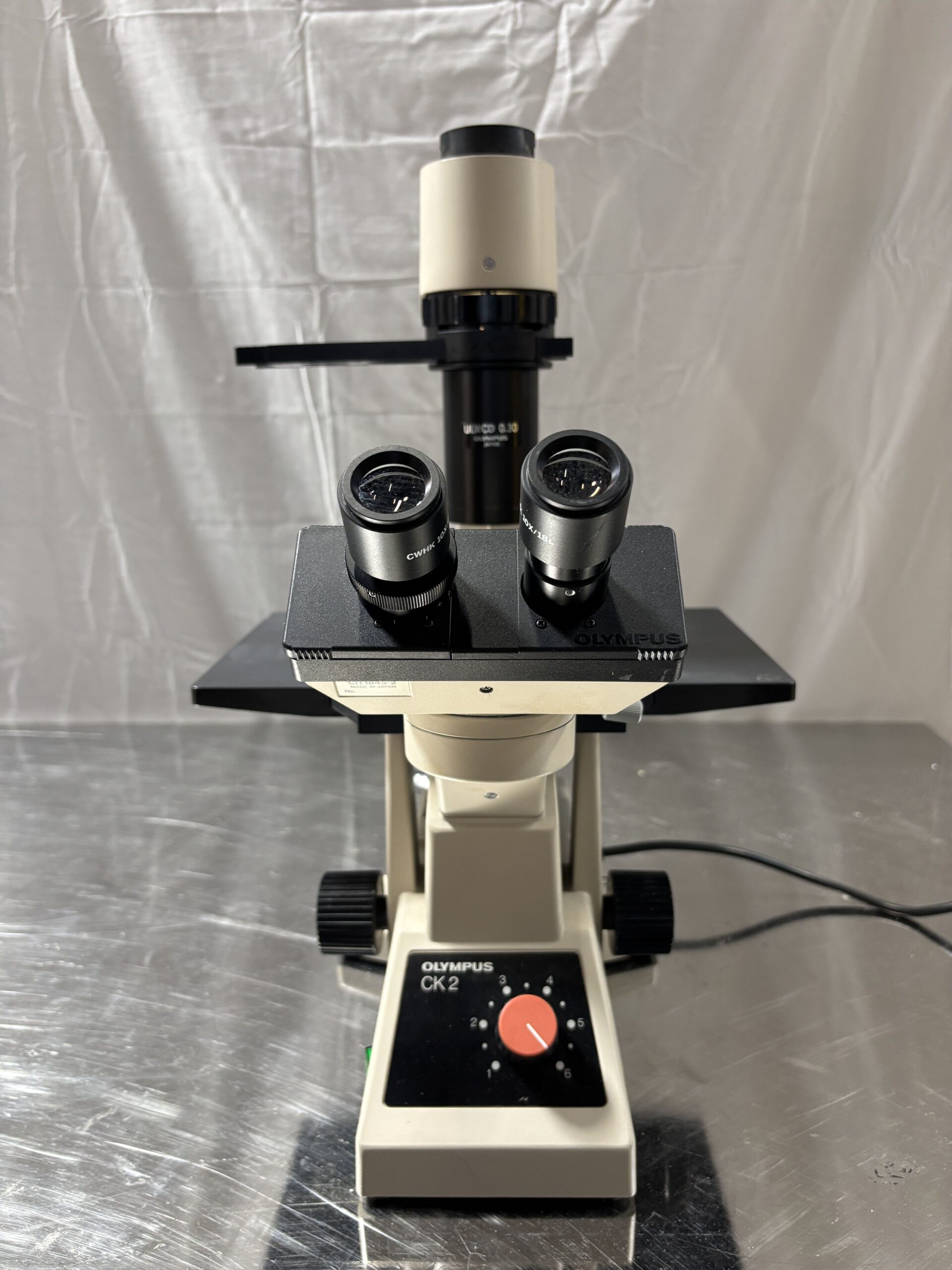

Description

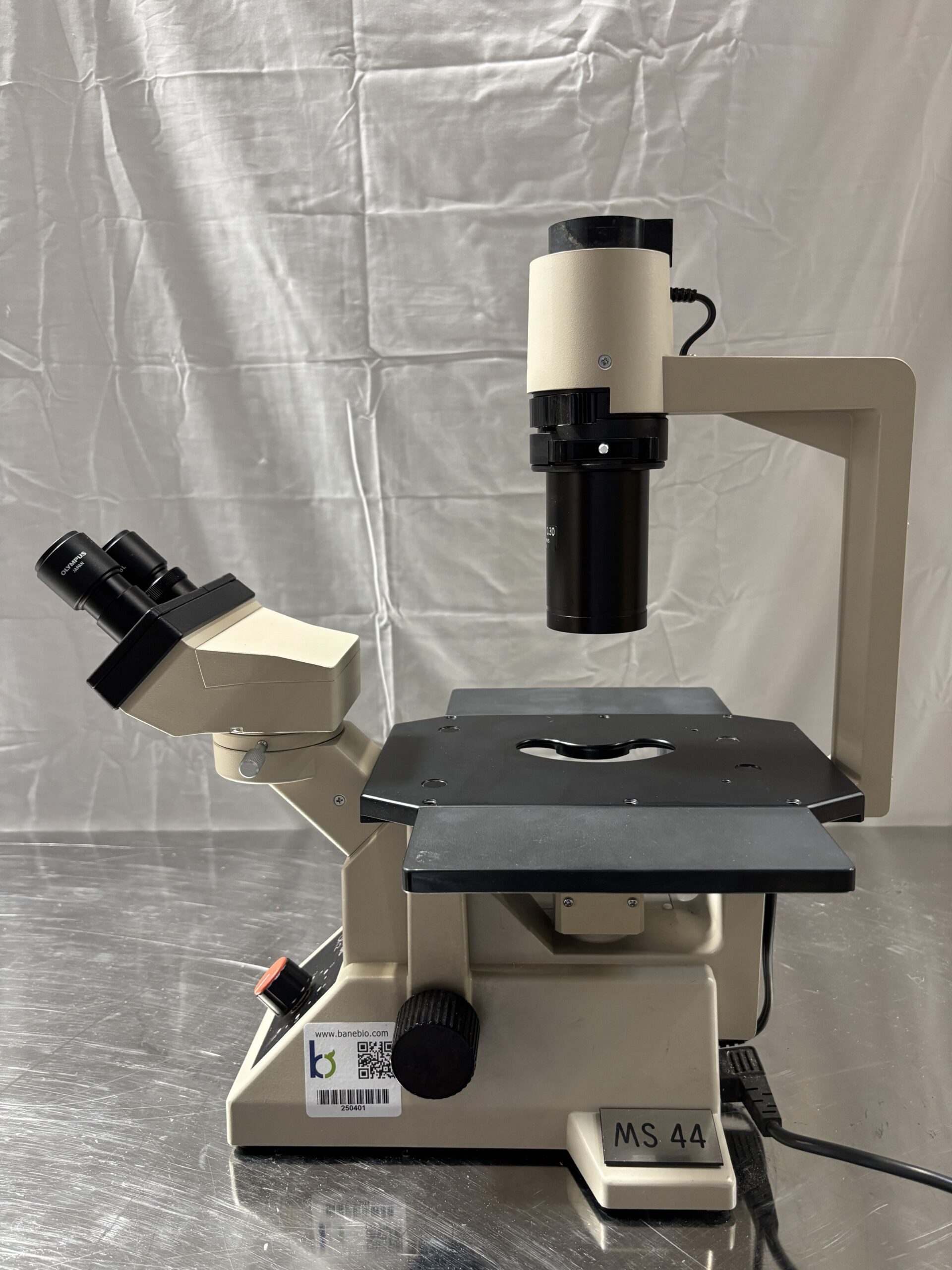

- Designed primarily for routine tissue culture, cell culture monitoring and live cell imaging using phase contrast and brightfield microscopy
- Optical design: fixed mechanical tube length 160mm system
- Frame structure: compact, low center of gravity cast alloy body with a fixed stage height for stability

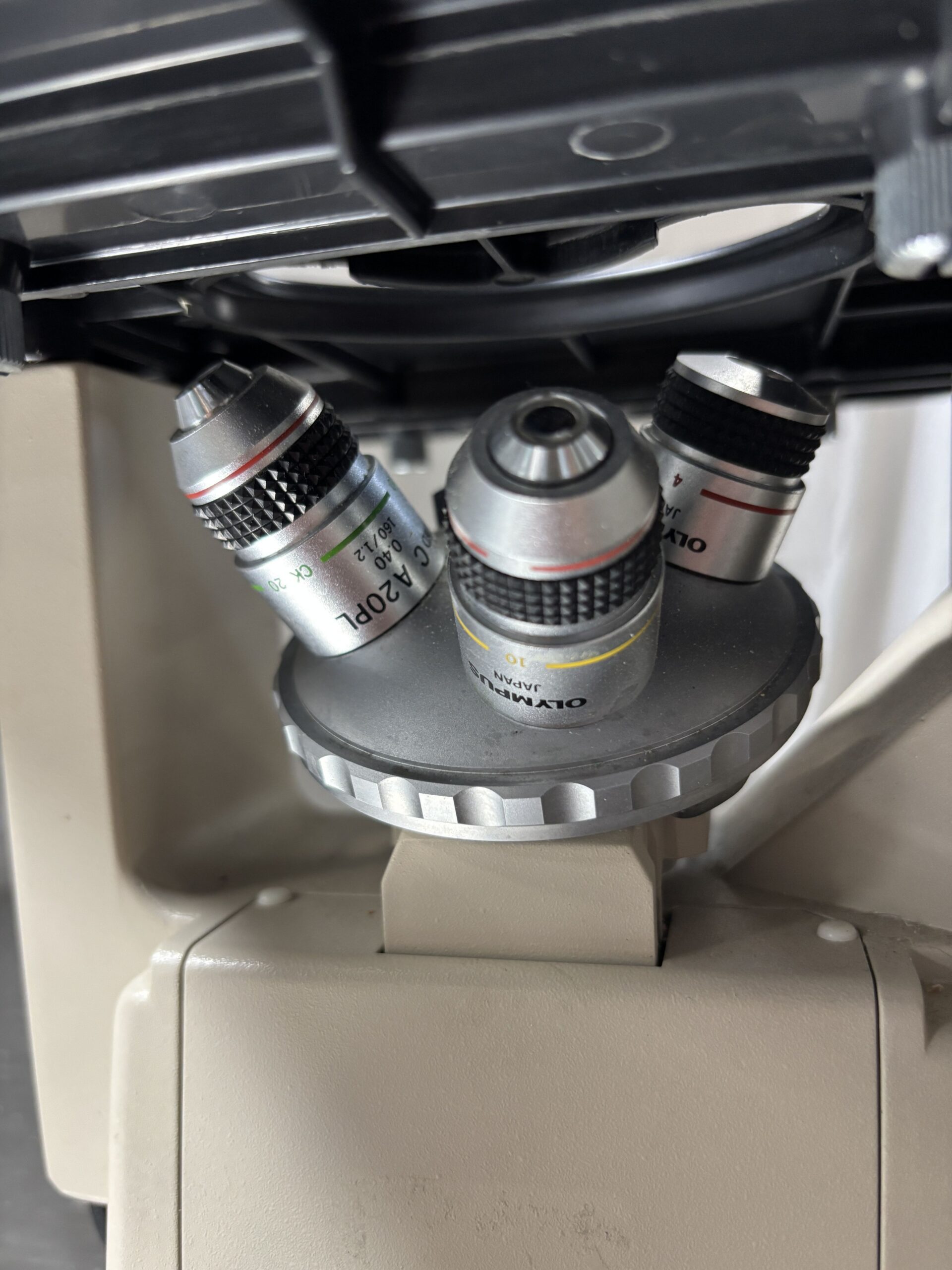

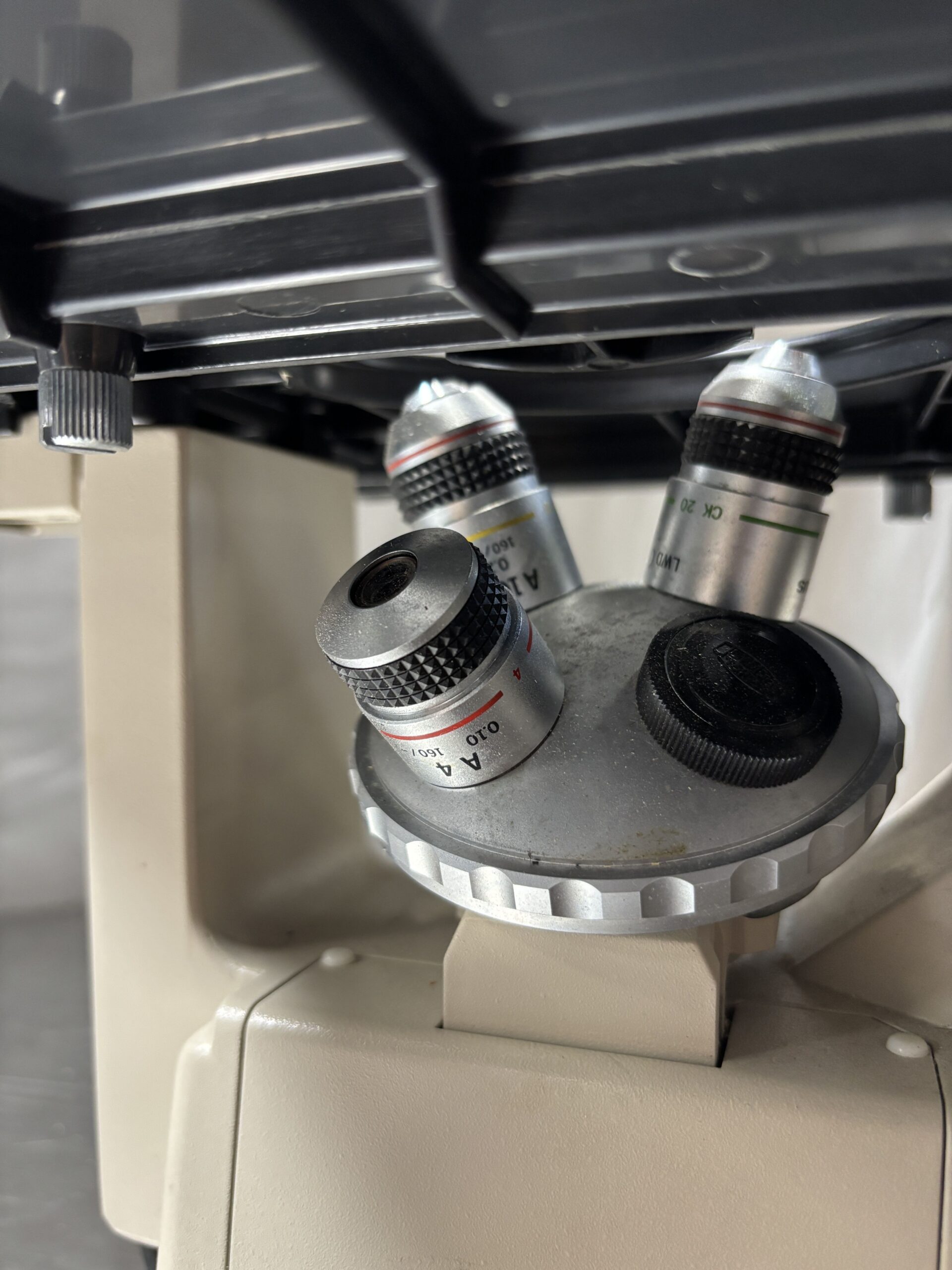

- Nosepiece: fixed, revolving quadruple 4 position nosepiece facing inward
- Light source: transmitted 6V 20W halogen lamp
- Intensity control: continuously variable slider control on the front base of the frame

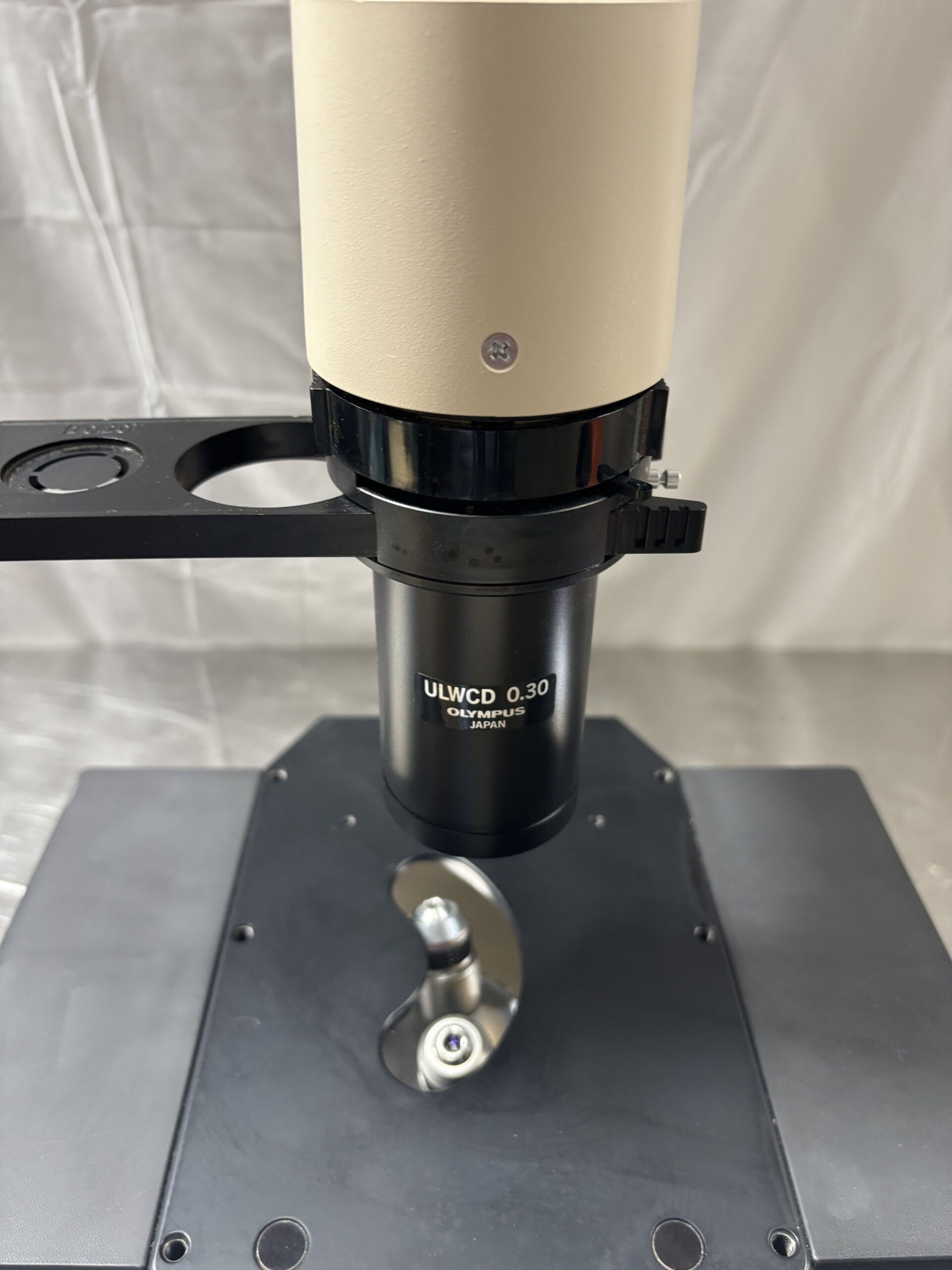

- Condenser: long working distance condenser with a 50mm working distance to accommodate standard petri dishes and culture flasks

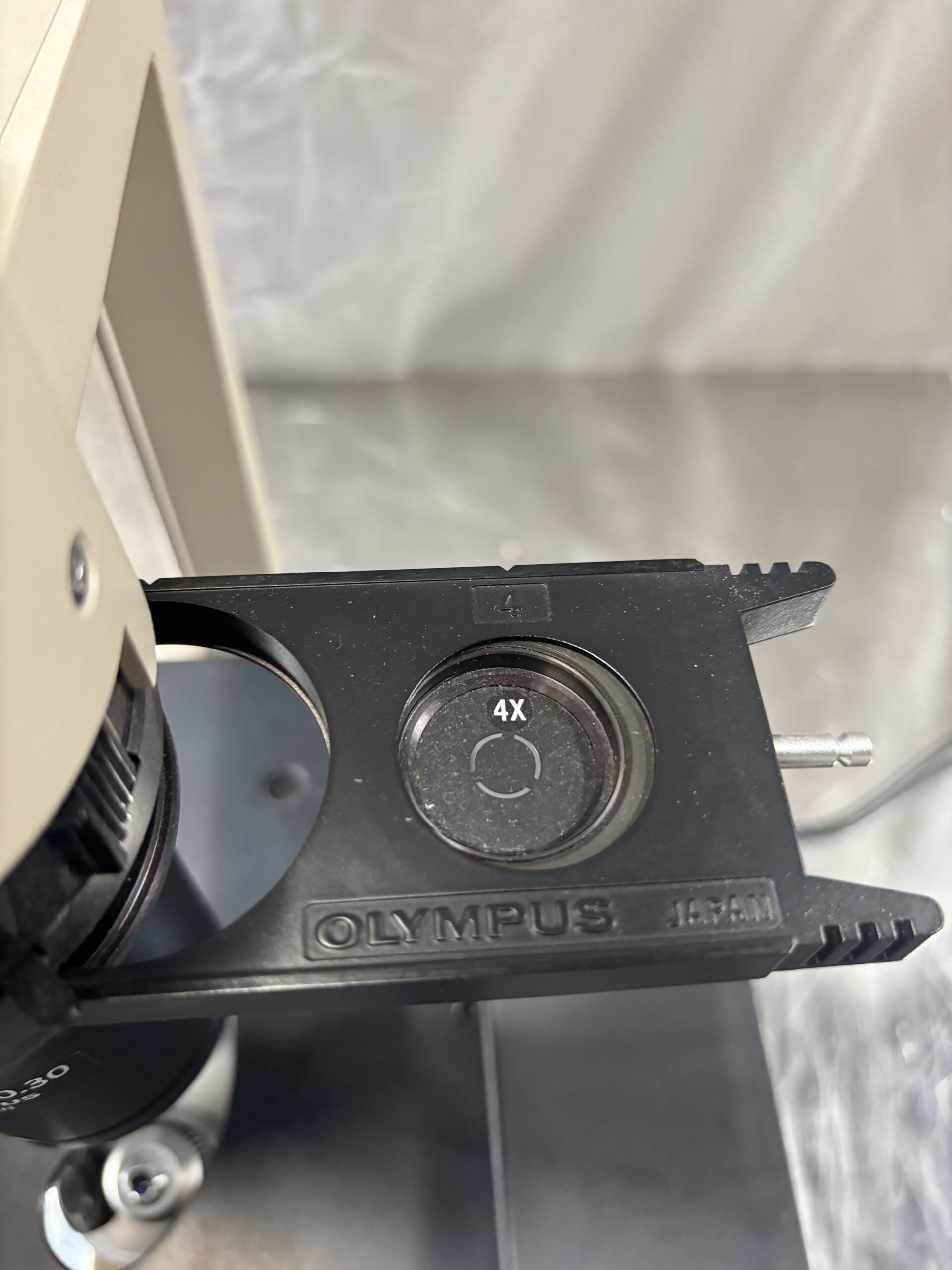

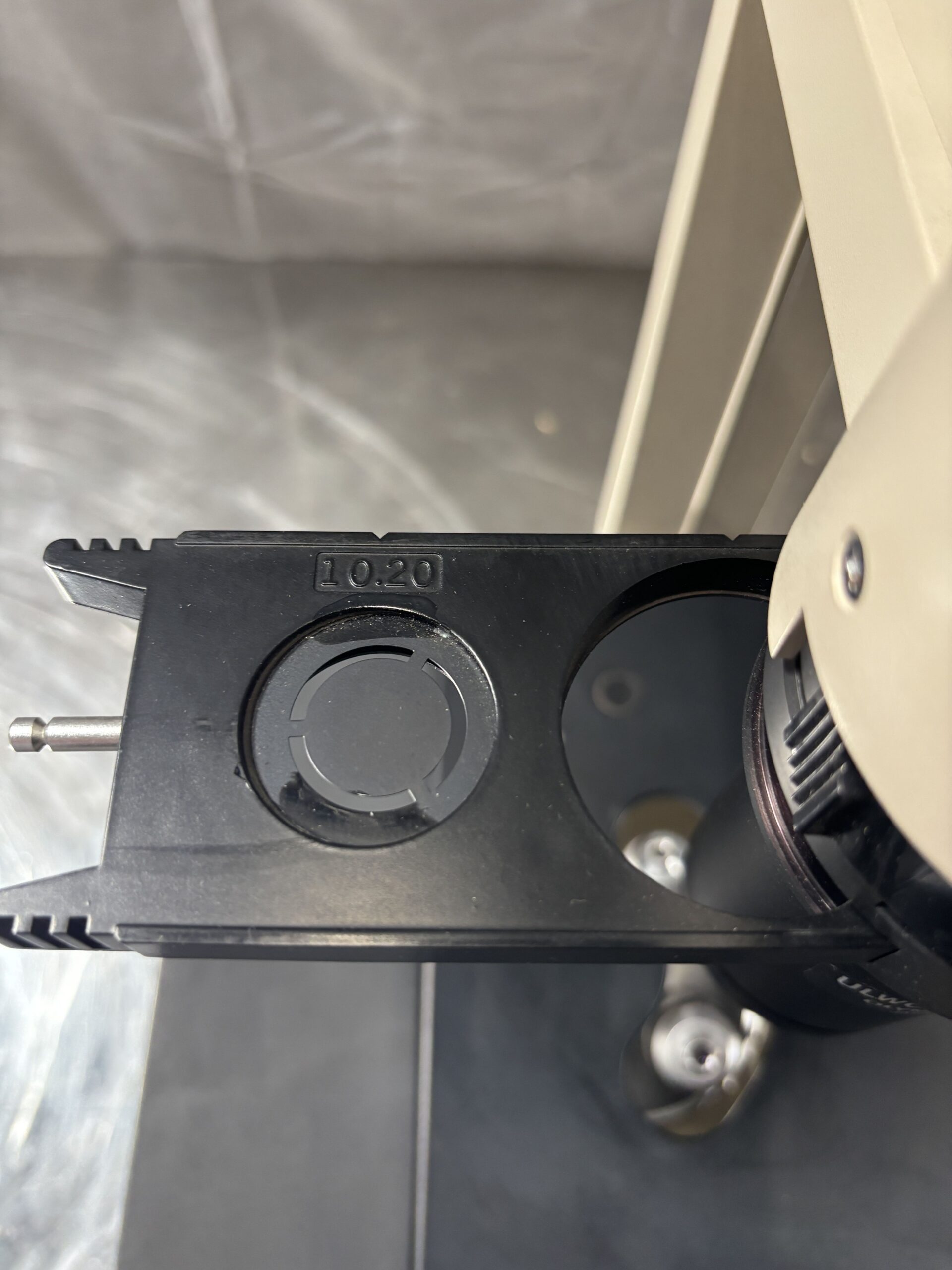

- Phase contrast system: utilizes a slider slot system. The CK2-SPC slider contains rings for 10x and 20x phase objectives, plus an open slot for brightfield microscopy
- Fixed stage dimensions: 180mm W x 200mm D plain stage
- Coaxial coarse and fine adjustment knobs
- Fine adjustment: 0.002mm increments per graduation
- Total travel range: up approx 7mm, down approx 2mm from the stage surface
- Objectives: 4x, 10x & 40x
