Description

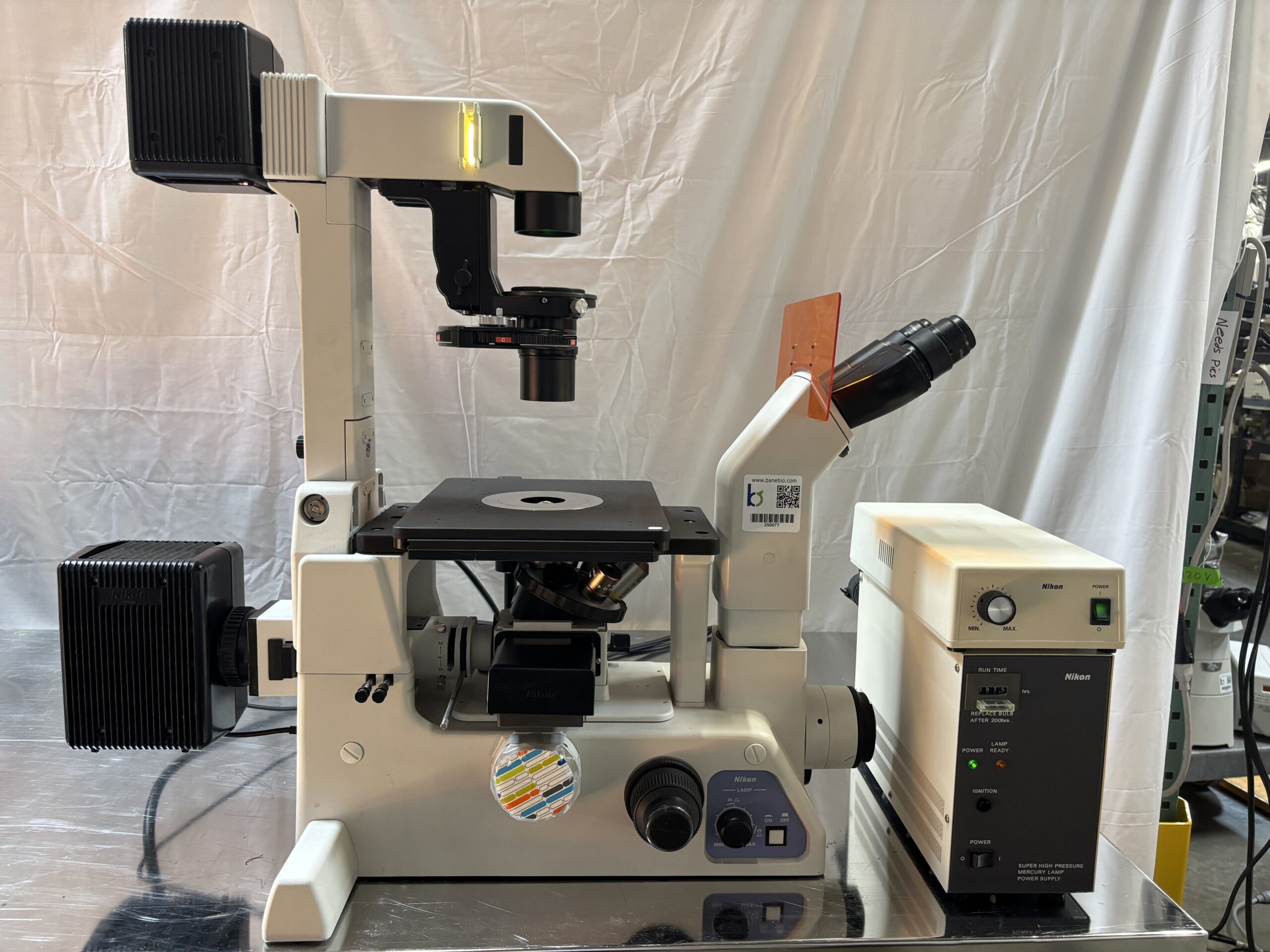

- Used for live cell imaging, tissue culture and electrophysiology

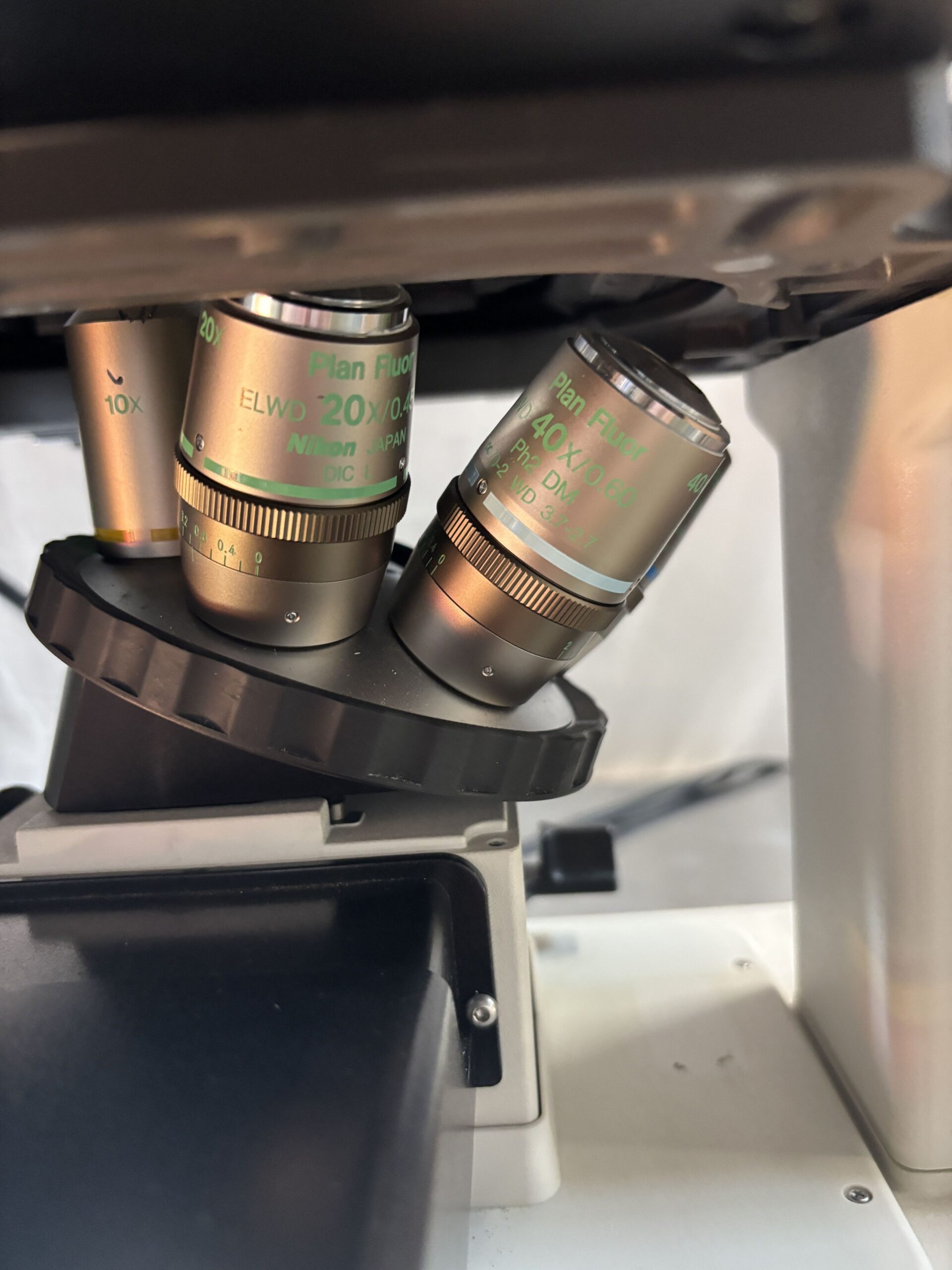

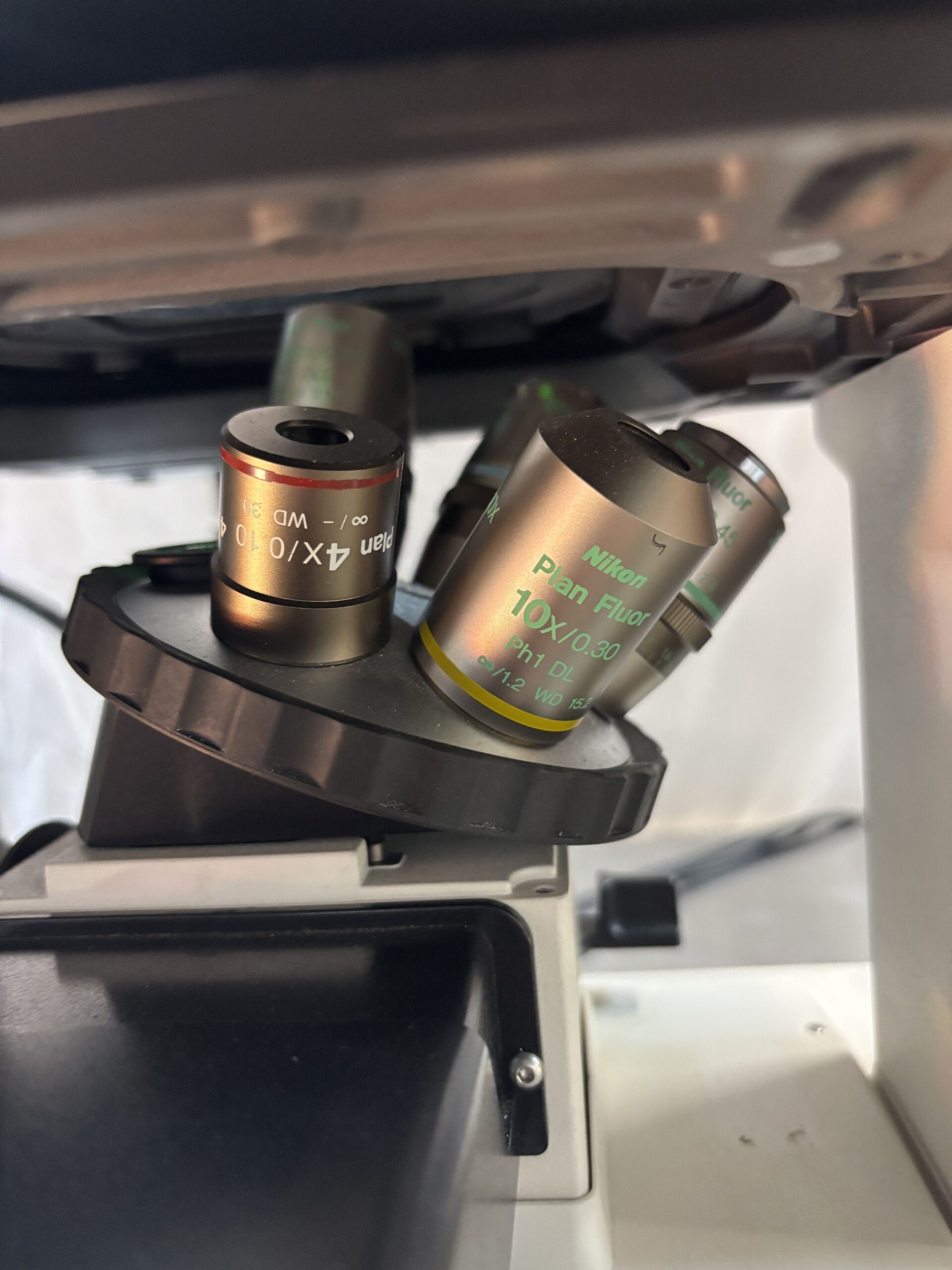

- CFI60 optical system
- Parfocal distance: 60mm with a 25mm objective thread size
- Light ports: quadruple output design

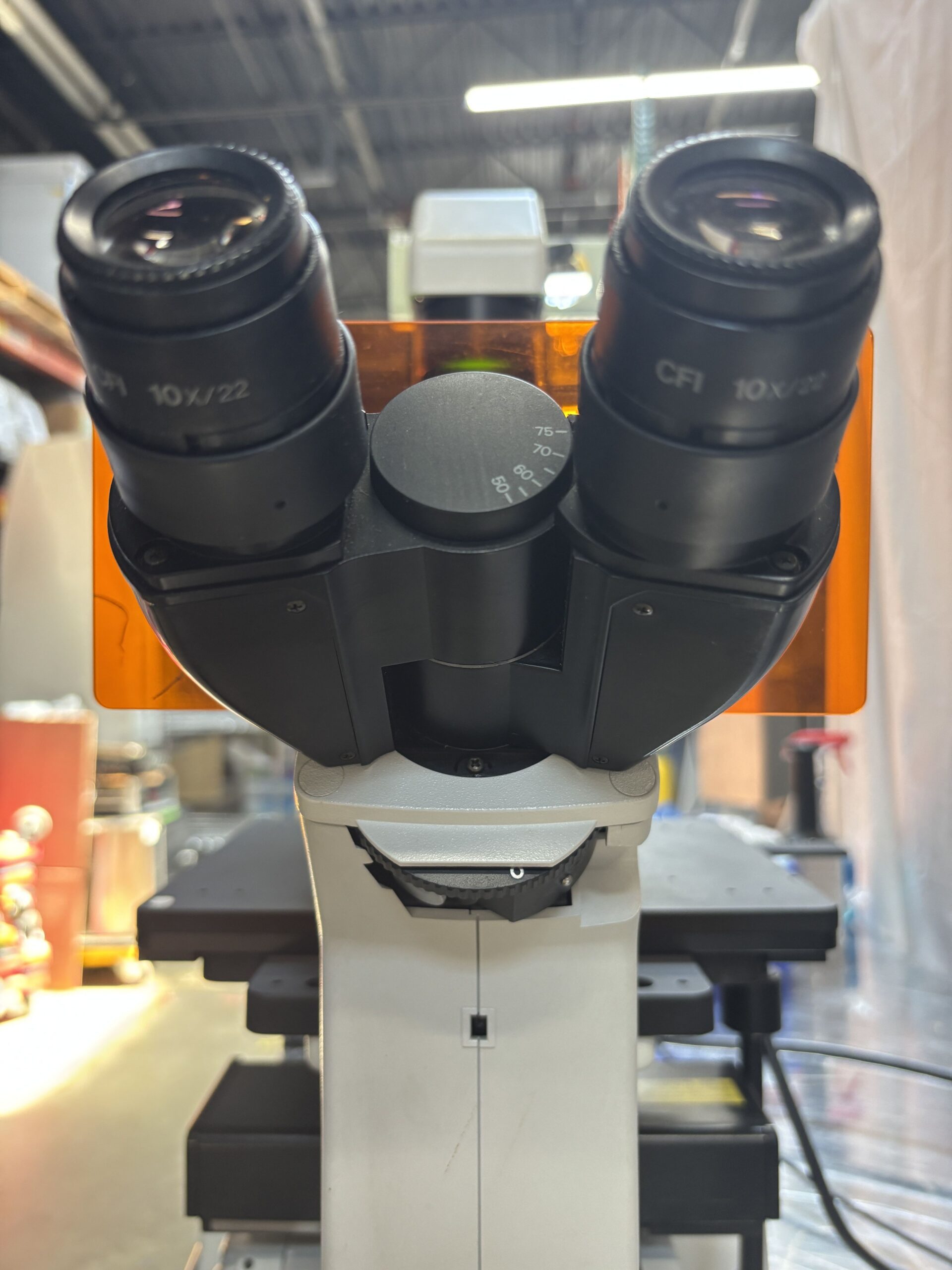

- Front port: 100% light to binocular/trinocular eyepiece
- Side ports (left/right): 100% or split for video/imaging
- Bottom port: configurable for laser applications or specialized camera setups

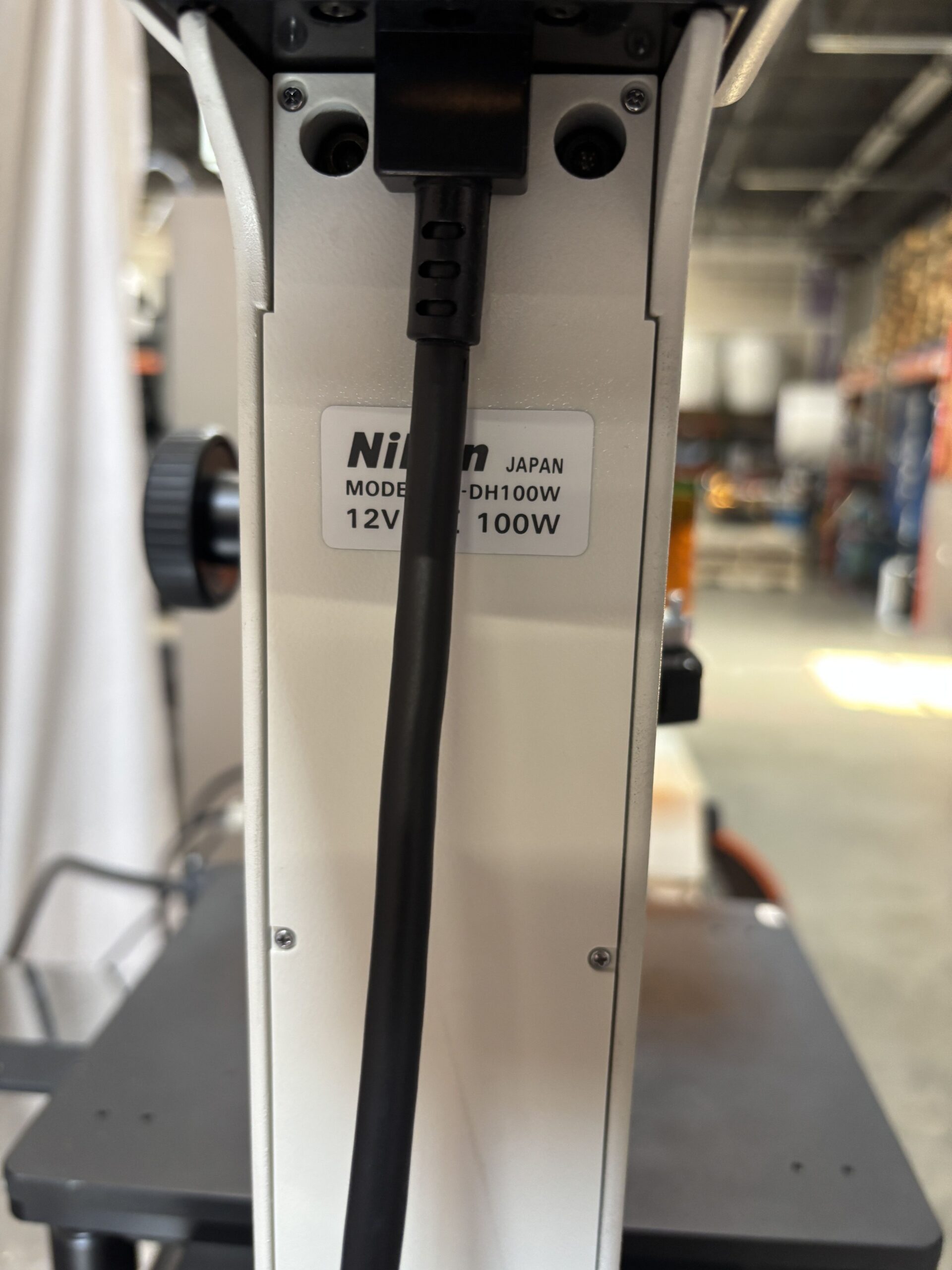

- 12V-100W halogen pillar with a title back mechanism for easy stage access

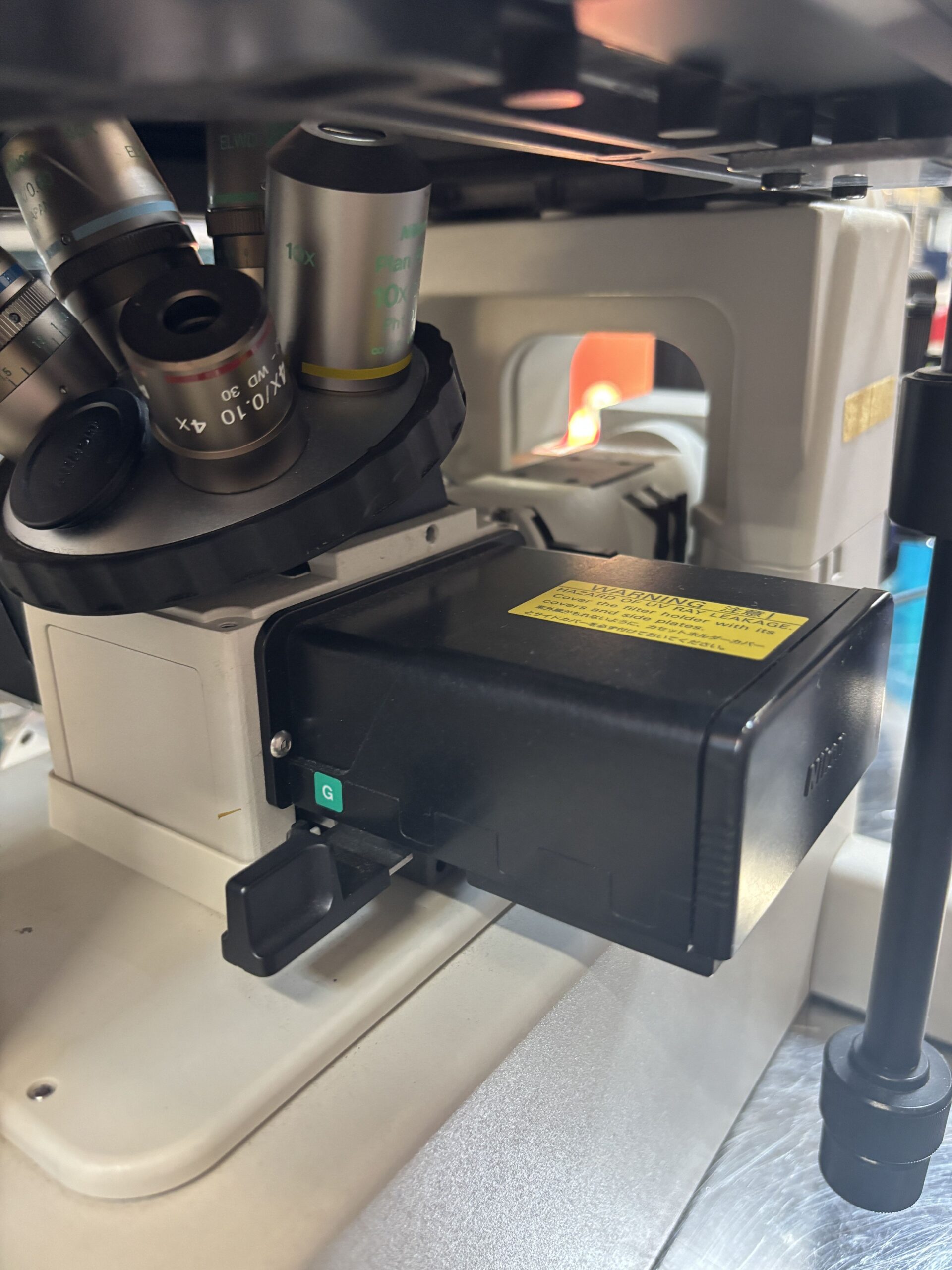

- Attachment holds up to 4 filter cubes simultaneously in a manual slider or turret
- Supported techniques: Brightfield, phase contrast, epi-fluorescence, DIC & Hoffman modulation contrast

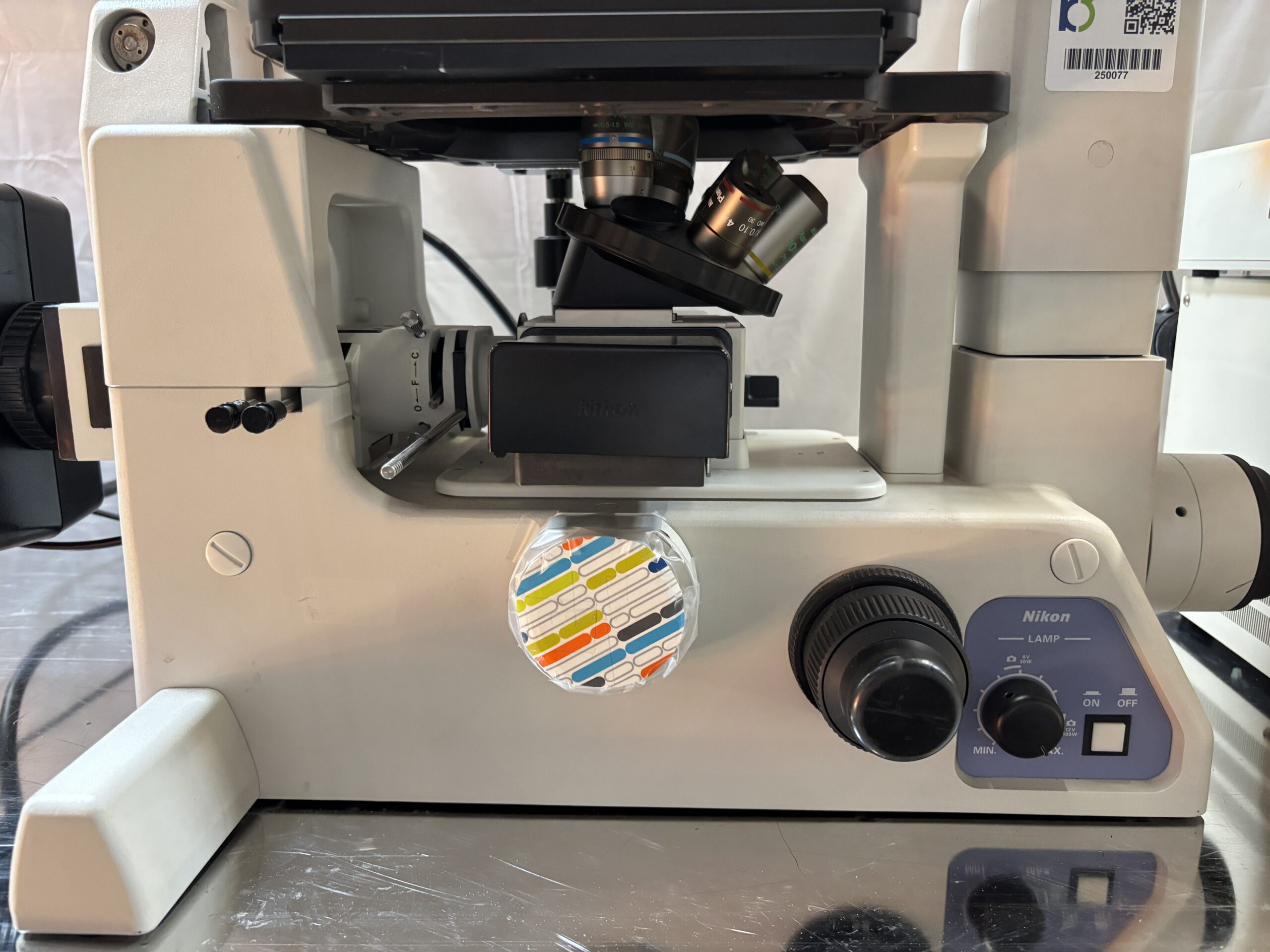

- Coaxial coarse and fine adjustment knobs
- 0.1mm per rotation
- 1 micron minimum graduation
- Rectangular mechanical stage, plain stage with attachable mechanical attach, or heavy duty t stage for micromanipulation
- 11.8″W x 23.6″D x 21.7″H
