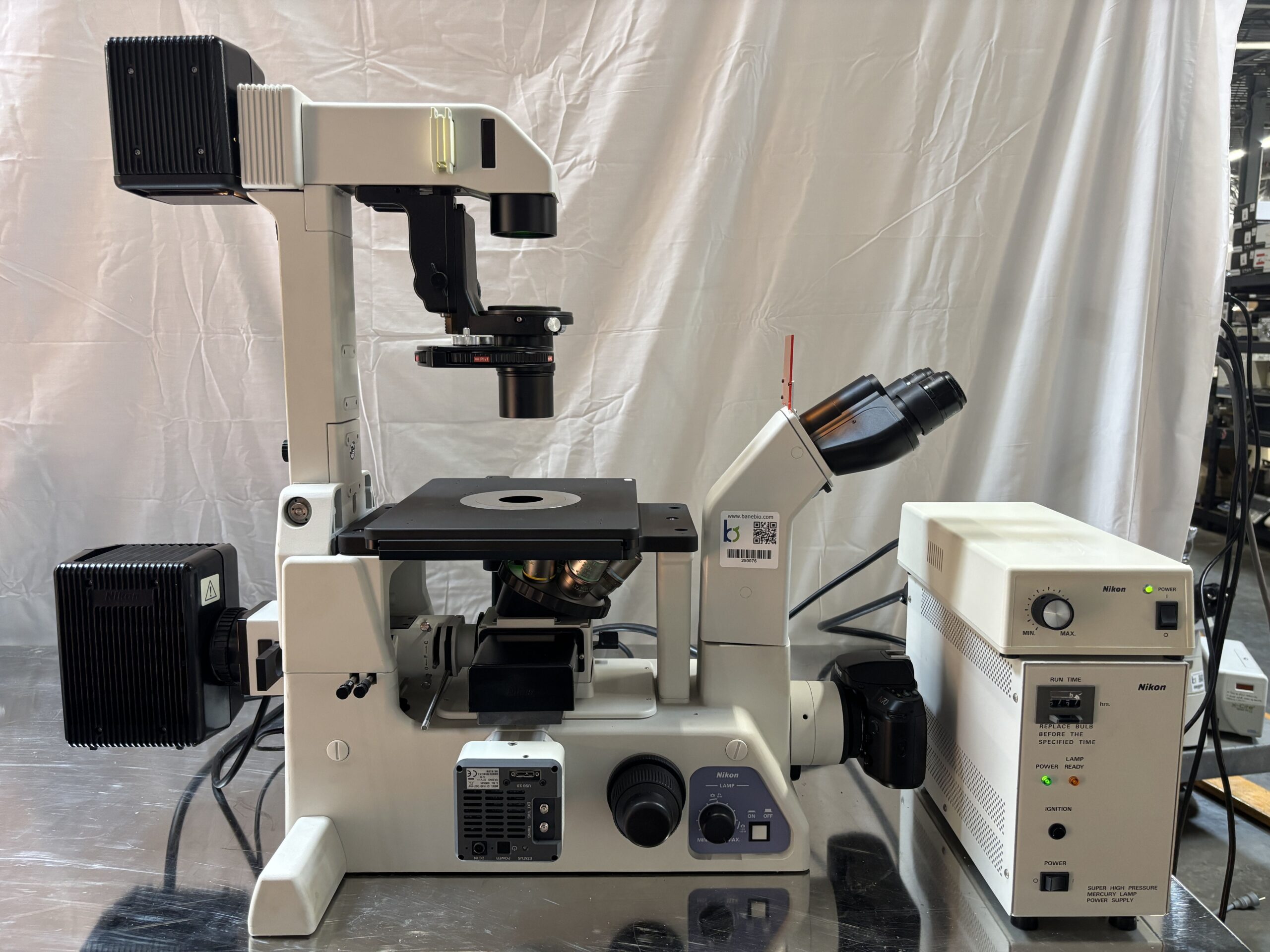

Description
- Used for live cell imaging, tissue culture and electrophysiology
- CFI60 optical system
- Parfocal distance: 60mm with a 25mm objective thread size
- Light ports: quadruple output design
- Front port: 100% light to binocular/trinocular eyepiece
- Side ports (left/right): 100% or split for video/imaging
- Bottom port: configurable for laser applications or specialized camera setups
- 12V-100W halogen pillar with a title back mechanism for easy stage access
- Attachment holds up to 4 filter cubes simultaneously in a manual slider or turret

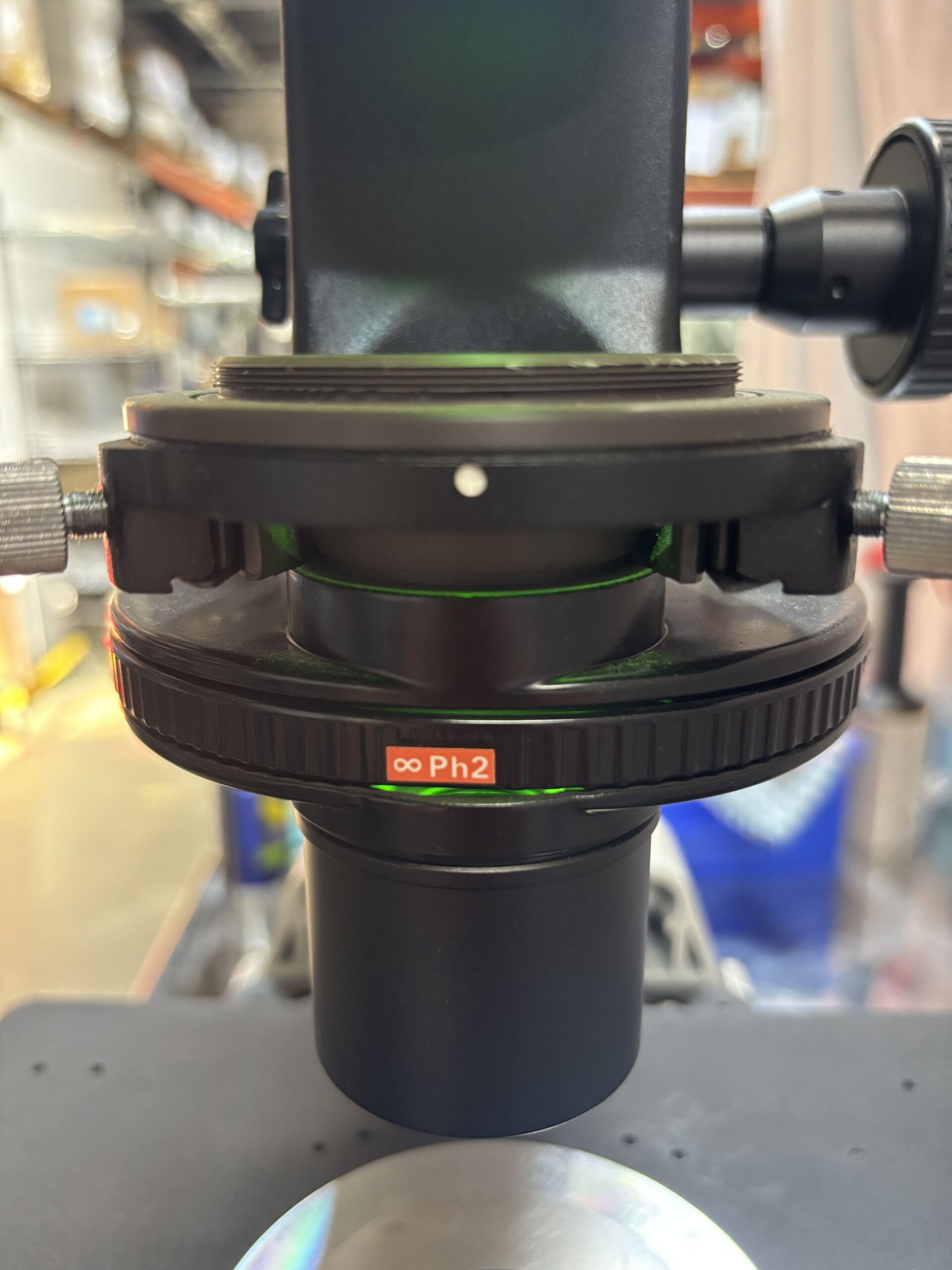

- Supported techniques: Brightfield, phase contrast, epi-fluorescence, DIC & Hoffman modulation contrast
- Coaxial coarse and fine adjustment knobs
- 0.1mm per rotation
- 1 micron minimum graduation
- Rectangular mechanical stage, plain stage with attachable mechanical attach, or heavy duty t stage for micromanipulation
- 11.8″W x 23.6″D x 21.7″H

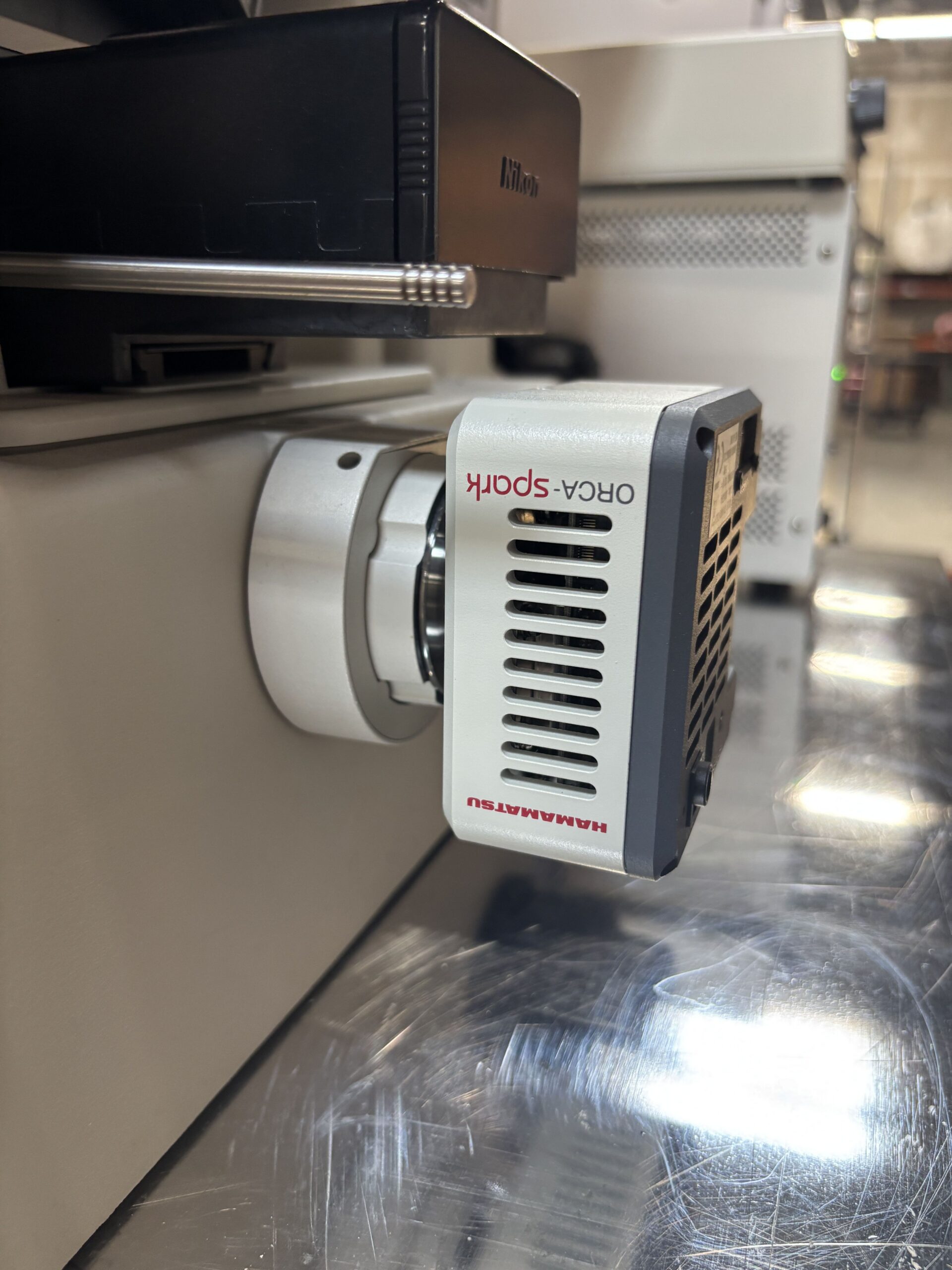

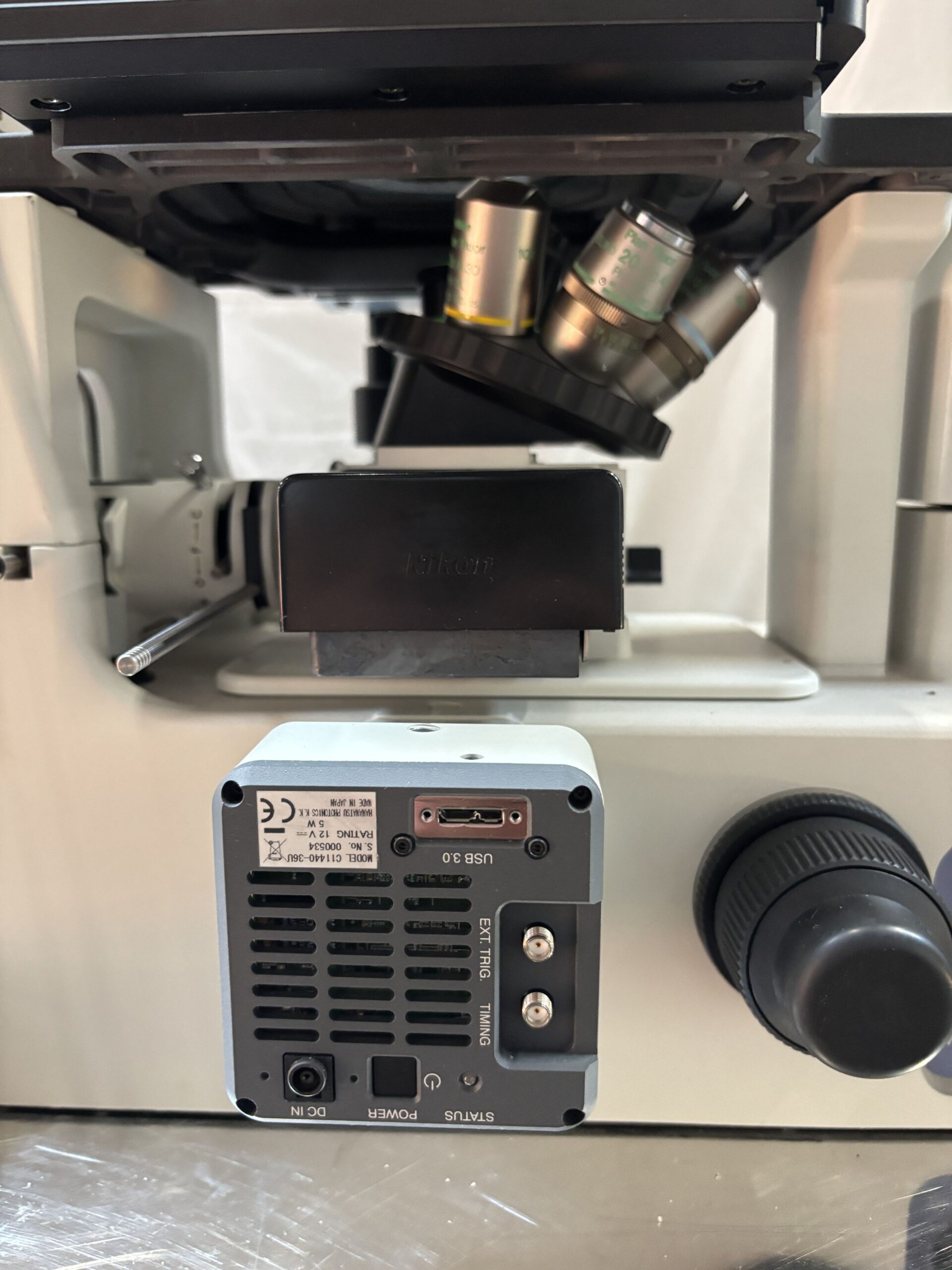

- 2.3 megapixel high sensitivity CMOS sensor
- Resolution: 1920 H x 1200 V effective pixels
- Pixel cell size: 5.86um x 5.86um
- Global shutter type
- 64.9 frames per second at full resoultion
- 5000:1 with a 12 bit analog to digital converter dynamic range
