Description

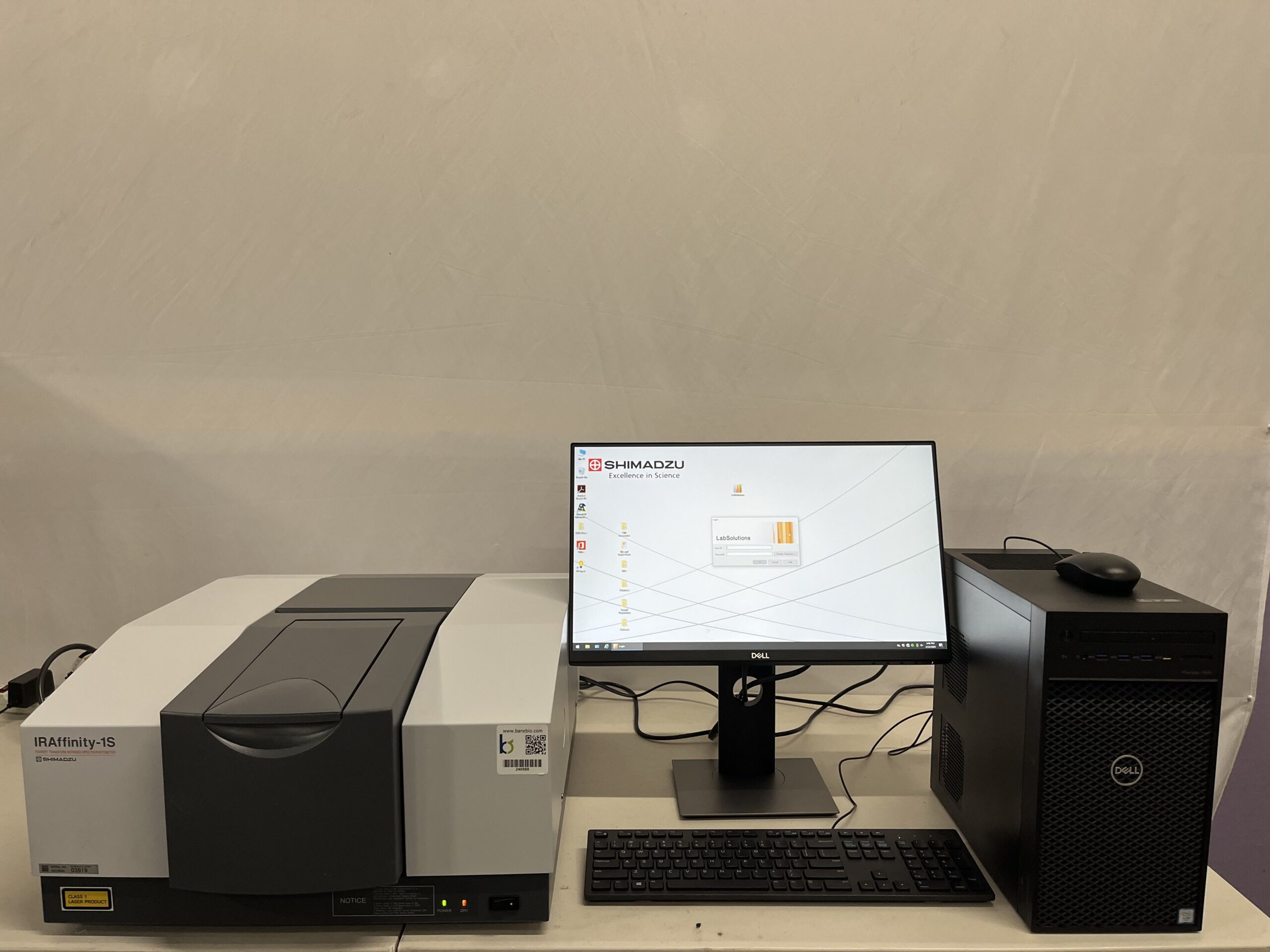

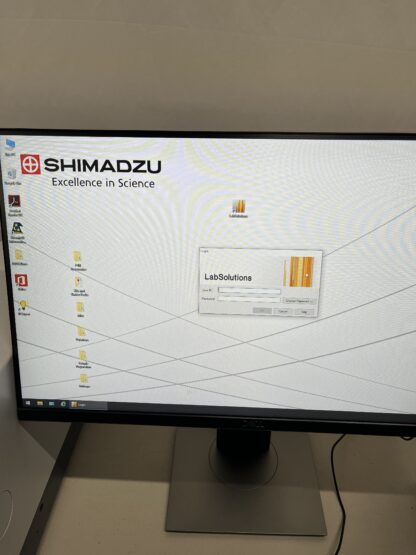

- System includes computer with software, but buyer is responsible for communicating with Shimadzu to gather product key to use software!

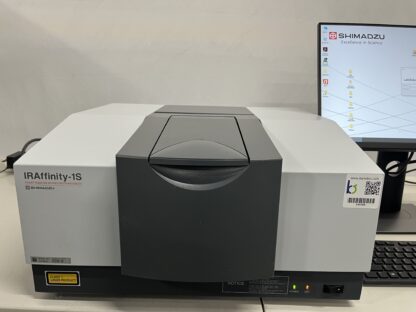

- Discover the Shimadzu iraffinity-1s FTIR Spectrophotometer, a compact yet powerful tool from Shimadzu. Unveil how its dynamic alignment, high SN ratio, and ease of maintenance redefine infrared spectroscopy for chemical analysis and material characterization in modern labs.
- Compact Design with Advanced Technology: Despite its compact form, the IRAffinity-1S does not compromise on technology. It includes a continuously optimized interferometer through a dynamic alignment mechanism, which enhances its operational stability and reliability.
- Maintenance and Reliability Features: The device has a built-in automatic dehumidifier and an auto dryer, which help maintain the instrument by controlling internal moisture. This feature is crucial for maintaining long-term accuracy and reducing maintenance needs.
- High Signal-to-Noise Ratio: The IRAffinity-1S boasts a high signal-to-noise (SN) ratio of 30,000:1 with 1-minute accumulation, ensuring excellent sensitivity and precision in measurements. This high SN ratio is particularly important for detecting low-concentration components in a sample.
- Excellent Resolution: It offers a maximum resolution of 0.5 cm-1, allowing for detailed and accurate spectral analysis. This high resolution is essential for distinguishing between similar compounds and for precise quantification.
- Suitable for a Range of FTIR Techniques: The IRAffinity-1S can perform all FTIR techniques, including transmission, diffuse reflection, and attenuated total reflection (ATR), making it versatile for various applications.

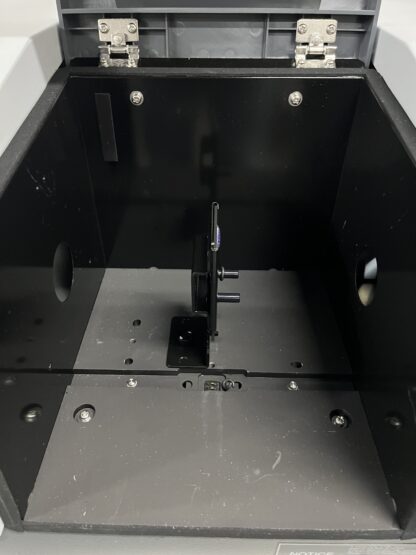

- User-Friendly Features: Features like a large sample compartment and self-diagnostics programs contribute to its user-friendliness and reliability, making it suitable even for users not specialized in FTIR spectroscopy.
- Interferometer: Michelson type with an angle of incidence of 30⁰, with
- an electromagnetic drive and dynamic adjustment. Sealed with automatic dehumidification
- Optical System: Single beam
- Beam Splitter: KBr plate with germanium coating
- Radiation source: High-temperature ceramic
- Detector: Highly sensitive thermally stabilized detector DLATGS
- Spectral range: 7800 – 350 cm -1
- Permission: 0.5; 1; 2; 4; 8; 16 cm -1
- Mirror movement speed: 4-step: 2.0, 2.8, 5 or 9 mm/sec
- Cuvette: 200x230x170mm
- Dimensions: 20.23″W x 23.85″D x 10.74″H
