Description
- Sealing time: 1 to 2 seconds per seal, varying slightly by tube material
- Capacity: provides approx 1,200 seals per fully charged battery pack
- Max seal rate: up to 55 seals per minute
- Seal width: 0.087″ / 2.21 mm
- Tear strength: 3.99 lbs / 1.8 kg featuring a wide tear design for quick disconnects
- Tubing compatibility: handles PVC tubing up to 1/4″ in diameter, including apheresis and whole blood lines
- 12V DC via a rechargeable nickel-cadmium battery pack or 100-240VAC 50/60Hz wall power
- Radio frequency output: generates a minimum of 40W into a matched 50 ohm load at a frequency or 40.68 +/- 0.02MHz

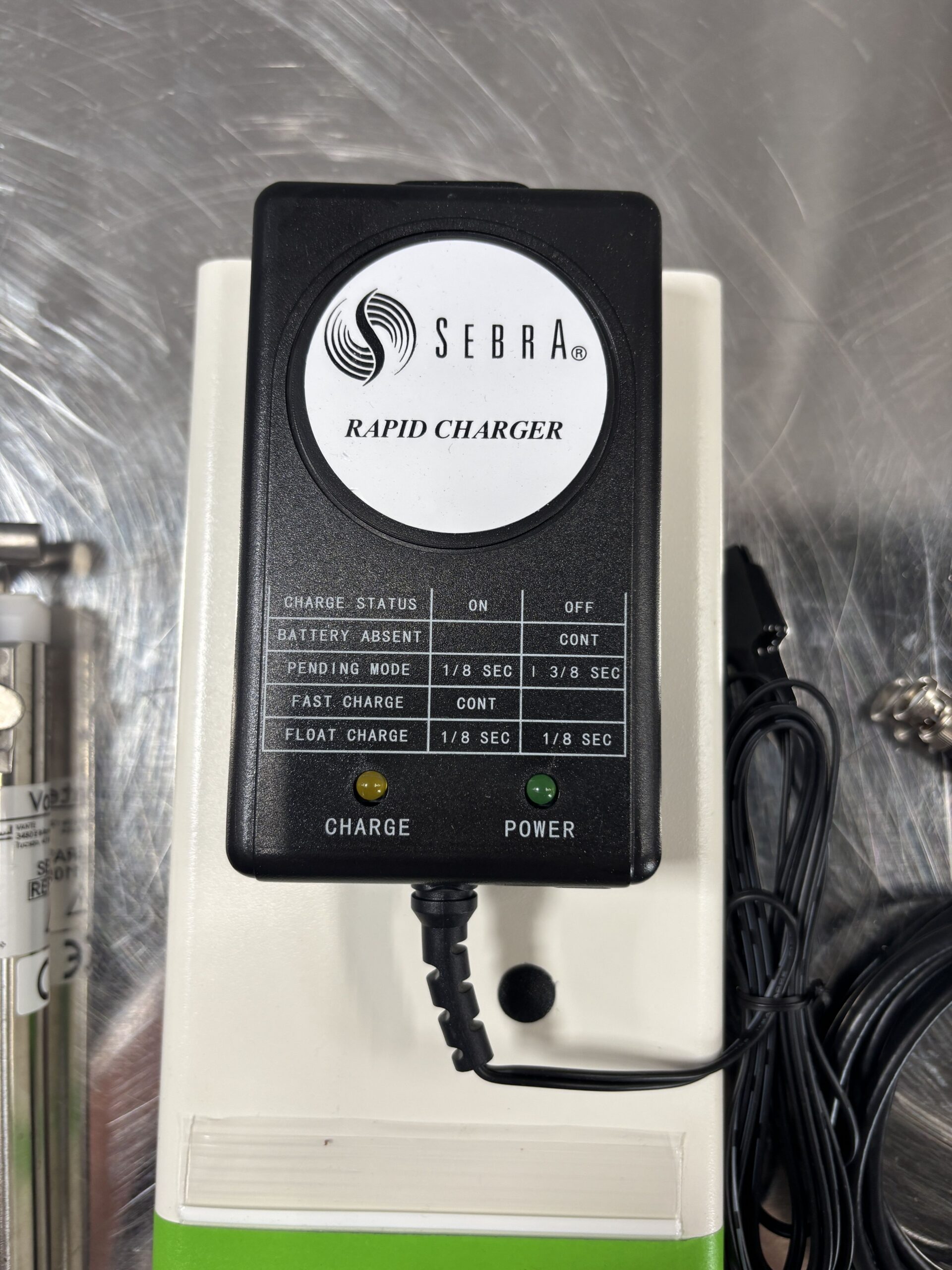

- Battery recharge time: roughly 2 hours using a rapid charger
- Battery capacity: 3.0Ah
- Dimensions: 18″ x 6″ x 2.4″
- Operating conditions: Ambient temp 4C to 38C
- Relative humidity: up to 70% non-condensing
- Max altitude: 2,000 meters / 6,562 feet
- cTUVus compliant
- Power adjusting logic auto detects and alters parameters to accommodate varying tube sizes without manual adjustment

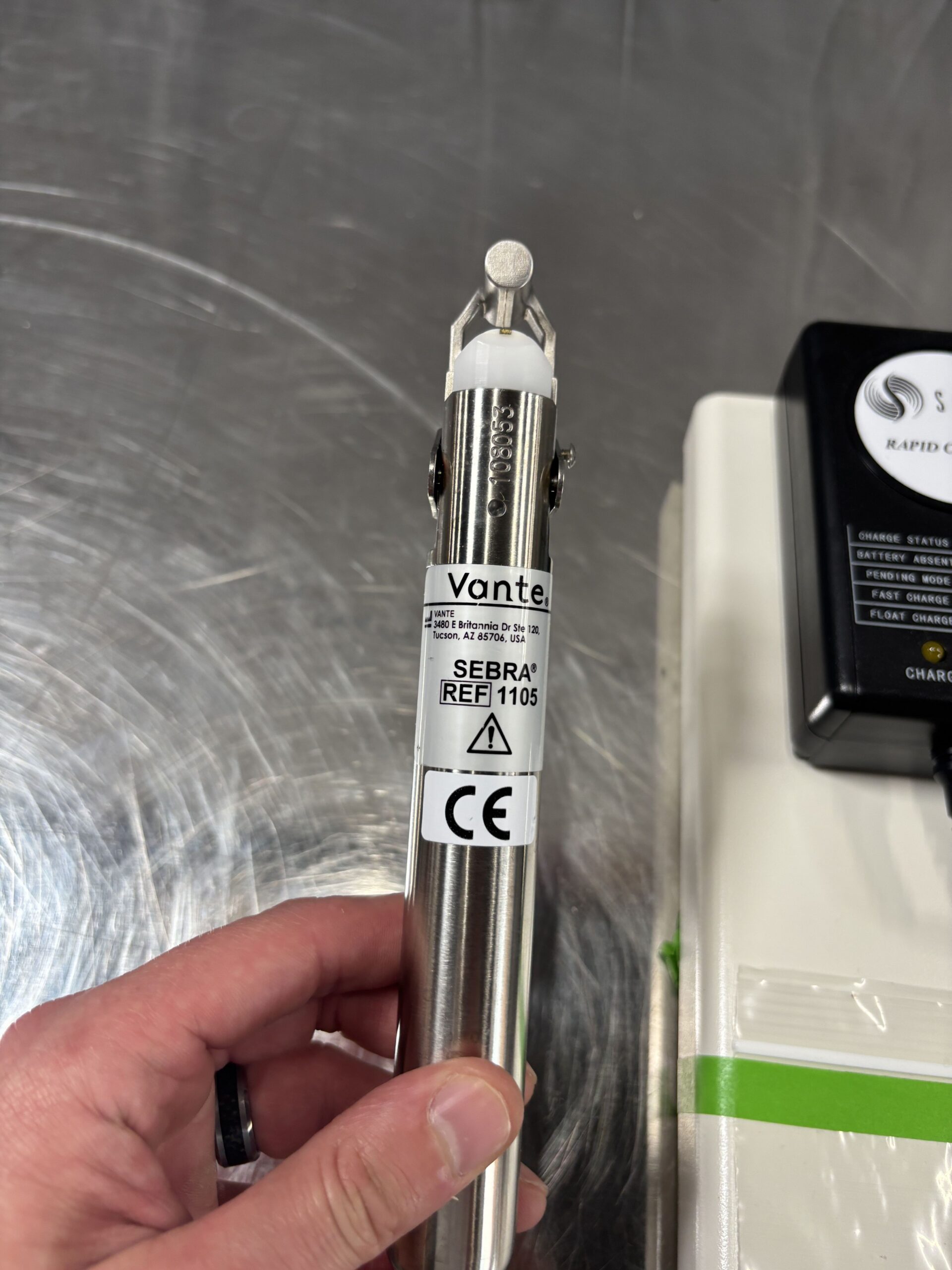

- Includes hand held sealing head pictured
